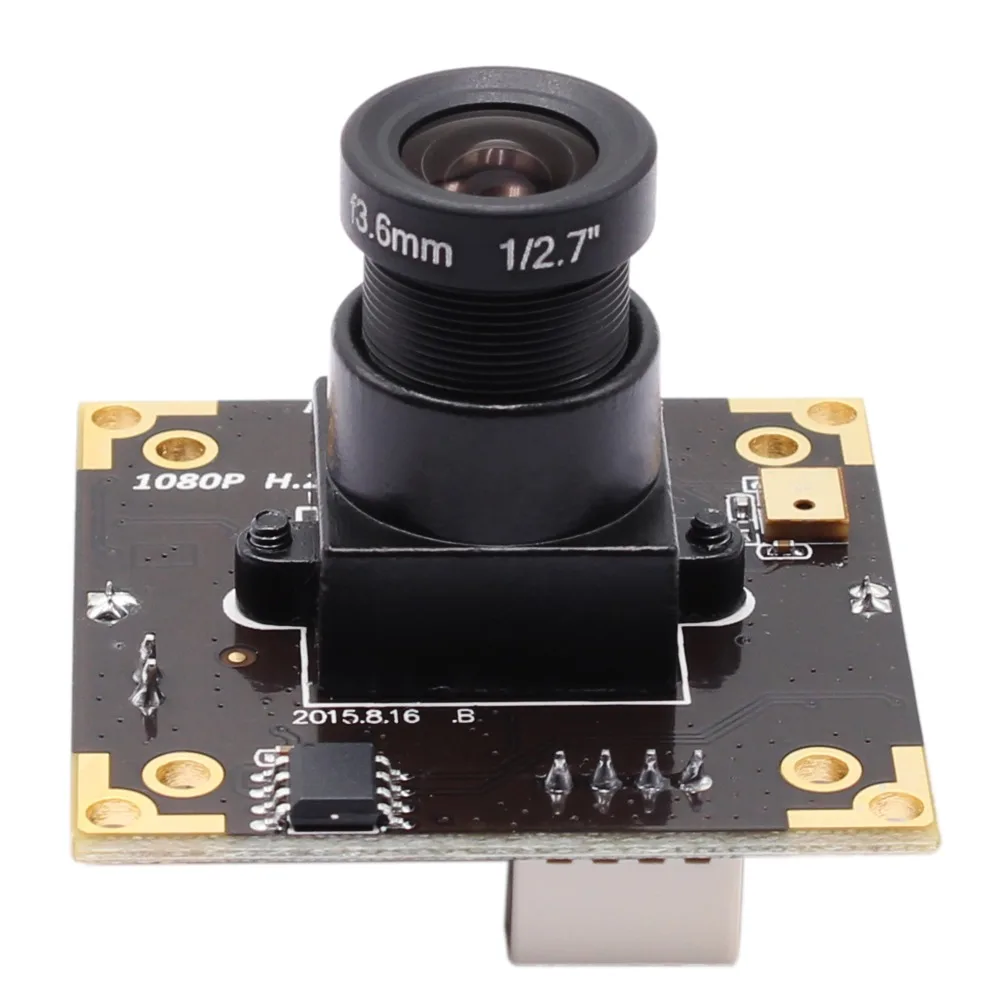

3MP 2048X1536 WDR USB Webcam Aptina AR0331 CMOS H.264/MJPEG/YUYV USB Camera module support digital audio and IR Cut

WDR is refer to  High Dynamic Range Imaging,High-dynamic-range imaging is a high dynamic range (HDR) technique used in imaging and photography to reproduce a greater dynamic range of luminosity than is possible with standard digital imaging or photographic techniques. The aim is to present a similar range of luminance to that experienced through the human visual system

*WDR CMOS 1/3" Aptina AR0331 sensor for high quality image and low power consumption.

*High speed USB 2.0 interface for high resolution PC camera interface.

*high pixel technology for sharp image and accurate color reproduction.

*low light performance – ideal for any lighting condition.

*Super small outline and thin profile for embedded applications.

*High frame rate– deliver H.264 30 fps in 1920X1080 resolution.

*High quality lens, 2.1/2.8/3.6/6/8/12/16mm lens optional.

*Low power consumption – ideal for portable equipment.

*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.

*Camera with UVC.

 Model                              ELP-USB3MP01H


Sensor                          AR0331

Lens Size                     1/3 inch

Pixel Size                      2.2um X2.2um

Max. Resolution           1920(H)X1080(V)

Compression format  H264 /MJPEG / YUV2 (YUYV)

Resolution & frame    H264: 640X360@ 30fps /1280X720@ 30fps /1920X1080@ 30fps

                                   MJPEG:640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps/1280X1024@

                                  30fps/1920X1080@ 30fps /1600X1200@ 15fps /2048X1536@ 15fps

                                   YUV:640X480@ 30fps /800X600@ 20fps /1280X720@ 5fps/1280X1024@

                                   5fps/1920X1080@5fps /1600X1200@ 5fps /2048X1536@ 3fps

S/N Ratio                    39dB

Dynamic Range          Up to 100 dB

Responsivity               2.0 V/lux-sec

Mini illumination          0. 05lux

Shutter Type               Electronic rolling shutter and GRR

Connecting Port type  USB2.0 High Speed

Free Drive Protocol    USB Video Class (UVC)

Support OTG Protocol  USB2.0 OTG

AEC                            Support

AEB                            Support

AGC                            Support

Adjustable parameters  Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,

                                      Gain, White balance, Backlight Contrast, Exposure

Lens Parameter            Standard 2.9mm, optional 3.7mm/FOV(D)80 Degree No distortion LENS

Digital audio                  High quality digital MIC, support single, dual channel

IR CUT Connector         Support 2P-1.25mm socket

LED board power connector  Support 2P-2.0mm socket

Power supply                 USB BUS POWER 4P-2.0mm socket

Power supply                 DC5V

Operating Voltage         140mA~200mA

Working current             -10-70degree

Working temperature     -20-85degree

Board size /Weight        38X38mm/ about 30g

Cable  Standard            1M / optional 2M,3M,5M

Operating system request   Win7 Win8 Win10 Win11

                                           Linux 2.6 or above

                                            Android 4.0 or above

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site

monitoring, environmental monitoring, etc.

 used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player,

 LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external,

 evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system,

simple security system, teaching system, Interactive system,  automobile data recorder. Project video capture,

  credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system,

Driving learning system, Industrial camera, biological microscope, box inside surveillance,  micro HD surveillance,

 endoscope, Medical auxiliary equipment, etc.

Our USB Camera include VGA 640X480,1MP,1.3MP,2MP,5MP and 8MP resolution
