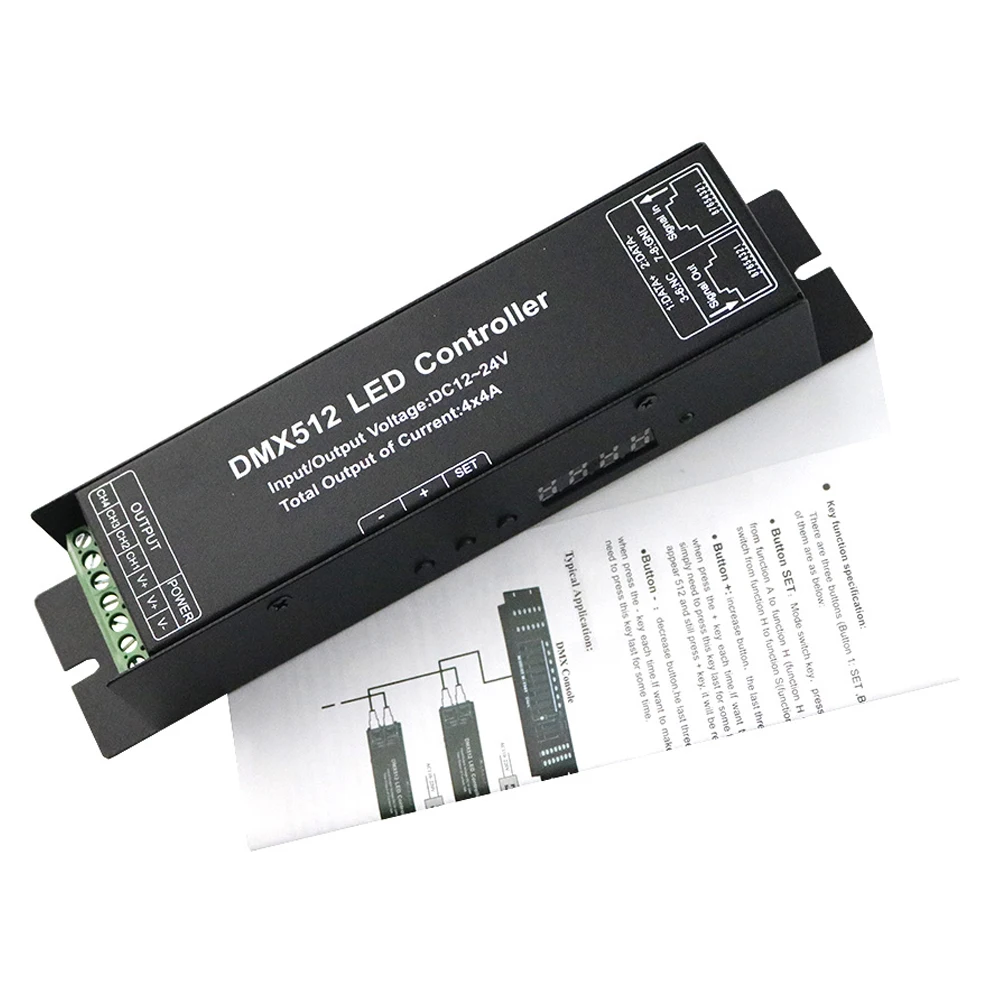

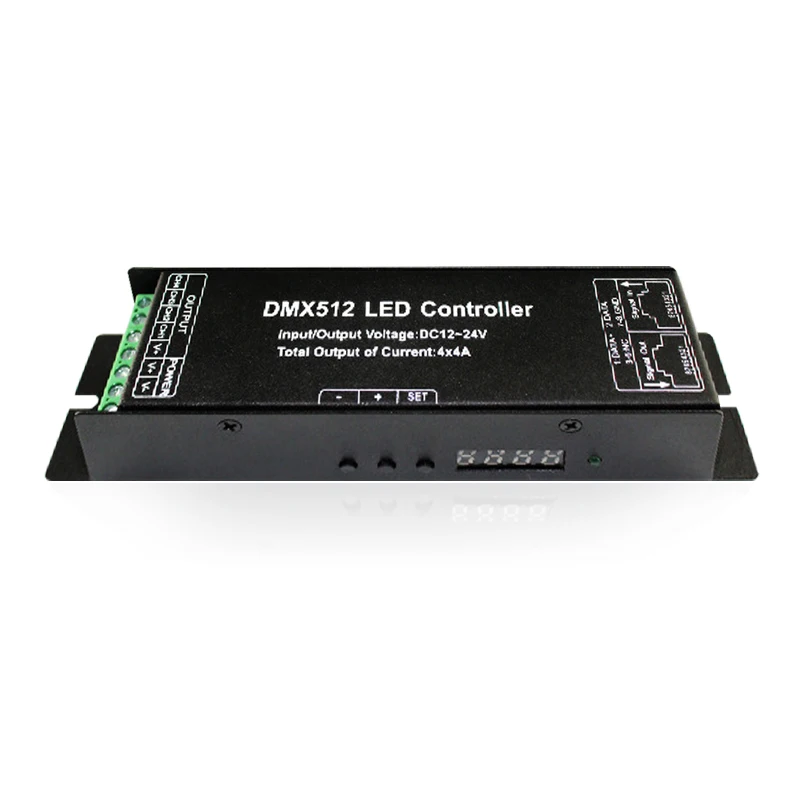

LED Controller RGBW Decoder DMX512 4 Channels DC 12V 24V RGB Led Signal 4*4A for Strip Light JQ | Освещение

LED Controller RGBW Decoder DMX512 4 Channels DC 12V 24V RGB Led Signal 4*4A for Strip Light JQ | Освещение

Product manual

DMX decoder adopts advanced computer control chip to receive DMX-512 standard digital control signal widely used in the world and convert it into PWM controller signal to drive LED; it can be connected with DMX digital console, and can increase the decoder to continuously expand the output channel. Achieve more dimming or various program changes. When the decoder is not connected to the DMX console, the unit can be used as a synchronous controller to synchronize multiple decoders and LEDs. In addition, the LED digital tube is used to display the address code, and the button type setting code address is increased or decreased, and the operation is flexible and convenient, and the display is easy to see and so on.

Performance parameter

Supply Voltage: DC 12V~24V

External dimension: L177×W42×H33mm

Net weight: 201g Gross weight: 220g

Output: 4 circuit Connection mode: Common anode,

Static power consumption :<1W Output Current:<4A(each circuit)

Output Power: 5V: <80W, 12V: <192W, 24V: <384W

Total Output of Current:4*4A

Instructions for use

First, the digital display instructions:

It adopts four-digit digital tube display, the button increases or decreases the setting address, and each decoder occupies 3 addresses. The first digit tube is a function indicator that only displays A, H or S; the last three digits are digital digits.

1) When the first digit tube is displayed as A, it is the DMX512 state, indicating that the decoder enters the DMX512 signal control state. At this time, the main console can be connected to the output through the network cable. For example, the digital tube is displayed as A001, indicating that the decoder's starting address code is 001, and the immediately following two channels correspond to 002 and 003 respectively. If the string is connected to another decoder, the starting address of the lower decoder is 004, and the other two channels are 005 and 006, respectively. And so on, you can continuously connect multiple decoders and perform multiple points of individual manipulation. If the start code of the connected decoder is the same, the function of synchronous control can be realized.

2) When the first digit display is H, it is the built-in mode state, indicating that the decoder enters the built-in program mode operation state. Its built-in mode table is as follows:

Display symbol

mode

Display symbol

mode

H-00

Turn off the output

H-05

Static purple

H-01

Static red

H-06

Static green

H-02

Static green

H-07

Static white

H-03

Static blue

H-08

Colorful jump (speed adjustable)

H-04

Static yellow

H-09

Colorful gradient (adjustable speed)

3) When the first digital tube is displayed as S, it is set to the built-in speed. This state is only used in H-08 and H-09 modes. Press the SET button to enter the speed adjustment, and use the - and + buttons to achieve a total of 11 speed selections. Other modes are invalid.

Second, the button function description:

The three buttons are named: SET, - and +, and the functions are as follows:

SET: Function switch button, long press (about 2 seconds) This button can switch between A and H states. Tap to switch between H and S states.

+: Increase the key. Each time you press it, the three digits of the number of the tube code are incremented by one. When the address code is set, the long press can achieve a rapid increase. Note: The maximum address code is 512, plus 1 to return to the value 001;

-:Return button. Each time you press it, the three digits of the tube code are decremented by one. When you set the address code, you can quickly decrement.

Remark: When the button has no operation for 5s, the decoder enters the self-locking working state. At this time, the brightness of the digital tube becomes dark, and the three buttons are lightly pressed. If you need to wake up the button function, press and hold (2s or so) any button to unlock.

Product  includes: 4CH(4*4A) DMX 512 Decoder led controller*1pcs
