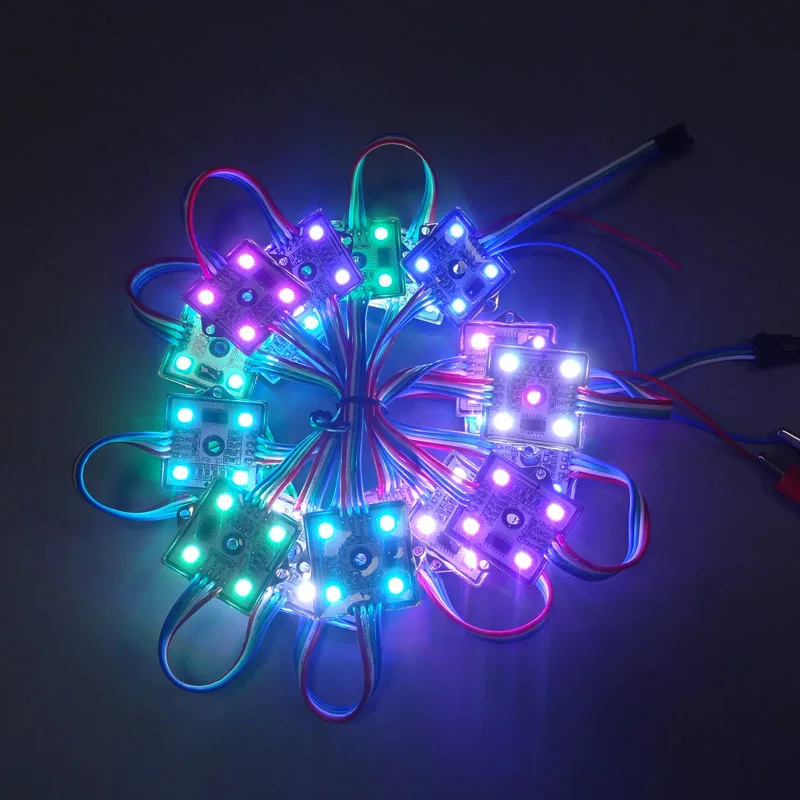

20pcs/set DC12V 35*35mm 4LEDs WS2811 led pixel module light; 4pcs 5050 SMD RGB addressable LED module lights; Waterproof IP68

1. Adpots high quality SMD 5050 LED as lighting source.

2. With good proection level. can achieve IP68.

3. each module as one pixel, 4leds each module,RGB full color,can be controlled individually

4. It is easy installation

5. good looking,made with the injection machine.

6. using the RGB cabe,with good cold resistance ability

7. works with matrix controller,or SPI pixel controller,on-line controller.etc

Part No

HNM-35X35mm-WS2811-20LED-12V

Color

full color RGB, each module as one pixel

LED Qty

4pcs high bright 5050 smd rgb led

Input Volt

DC12V

Max current

60MA

Max Power

14.4W

Driver method

Constant current circuit

Dimension

35mmX35mm

Viewing angle

150-180degree

Protection Level

waterproof IP68

Certification

CE and RoHS

Standard connection

20pcs module per string

Standard wire length

100MM(from side to side)

Housing

Iron shell

Lifespan

35000 hours

Warranty

2years

Operation temperature

-40~50 °C

Store temperature

-50~60 °C

Packing List:

5strings X 20pcs 35*35mm WS2811 LED Pixel Module

LED Pixel Controller.
