MT-50 Solar Controller LCD Display Remote Meter for TRACER A BN Viewstar/Tracer-AN MPPT LCD Display Digital Solar Charge Controller 10A

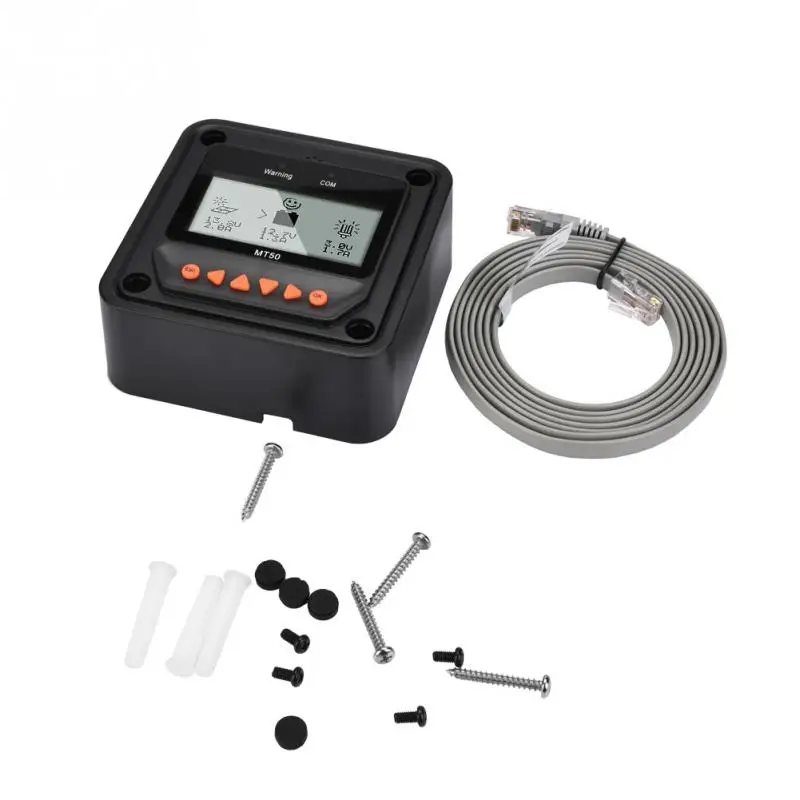

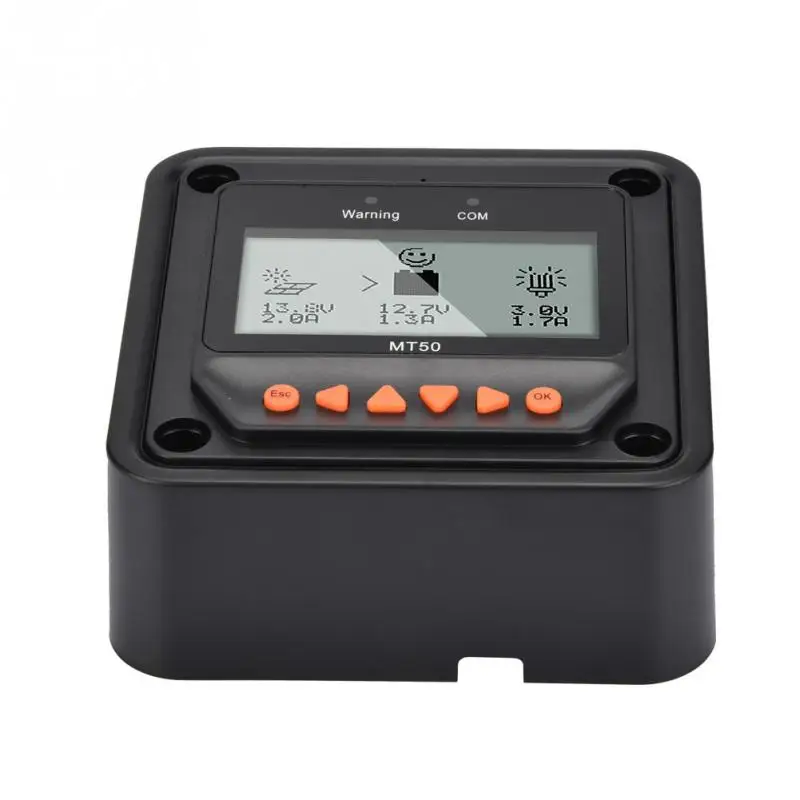

Features:Type1

1. Automatic identify the controller, and display the type, model and relevant parameter data

2. Large-screen multifunction LCD displays all the operational data and system working status in digital, graphic and textual forms

3. With six navigation function keys, the operation is direct, convenient and rapid

4. Can complete real-time data monitoring, remote load switch, device parameters, charging control parameters, load control parameters data browsing and modification operations of the connected controller

5. Load working mode setting can be made through the meter head: manual, pure light control, light control + delay, timing

6. Real-time display and voice alarm of connected device fault information

7. Longer communication distance based on RS485

Specification:

Condition: 100% Brand New

Model: MT50

Weight: Approx. 351g / 12.4oz

Package List:

1 * MT50

1 * Cable

1 Set of Accessories

Features:

1. Communication port protection, Tracer-AN added a dedicated 5V power supply protection chip in the communication port, with short-circuit protection and current-limit protection.

2. LCD backlight function, Tracer-AN adds LCD backlight function, the backlight time defaults to 60S.

3. PV charging current limit power function, Tracer-AN has current limit power function.

4. Over temperature derating function, Tracer-AN adds high temperature drop power charging function. When the temperature reaches above 85℃, stop charging immediately. When the internal temperature is not more than 75℃, the rated charging power is restored.

5. Algorithm optimization, Tracer-AN improves the dynamic response speed, when used in RV or cloudy weather.

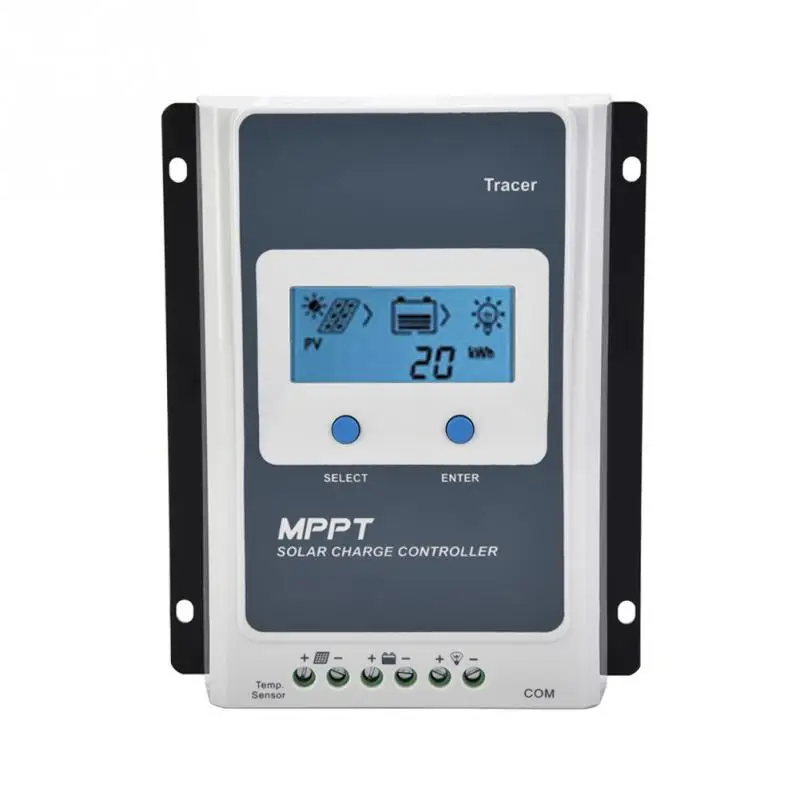

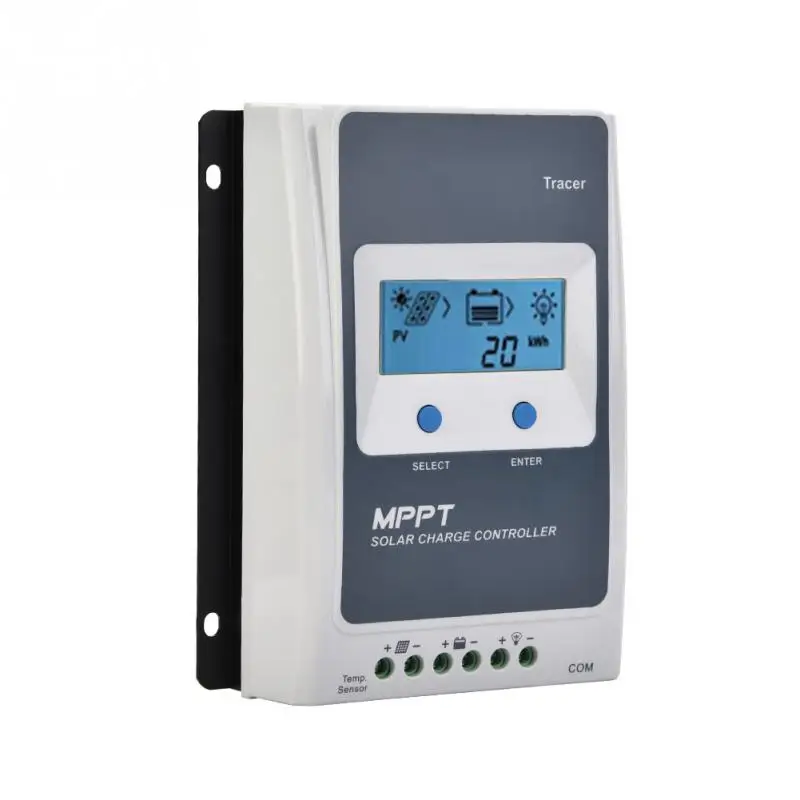

Specification:Type2

Condition: 100% Brand New

Model: Tracer-AN

Rated Voltage: 12/24V DC

Current: 10A

Controller Voltage Range: 8~32V

Maximum PV Open Circuit Voltage: 100V (Lowest Temperature) 92V (25°C)

Maximum PV Input Power: 130W/12V 260W/24V

Static Loss: ≤12mA

Discharge Loop Voltage Drop: ≤0.23V

Temperature Compensation Coefficient: -3mv/°C/2V (Default)

Grounding Type: Negative Ground

RV485 Communication Interface: 5VDC/100ma

LCD Backlight Time: 60S

Operating Temperature Range: -25~50°C (Full Load Operation)

Storage Temperature Range: -20~70°C

Relative Humidity: ≤95%, No Condensation

Protection Level: IP30

Weight: Approx. 725g / 25.6oz

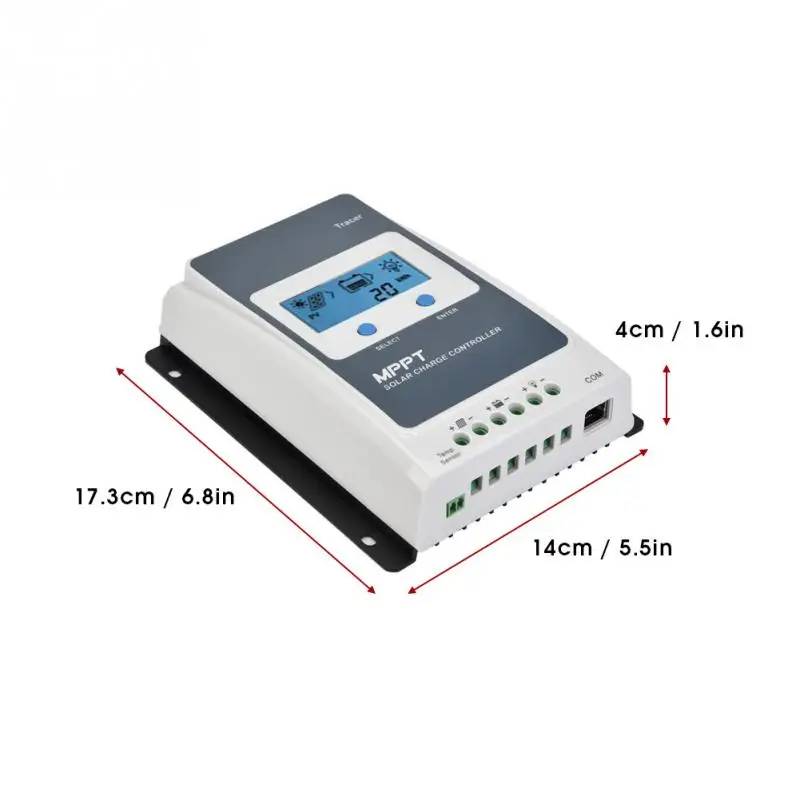

Size: Approx. 17.3 * 14 * 4cm / 6.8 * 5.5 * 1.6in

Package List:

1 * Solar Charge Controller

Type1

Type2
