Стандарт ЕС 1/2/3 банды Wifi сенсорный выключатель Умный настенный одинарное живое

Стандарт ЕС 1/2/3 банды Wifi сенсорный выключатель Умный настенный одинарное живое

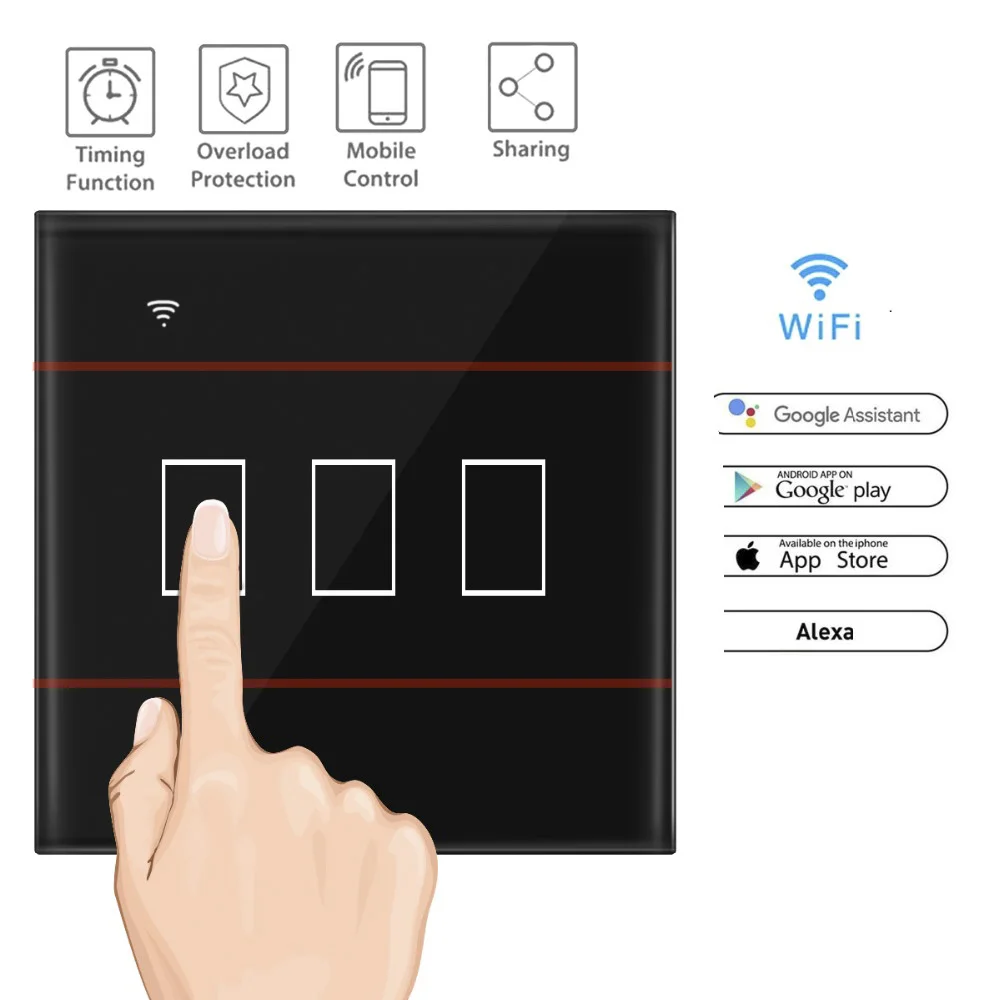

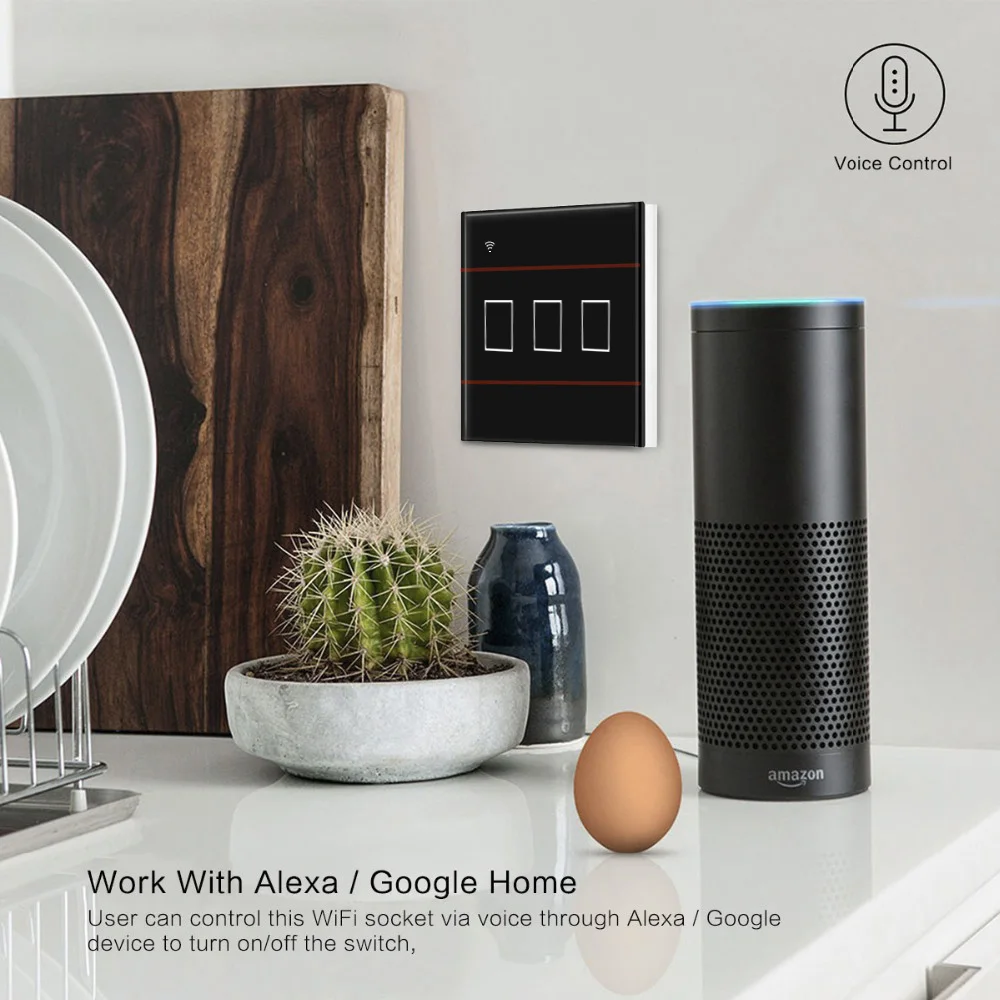

Characteristics: Smart Wi-Fi touch wall switch: This touch switch supports a maximum power of 2200 W that can work with most lights and other electrical appliances. You can control the 1/2/3 Appliances separately at the same time., AC Voltage 90-250 V. Remote Control application: the user can use a smartphone to remotely control electronic on / off devices at any time and anywhere through the application, as long as the phone has a 2G / 3G / 4G network /WIFI. Makes your appliances smart in 1 second. Compatible with iOS and Android OS? Application download: eWeLink. Superior quality: manufactured with fire-resistant ABS housing and tempered glass panel that guarantees good durability. Luxury and fashionable design that can fit well in most houses with different decoration styles. More Smart: works with Amazon Alexa / Google Home, the user can control this WiFi plug through the voice through the Alexa / Google device to turn on / off the switch (supports independent control), which makes the operation more Practical and smarter. Strong function: support timer function that includes countdown, single timer and repeat, you can set up to 8 groups of timer settings. Compatible with multiplayer control, a switch can be controlled with up to 20 phones (with share function) And one phone can control several switches (it depends on the router bearing in practical use). Support network shutdown function, the timer setting can work as usual even if the network is shutting down. Note: Scan the QR code on the QR code card to download the application and read the user guide. Note: This Wi-Fi touch switch needs to connect to a neutral line. Specification: Type: 1/2/3 Gang touch Wi-Fi switch (EU / US standard) Material: Fire resistant ABS, tempered glass Quantity: 1 pc Item Color: White / Black / Gold Nominal voltage: AC 90V-250V, 50 / 60Hz Rated power: 2200 W Maximum current: 2A Wi-Fi: 2.4 GHz IEEE 802.11 b / g / n Plug: European / American standard Supported operating system: Android and iOS Wireless power consumption: ≤ 0.3 W Power supply: neutral and live cable Temporary job? : -40 ~ 60 ° C Certification: CE RoHS FCC EMC Size: type 86: 8.6 * 8.6 * 3.5 MM (EU) Type 120: 120 * 70 * 40 MM (US) Net weight: 130g (EU) 165g (US) Package: 1 * Wi-Fi touch light switch 1 * package box

Add device 1. Turn on the wall switch. 2. Press the button for a few seconds until it flashes rapidly to enter the WIFI pairing status. 3. The flashing mode is: flashes 3 times and turns on several times. For Android users, select the first icon and click Next. For IOS users, select the corresponding icon, click Next. EWeLink automatically searches and connects to the device. 4. Enter the SSID password of your home: If there is no password, keep it blank. Now eWeLink only supports 2 4G WIFI Communication protocol, 5G-WiFi is not supported. 5. Name of the device to complete. 6. Maybe the device is offline in eWeLink, for the device You need 1-2 minutes to connect to your router and server. When the green LED turns on, the device is online. If eWeLink shows that it is still offline, close eWeLink and reopen. Notes 1. Install the switch with electricity off 2. Do not exceed the maximum load 3. Do not test without the glass panel. Install the glass panel before turning on. Problems and solutions Read the detailed Frequently Asked Questions about the ltead Smart Start Forum. Yes then The answers cannot solve your problem. Send a rating. In eWeLink! 1. Has my device been added correctly but is it kept offline? The newly added device needs 1-2 min to connect to your Router and Internet. If you stay offline for a long time, check the problem by the status of the green LED: The green LED flashes quickly once and repeats, which means that the device does not connect to the router. The reason why it can be You have entered an incorrect WiFi password or your device is too far from the router, which causes a weak WiFi signal. The The device cannot be added to the 5G-wifi-router, only the 2.4G wifi is fine. Finally, make sure your router is open MAC. The green LED flashes slowly once and repeats, which means that the device has been connected to the router and the server, but could not Added to the list of devices. Then turn on the device again, if it still does not work. Add the device again. Green LED flashes quickly twice and repeats, this means that The device has connected to the router but has not connected to the server. Next, confirm that your WiFi router works normally. 2. Why can't the application find the device in pairing status? Answers: This is due to your phone's cache. Please, Close your phone's WLAN and open it after a minute. At the same time, please turn off the device if you can, then turn it on to try again, 3. My WiFi has expired, can I connect the devices to LAN? Answers: it is not compatible with being controlled by LAN you need to connect it to a WiFi with Internet. Application Features 1. WiFi Remote control and synchronous staturn on / off device by touching the device icon in the application. The device status is always displayed simultaneously in the application. 2 share control The owner can share the devices with other eWeLink accounts. While sharing devices, Both must be online in eWeLink (keep the screen lit). Because if the account you want to share You are not online, you will not receive the invitation message. How to make it possible? First, click share, enter the EWeLink account (phone number or email address) you want to share, check the timer permissions (Edit / delete / Change / enable) you want to give. Then clickNext! The other account Receive an invitation message. Click OK, the device has been shared successfully. The other user will have access to control the device. 3 The schedules Supports a maximum of 8 synchronization schedules enabled for repeat / countdown of each device. 4. Smart Scene / Scene The scene allows you to activate / deactivate devices automatically The scene settings are in the upper right corner of the device list. You can configure scenes or smart scenes to enable / disable the device. Users must select click to execute in the condition, Add different existing devices, name the scene and save it. 5. Set the default device status In the device configuration. You can set the default device status to turn on or off when the device is turned on. 6 safety mechanism A device, an owner. Other people cannot add devices that have already been added. If you want to add your device to another account, don't forget to remove it first. 7 update It will automatically remind you of the new firmware or version. Update as soon as you can.
