2 colors label bottle screen printing machine Product description:

This model is a small high-profile curved screen printing machine, which is suitable to small cylinder printing, such as cosmetic bottles, hardware, stationery, etc. It has high printing precision, accurate positioning and fast speed. It can also be printed on circular workpieces with a diameter of up to 120mm; the workpiece material can be plastic, steel, ceramic, glass, etc.

2 colors label bottle screen printing machine product Features:

1. The screen printing machine adopts multi-servo to complete the automatic alignment color matching standard, and the color registration is accurate, and the color registration sensor is used for accurate alignment and color registration.

1. PLC microcomputer controls various function actions, with high degree of automation and simple and convenient operation.

2. Built-in four-digit automatic counter.

3, printing stroke and speed can be adjusted to meet different printing requirements.

4, the workbench can be fine-tuned up and down, left and right and plane swing angle, adjustment is convenient and fast.

5. Pneumatic print control with pressure adjustment system.

6, stable and reliable performance, bright and clear blue display, display the working status of the machine at any time.

7, high quality AUTONICS sensor and perfect fault alarm system.

8. Convenient foot switch, easy to operate and easy to maintain.

9. Light and strong alloy die-cast parts and wear-resistant imported bearing bushings.
10. Adopt international famous brand pneumatic components.

11. independent printing and ink return speed control.

2 colors label bottle screen printing machine Technical Parameters:

1. Maximum print diameter: less 120mm

2 The maximum print length: less 300mm

3 The fastest printing speed: 700pcs / hour

4 Power requirements: AC220V 50/60Hz

5 Rated power: 1600W

6 Air pressure requirements: 4 ~ 6bar

7 Machine Dimension: 1050mmx1100mmx1650mm

8 Machine weight: 280 kg

Remark:

1 Delivery Time: 20 days when get your payment;

2 Payment: 40% deposit in advance, the balance against the machine is ready.

3 Package: Plywood case

4 Warranty: 1 year

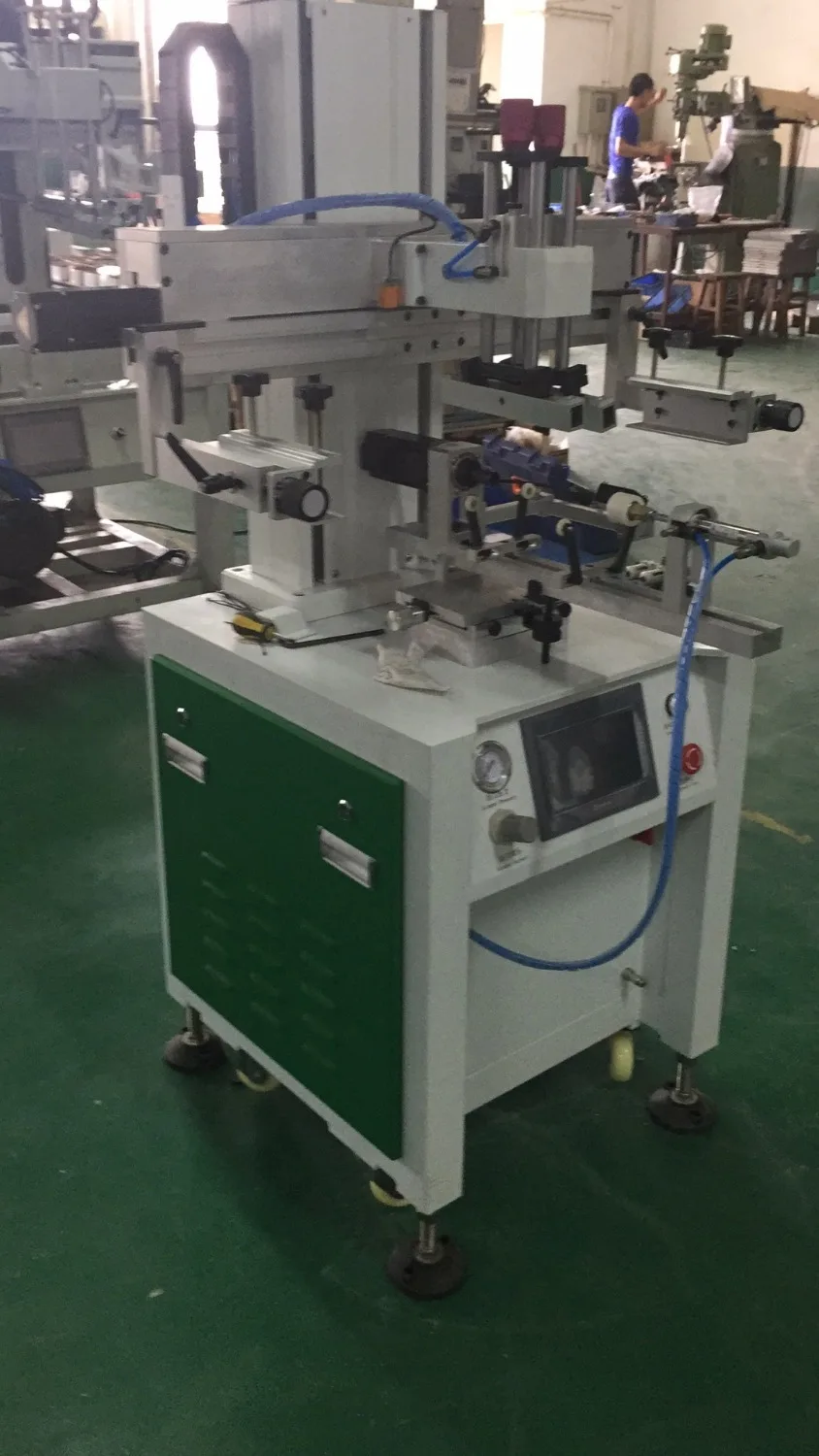

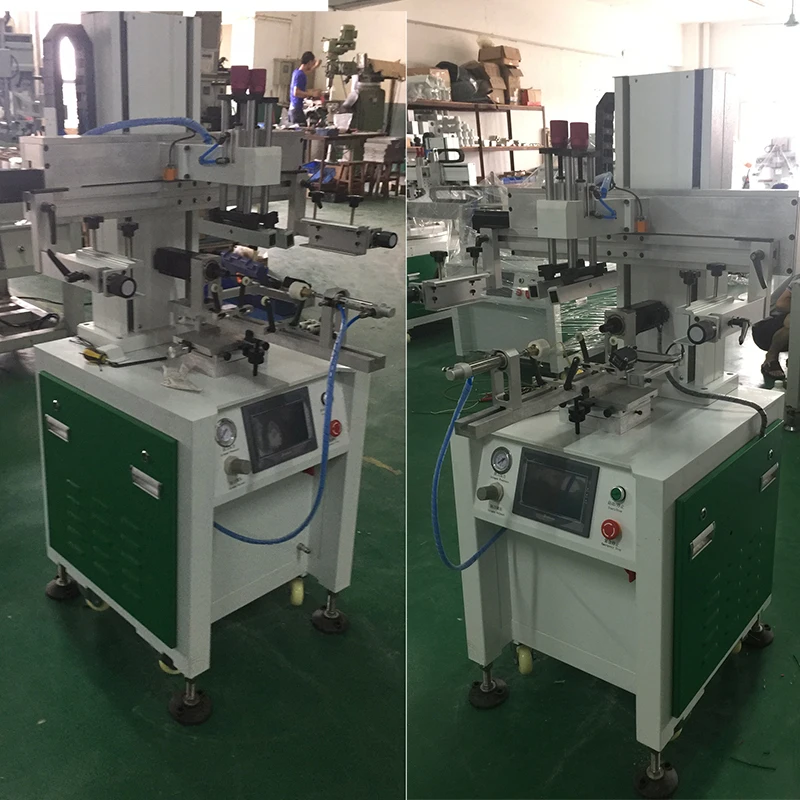

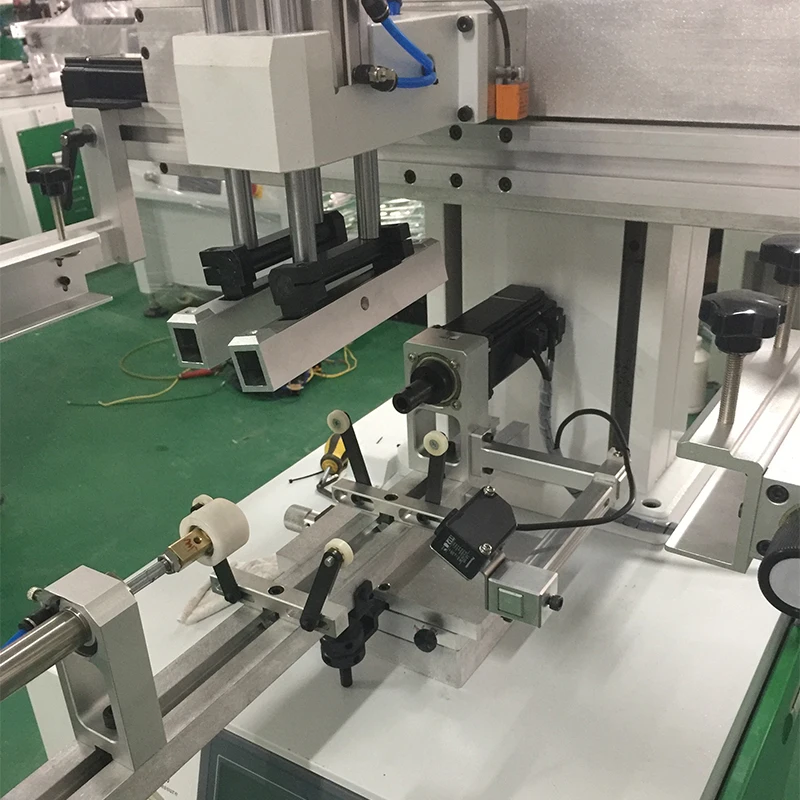

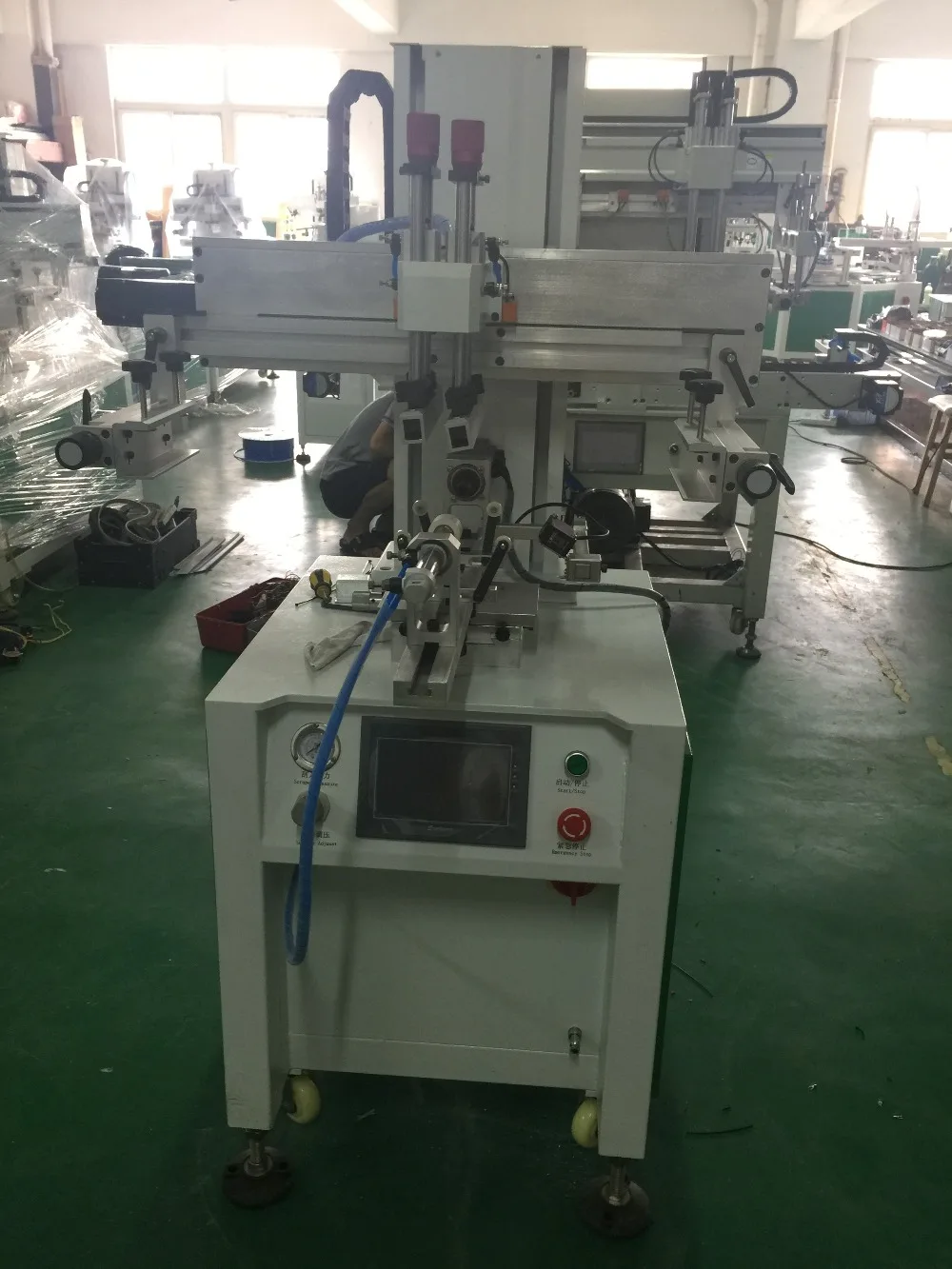

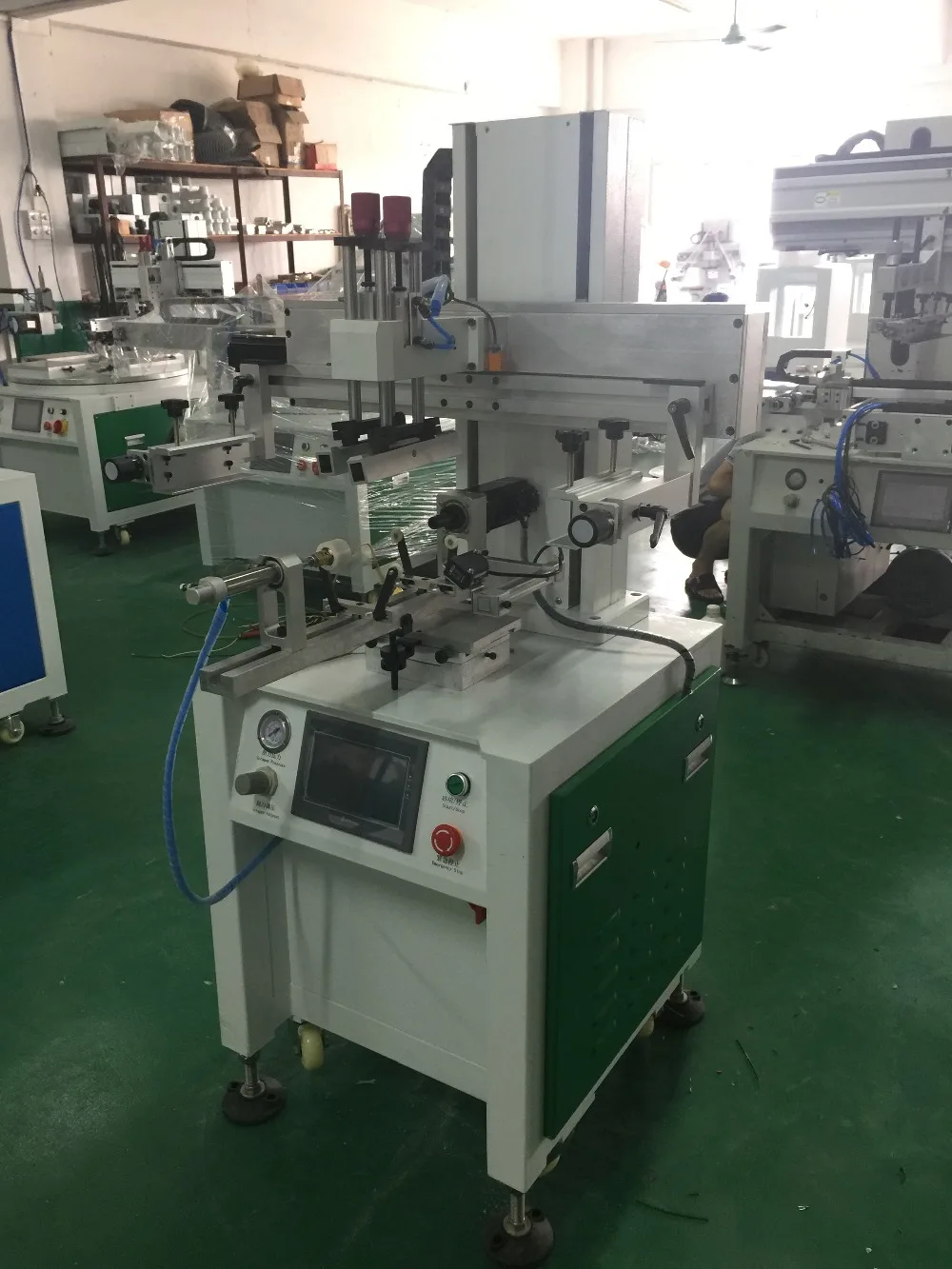

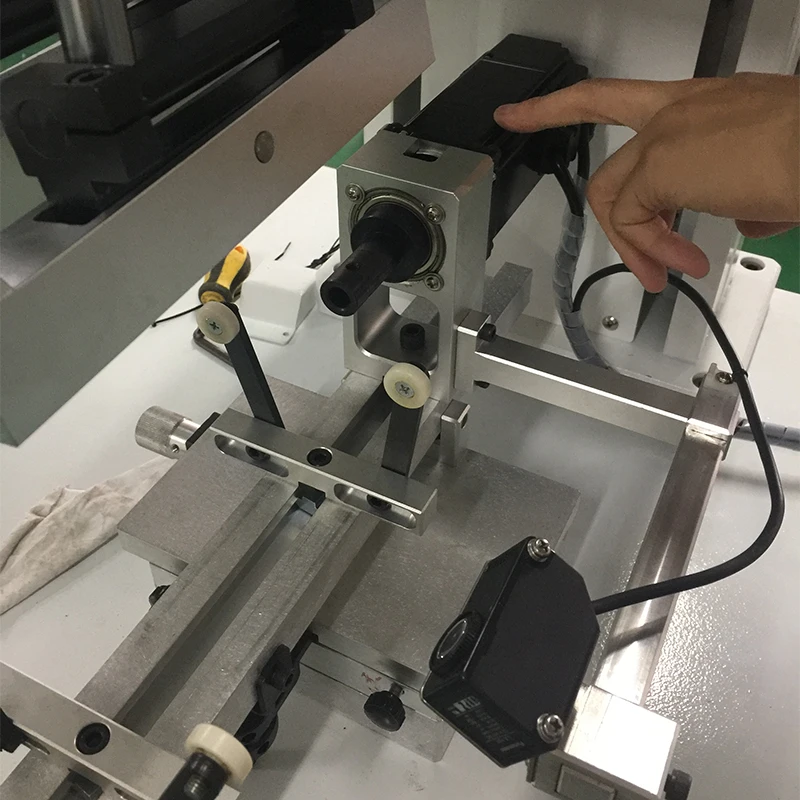

Actual PICTURE:

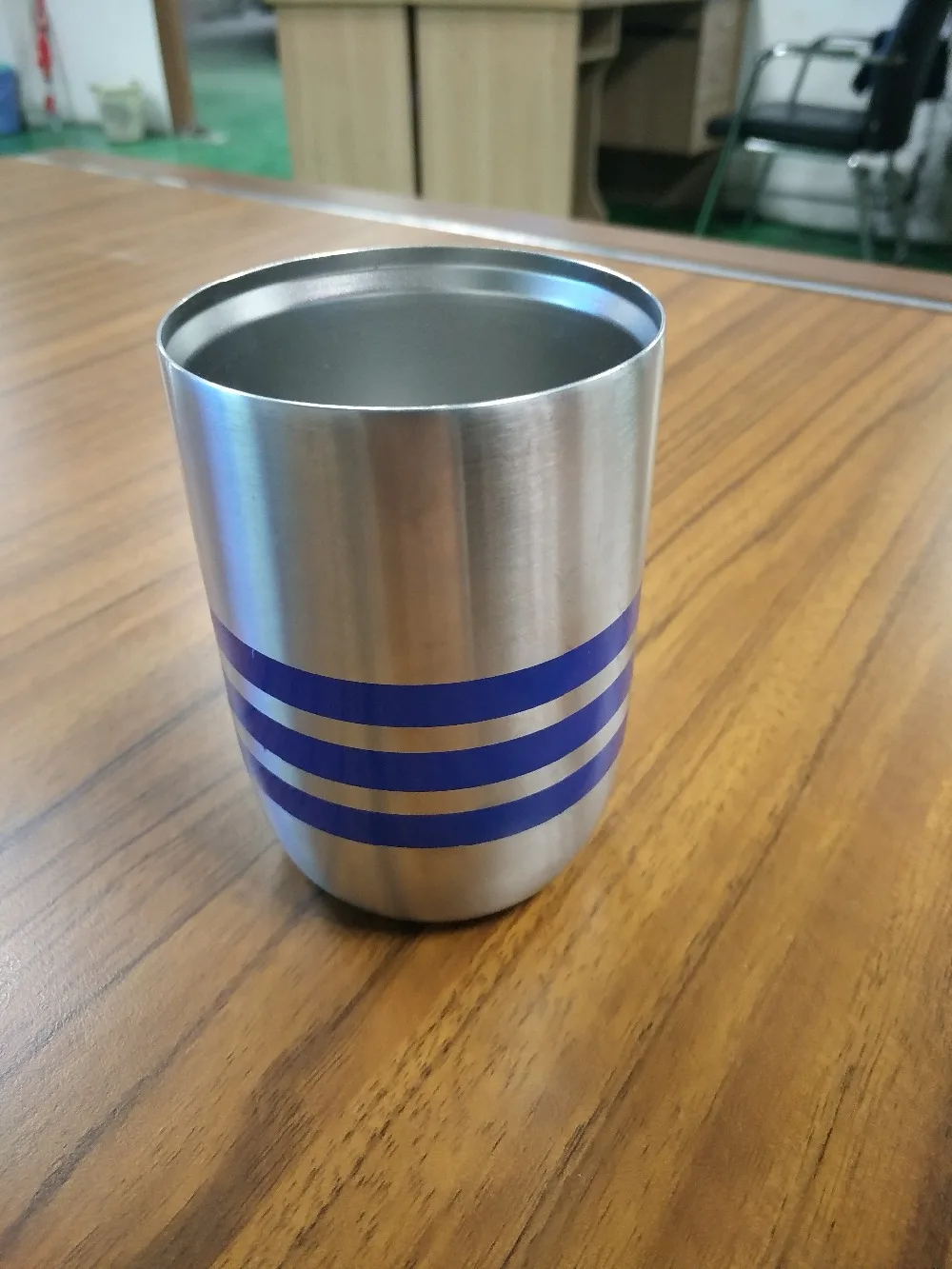

Samples:

DHL, FEDEX IE, FEDEX IP,TNT, UPS,Aramex Etc. Their delivery time about  5-7 work days. Base on safe condition, we will choice more economical way to send out. If you have any special request, please leave the massage to us.

Big package we can arranging the delivery by sea or to your forwarder's agent as your point.
