CE Standard Price Of Stainless Steel Utensils Laser Marking Machine For Phone Cases With Long Life

Features of price of stainless steel utensils laser marking machine for phone cases

1,High pulse repeating rate and stable power bring high speed laser marking.

2, long lifetime, laser source working lifetime is more than 100,000 hours

3, protective cover with anti-radiation function, dust proof and eyes protecting.

4, whole machine power less than 0.5kw, low consumption

5,Germany, America imported main parts and Swiss design, Europe standard.

Application of price of stainless steel utensils laser marking machine for phone cases

1,Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical

appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry,

auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.,

2,Metals (including rare metals), engineering plastics, electroplating materials, coating materials,coating

materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.

Parameter of price of stainless steel utensils laser marking machine for phone cases

Model

LF-20

LF-30

LF-50

Laser Power

20W

30W

50W

Laser Wavelength

1064nm

Q-frequency

20KHz~30KHz

Divergence

0.3mard

Marking Range

100*100mm

Minimum Line Width

0.02mm

Minimum Character

0.15mm

Marking Depth

0 ~0.5mm

Engraving Line Speed

≤7000mm/s

Repeatability Accuracy

±0.001mm

Beam Quality

M2:1.2~1.8

Marking Format

Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Dateetc

Graphic Format Supported

bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.

Unit Power

<0.5kw

Laser Module Life

>100000 hours

How can we selected one suitable fiber laser marking machine

1. Confirm your details application, engraving, cutting or both

2. When we just use laser engraving machine on jewelery engraving. 20w and 30w is enough.

if both engraving and cutting, 30w and 50w is ok

3. Confirm what kind of machine specification you will get for jewelery laser engraving machine

4. Confirm whether supplier have enough experience on jewelery processing and how about the after-service

5. Ask machine price.

We know most customers will check price as the first step, but for jewellery engraving, price is not

important. As we need buy one machine can meet our demand, not buy one cheap machine.

FIBER LASER MARKING MACHINE Advantage

1) Under operation system: windowns xp , windowns 7 ,windows8/10
2) Support Characters , digital, series NO, Date codes
3) Various types of fonts are supported. Such as TrueType, JSF(Single line font ), DMF(Dot Matrix Font,

One-Dimensional bar code, Two-Dimensional bar code , and so on
4) Common types of images are supported. (bmp, jpg, gif, tga, png, tif…)
5) Common vector images are supported. (ai, dxf, dst, plt…)
6) Flexible variable text : changes the text real time while in laser processing . Excel datasheet is supported.
7) Dometic and Imported fiber laser source.
8) Excellent optical mode, long operating life, up to 100,000HS
9) The highest electro-optical conversion efficiency, up to 80%, but gross power less than 600W
10) Small size, steady, without maintenance, easy to operate
11) High precision, suited for fine processing on all metal and some non-metal.
12) This machine adapts the fiber laser and has high electro- optical conversion rate, the quality of laser beam is good,

cooling with air- cooling methods, it has smaller shape, low power and much more energy-efficient.
13) Divergent Angle is about a quarter of the pump laser semiconducto, especially mainly used in precise, fine marking,

low using cost, electro-optic conversion efficiency is up to 30% .

Q: What’s the package?

A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam,

to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced

in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel

in good condition.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training

video, user’s manual along with the machine. 95% customers can learn by themselves.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else.

We will response within 24 hours as quick as we can to solve it for you.

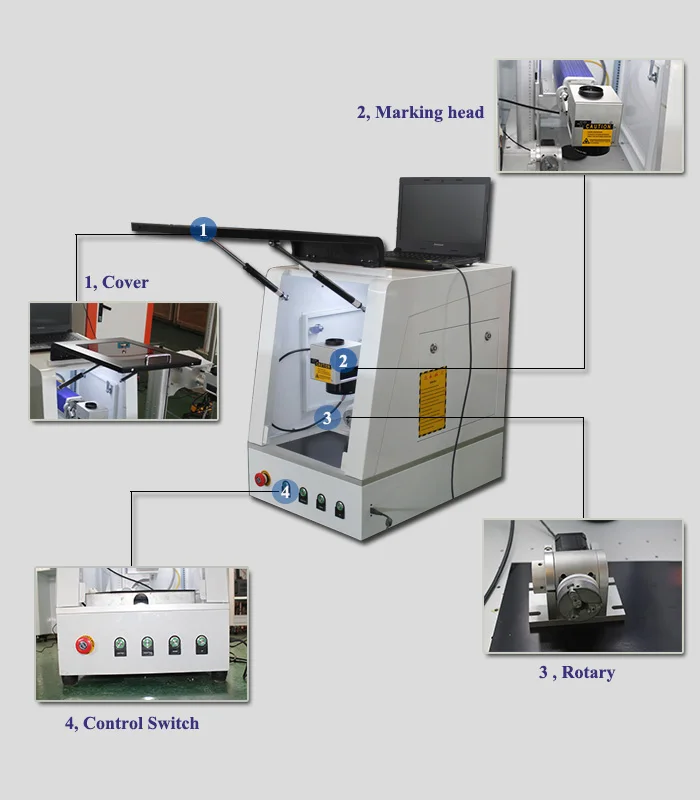

Q: Can we add a protection cover?
A: Yes, we can add a protection cover if you need. We can customize the design as customers’ requests.
