In order to ensure the high accuracy of products, the quality department randomly inspects each batch of products and sends them to Guangdong Electrical and Electronic Products Supervision and Inspection Institute for third-party inspection. Guarantee the stability of the manufactured products.

Torque resistance is a safety index of mechanical strength of lamp holder for light source. It has been paid attention by manufacturers of various light sources, and it is also a compulsory national test item. The lamp head torsion tester is an ideal tool for testing the torsion of different lamp heads, such as energy-saving lamp, incandescent lamp, high-pressure mercury lamp, sodium lamp and so on.

Performance characteristics of lamp head torsion test fixture:

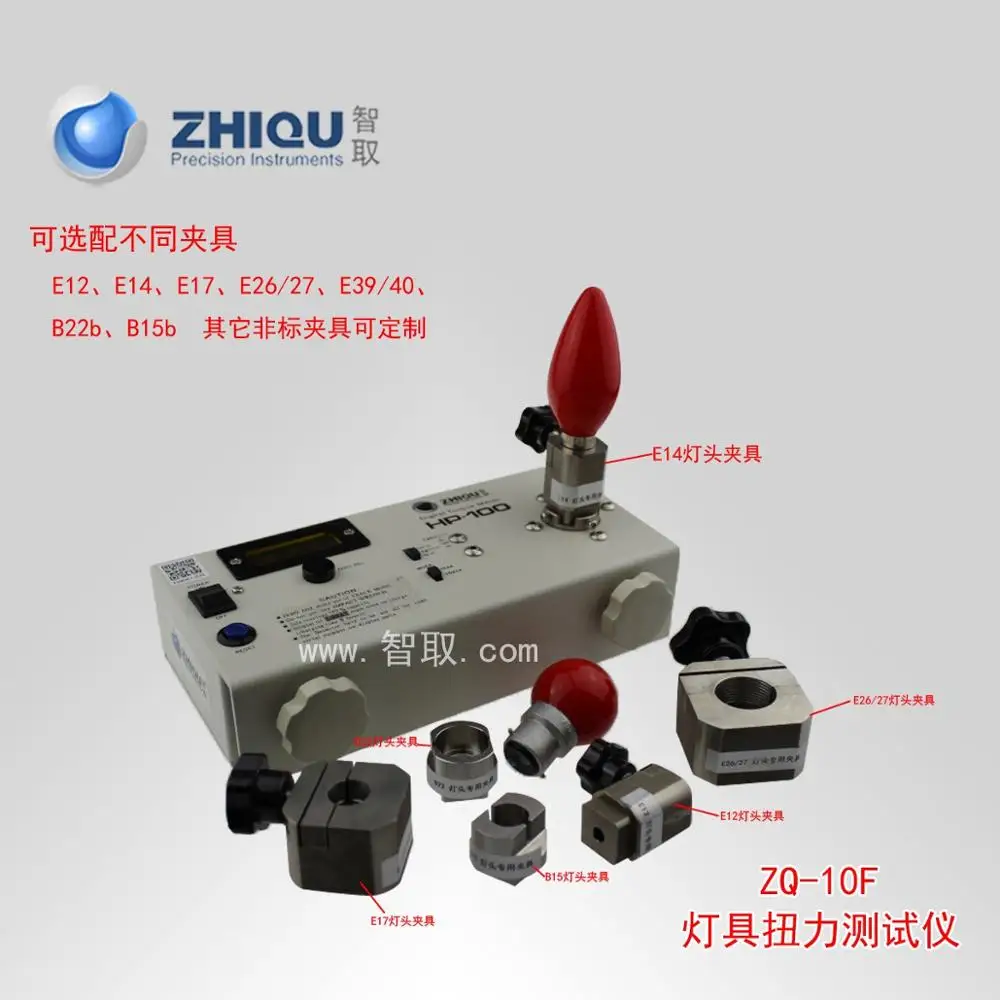

Applicable lamp head specifications: spot lamp head fixtures E27/E26, E14, E12, E17, E40/E39, G5/G13, B22d, B15d, GU10/GU5.3/MR16 and other fixtures can be customized
It meets the requirement of IEC national standard and can be used for forward and backward torsion testing.

When ordering, please indicate which lamp holder to measure. Fixtures with different lamp heads are different. The standard instrument has only one test head. If you want a variety of test heads, each additional test head plus 2Twenty yuan.

Smart brand lamp head torsion tester:

Using liquid crystal digital display to test the value. Easy to read and no error.

Instantaneous reverse direction. Torsion can be tested.

Maximum value retention devices. Comparable

Unit switch can choose to use unit kgf-cm N.m. or kgf-cm Lb.inch.

This machine uses rechargeable batteries. Small size, light weight, precise structure, easy to carry and use.

Three-stage unit selection switch gf.cm-N.m. -Lb.inch

 Purpose:

OneTesting the torsion of bottle caps, batches, wind batches, toys, motors, lamp holders and various torsion wrenches. There are different modular fixtures to test the torsion of different products.
2.Measure the torsion of various electric screw batches, torsion screw batches and wrenches.
3.The tightness of other products, such as bottle stoppers (caps), damage experiments of small parts and quality control of plastic screw are measured by fixtures.

Model

HP-10

HP-20

HP-50

HP-100

HP-250

Peak time

measuring range

1bf.in

Zero point one five~Nine

Zero point three~Eighteen

One point five~Forty-five

One point five~Ninety

Five~One hundred and eighty

Kgf.cm

Zero point one five~Ten

Zero point three~Twenty

One point five~Fifty

One point five~One hundred

Five~Two hundred and fifty

N.m

Zero point zero one five~One

Zero point zero three~Two

Zero point one five~Five

Zero point one five~Ten

Zero point five zero~Twenty-five

Measurement method

TrackTRACKAnd maintainPEAK

accuracy

+0.5%Fs

+ 1.0%FS

Power Supply(Charging time)

1.2VNickel metal hydride battery* 5section1.2VNIHMCharge6hour

Special Charger

Input communication220V~240VOutput DC7.2V400mA

Full-charge service time

20hour

Battery life

About chargeThree hundredsecond

size/weight

WXHXD prefix = st1 ns = "urn: schemas - Microsoft - com: office: smarttags" 230mmX5mmX120mm2Kg

 It is suitable for the detection of cap torsion, electric screwdriver, motor, torsion batch, wind batch, torque plate hand and other measuring tools.

Manufacturer: Dongguan Zhicao Precision Instrument Co., Ltd.

Dongguan Zhicai Precision Instrument Co., Ltd. is a professional supplier of precision mechanical instruments, which is engaged in research, development, design, production and sales of mechanical instruments. The main production and sales of tension, pressure, torsion, tension and other precision mechanical testing instruments and aging experimental testing instruments. Professional technicians provide you with professional technical guidance and maintenance services before, during and after sales, escorting your inspection process. The company's emphasis on credit, abide by contracts, ensure product quality, with the principle of small profits and more sales, won the trust of customers.
