Processors parameter for referance only:

1. CPU Intel Core i5 8250U 4 cores 8 threads 1.6GHz up to 3.4GHz 6MB cache TDP 15W Intel UHD Graphics 620.(maybe send i5 8350U)

2. CPU Intel Core i7-8565U 4 cores 8 threads 1.8GHz up to 4.6GHz 8MB cache TDP 15W Intel UHD Graphics 620. (maybe send i7 8550U)

Barebone mini PC ( No RAM No SSD ) package DO NOT include WiFi, if you need, please pay extra US $7.0 at this link.

Please DO NOT buy "no ram no storage" bundle if you are not familiar with computer knowledge and assembling, We do not make compensation for buyer's faulty.

- 2xSODIMM DDR4 memory slot up to 32GB more powerful performance improve work efficiency and give you a smooth experience.

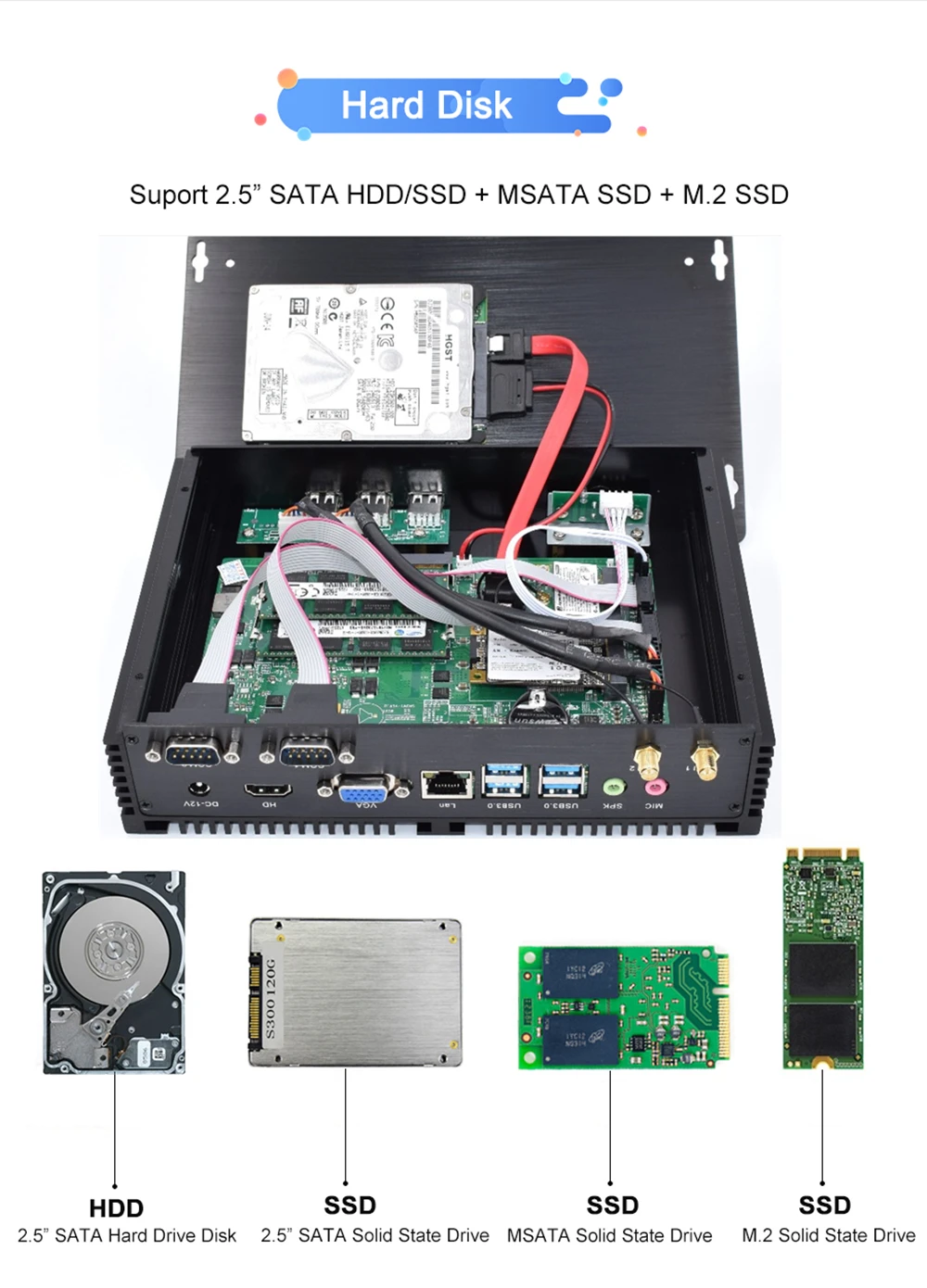

- Can install 1*M.2 SSD+1*MSATA SSD+1*2.5” SATA SSD/HDD together.

- Full Aluminum Alloy Black color shell, Exquisite production craft on outside design.

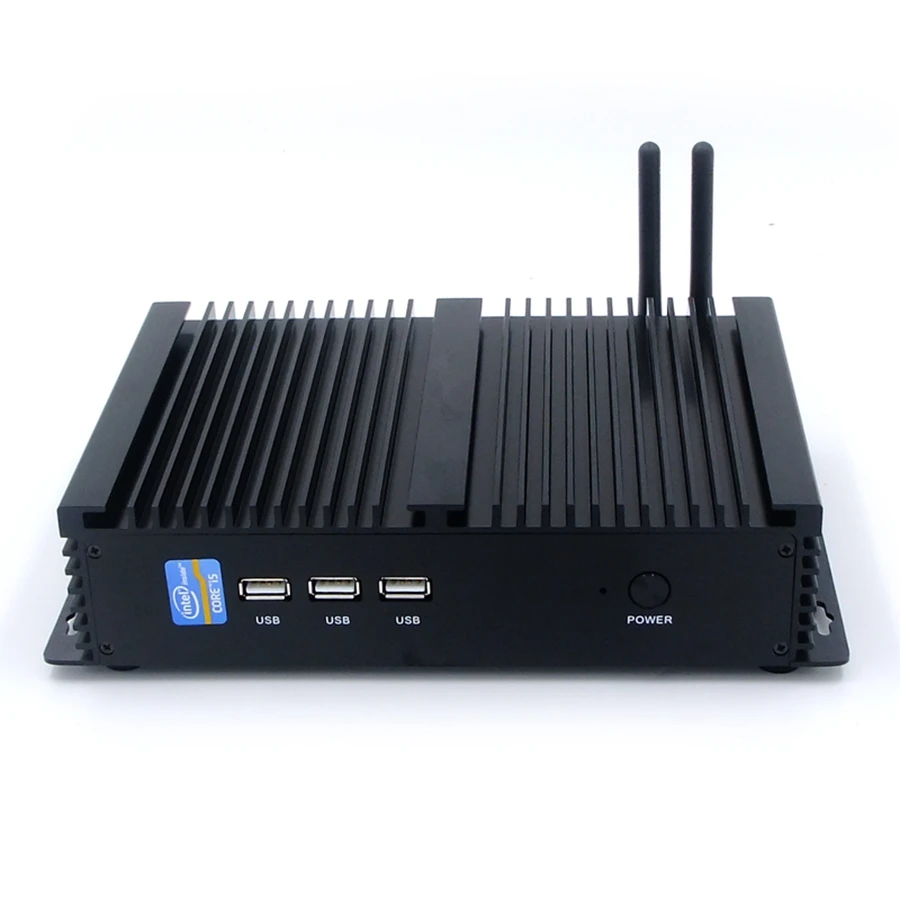

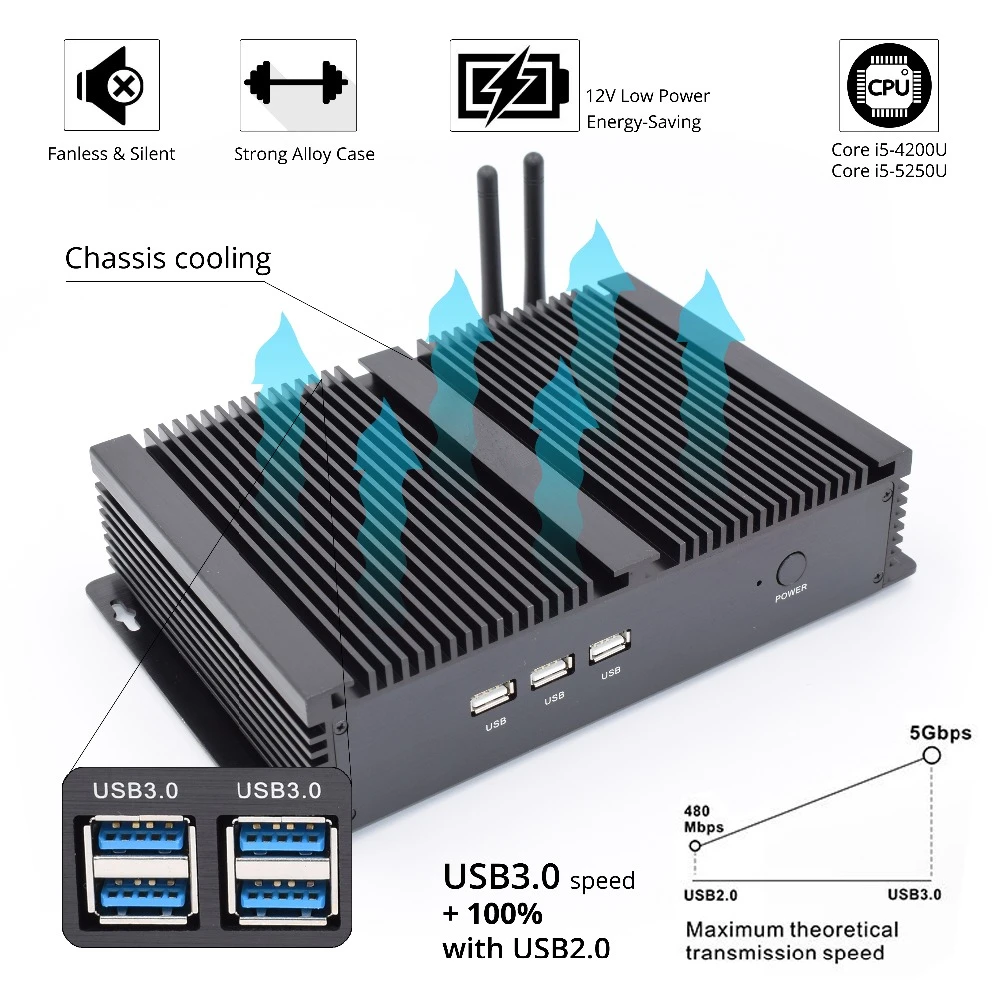

- Fanless system without cooling fan, no any noise, work as long as 24 hours.

- Low consumption TDP only 15W, save much energy and eco-friendly.

- Support VGA + HDMI dual display output synchronously.

Buy with confidence! 3 Years long warranty for fanless system!

Basic Information:

CPU

Intel Core i5-8250u/i7-8550U

TDP

15W

BOIS

AMI BIOS, ACPI supported

Chipset

Intel KABYLAKE

Memory

2 x SO-DIMM DDR4 Slot

Support 8GB/16GB/32GB

Dual Channel, DDR4-2400, LPDDR3-2133

OS

Windows 10/Linux

PXE

YES

Audio

ALC897 chip, 7.1 channel sound

Intel Lynx Point-LP HDA

Network

Onboard Realtek RTL8168/8111/8112 PCI-E Gigabit Ethernet NIC

10/100Mbps/1000Mbps BaseT LAN

Video

Intel® UHD Graphics 620

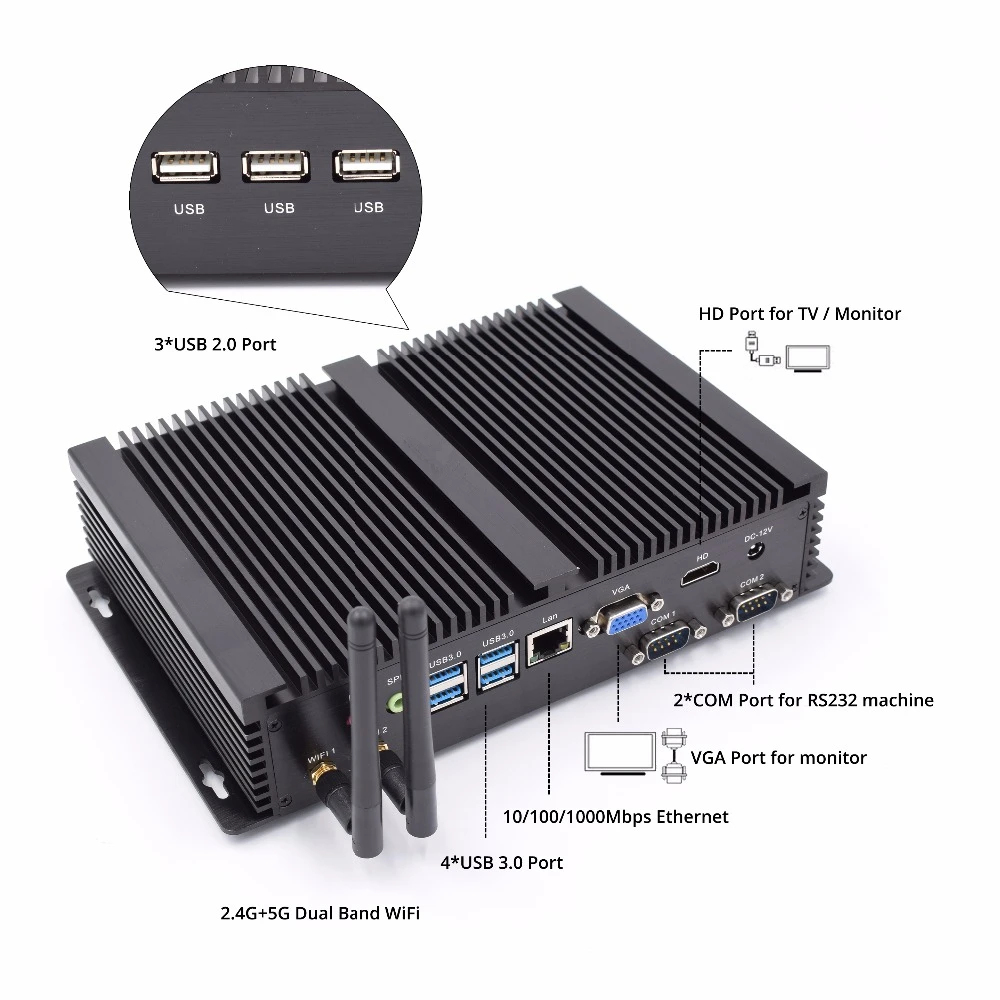

Input/output port

Switch

1 x Power On/Off Switch

Power

1 x 12V DC In

LED

1 x LED

USB

3 x USB2.0, 4 x USB3.0

Display

1 x VGA, 1 x HDMI

LAN

1 x RJ45 Giga LAN

COM

2 x RS232 COM

Audio

1 x MIC, 1 x SPK

Storage

MSATA

1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s

1 x M.2 slot for M.2 SSD, support 6Gb/s

SATA

1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s

Wi-Fi

Module

1 x mini PCIE-half port for Wi-Fi module

Antenna

2 x inner RF cables and 2 x external antennas

Power and Working Environment

Input

DC100-240V AC/50-60Hz

Output

DC +12V~+19V, recommend 12V/5A

Operating Temperature

0/+70 Centigrade

Storage Temperature

-20/+85 Centigrade

Relative Humidity

0%~90% (non-condensing)

Product Dimension & Details

Size

234*150*43mm

Weight

Net 1.8kg, Gross 2.1kg

Shell

Black color aluminum alloy

Mounting

4 Mounting holes on case

Cooling Mode

Fanless

Functions

Calls on function automatically, Wake-On-LAN

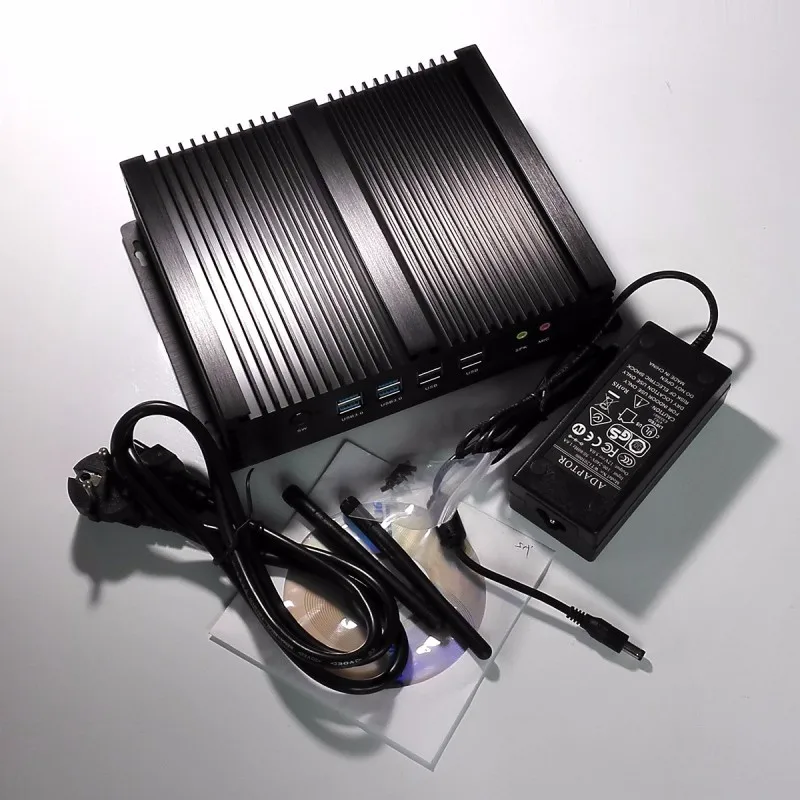

Package Content

Standard

1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag

Optional

Wi-Fi antennas, 1xUser Manual, 1xLong Screws Bag

Free Operating System: Default installed our trial OEM windows 10/8/7 pro English for free, other languages can be selected among:  Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc.  Please inform us which language you want to install.  Other systems we can install free are like Linux, XBMC(Kodi), Ubuntu, Openelec etc if you need. Seller is not responsible for trial OEM system.

Accessories as Ram, SSD, HDD, we use famous brand:samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingston, phison etc, What brand we use depends on our test and our stock. Generally we use Msata SSD installed on Mpcie port and leave the SATA port blank for you to install 2.5'' SSD/HDD.

1. USB Infrared remote (can turn power off but not on) add extra cost US$14.

2. Bluetooth4.0 USB Dongle add extra cost US$5.

3. External USB DVD-ROM add extra cost $18, External USB Bluray DVD-ROM add extra cost $45.

4. USB 2.4GHz Air Keyboard& Mouse, add extra cost $20.

5. Genuine OEM windows license sticker add extra cost 35$.

Upgrading link: https:/item/32738298207.html

(how many dollars to upgrade, pay how many pieces, US$1=1pcs, For example upgrade USB IR remote, pay 14pcs for US$14, remember to leave message noting which one you uprade for...)
