Mixed protocol contains Modbus Protocol





The module attributes are as follows:

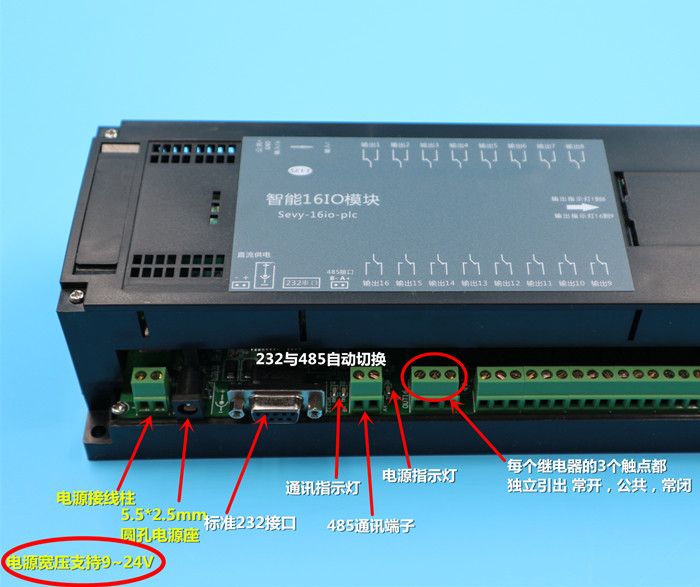

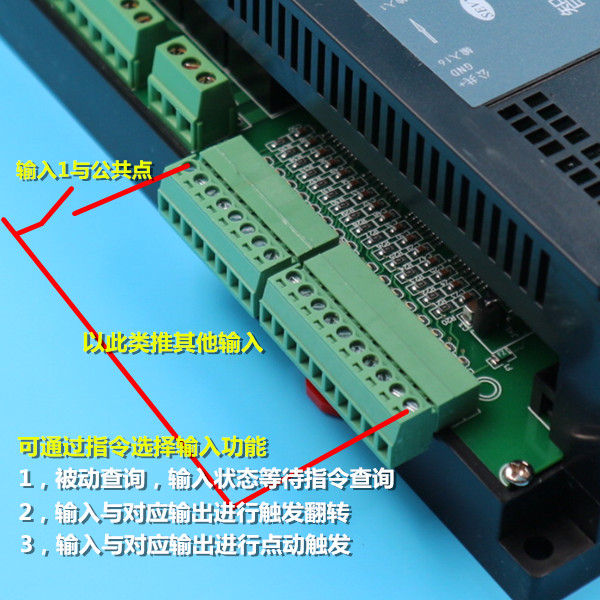

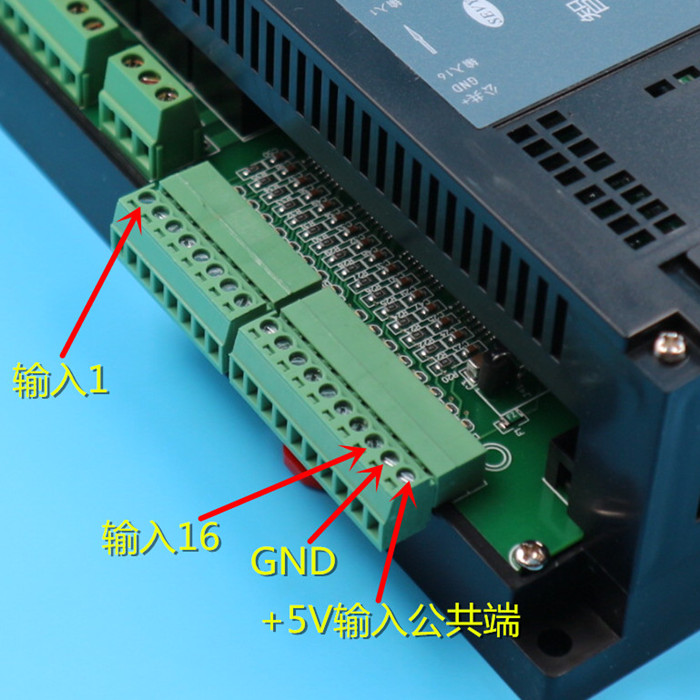

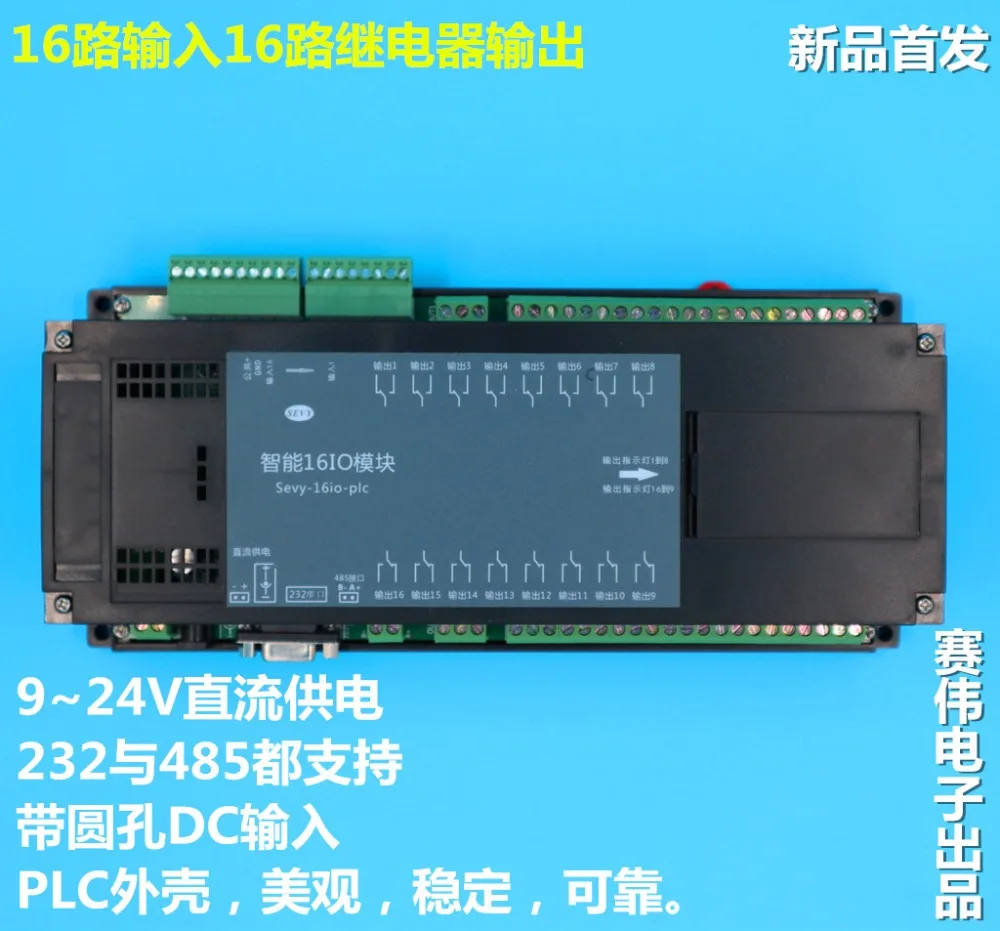

Model: SEVY-16IO-PLC Shell size: 250mm*110mm*60mm black standard guideway shell can be mounted, with mask. Power input: DC9 ~ 24V wide voltage input. Power input 2P terminal and 5.5mmDC round hole seat. DC requires 2A capacity. 16-way switch input detection form: passive short circuit signal, voltage signal (more than 5V is 1, less than 3V is 0), PNP sensor signal. 16-way relay output: independent 3P output terminal, a group of normally open and closed contacts, 10A maximum current. Communication mode: 232 serial communication and 485 communication, both support, automatic switching, one of the two can not communicate at the same time. Protocol type: built-in protocol (original custom protocol), Modbus RTU protocol. The new function of the built-in protocol can switch input mode by instruction. Input mode 1. Input queries status through instructions. Input mode 2, input switching output relay status as switch. Input mode 3, input as a point mode, corresponding to the output. The product features are as follows: 1. Stability and reliability are fundamental to product design. Our store has many years of experience, all chip materials are imported in original. 2, adopt a beautiful and stable black shell and mask. 3. Use DC power supply input, wide voltage design DC9 ~ 24V, easy to adapt to your field power supply. 4. Provide 2P screwing terminal and standard DC round hole input (5.5mm*2.1mm) for your convenience. 5. Provides 16 channels of switch detection input, which is convenient for some applications where input is needed. 6. Provides 16 independent relay outputs. There is a common spot welding pad on the bottom of the internal PCB to facilitate short connection. 7. Input with indicator, output with indicator (under the removable lid of the outer shell), communication with indicator. 8. Mark the 35mm rail housing to facilitate installation on site.
