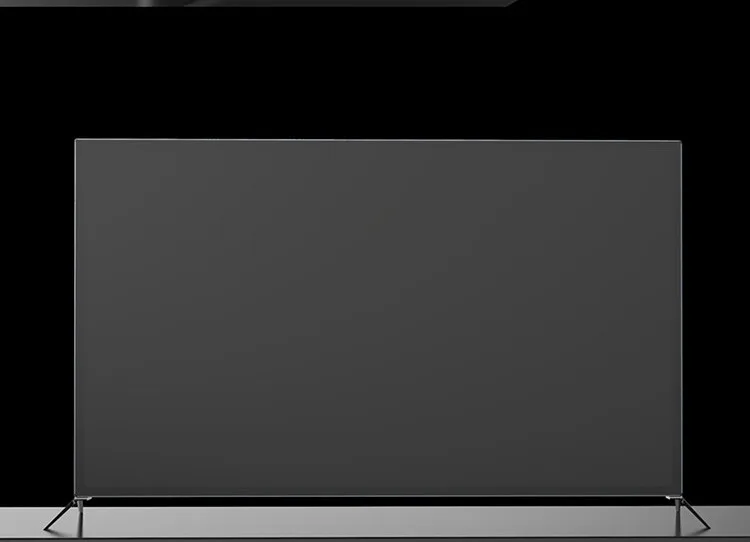

OEM 32 39 43 46 49 55 60 65 inch lcd tft hd p1080 hdmi android smart led global version TV television | Электроника

OEM 32 39 43 46 49 55 60 65 inch lcd tft hd p1080 hdmi android smart led TV TU0 T2 S2 television TV

We are not a factory,we just assemble TVs based on customers' requirements,we are a trade company and we don't make stock waiting customers come to pick up,which make mess after we tried before!

Only shipping by sea by train can cut cost,there is noy fair uf you just stick to products prices cutting while you think burn money into the air for granted.





 The fast development of the education led the updates of educational tools. More smart,More modernized,More convenient,More Green,More functional,More healthy new educational tools takes over the position of the traditional tools. Our interactive whiteboard smart tv is the one who have been a trusted and helper to our teachers and trainers

1. Standard Size: 58"/65"/70"/75"/84"/98" 2. Resolution: 1920*1080(58"/65"/70"/75"), 3840*2160(84"/98") 3. Infrared touch frame: Front load/6 dots 4. Support OPS PC(CPU:I3/I5/I7 Main board: H61/H81 RAM:4G/8G  Hard disk:500G/1T  SSD:128G optional) 5. Android TV board: MSTAR core                                  (Standard input interfaces: RJ45*1/SD*1/TV-USB2.0*2/TV-USB3.0*1/HDMI*3/                                   VGA*1/PCAUDIO*1/RS232*1/MINI-AV*1/MINI-YPBPR*1/RF*1/TOUCH-USB*1                                    Standard output interfaces: MINI-AVOUT*1/Coaxial*1/EARPHONE*1                                    Scalable input interfaces: HDMI*1/VGA*1/PCAUDIO*2                                    Scalable output interfaces: VGA*1) 6.Case material: Aluminium alloy





Specifications Screen Parameter Model AMW750B/Interactive whiteboard smart tv Screen T750QVN01.0 Display Area 1650.24(H)x928.26(V) Resolution 1920x1080 Color 1.07Billion Pixel Pitch 0.143(H)×0.429(V) Brightness 350cd/m2 Contrast 4000:1 Viewing Angle ±178° Response Time 8ms TV System(Optional) Android OS Adopt MSTAR MSD628VX kernel main chip,CPU Clock Speed:1.2GHz,Ram:1G,4G Storage Space onboard,Android4.4 OS standard input interface RJ45×1,SD×1,TV-USB2.0×2,TV-USB3.0×1,HDMI×3(1 built-in HDMI),VGA×1,PCAUDIO×1,RS232×1,MINI-AV×1,MINI-YPBPR×1,RF×1,TOUCH-USB×1(D Type) standard output interface MINI-AVOUT×1,coaxial×1,EARPHONE×1 Front USB Above 58 inch :Andorid TV-USB×2,PC-USB ×1 Others TOUCH-USB 2pcs (Built-in PC TOUCH1 and 1× TOUCH2(D type Socket)for external PC; Audio and Video Features 3D digital comb filter, 3D image motion noise reduction, 3D motion adaptive comb filters; built two plastic box speakers, maximum output power of speaker is 15 watts; optional support for the installation of the Bluetooth 2.4G wireless digital receiver module, through 2.4G wireless microphone directly use integrated built-in speaker amplifier Touch System Integrated approach:embedded under 58 inch,Frontal take-apart above 58 inch;Touch technology:optical or IR touch;Touch object :Opaque objects (like finger, pen, etc.)Effective touch size≥ Ø5mm Front load infrared touch module Response Time:5ms;Positioning Accuracy:±1.5mm;Touch Resolution:32768×32768;Communication way:Full Speed USB);PC response:System Auto recognition Other Features standard equipped:Auto power-off,One Button Switch,Remote Switch-on and off PC;Intelligent protect Eye technology(Dual System Standard equiped);
Above 58 inch:Auto Adjust Brightness;PPT(Turn to Next page)optional;One Button to Unlock(Optional)                                                  Outdoor IP rate:IP65/68;Tempered Glass:GB/T thickness:4mm OSD Language:Chinese/English(Multi-languages) Optional Function OPS PC OPS Slut Standard Interl 80 pin Slut CPU Intel Core i7/i5 /i3 /Pentium dual-core      Ram DDR3 1333Mhz 2G/4G/8G HDD SATA 320G(Option 500G/ 1TB Ect.),Support SSD Interface HDMI×1,VGA×1,USB×4,RJ45×1,PCAUDIO×1,MIC×1,RS232×1,DC19V×1 Network Card 10/100/1000Mbps self-adaptive   Realtek RTL8111E Audio Realtek HD ALC662 Video Intel HD Video(It depends on CPU),independent Graphic Card (GT730-2G) is optional Support WIFI 802.11b/g/n Working Tem Temperature:-20~60   Humidity:0~85%RH Size 180mm×195mm×40mm Dimension(mm) 1775*1075*127(Including hanging size:27mm) Outer carton(mm) 1907*1268*225 Gross weight 105KG Net weight 85KG Lifespan >60000 Hours Resolution 480P/720P/1080P Power Supply AC100~240V 50 /60 HZ Max consumption 300W Standby Consumption <1W Shape Color:Black/customizable;Package:Carton Box;Installation:Floor Standing/Wall Mounted; Temperature Working Temperature:0~50; Storage Temperature:-20~60; Working humidity:85%; Storage Humidity:85%








LCD Specification

Model:

ABV-1911I

ABV-2211I

ABV-3211I

ABV-4211I

ABV-4711I

QBV-5511I

MBV-6511I

LCD Size:

19 Inches

22 Inches

32 Inches

42 Inches

47 Inches

55 Inches

65 Inches

Display Resolution:

1024*768

1280x1024

1366*768

1920*1080

Aspect Ratio:



16:9

Brightness:

250 cd/m2



250 cd/m2

450cd/m2

350 cd/m2

3500 cd/m2

320 cd/m2

350 cd/m2

Display Area:

409.8(W)* 230(H)

476.3(W) * 268(H)

699.6(W) * 393.6(H)

930(W) * 523(H)

1040(W) * 585(H)

1210(W) * 682(H)

1428*803.5

Backlight Type:

CCFL

Contrast:

1000:1

3000:1

3000:1

3000:1

3000:1

4000:1

5000:1

Color:

16.7M

16.7M

16.7M

16.7M

16.7M

16.7M

16.7M

Response Time:

5ms

6ms

5ms

5ms

5ms

5ms

5ms

Life Cycle:

≥60,000 hours

Viewing Angle:

178°/ 178°

Function

Color System:

PAL/NTSC/SECAM

Menu Language:

Chinese, English, multi-language menu

Operating Mode :

The remote, function key

Power

Power Input:

AC100-240V,50 /60HZ

Power Consumption :

25W

30W

70W

100W

150W

200W

300W

Standby Consumption :

3W

5W

3W

3W

3W

3W

3W

Working Enviroment

Working Temperature

0°C~50°C

Working Humidity:

10%~90%

Storage Temperature:

-20°C~60°C

Storage Humidity:

10%~90%

Others

Dimension:

466*286*44.5 mm

534*326.0*44.0 mm

782.4*476.8*50.5 mm

1015*608*51.5mm

1136*682*68.5mm

1312.8*782*75.9 mm

1513*906*70.5

Net Weight:

4.4Kg

5.8Kg

15Kg

25.5Kg

\

40Kg

\

Housing:

Metal

Color:

Black

Installation Method:

Wall-Mount/Desktop

Certificates:

ISO9001, 3C, etc



Touch  Options

Mode

 Multipoint

Transmittance

  >95%

Minimum touch object

 5mm

Accuracy

 2mm

Life

 >60,000,000
