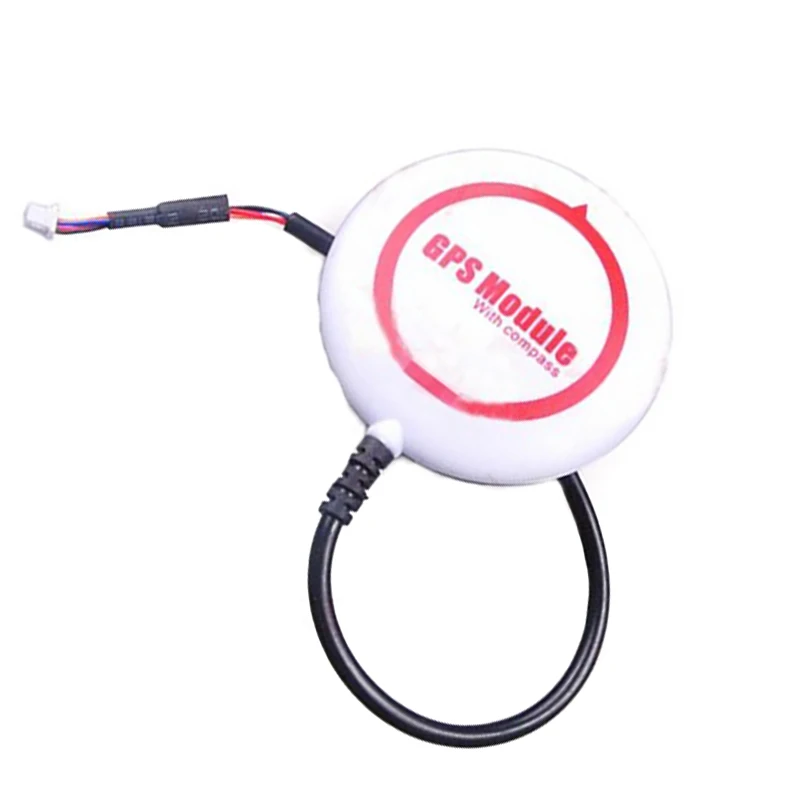

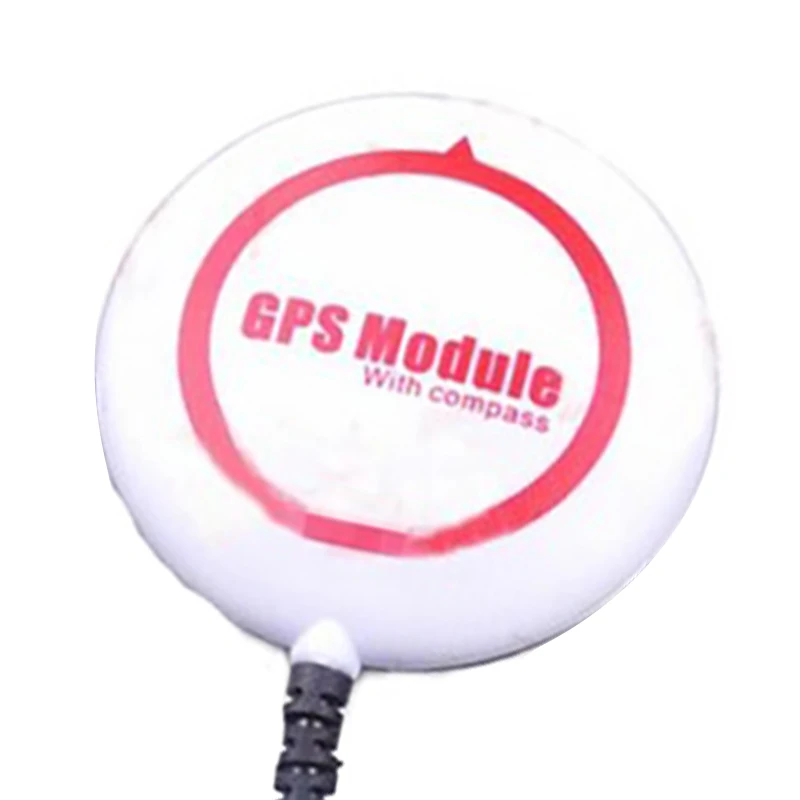

Neo-M8N Gps For Mini Cc3D/ Cc3D Atom/ Revolution Flight Controller Built-In Compass | Электроника

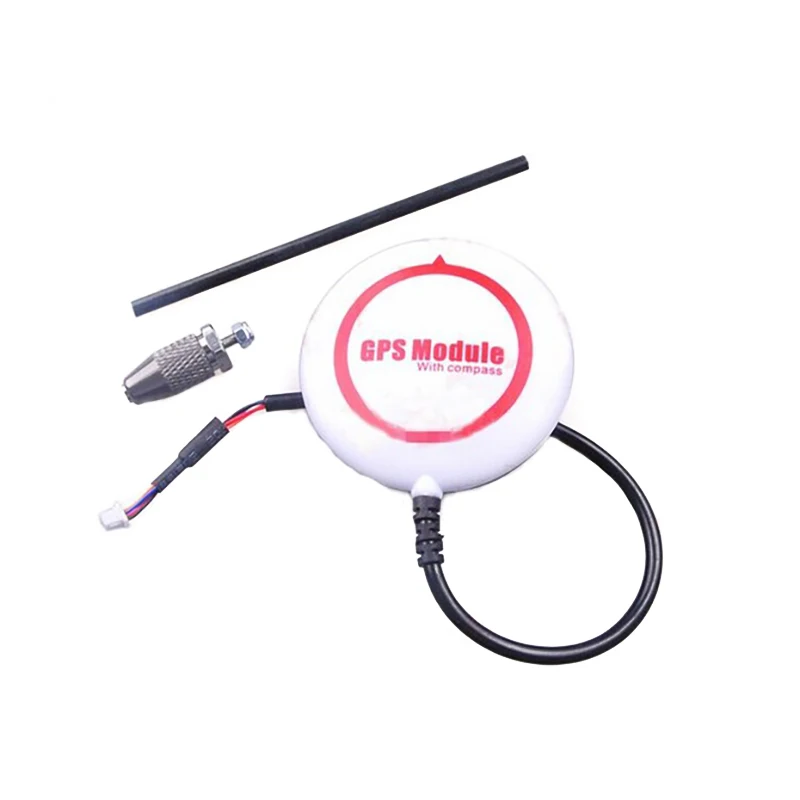

WIth GPS folding antenna base.Noise Figure On-chip LNA (NEO-M8M). Extra LNA forLowest Noise Figure (NEO-M8N/Q).Ublox new generation GPS NEO-M8N is very quick to searching signal, of high positioning precision and efficiency.This NEO-M8N GPS adopts original imported M8N chip, function module group is optimized, built in electric compass, updating rate has been improved to 10GHZ.
Supported Antennas Active and Passive.Odometer Travelled Distance.Support European, Russian GLONASS, Japan , China.Module supports GPS+Big Dipper+SBAS or GPS+GLONASS+SBAS.Anti Jamming Active CW Detection and Removal. Extra.Onboard SAW Band Pass Filter (NEO-M8N/Q).Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N).Data-logger For position, velocity, and time (NEO-M8N)
NEO-M8N-0 u-blox M8 Concurrent GNSS LCC Module.TCXO, flash, SAW, LNA,Timepulse Configurable: 0.25 Hz to 10 MHz
Qualification: according to ISO 16750.Usage For: CC3D/Mini CC3D/Atom/CC3D Revolution Flight Controller Built-in Compass.Quick satellite searching, only need 10s to find 6 satellite in open space.Built-in compass, refresh rate up to 10GHz.Support GPS+BD+SBAS, or GPS+GLONASS+SBAS
Uses u-blox M8Chips Qualified: according to AEC-Q100.Supply Voltage: 1.65 V to 3.6 V (NEO-M8M) 2.7 V to 3.6 V (NEO-M8N/Q)
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Four-wheel Drive Attributes: Battery
Remote Control Peripherals/Devices: Receivers
RC Parts & Accs: Connectors/Wiring
For Vehicle Type: Airplanes
Tool Supplies: Battery
Receiver Type: 72-channel M8 engine
GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
SBAS L1 C/A: WAAS, EGNOS, MSAS
Galileo-ready E1B/C (NEO-M8N)
Nav. Update Rate1 Single GNSS: up to 18 HZ
Concurrent GNSS: up to 10 Hz
Position Accuracy: 2 2.0 m CEP
Acquisition2 Cold Starts: 26 s
Aided Starts: 2 s
Reacquisition: 1.5 s
Sensitivity2 Tracking & Nav: –167 dBm
Cold Starts: –148 dBm
Hot Starts: –156 dBm
Built-In: RTC Crystal Built-In
Operating Temperature: –40 Celsius to 85 Celsius
Storage Temperature: –40 Celsius to 85 Celsius (NEO-M8N/Q) –40 Celsius to 105 Celsius (NEO-M8M)
Power Consumption:4 23 mA @ 3.0 V (continuous)
5 mA @ 3.0 V Power Save Mode
(1 Hz, GPS mode only)
Backup Supply: 1.4 to 3.6 V
Assistance AssistNow GNSS Online
AssistNow GNSS Offline (up to 35 days)3
AssistNow Autonomous (up to 6 days)
Oscillator TCXO (NEO-M8N/Q)
Crystal (NEO-M8N)
colour:white
Material:Plastic + metal
size:5*4*3CM
Package Contents:
1* CC3D Revolution Flight Controller
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
