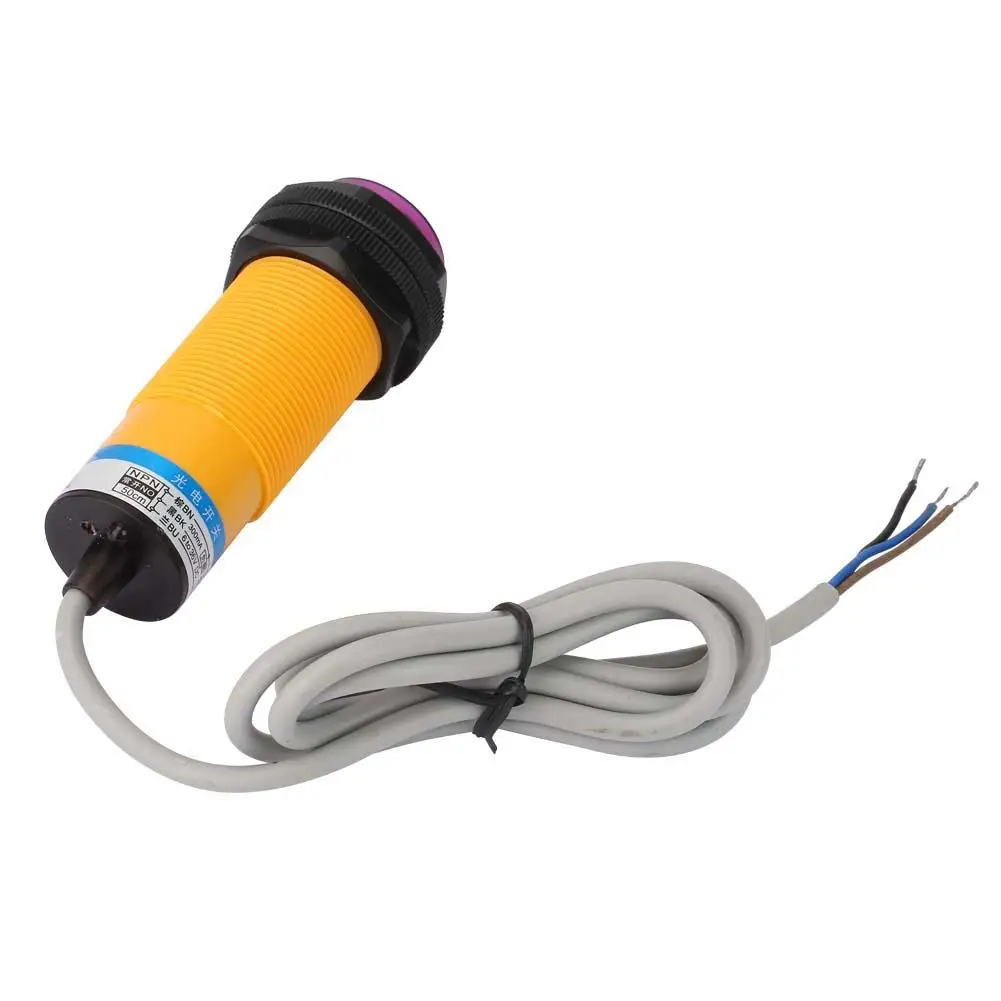

interruptor 70cm Infrared Photoelectric Switch Proximity Sensor DC 6-36V E3F3-DS50N1 switch Wholesale | Обустройство дома

interruptor 70cm Infrared Photoelectric Switch Proximity Sensor DC 6-36V E3F3-DS50N1 switch Wholesale | Обустройство дома

Features:

Specification:

Detection Range: 70cm±10%

Detection Range Adjustment: sensitivity regulator

Detection Target: transparent/opaque object

Response Time: 1ms

On-delay: 1.5ms

Light Source: infrared light 660nm

Supply Voltage: DC12-24V(6-36V) impulse (P-P) <10%

Withstand Voltage: AC1000V 50/60Hz 1min,  between charging part and housing

Voltage Influence: ±10% detection distance (within ±15% of rated supply voltage range)

Current Consumption: N.P type: <20mA, A type: <1.7mA

Control Output: N.P type: <300mA, A type: <400mA, J type: <2A Contact Life: 100,000 times

Circuit Protection: N.P.D type: reverse connection protection, surge absorption, load short circuit protection; A type: surge absorption

Operation Environment: -30~65°C (no freezing, no condensation), 35-95% RH

Temperature Influence: temperature range -30~65°C, at +23°C: ±15% detection distance; temperature range: -25~60 ° C, at +23 ° C: ± 10% detection distance

Insulation Impedance: >50M& ; (DC500 megohmmeter), between charging part and housing

Housing Material: ABS

Detection Surface (lens): PMMA

Weight: 118g (approx.)

Package List:

1 x Photoelectric Switch
