CSR Bluetooth Debugger Downloader Burner USB to SPI USB-SPI -S Download Module Chip ProductionTools Software | Электроника
Описание товара
1. How is this burner more expensive than other stores?
A: This burner has SPI voltage switching, supports 1.8V and 3.3V dual voltage, don't worry about burning IC, with over-current protection, the product will have different natural price differences.
2. Which chips are supported by CSR?
A: Support CSR Bluetooth full range of chips.

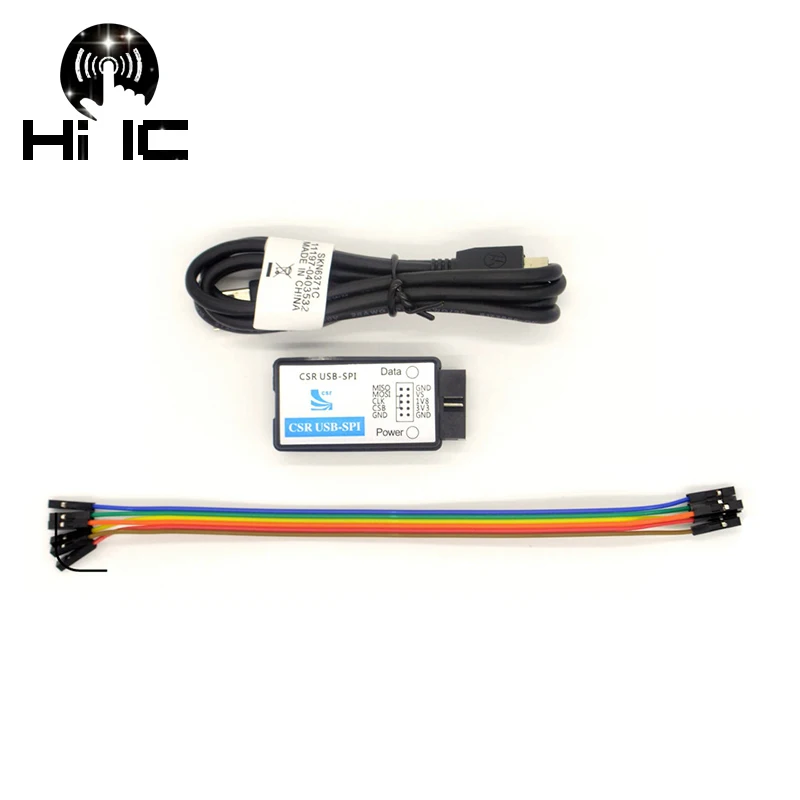

3. What accessories are there?
A: 1 with shielded data lines and 6 DuPont lines.
Feature Description:
1. Provide 3.3V and 1.8V dual power output for easy use!
2. Increase SPI level switching function, support 3.3V and 1.8V (SPI 1.8V/3.3V version proprietary)!
3. Increase PTC current-limiting protection, limit current 500MA, but then worry about the wrong connection, short circuit is not afraid (SPI 1.8V/3.3V version proprietary)!
4. The power supply is handled more cleanly, decoupling with tantalum capacitors, and built-in two 220UF tantalum capacitors (SPI 1.8V/3.3V proprietary)!
5. Drivers, programming tools, manuals, contact customer service.
Note: Regarding the SPI voltage, the IO port voltage of the CSR86XX series is 1.8V, so the SPI programming voltage also needs 1.8V. Of course, 3.3V can work, but if you use the 3.3V SPI level, it will cause thousands of points. The chip damage of the fifth is not very important for developers, but for mass production, the problem is very serious!![3]()
![5]()

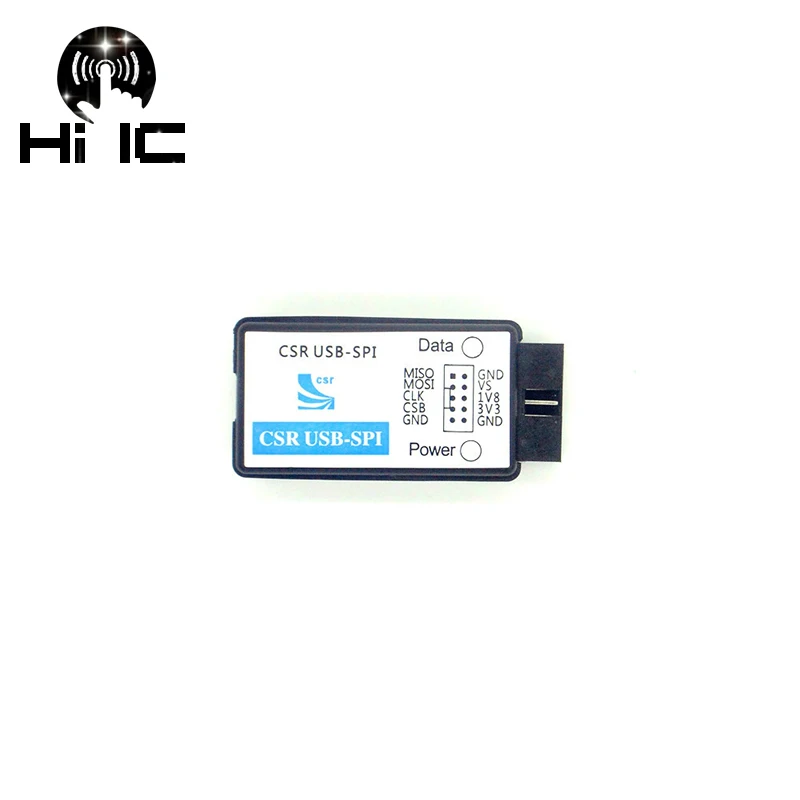

Foot description:
1. MISO, CLK, CSB, CLK are SPI burner interfaces, which are connected to the SPI interface of CSR Bluetooth chip one by one. The default SPI level is 1.8V! (SPI 1.8V/3.3V proprietary)
2. 3V3, 1V8 are reserved power output, can provide current of no more than 500MA (more than 500MA will automatically protect)! (SP 1.8V/3.3V version proprietary)
3. VS is the SPI voltage selection port. When VS is floating (internal pull-up), the SPI level is 1.8V, and the SPI level is 3.3V when VS is grounded! (SP 1.8V/3.3V version proprietary)
4. RST is the programmer reset pin, and the RST high level signal can reset the burner! (SPI 1.8V/3.3V proprietary)
CSR USB-SPI features:
1. CSR USB-SPI debugger is a real USB interface, much faster than the parallel port, which solves the trouble of the computer without the parallel port user.
2. CSR USB-SPI supports CSR full range of debugging tools, including BlueFlash, PSTOOL, BlueTest3, BlueLab and so on.
3. CSR USB-SPI can download the debugging program through Bluelab, support breakpoint debugging, single-step debugging, etc., and program through BlueFlash.
4. Support all CSR series of Bluetooth chips, for example
BC2 series (eg BC215159A, etc.)
BC3 series (eg BC31A223, BC358239A, etc.)
BC4 series (eg BC413159A06, BC417143B, BC419143A, etc.)
BC5 series (eg BC57F687, BC57E687, BC57H687C, etc.)
BC6 series (eg BC6110, BC6130, BC6145, CSR6030, BC6888, etc.)
BC7 series (eg BC7820, BC7830, etc.)
BC8 series (eg CSR8605, CSR8610, CSR8615, CSR8620, CSR8630, CSR8635, CSR8640, CSR8645, CSR8670, CSR8675, etc.)
CSRA63/CSRA64 series (eg CSRA64110, CSRA64210, CSRA64215, etc.)
CSR10 series (for example, CSR1000, CSR1001, CSR1010, CSR1011, CSR1012, CSR1013, etc.)
CSRB5 series (eg CSRB5341, CSRB5342, CSRB5348, etc.)
QCC3 series (QCC3001~QCC3008 series)
5. Support all Windows operating systems:
- Windows 98SE
- Windows ME
- Windows 2000 SP4
- Windows XP SP2 and above (32 & 64 bit)
- Windows Server 2003 (32 & 64 bit)
- Windows Server 2008 / 2008 R2 (32 & 64 bit)
- Windows Vista (32 & 64 bit)
- Windows 7 (32 & 64 bit)
6. Small size, easy to carry, product size: 49*28*14m
2. Which chips are supported by CSR?
A: Support CSR Bluetooth full range of chips.
3. What accessories are there?
A: 1 with shielded data lines and 6 DuPont lines.
Feature Description:
1. Provide 3.3V and 1.8V dual power output for easy use!
2. Increase SPI level switching function, support 3.3V and 1.8V (SPI 1.8V/3.3V version proprietary)!
3. Increase PTC current-limiting protection, limit current 500MA, but then worry about the wrong connection, short circuit is not afraid (SPI 1.8V/3.3V version proprietary)!
4. The power supply is handled more cleanly, decoupling with tantalum capacitors, and built-in two 220UF tantalum capacitors (SPI 1.8V/3.3V proprietary)!
5. Drivers, programming tools, manuals, contact customer service.
Note: Regarding the SPI voltage, the IO port voltage of the CSR86XX series is 1.8V, so the SPI programming voltage also needs 1.8V. Of course, 3.3V can work, but if you use the 3.3V SPI level, it will cause thousands of points. The chip damage of the fifth is not very important for developers, but for mass production, the problem is very serious!
Foot description:
1. MISO, CLK, CSB, CLK are SPI burner interfaces, which are connected to the SPI interface of CSR Bluetooth chip one by one. The default SPI level is 1.8V! (SPI 1.8V/3.3V proprietary)
2. 3V3, 1V8 are reserved power output, can provide current of no more than 500MA (more than 500MA will automatically protect)! (SP 1.8V/3.3V version proprietary)
3. VS is the SPI voltage selection port. When VS is floating (internal pull-up), the SPI level is 1.8V, and the SPI level is 3.3V when VS is grounded! (SP 1.8V/3.3V version proprietary)
4. RST is the programmer reset pin, and the RST high level signal can reset the burner! (SPI 1.8V/3.3V proprietary)
CSR USB-SPI features:
1. CSR USB-SPI debugger is a real USB interface, much faster than the parallel port, which solves the trouble of the computer without the parallel port user.
2. CSR USB-SPI supports CSR full range of debugging tools, including BlueFlash, PSTOOL, BlueTest3, BlueLab and so on.
3. CSR USB-SPI can download the debugging program through Bluelab, support breakpoint debugging, single-step debugging, etc., and program through BlueFlash.
4. Support all CSR series of Bluetooth chips, for example
BC2 series (eg BC215159A, etc.)
BC3 series (eg BC31A223, BC358239A, etc.)
BC4 series (eg BC413159A06, BC417143B, BC419143A, etc.)
BC5 series (eg BC57F687, BC57E687, BC57H687C, etc.)
BC6 series (eg BC6110, BC6130, BC6145, CSR6030, BC6888, etc.)
BC7 series (eg BC7820, BC7830, etc.)
BC8 series (eg CSR8605, CSR8610, CSR8615, CSR8620, CSR8630, CSR8635, CSR8640, CSR8645, CSR8670, CSR8675, etc.)
CSRA63/CSRA64 series (eg CSRA64110, CSRA64210, CSRA64215, etc.)
CSR10 series (for example, CSR1000, CSR1001, CSR1010, CSR1011, CSR1012, CSR1013, etc.)
CSRB5 series (eg CSRB5341, CSRB5342, CSRB5348, etc.)
QCC3 series (QCC3001~QCC3008 series)
5. Support all Windows operating systems:
- Windows 98SE
- Windows ME
- Windows 2000 SP4
- Windows XP SP2 and above (32 & 64 bit)
- Windows Server 2003 (32 & 64 bit)
- Windows Server 2008 / 2008 R2 (32 & 64 bit)
- Windows Vista (32 & 64 bit)
- Windows 7 (32 & 64 bit)
6. Small size, easy to carry, product size: 49*28*14m
Need HD information, please contact customer service
