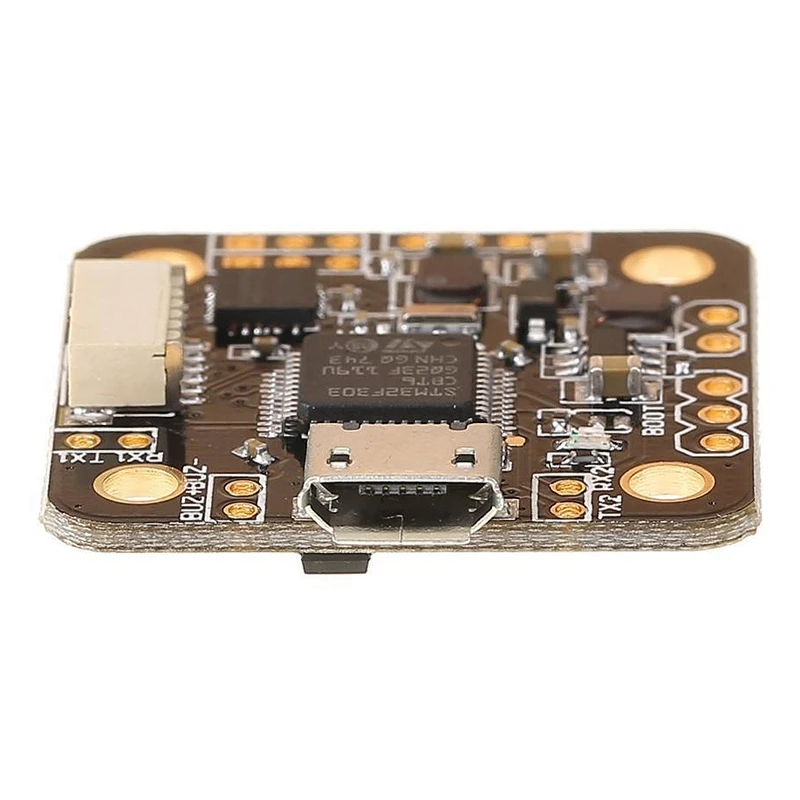

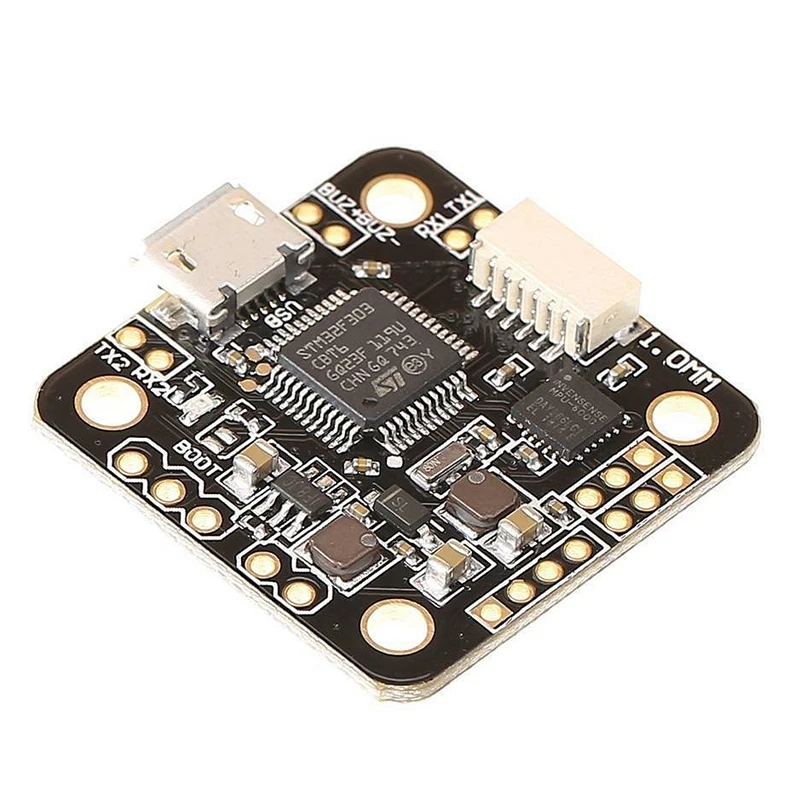

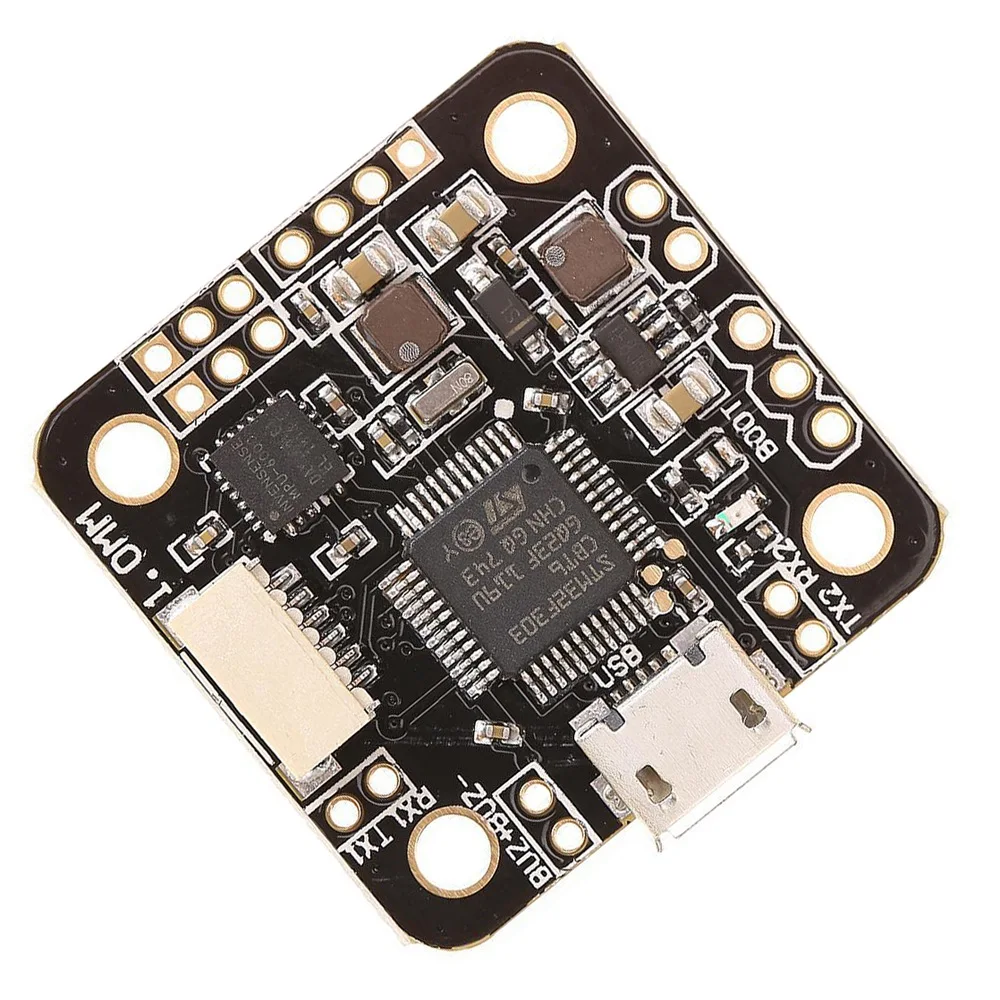

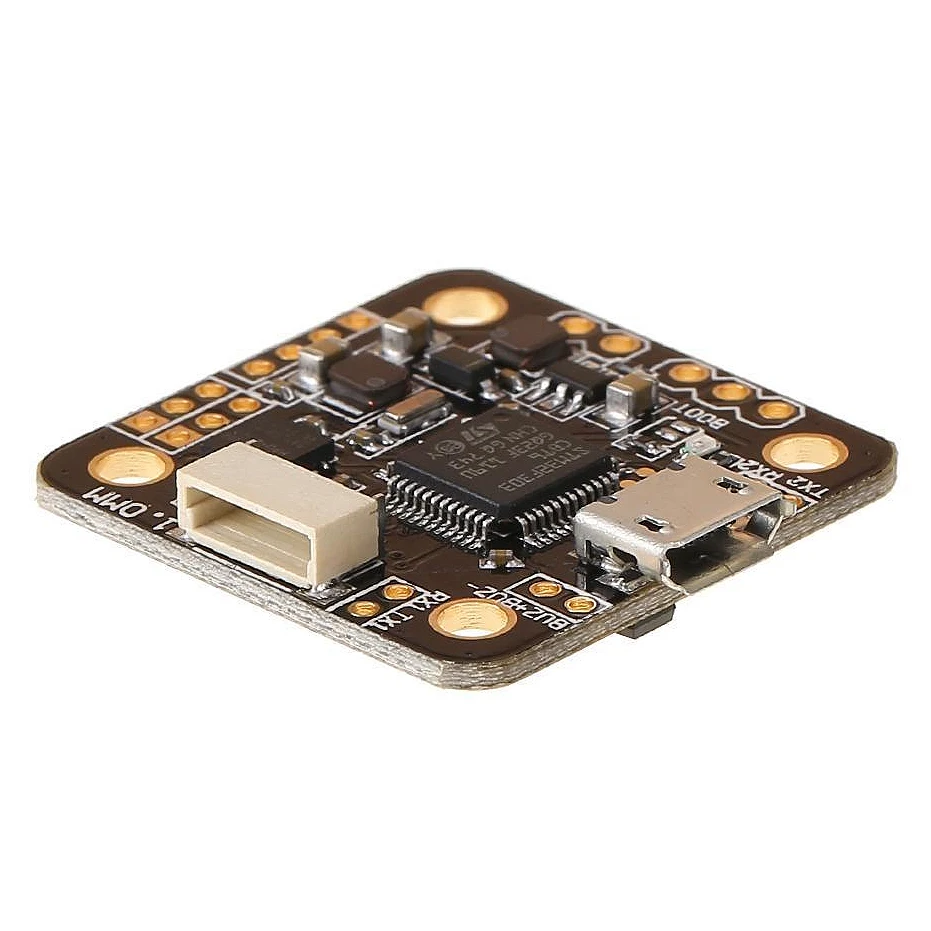

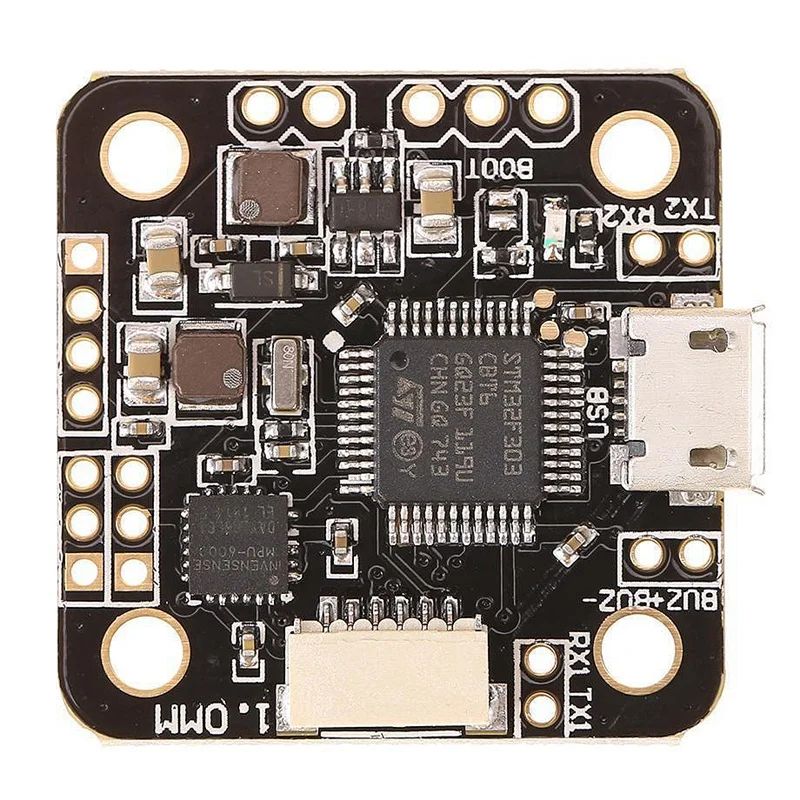

Mini F3 Flytower Flight Control Integrated Osd Fpv 5.8G Controller Bec | Электроника

The flight control is used to assemble the small four-axis around 80-90, with a motor of 1104 7500KV and a battery of about 2S 400-500mAh.
Use a 2 inch paddle with 3 or 4 blades.
The receiver then recommends the purchase of Micro-receiver (FRSKY FLYSKY DSM2, Micro-receiver).
Try to be light and easy! Picture transmission select 25-200 adjustable integrated picture transmission, but picture transmission power must be connected to the power supply.
F3 flight control acceleration equipped with MPU6000 is faster; The BEC with 5V/1A integrated with OSD. (this version is 6DOF, no barometer and electronic compass)
1. It is specially designed for small traversing machines, suitable for the racks with sizes below 280mm, and the racks with sizes of 130mm are more able to give play to the advantages of small and full functions;
2. This board provides all functions with a weight of only 8g . The fixed hole position is 20mm (M2.5 hole position);
3. Specially designed for four-axis models, with LC filter built in, supporting BF firmware
4. Connect the SPI interface of MPU6000 sensor with STM32F303 MCU, and the operation rate is faster;
5. Support 2-4s power input;
6. Built-in 5V 1A output BEC;
7. Support mainstream receivers such as SBUS/PPM/DSMX;
8. Buzzer/programmin

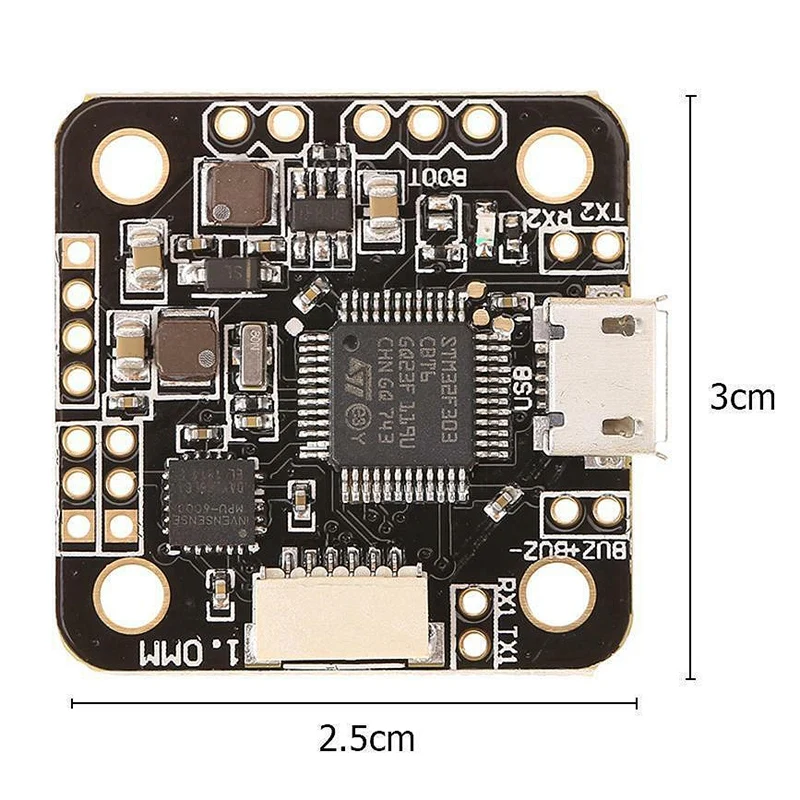

Size: 3 x 2. 5 cm/1.18 x 0.98 inch
colour:Photo Color
Material:metal
Package Contents:
1 * Flight Controller
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
