    7 inch Raspberry Pi 3 Model B+ LCD Display Touch Screen 1024*600 800*480 HDMI TFT Monitor capacitive touchpanel | Компьютеры и офис

    Описание товара

    Buy 2 pcs or more than 2 you'll get the wholesale price.

    just place an order more than 1 piece,and the system automatically subtracts the price.

    Introduction :

    This is the 7 inch capacitive touchscreen for Raspberry Pi , support Raspberry Pi 3 Model B+. Because of making touch funtion , you can't use the Raspberry Pi system directly , you need to configure it. We have put the configure way in following description , which is quite easy. There are 1024*600 and 800*480 two resolution model to choose according your need. And we specially make a acrylic holder for the screen , to solve the problem of place it on desktop.

    Feature :

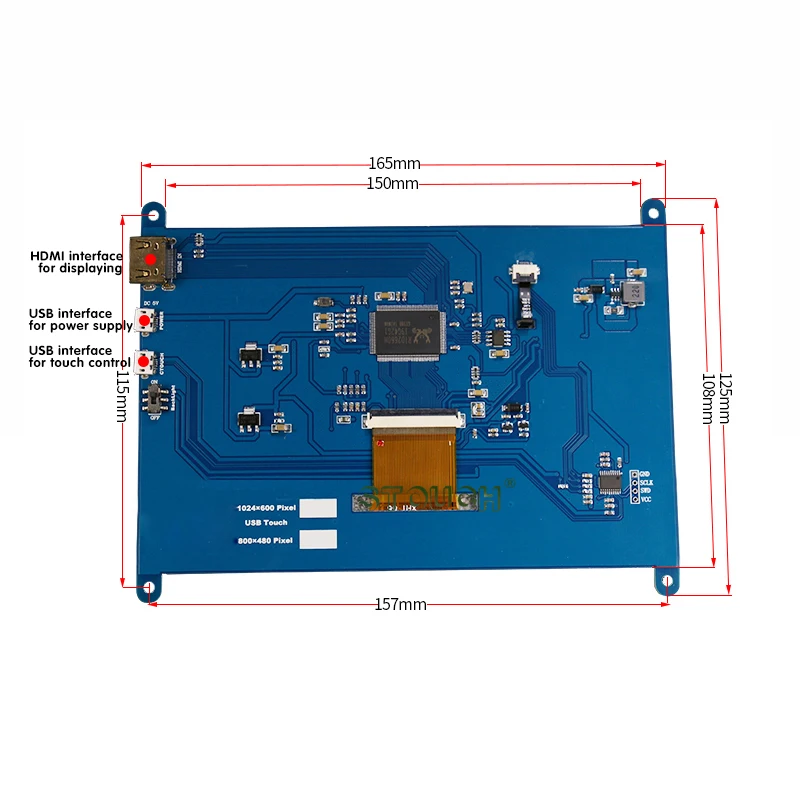

    1. Resolution: 1024*600 or 800x480 2. USB interface capacitive touch , more convenient 3. Support the backlight control by ON/OFF button , saves the electricity. Please make sure it is ON when use it. 4. Support the Raspberry Pi system , provide Raspbian , Ubuntu , Win 10 system image in the CD 5. General HDMI display , can be used as a computer monitor ( touch function cannot be used in this situation ) 6. HDMI interface is used to display , one USB interface is used to touch function and power supply. 7. This 7 inch touch screen module is designed especially for Raspberry Pi 3 Model B+/3B/2B, support the portable power , convenient for DIY.

    About the system image :

    1. You can use the system images for this touchscreen in the CD directly. 2. Configure the Raspbian system : 1). Install the Raspbian system to your sd card , open the sd card on your computer . 2). Open the config.txt file in the root directory of sd card , add the following code at the end of the file, save it and safely eject the sd card . Code for 800*480 7 inch toucscreen: max_usb_current=1 hdmi_group=2 hdmi_mode=1 hdmi_mode=87 hdmi_cvt 800 480 60 6 0 0 0 Code for 1024*600 7 inch toucscreen: max_usb_current=1 hdmi_group=2 hdmi_mode=1 hdmi_mode=87 hdmi_cvt 1024 600 60 6 0 0 0 For Raspberry Pi 3 Model B+ , please refer to this link to configure: //github.com/goodtft/LCD-show If you have any problem about the system , please contact us at first time. Note : The LCD just support Raspbian , Ubuntu and Win 10 system , if you want to use the other system image your own , you need to configure the driver to your system by yourself . If you need to use the touch function, USB line must be connected to the Raspberry Pi , don't need a separate power supply.
