Inflatable use method:

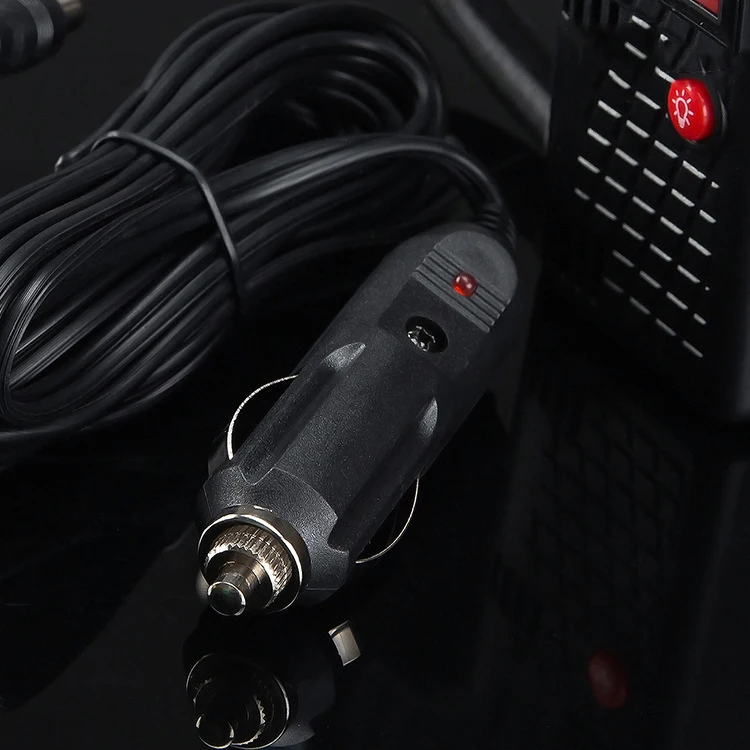

1. Insert one end of the power cord into the air pump jack, and then insert the other end into the car cigarette lighter socket.

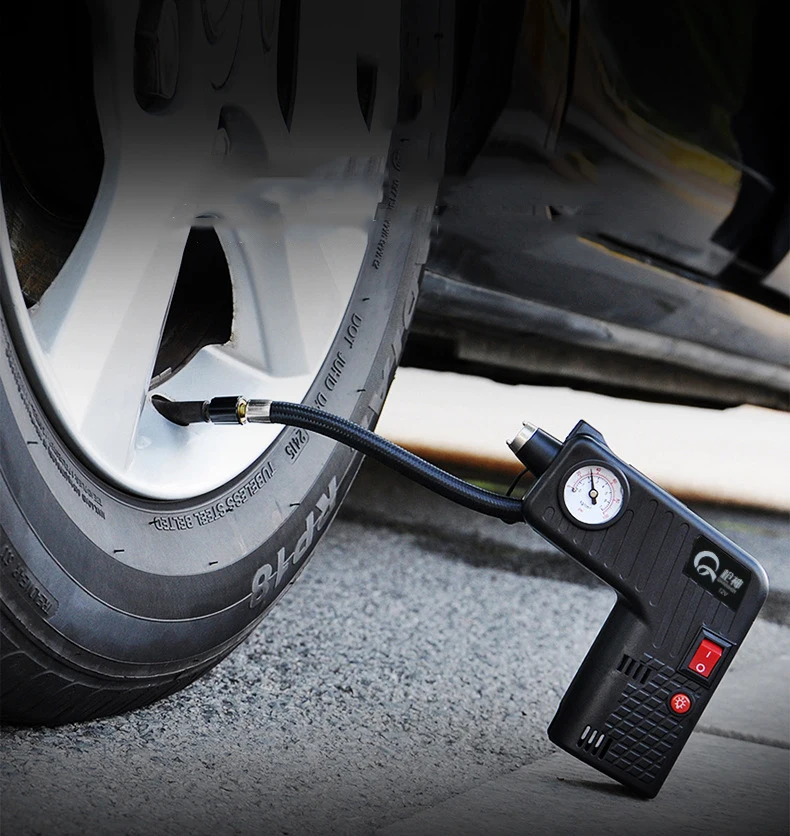

2. Twist the top end of the trachea on the tire valve: When you hear the tire has a deflated sound, it means that it has been connected.

Immediately tighten the nozzle to seal the intake pipe

3. Start the air pump switch. At this time, the value of the meter will increase with the saturation of the tire pressure. When the value reaches

When the air pressure is appropriate (the car tire pressure is 2.5KG/CM2), cut off the start switch and remove the plug and the air nozzle.

That is to complete the inflation work.

Use tire pressure measurement method:

1. Directly align the pressure measuring head with the valve and press hard. The pressure gauge shows the air pressure of your car tire.

Lighting, SOS distress signal use:

1. Connect the air pump to the car cigarette lighter socket.

2. Press the light switch when lighting, the LED light will light up, press the light switch again, SO

S help signal light is turned on.

How to use the hammer:

1. Inflatable pump head with safety hammer device

2. Remove the helmet and directly hit the car glass to ensure your safety in an emergency.

Precautions

1. This machine can not be used for tire inflation of large and overweight vehicles, such as trucks, large trucks, etc.

2. When using, the car should be launched to enhance the power and not to lose the car battery power.

3. This machine is limited to DC (DC12V.12-24A) power supply. It is not allowed to use 220V household electricity.

For household use, the transformer must be transformerd to DC 12. Every 10 minutes when the tire is inflated, it is best to rest

Lower the motor life by cooling the body before use.

4, the general car tire inflation, about 5-7 minutes can reach 2.5KGCM2 normal tire pressure, tires big time

It will be longer. If the instrument starts to inflate, the meter pointer rises rapidly (about 490KPA in about two or three seconds)

, that means the air is blocked, the air does not enter the tire, at this time you must turn off the power switch, unplug

The nozzle, if it is re-operated, the instrument and motor will be damaged.

5, when using, people do not leave the body, pay attention to the tire pressure at any time, not inflatable and too saturated.
