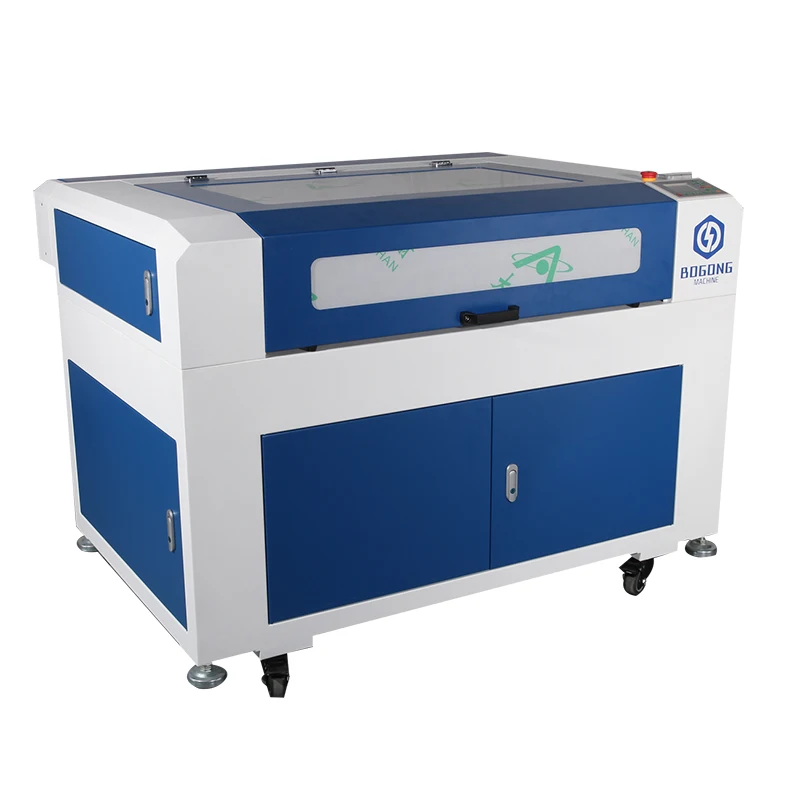

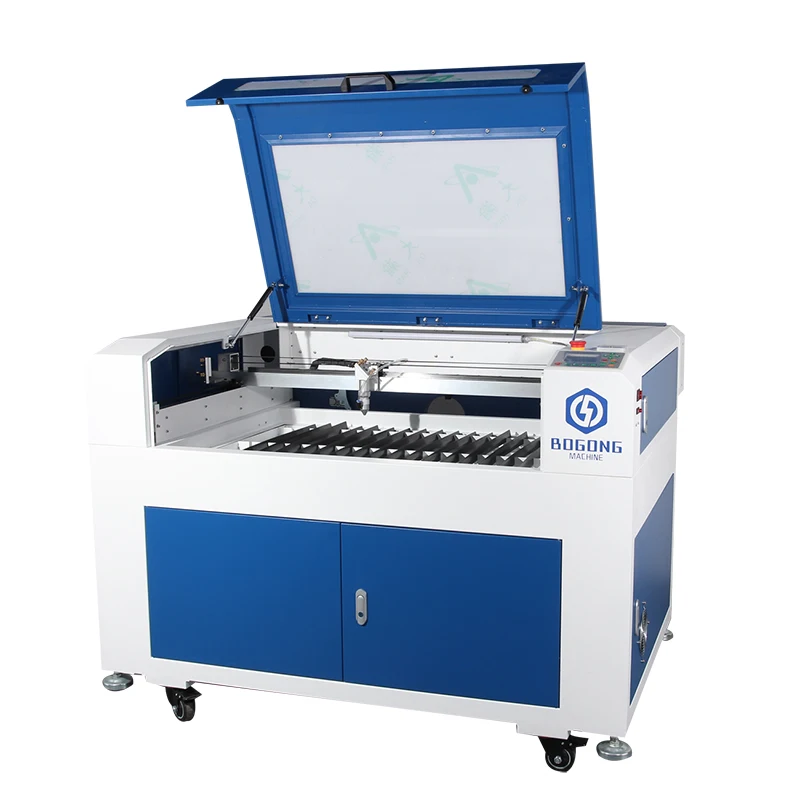

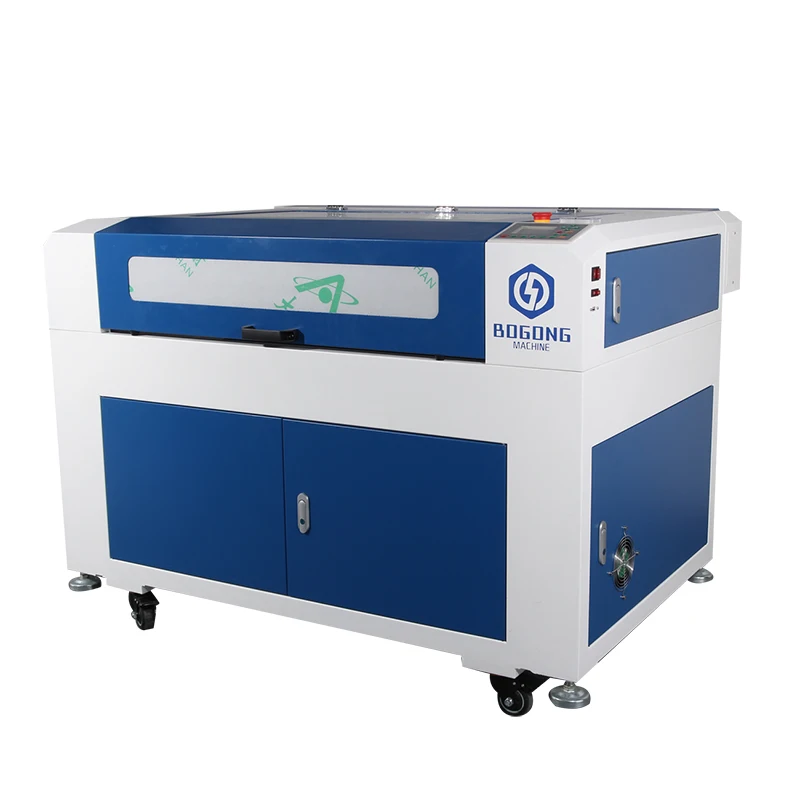

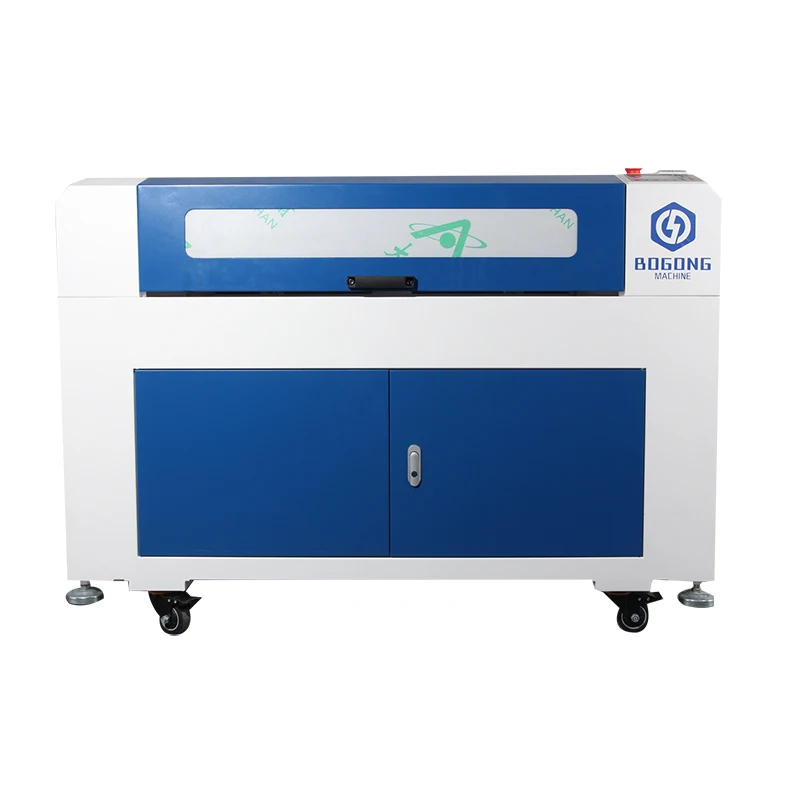

Laser Engraving Rubber Sheet Co2 Fabric Cutting Machine Plexiglass CO2 1390 For Sale | Инструменты

Laser Engraving Rubber Sheet Co2 Fabric Cutting Machine Plexiglass CO2 1390 For Sale | Инструменты

Machine Features
1.Imported high-precision linear guide rail transmission makes the optical laser path and movement more stable, and better cutting effects.
2.Advanced DSP control system, high speed, easy operation, high cutting speed.
3.We can make double or more laser heads to improve work efficiency.
Applicable Materials
Wood products, paper, plastic, rubber, acrylic, bamboo, marble, double-color sheets, glass, wine bottles and other non-metal materials
Application Industries
Advertising signs and boards, arts and crafts, awards and trophies, paper-cutting, architectural model , lights and lamps, printing and packaging, electronic appliances, photo frames and albums, garment leather and other industries.

Control box

There are number labels on each wire in control box, you can find original and ends of each wire, easy to maintain the machine in future

 Technical Parameters

Machine model

BG6090

Laser type

Sealed CO2 laser tube, wavelenght:10:64μm

Laser power

150w/180w/280w/300w

Cooling mode

Pure circulating water cooling

Laser power control

0-100% software control

Control system

DSP offline control system

Max. engraving speed

0-60000mm/min

Max cutting speed

0-30000mm/min

Repetition accuracy

≤±0.01mm

Min. Letter

Chinese:1.5mm, English:1mm

Table size

600*900mm

Working voltage

110V/220V.50-60HZ

Working conditions

temperature:0-45℃,humidity:5%-95%

File formats

*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*.las,*.doc

FAQ

Q1: I know nothing about this machine, what type of machine should I choose?

We will help you choose the suitable machine and share you the solution; you can share us what material will you marking / engraving and the depth of MARKING/ ENGRAVING.

 Q2: When I got this machine, but I don’t know how to use it. What should I do?

We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.

 Q3: If some problems happen to this machine, what should I do?

We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.

 Q4: What’s consumables of laser marking machine?

A: It does not have consumable. It’s very economical and cost effective.

 Q5: What’s package, will it protect the products?

A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.

 Q6: What’s delivery time?

A: Commonly, the lead time is within 5 working days after receiving the payment.

 Q7: What payment terms can you accept?

A: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.

 Q8: How is the shipping method?

A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement

How does the machine packing and shipping?

1)First the machine will be packed with plastic wrap tightly. and the plastic wrap will be many layers onto the machine, the plastic wrap will stop the mos it air from entering the machine, this is very important during sea transportation, moist air will etch the machine.

2)Second, we will use the air cushion film to pack the machine, and it can avoid scratching the machine during the fransportation

3)Third, we will use the plywood case to package the machine for the last step, and we will also put some foam between the plywood case and the machine, the foam can buffer light impact during the transportation. And the bottom of the plywood case has steel beam, it can support the machine well. The plywood case is fumigation-free, it won't take any life to your country

 BOGONG Machinery specializes in the research and development of fiber laser cutting, laser marker, CO2 laser machine, CNC machine etc, and provides solutions of corresponding automatic system technologies. The company keeps long term and good cooperation with famous laser companies in Germany, USA, Japan and Italy, and domestic laser institutes, ensuring the synchronous development of laser process system of BOGONG MACHINERY with the latest international technologies. The products of BOGONG are distributed to Singapore, Indonesia, India, Malaysia, Thailand, Korea, Japan, USA, Hong Kong, Taiwan, Vietnam, England, France, etc. We also have established perfect technical support and sales service network in more than 50 countries and areas.
