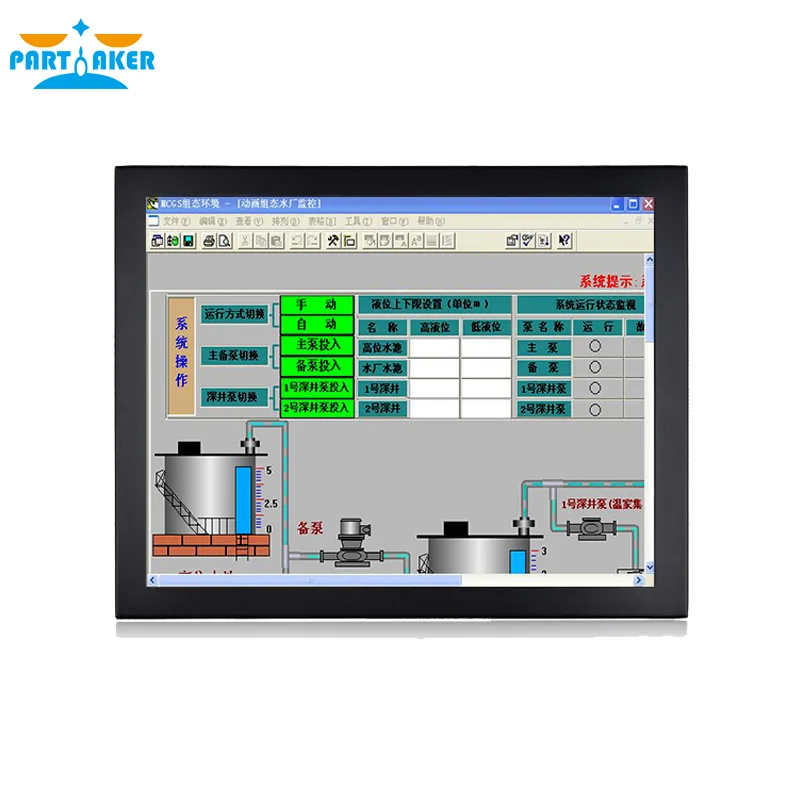

Z13 15 Inch All In One Touch Industrial PC Intel Celeron J1800 with 10 Points Capacitive Screen 4G RAM 64G SSD | Компьютеры и офис

Z13 15 Inch All In One Touch Industrial PC Intel Celeron J1800 with 10 Points Capacitive Screen 4G RAM 64G SSD | Компьютеры и офис

 This model can install 5 types processor CPU:

1: Bay Trail-D-Celeron J1900 Quad Core 2.0G(Max. 2.4GHz)

2: Intel® Celeron Processor 3855U (2M Cache, 1.60 GHz)

3: Intel®Core I5 Dual Core(Max. 2.6GHz)

4: Intel® Core I7 Dual Core (Max. 2.8GHz)

5: Bay Trail-D-Celeron J1800 Duad Core 2.41G(Max. 2.58GHz)

Model Number: Partaker Z13
Opening Hole Size: 334*232mm (Length*Width)
Screen Type: 10 Points Capacitive Touch Screen
CPU: Intel Celeron Processor J1800 (1M Cache, up to 2.58 GHz)
OS: Windows Or Linux
RAM/SSD/HDD: Max 8G RAM, 1* MSATA + 1*2.5 Inch HDD
I/O: 3*RS232+VGA+LAN+3*USB2.0+1 USB 3.0+DC+Audio In &Out
I/O: Optional LPT, Default Without
Physical Dimension: 355.8*287.3*53.6(mm)
Gross Weight: 6.5 KGS
Features: Resolution 1024*768, Screen Ratio 4:3
Panel Structure:
Panel Size: 15 Inch LED Screen
Resolution: 1024*768
Display Brightness: 430cd/m(2)
Contrast: 700 : 1
Response Time: 8ms
Touch Type: Using high-quality resistance touch screen click life> 1 million times
Usage Environment:
Operating Temperature: -10℃~60℃ Surface Air Flow
Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation
Storage Temperature: -20 ℃ ~ 70 ℃
Installation Method:
1: Embedded (Recommended)
2: Wall-mounted
3: Desktop
4: Cantilevered
5: Other Installation Methods
Motherboard:
BIOS: AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions
Motherboard: Fanless Design
I/O Interface:
Network: 1* Realtek 8111E 10/100/1000M
Audio: RealtekALC662 HD Audio
Package Information:
Package Size: 44CM(L)*36.2CM(W)*15.5CM(H)
Physical Weight: 4KG / 5.1KG(Net/Gross)
Power Supply: Input: 180-240V~1.0A 50-60Hz Output: 12VDC 4A MAX
Power Cord: Power Cord*1
Touch Pen: Resistance touch pen*1 (10 capacitive touch screen without touch pen)
Buckle: Embedded Installation Buckle* 1 Set

Opening Hole Size Drawing:

Features:

Resolution 1024*768, Screen Ratio 4:3

Optional WiFi module, support for 802.11b / g / n

Support call on boot, network wake-up

Standard VESA screw hole, can choose the installation method flexibly

Support Win7, Win8, Win10, Linux etc….

Panel Structure:

Panel Size

15 Inch LED Screen

Resolution

1024*768

Display Brightness

430cd/m(2)

Contrast

700 : 1

Response Time

8ms

Touch Type

Using high-quality resistance touch screen click life> 1 million times

Usage Environment:

Operating Temperature:

-10℃~60℃ Surface Air Flow

Operating Humidity:

10% ~ 95% @ 40 ℃ without condensation

Storage Temperature:

-20 ℃ ~ 70 ℃

Installation Method:

1. Embedded (Recommended)

2. Wall-mounted

3. Desktop

4. Cantilevered

5. Other Installation Methods

Motherboard:

BIOS:AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions

Display Mode:Single Display; VGA+LVDS, Synchronous / Asynchronous Dual Display

Motherboard:  Fanless Design

I/O Interface:

Network: 1* Realtek 8111E 10/100/1000M Adaptive Network Card Chip

Audio: Realtek®ALC662 HD Audio Decoding Core

Quality Inspection:

Each Partaker Industrial All In One Computer will conduct a number of strict testing, including performance testing, temperature testing, vibration, pressure, LED screen aging, interface testing, electronic load, touch screen detection

Before shipment, the appearance of Partaker Industrial All In One Computer, performance, interface, 24-hour aging test to ensure that each is superior quality.

Company Profile:

Focus on the industrial sector for 8 years, your most reliable suppliers

INCTEL Technology focus on All in One touch-screen, infrared touch All in One Computer, resistance touch All in One PC, advertising, touch products such as the development and production. For industrial control, commercial display, advertising, business meetings, games, entertainment, medical equipment and other fields, introduced a professional application solutions.

Package Information:

Package Size

44CM(L)*36.2CM(W)*15.5CM(H)

Physical Weight

4KG / 5.1KG(Net/Gross)

Power Supply

Input: 180-240V~1.0A 50-60Hz Output: 12VDC  4A MAX

Power Cord

Power Cord*1

Touch Pen

Resistance touch pen*1 (10 capacitive touch screen without touch pen)

Buckle

Embedded Installation Buckle* 1 Set
