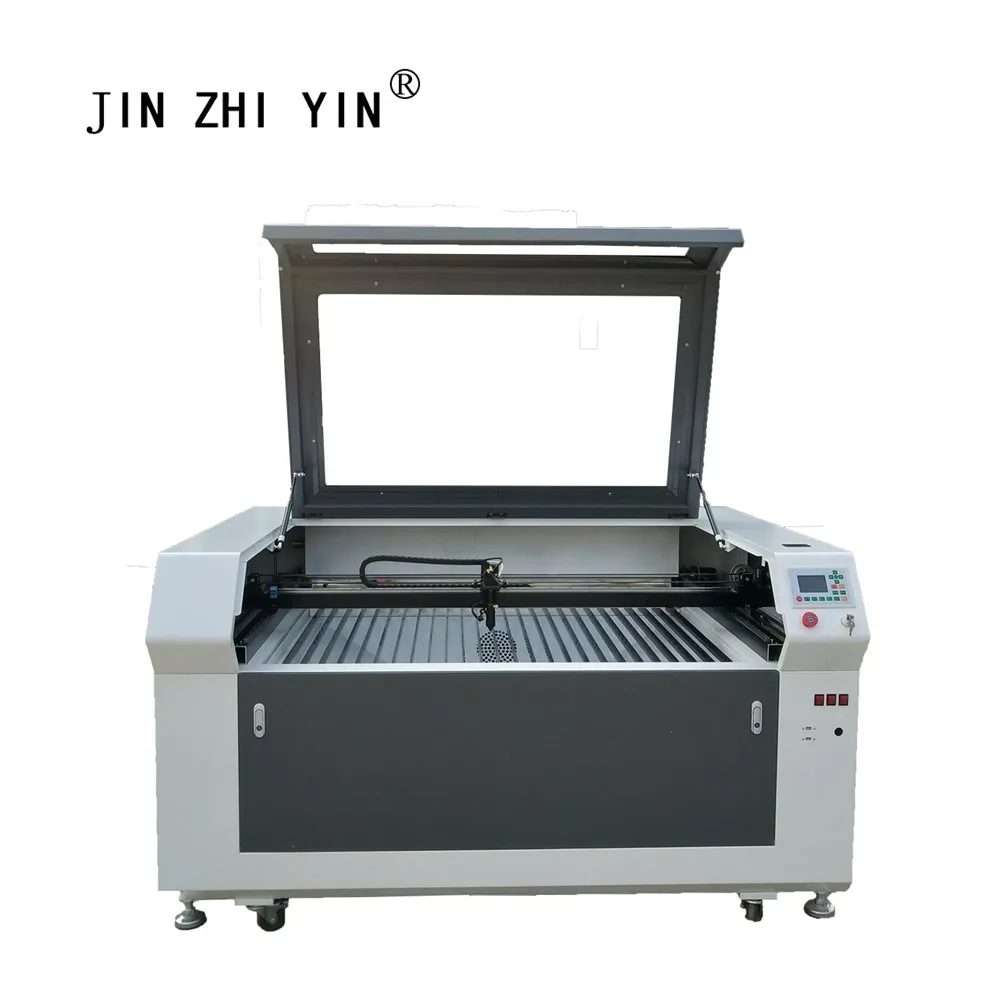

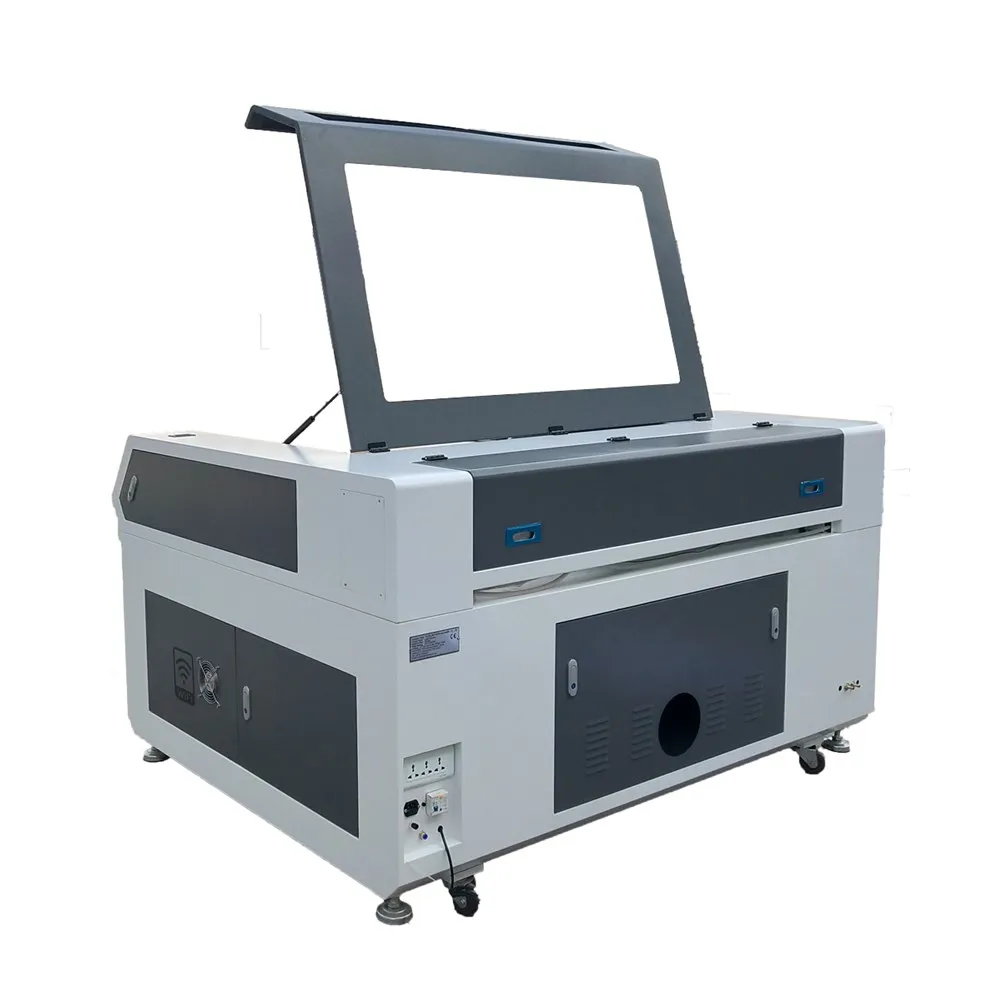

1390 co2 laser  Grayish white cutting machine ruida system crystal laser engraving machine

Product parameters

Working Table Size

1300mm *900mm

Laser Tube

Sealed CO2 glass Tube

Working Table

Fence Blade work Table

Laser Power

80W

Cutting Speed

0-100 mm/s

Engraving Speed

0-600mm/s

Resolution

±0.05mm/1000DPI

Minimum Letter

English 1×1mm (Chinese Characters 2*2mm)

Support Files

BMP,HPGL,PLT,DST and AI

Interface

USB2.0

Software

RD Works

Computer system

Windows XP/win7/ win8/win10

Motor

57 Stepper Motor

Power Voltage

AC 110 or 220V±10%,50-60Hz

Power cable

European Type/China Type/America Type/UK Type

Working Environment

0-45℃(temperature)      5-95%(humidity)

Power consumption

<900W (Total)

Z-Axis Movement

Automatic (0-180mm adjustable)

Position system

Red-light pointer

Cooling way

Water cooling and protection system

Cutting thickness

Please consult sales

Packing Size

205x158x134cm

Gross Weight

450KG

Package

Standard plywood case for export

Warranty

All life free tech support, one year warranty, except consumables like laser tube, mirror and lens, etc.

Free accessories

Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable

Optional parts

Spare focus lens

Spare reflecting mirror

Spare rotary for cylinder materials

Industrial Water cooler

FAQ

Q1. How to get the most suitable machine and best price

Please tell us the material you want to working on ? How to working on it ? Engraving ? Cutting ? Or other ? Mainly engraving or cutting? What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2. If we don't know how to use the machine,can you teach us?

Yes, we will, please contact us as soon as you get the machine

Q3. How about your after-sales service?

we offer you 24 hours service phone,skype or Whatapp.

Q4. Quality Control:

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.

Q5. How we pay you?

Please contact us, after confirm machine and optional parts to order, we will give you the link to order.

Please read the following notes carefully before you order:

1.We offer all life free tech support and one year warranty on our machines(consumables not included). We have english speaking engineer can assist you on the machine installtion and give you free trainning during our work time. (Pacific Time: 2:30am-5:30pm)

2. If you have any questions please feel free to ask us. We will reply you the first time after seeing

About payment

1. We accept Alipay, West Union, TT. All major credit cards are accepted through secure payment processor ESCROW.

2.If you have any questions about our products. Please feel free to ask us. We have received your order. The warehouse delivery will be arranged as soon as possible. We guarantee that you will receive the best quality and cheap products.

After payment is done and pass

1.shipping will be made within 3-5 business days.

2.We just will try our best to send out your goods as earlier as we can, but shipping is out of our control, so we will not accept any form of urging.Picky customers are unwelcome, please bypass. Happy shopping is the most important! Enjoy your Shopping on line!

3. If need fast shipping, please provide us your city and post code to check the shipping cost for you, our cooperated courier is DHL/TNT/EMS/UPS/FEDEX, Based on your shipping address and the cost of our product. We will charge part of the shipping fee accordingly. I hope you understand.

After receiving the goods

1 .Pls check all goods carefully and report to us within one week if there are any parts loss or machine problems. Pls show related photos and videos.

2.If need change products, buyer must make sure all items returned contain all original packaging materials and no damage on the products, buyer is responsible for shipping costs.

3. Due to machine is special product, big size, if shipping back, shipping cost and import tax will be very high, so we do not accept Return, but we will grantee that it can work well. During warranty, we can change you spare parts for free (Consumable parts not included in)

4.For Machine,The warranty period is one year. During the warranty period, if the spare parts are returned for repair, the buyer pays the returned freight and charges, and we are responsible for the second freight and handling charges(except waring parts)
