This model can install 5 types processor CPU:

1: Bay Trail-D-Celeron J1900 Quad Core 2.0G(Max. 2.4GHz)

2: Intel® Celeron Processor 3855U (2M Cache, 1.60 GHz)

3: Intel®Core I5 Dual Core(Max. 2.6GHz)

4: Intel® Core I7 Dual Core (Max. 2.8GHz)

5: Bay Trail-D-Celeron J1800 Duad Core 2.41G(Max. 2.58GHz)

4G RAM 64G SSD

Model Number:

Partaker Elite Z16T

Screen Size:

19 Inch

Opening Hole Size:

435*359mm (Length*Width)

Screen Type:

Taiwan High Temperature 5 Wire Touch Screen

CPU:

Bay Trail Celeron 3855U Dual Core 1.6GHz

OS:

Windows Or Linux

RAM/SSD/HDD:

Maximum 8G RAM, 1* MSATA + 1*2.5 Inch HDD

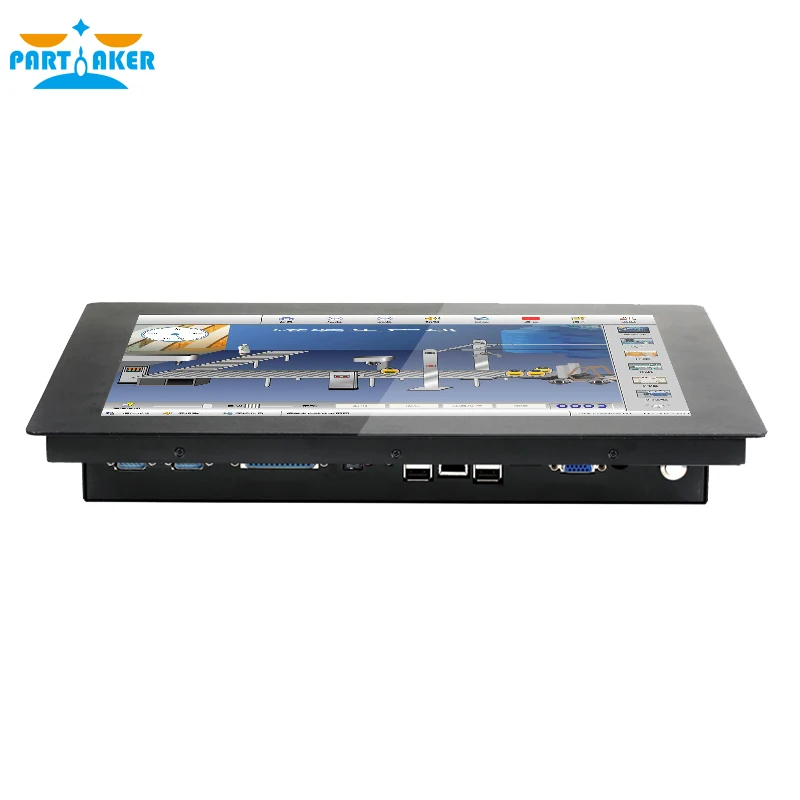

I/O:

3*USB2.0/1*USB3.0/3*RS232

I/O:

1*VGA/1*RJ45

I/O:

1*DC/MIC-IN&LINE-OUT

Physical Dimension:

452.5*376.5*59.5(mm)

Gross Weight:

10.5 KGS

Opening Hole Size Drawing:

Features:

19 Inch LED Screen, Large Screen

Stable performance, support 7 * 24-hour uninterrupted operation

Durable, dust-proof, high and low temperature resistance, impact resistance, anti-interference

Optional WiFi module, support for 802.11b / g / n

Standard VESA screw hole, can choose the installation method flexibly

Support Win7, Win8, Win10, Linux etc….

Panel Structure:

Panel Size

19 Inch LED Screen

Resolution

1280*1024

Display Brightness

250cd/m(2)

Contrast

1000 : 1

Response Time

5ms

Touch Type

Using high-quality resistance touch screen click life> 1 million times

Usage Environment:

Operating Temperature:

-10℃~60℃ Surface Air Flow

Operating Humidity:

10% ~ 95% @ 40 ℃ without condensation

Storage Temperature:

-20 ℃ ~ 70 ℃

Installation Method:

1. Embedded (Recommended)

2. Wall-mounted

3. Desktop

4. Cantilevered

5. Other Installation Methods

Motherboard:

BIOS:AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions

Display Mode:Single Display; VGA+LVDS,Synchronous / Asynchronous Dual Display

Motherboard:  Fanless Design

I/O Interface:

Network: 1* Realtek 8111E 10/100/1000M Adaptive Network Card Chip

Audio: Realtek®ALC662 HD Audio Decoding Core

Quality Inspection:

Each Partaker Industrial All In One Computer will conduct a number of strict testing, including performance testing, temperature testing, vibration, pressure, LED screen aging, interface testing, electronic load, touch screen detection

Before shipment, the appearance of Partaker Industrial All In One Computer, performance, interface, 24-hour aging test to ensure that each is superior quality.

Company Profile:

Focus on the industrial sector for 8 years, your most reliable suppliers

INCTEL Technology focus on All in One touch-screen, infrared touch All in One Computer, resistance touch All in One PC, advertising, touch products such as the development and production. For industrial control, commercial display, advertising, business meetings, games, entertainment, medical equipment and other fields, introduced a professional application solutions.

Package Information:

Package Size

47.5CM(L)*43.5CM(W)*15CM(H)

Physical Weight

5.9KG / 7.05KG(Net/Gross)

Power Supply

Input: 180-240V~1.0A 50-60Hz Output: 12VDC  4A MAX

Power Cord

Power Cord*1

Touch Pen

Resistance touch pen*1 (10 capacitive touch screen without touch pen)

Buckle

Embedded Installation Buckle* 1 Set



About Power Cord:

We will ship the type of power cord, based on your area.
