Just Replacemen for Nintend Switch, not original Joystick controller.(No NFC )

Controller features

1) This pair of controllers is compatible with Switch console and only supports Bluetooth connection.

2) It can be used as an entire controller also can be used as two independent controllers.

3) No need to install any driver, it can be used once connected to Switch console by Bluetooth code match.

4) Wireless Bluetooth V3.0 connection, lower interference, stable connecting signal and ease of handling.

5) Built-in with 300mAh polymer lithium battery, it can be continuously used for around 4h after fully charged.

6) It supports motion sensing function via built-in Gyro in each controller.

7) It supports vibration function via built-in motor in each controller.

8) Multiplayer games can be played by connecting more wireless controllers simultaneously to a Switch console.

9) Ergonomic design and light weight construction make it comfortable even for long hours of continuous gaming.

10) It can be upgraded by update software through USB cable connecting to PC.

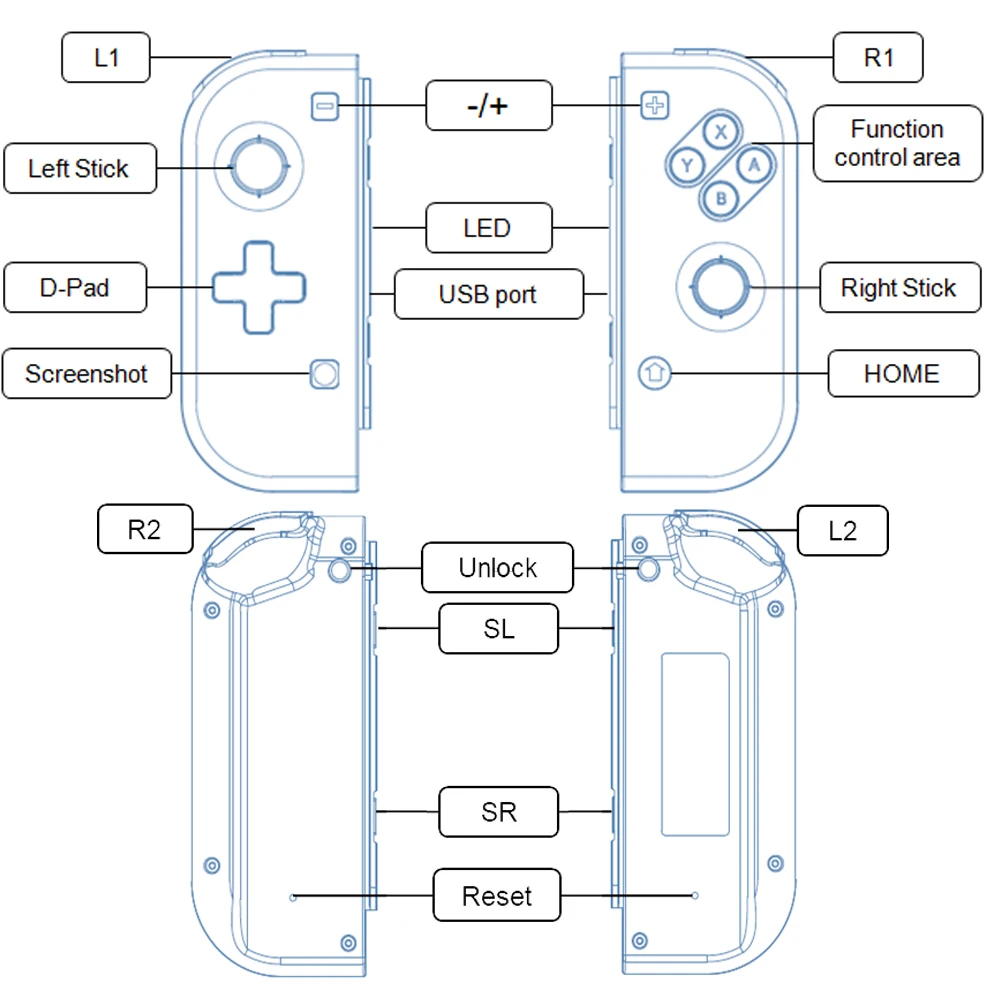

Key brief description

1) HOME key: Power controller on or execute commands from Switch console.

2) D-Pad: Up, down, left and right. It can be easily operated on eight directions; it acts as a set of function control keys when using a Left Controller as an independent controller.

3) Function control keys: A, B, X, Y. Perfect key design, sensitive and quick for finger operation.

4) Left stick and Right stick: Neoteric 3D stick can be operated precisely on 360° all-round.

5) Functional keys: L1, R1, L2, R2. Trigger and shoulder keys perform quick response function.

6) Screenshot key: Take screenshot and store; it acts "HOME" key when using a Left Controller as an independent controller.

7) Reset key: Short press this key in reset hole to power controller off to disconnect controller from console.

8) Unlock key: Left unlock key and right unlock key. Press and hold the both unlock keys simultaneously to release Switch console.

Connecting instruction

1) Connecting to a Switch console for the first time

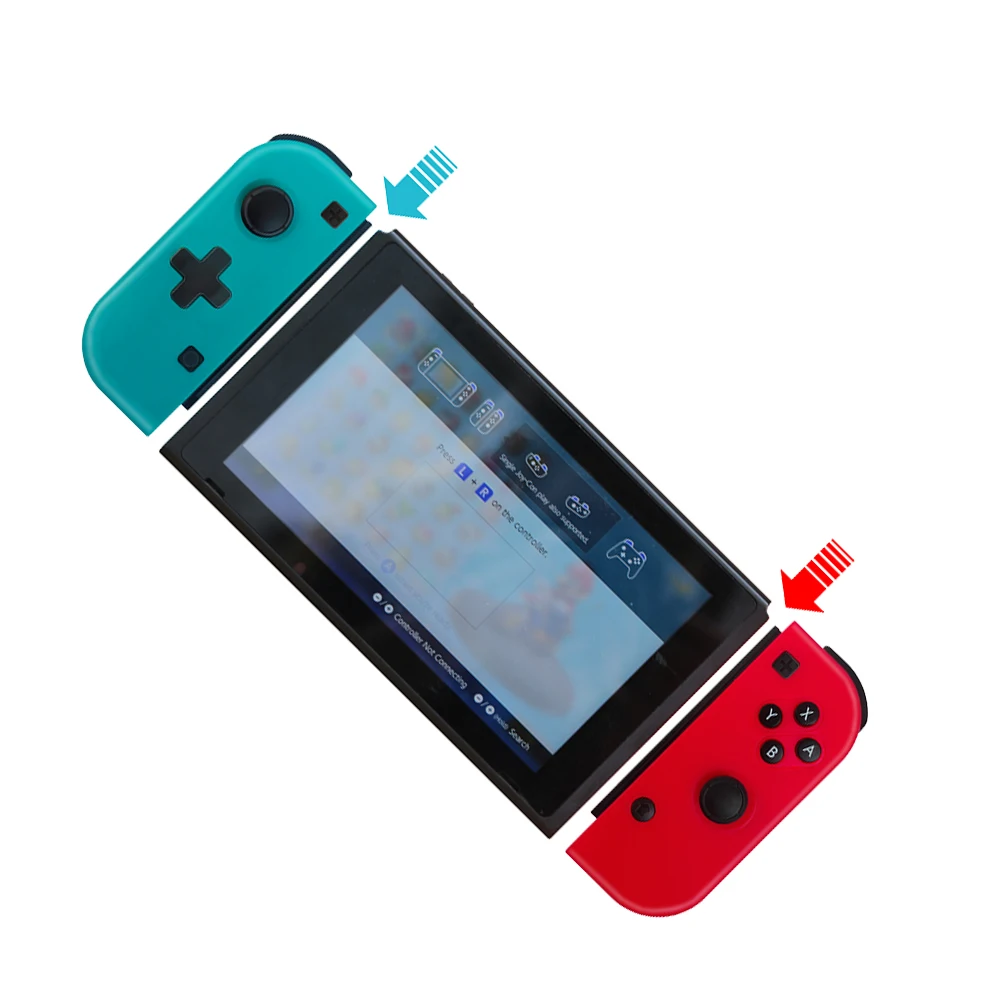

Power a Switch console on, on the main interface of the console, use your finger to click on "Controllers" "Change Grip/order" to come to this pairing pattern interface "Press L + R on the controller", ignore "L + R".

Note: Please pair and connect each controller at this pairing pattern interface of a Switch console.

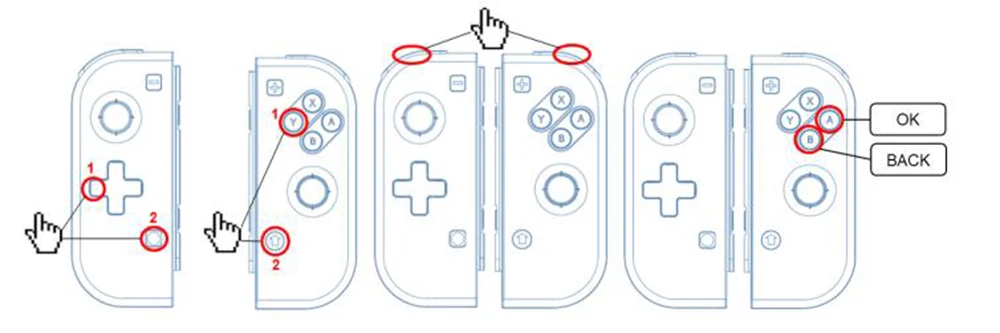

A. Connecting a pair of controllers (A Left Controller plus a Right Controller) as an Entire Controller

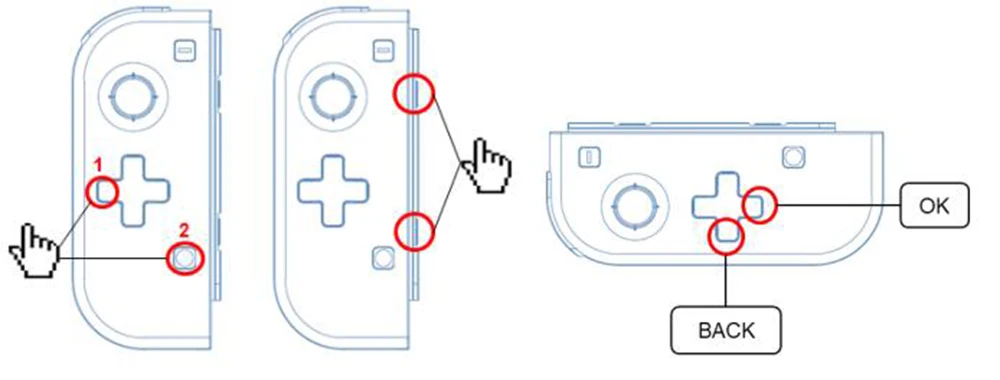

Step 1: Press "left of D-Pad" key plus "screenshot" key and hold for 5s to power a Left Controller on, four LEDs will be blinking quickly and circularly, when one (or more) of the LEDs is solid bright, it means that the controller is paired with the console successfully.

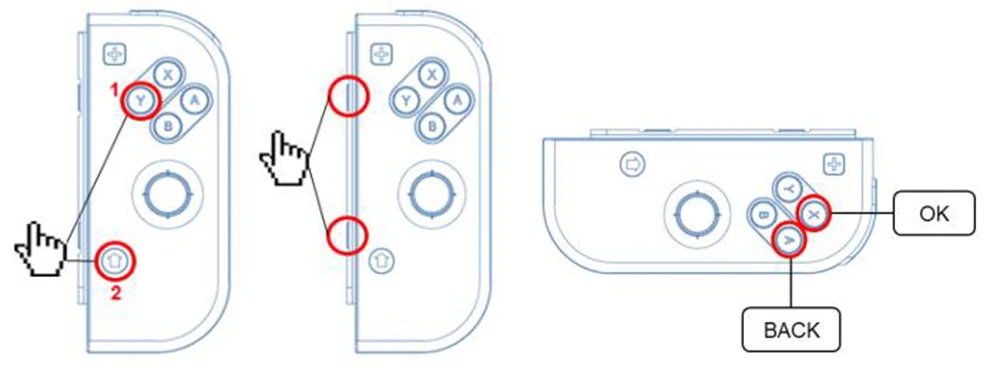

Step 2: Press "Y" key plus "HOME" key and hold for 5s to power a Right Controller on, four LEDs will be blinking quickly and circularly, when one (or more) of the LEDs is solid bright, it means that the controller is paired with the console successfully.

Step 3: After the both controllers are paired with the console successfully, press "L1" key plus "R1" key simultaneously once, the corresponding LED(s) will be solid bright in each of the both controllers, it means that an Entire Controller (a Left Controller + a Right Controller) is connected to the console successfully and ready to be used. Press "B" key to back to the main interface of the console

 B. Connecting a Left Controller as an independent controller

Press "Left of D-Pad" key plus "screenshot" key and hold for 5s to power a Left Controller on, four LEDs will be blinking quickly and circularly, when one (or more) of the LEDs is solid bright, it means that the controller is paired with the console successfully; press "SL" key plus "SR" key simultaneously once, the corresponding LED(s) will be solid bright in the Left Controller, it means that the Left Controller as an independent controller is connected to the console successfully and ready to be used. Press "left of D-Pad" key to back to the main interface of the console.

C. Connecting a Right Controller as an independent controller

Press "Y" key plus "HOME" key and hold for 5s to power a Right Controller on, four LEDs will be blinking quickly and circularly, when one (or more) of the LEDs is solid bright, it means that the controller is paired with the console successfully; press "SL" key plus "SR" key simultaneously once, the corresponding LED(s) will be solid bright in the Right Controller, it means that the Right Controller as an independent controller is connected to the console successfully and ready to be used. Press "A" key to back to the main interface of the console.

2) Connecting to a paired Switch console

A. An Entire Controller (a Left Controller + a Right Controller): Press "HOME" key and hold for 2s to power an Entire Controller on, the controller will be connected to the console automatically again.

B. An independent Left Controller: Press "Screenshot" key and hold for 2s to power a Left Controller on, the controller will be connected to the console automatically again.

C. An independent Right Controller: Press "HOME" key and hold for 2s to power a Right Controller on, the controller will be connected to the console automatically again.

3) Waking controller up

If a controller is in sleeping mode, short press "HOME" key or "Screenshot" key to wake it up, it will be connected to the console again automatically.

Note: This pair of controllers is neither with NFC function nor with camera function. Built-in motors are none HD motors, vibration experiences might be different in some games. Games which need camera function and HD motor vibration function can't be played normally, such as Baby, Ball Count, Eating Contest etc.

4. LED indication instruction

1) Four LEDs blinking quickly and circularly: This controller is searching for Bluetooth to be paired.

2) LED(s) solid bright: This controller is connecting to console normally via Bluetooth.

3) LED(s) blinking quickly: This controller battery voltage is lower than 3.6V; if the voltage is lower than 3.4V, the controller will be shut off automatically and can't be powered on.

4) Four LEDs blinking slowly: This controller is being charged via connecting to a charger, four LEDs will be off after fully charged.

Precautions

1) Please don't store this product in damp or high temperature places;

2) Do not knock, beat, pierce or try to disintegrate this product so as not to damage it unnecessarily;

3) Don't discard it with garbage as this product is with a lithium battery built-in;

4) Don't use this product near fire or heat sources;

5) Unauthorized or non-professional personnel are not allowed to disassemble this product, otherwise it won't be in the scope of after-sales warranty.
