2019 Newest OPCOM V1.95 PIC18F458 FT232RQ firmware OP-COM For Opel Diagnostic-tool OP COM V1.95 support Hardware update

Description:

OPCOM 2014 diagnostic tool for Opel cars covers almost all FOR Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H,Zafira-B. It lets you read and clear fault codes, support many control units.

Windows System: Win XP/WIN 7 32bits only(close anti-virus program)

Language: English only

PCB Board Chip:PIC18F458 and FTDI Chip , NEW NEC Relay.

OPCOM is a special PC Based diagnostic interface especially for OPEL.

V1.95 is FT232RQ Chip, Support Hardware Update .

New OPCOM V1.95 Firmware 2014V Software Feature:

1. OPCOM is a special PC Based diagnostic interface especially for OPEL.

2. Software Version: V2014

    Firmware Version: V1.95

3. Never Update It Online, Otherwise will damage The OP-COM !

Note: OPcom V1.95 with new program can work more stable than opcom v1.70 single board and opcom v1.65 dual board.

New OPCOM 1.95 Firmware 2014V Software Function:

1. It covers almost all FOR Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.

2. The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test.

3. The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.

4. Since FOR Opel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.

PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)

5. Fault codes will be shown with all available information

Full fault code text description:

1) Full status information (Present, Not present, Intermittent)

2) You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.

3) The program shows you measuring block information on many control module, you can choose anything from the list on your own.

4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!

You can also run output tests on many controllers:

PIN6-PIN14
PIN3-PIN11
PIN1
HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps
MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps
SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

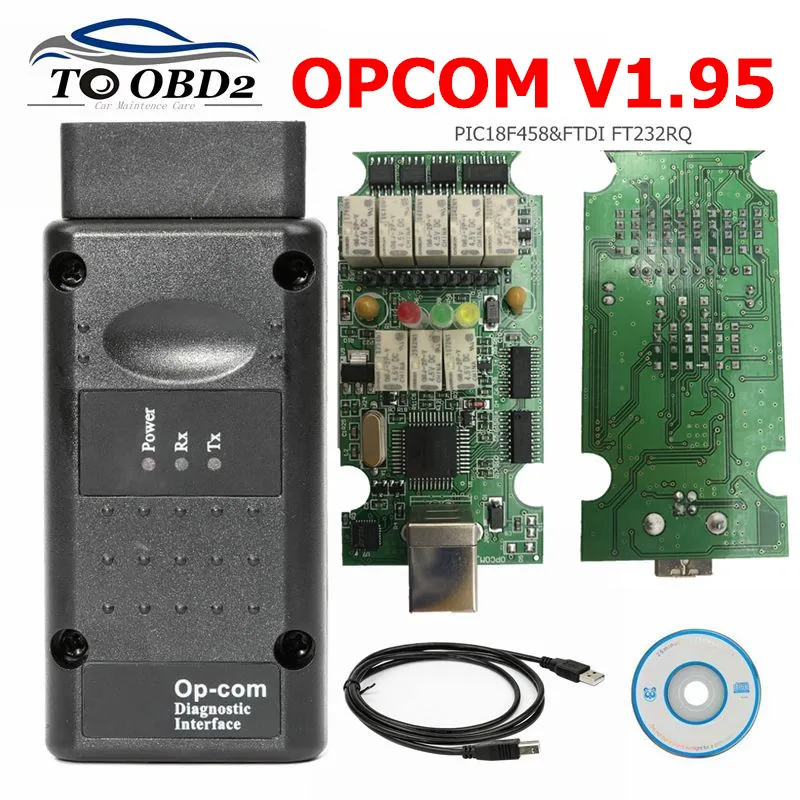

Package List:

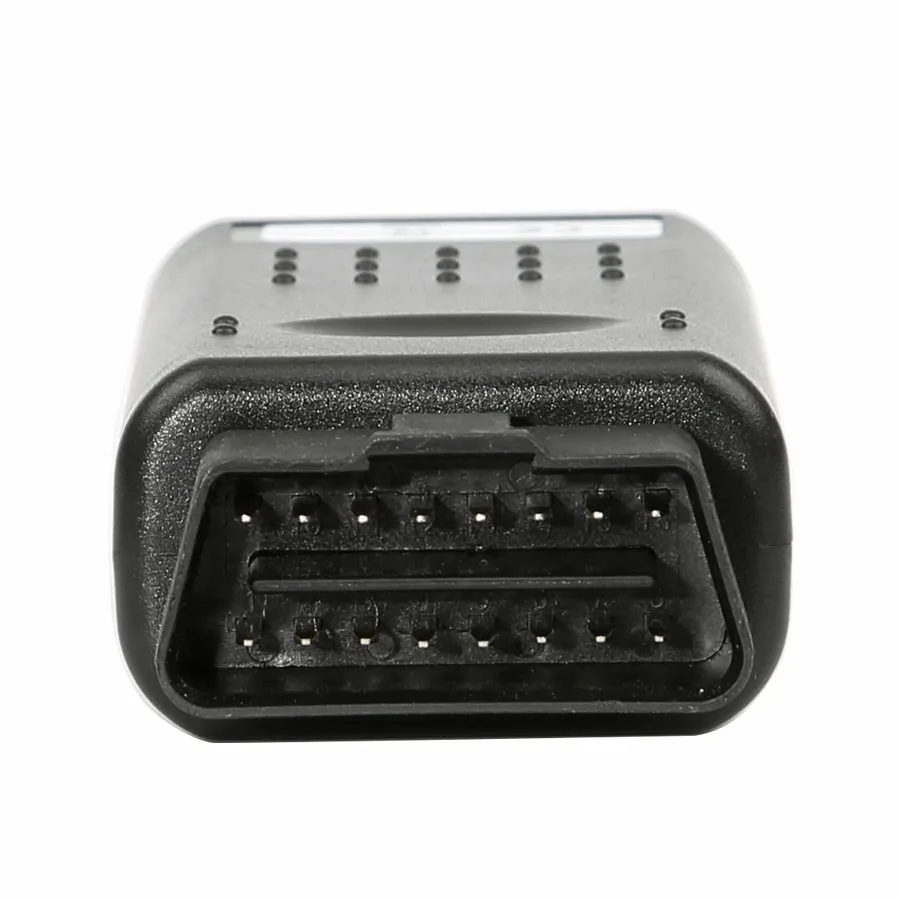

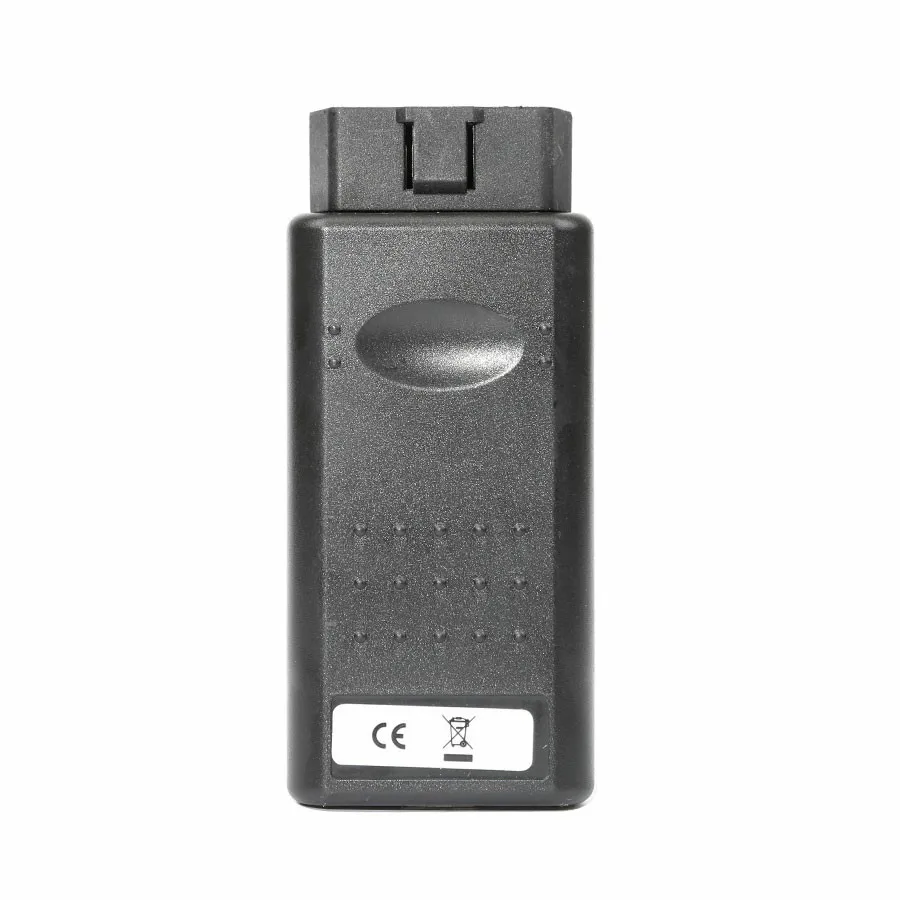

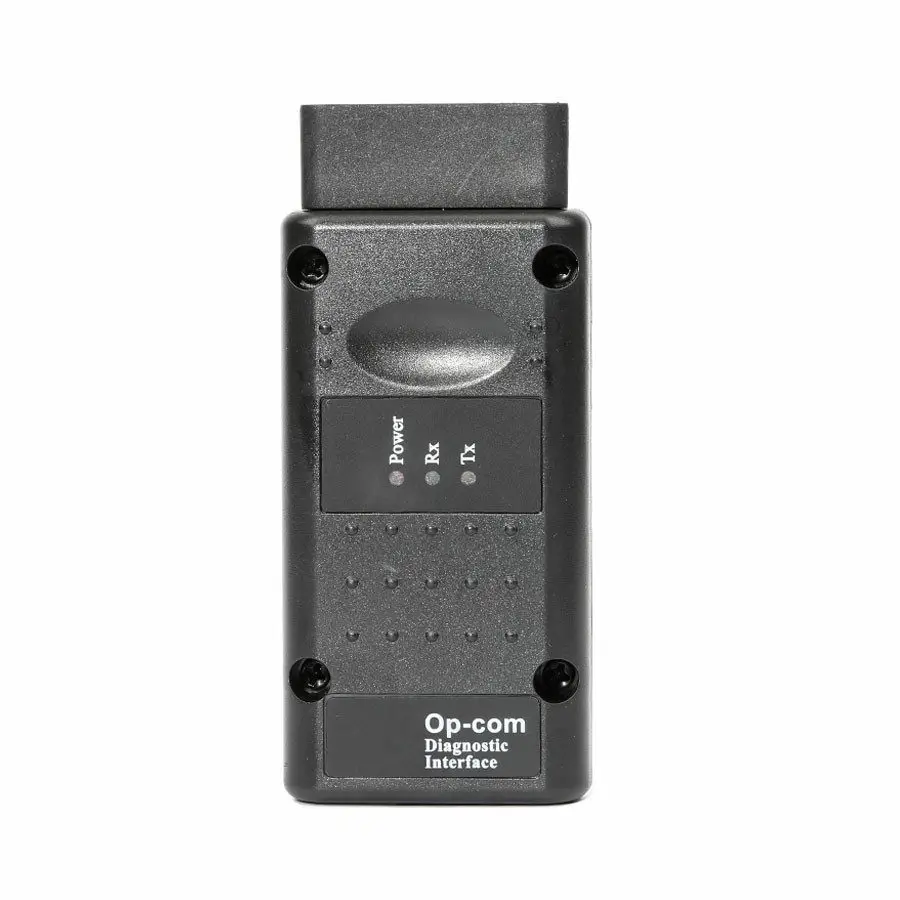

1. OPCOM Interface

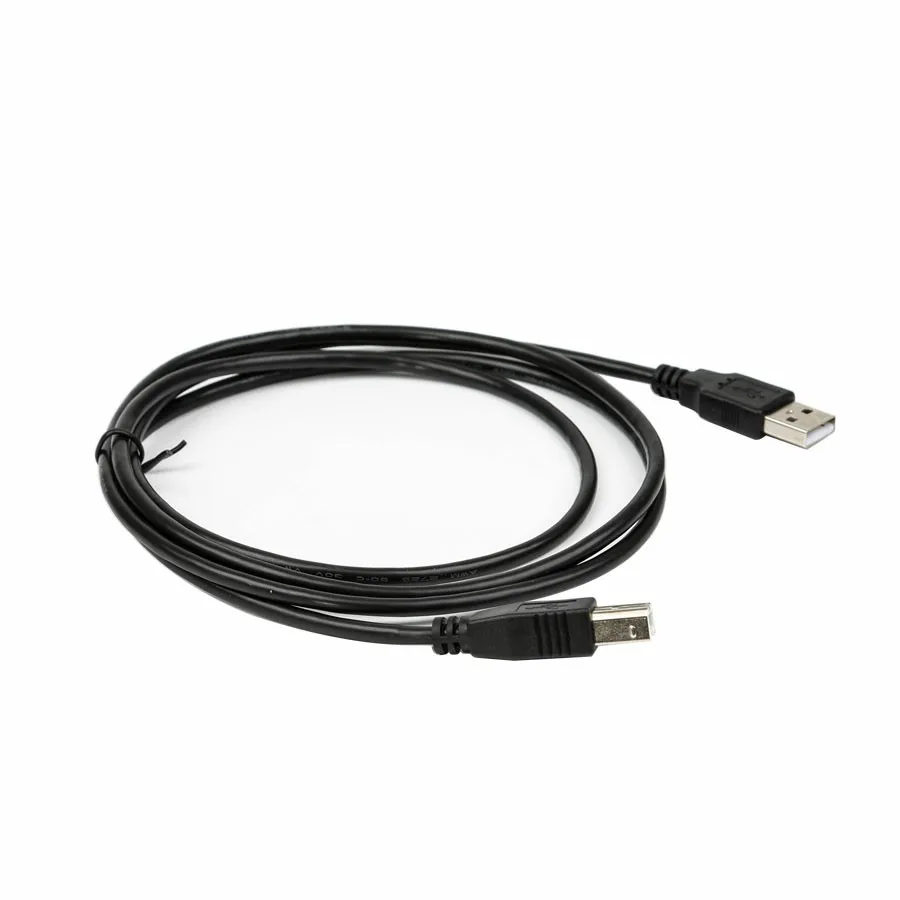

2. USB Cable

3. Software and Drivers CD


Note:If buyer received unreadbale CD or damaged,please feel free ask me to send you download link .Do not open dispute or leave negative feedback . Thank you very much.

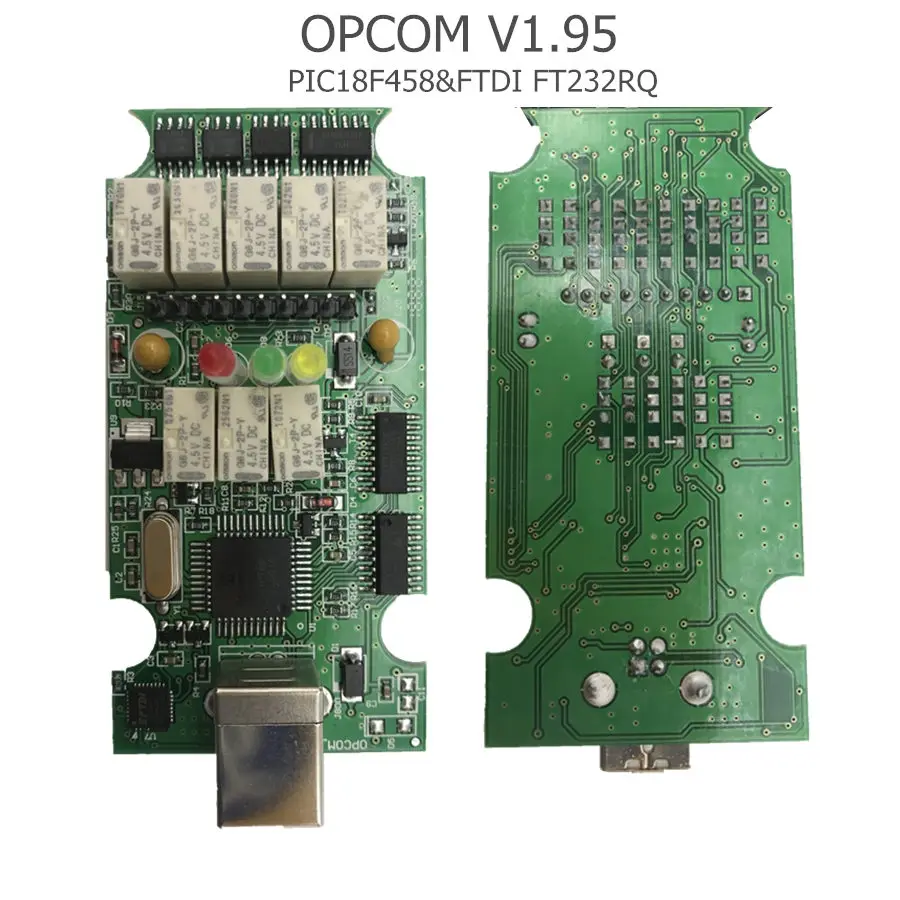

PCB Board Display:

Software Display:
