Nema23 Closed Loop Stepper Motor Driver Kit & Power Supply with 3M Encoder Cable+ 3M Motor Cable DC 36V 2.2Nm Step Drive Motor

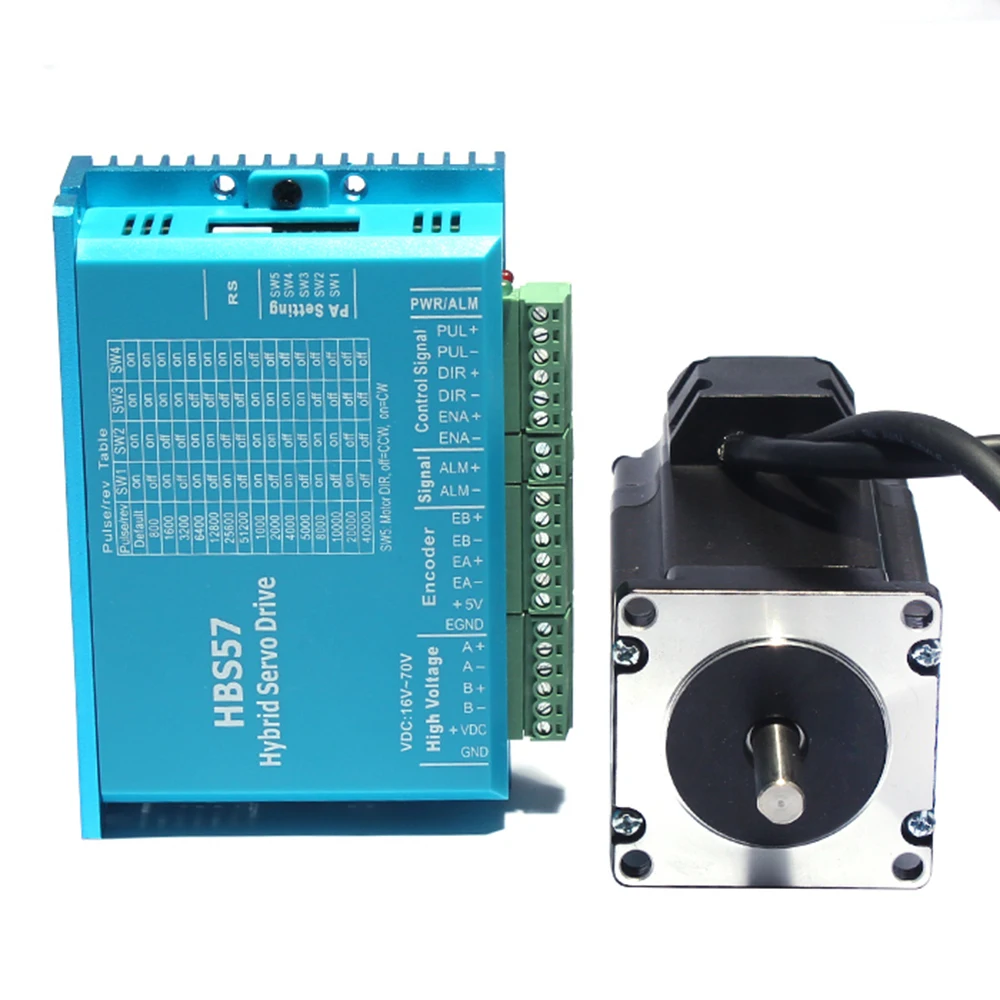

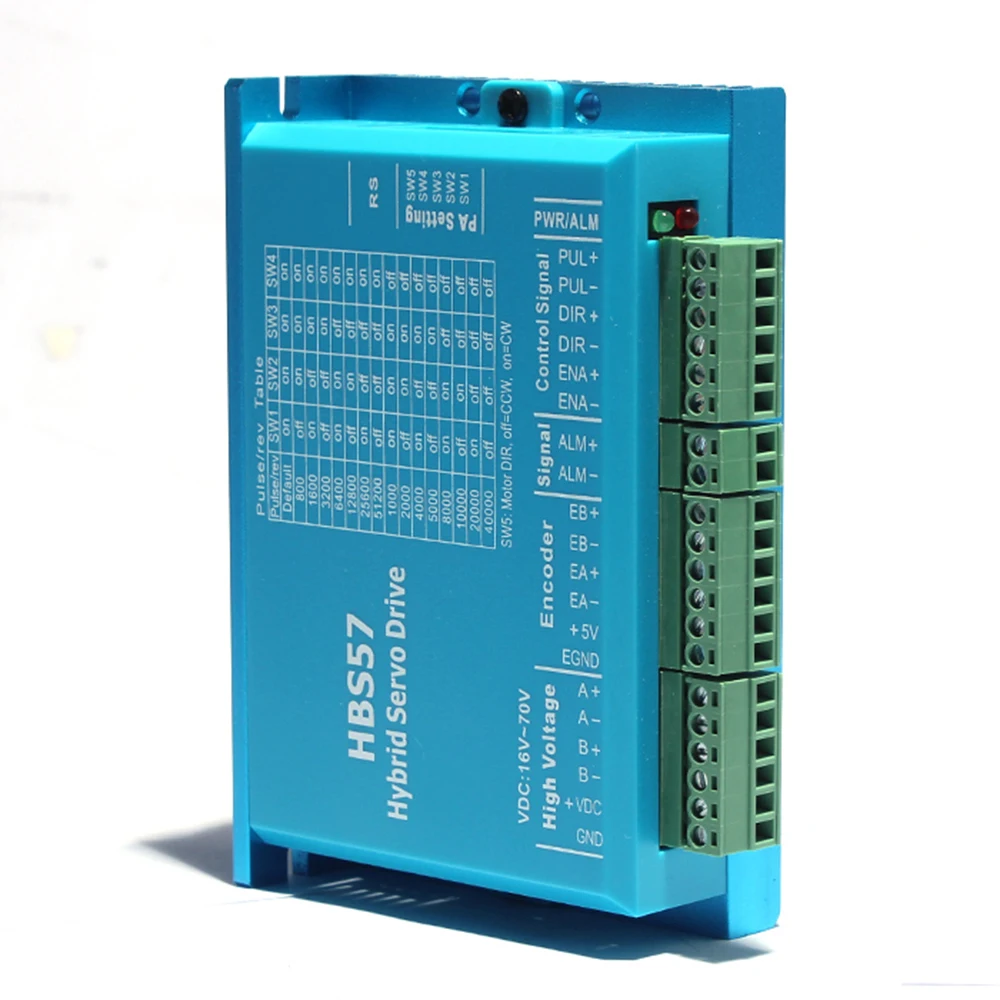

Nema23 Closed Loop Stepper Motor Driver Kit & Power Supply with 3M Encoder Cable+ 3M Motor Cable DC 36V 2.2Nm Step Drive Motor 1. Shipping list 1PC Close loop stepper motor(with 118 inch Power Cable) 1pc Close loop stepper drive 1PC 200W Power supply 1PC Encoder cable(118 inch) 2. Drive Specifications& Feature Type DSP Closed loop vector control stepper drive maximum peak current 5A Impulse response frequency 200Khz Micro-stepping driver 200~51200ppr Voltage 20~80VAC/DC30-110V Protective function Over voltage, over current, tracking error, overproof Signal input Support PUL/DIR and CW/CCW modes (difference) Compatible 5~24V signal (Don't need a resistor) Continuous overload Output an alarm signal Type of cooling Air-cooling Environment Keep away from dust, oil, corrosive gas, high humidity and high vibration Application temperature 0~50 degree centigrade Humidity 40-90%RH Shake 10~55Hz/0.15mm Min Typical Max Unit Output Current - - 5 A Input Voltage 24 36 60 VDC Logic Signal Current 7 10 16 mA Pulse input frequency - 200 - kHz Isolation Voltage 500 - - Mohm 3. Motor Specifications& Feature Step angle 1.8degree +/-5% Phase 2 phase Rated voltage 3.4V Rated current 4A Resistance 0.85 ohm +/-10%(At 20 degree centigrade) inductance 2.0mH +/-20%/Phase Hold torque 2.2N.m Insulation B Rotor inertia 470g.cm2 weight 1.1kg 4. Power Supply Model S-200-36 Input 90-132VAC 180-264VAC 47-63Hz DC output Power 200W Output 36VDC 5.9A 5. Advantage 1. HBS57 uses advanced motor control DSP chip and vector loop control technology. 2. High control precision and reliable, low noise and little vibration, no step to lose . 3. When the motor is continuously overloaded, the driver will output an alarm signal in time, which has the same reliability as the AC servo system. 6. Benefits for you (1) No need for complicated parameter adjustments, it is more convenient to use (2) No vibration when stopping at high speed, stable when stopped at zero speed (3) Very fast position response, especially suitable for short-distance fast start-stop situations (4) 50% lower cost, higher torque and smaller mounting size compared to servo systems 7. Application area It is suitable for all kinds of small and medium-sized automation equipment and instruments, such as: engraving machine, wire stripping machine, cutting machine, laser machine, plotter, CNC machine tool, automatic assembly equipment, electronic processing equipment, textile and garment equipment. It is especially effective in applications where users expect low noise and high speed. 8. Picture show
