6 Door Access Controller Web IP Remote Control pcs of New Biometric Fingerprint/EM ID Card reader+UPS Power+Magentic lock kits |

6 Door Access Controller Web IP Remote Control pcs of New Biometric Fingerprint/EM ID Card reader+UPS Power+Magentic lock kits |

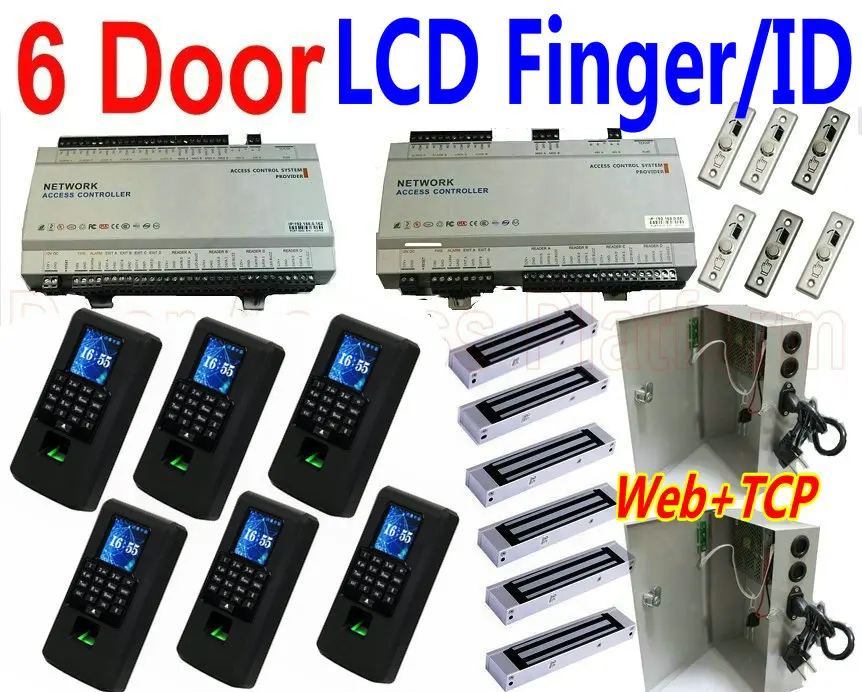

6 Door IP Control Full Kit Access Controller

 1 pc of IP Control Web Four DOOR/4 Door Access controller Panel Box TCP/IP

1 pc of IP Control Web Two DOOR/2 Door Access controller Panel Box TCP/IP

6 pcs of High End Electro Magnetic Lock

 6 pcs of 2019 New TFT-LCD Color Screen Fingerprint/Keypad+EM ID Card Wiegand reader with Plastic Shell

6 pcs of Metal Exit Button

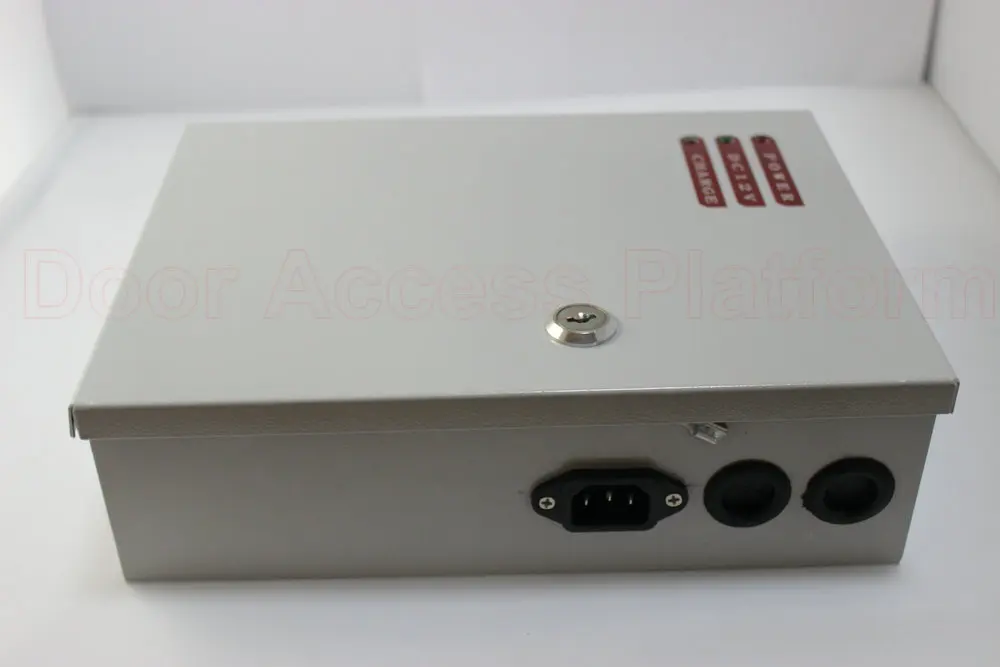

2 pcs of 24 Hours UPS Power Supply+Power lines

300 pcs of EM ID Key fob, Key tag 125KHz,

300 pcs of EM ID Card, 125KHz,

Same One Software in the Same System with Management Platform

Buy 1 order, Can get all of above items listing, Full Package Kit for You!!!

​

The 6 Door Web Controller system is Configured by 1 pcs of 4 Web Door Controller Panel+1 pcs of 2 Web Door Controller Panel,

There is No 1 pcs of 6 Door Controller Panel in our products group, Please noted,

This 4 Door Controller Panel and 2 Door Controller Panel was integrated with Taiwan and Korean Imported Electronic Components &IC Chip with High speed processor,

It is the most stable and excellent quality of all in the field of security access control market in China,

The Panel work with the system by TCP/IP network communication and Web-based platform, The user can manage the door system by remotely control via Browser and realize the real time monitoring for data and record,

The Panel support WG 26/34 interface for many type of WG reader accessing, Such as RFID Card reader, Fingerprint Reader, Password Reader,

Note:

This 4 Door Panel is a Single way reader control panel, Not a Double way reader control panel, Which means  In--> door by card swipe reader, Out--> door by push button,

So People Entry to the 4 pcs door by swipe his card to the card readers,  While Exit to the 4 pcs door by Press the Release Button, Not by swipe Card reader to go out,

If you need the 4 Door Panel controls the door entry and exit both by card readers, You need choose another model =4 Door panel with Double way reader,

While the 2 Door Panel is a Double way reader control panel that support 2 pcs entry reader and 2 pcs exit reader,

What this Controller Panel can do for you???

@ Work with Magnetic Lock,Power Supply,Release Button and Door Access Reader,

@ Work with Turnstile, Tripod Turnstile and RFID Card Reader,

@ Work with Car Parking Barrier Gate,Car Parking One-Card Platform,

@ Work with as Network Terminal /Platform and open the SDK for u development work,

Below is 4 door panel's parameter, The 2 door panel is half of paramter,

Connection

Card readers：

4 pcs （WG 26/34 reader）

Alarm output：

1 pc（1－65535 sec.）

Alarm input：

1 pcs

Fire alarm output：

1 pc

Fire alarm input：

1 pc

Release button：

4 pcs

Door sensor input：

4 pcs

Lock output：

4 pcs

Parameter

Card holder：

30000

Logs：

50000

Alarm capacity：

10000

Communication：

TCP/IP + Web Interface

Communication distance：

100 meters between access controller and HUB

Card reading：

WG 26/34

Communication ：

< 100 meters

Door opening methods:

card,password, card+password, double bard, first card opening,

software, fire alarm, release button,timing door opening

Features

  - Standard 10M Eternet TCP/IP Network Communication

  - Built in Webserver function, Do not need install software, Just inputting IP address of Controller Panels,

  - and proceeding setting and log checking for remote control management

 - Can connecting other multi door access controller via TCP/IP to set up a network and manage in one software

 - Capacity: 30000 cards, 50,000 records, alarm records

- Time zone: 16 groups, and can setting related multi door opening method like card, card + password,

  double card

- Support remote door opening, remote open or close fire alarm, alarm

- Support many alarm events’ output, like invalid card, invalid time, door alarm

  door opening time surpassing

-  Support 4 WG card reader, 2 reader for entry and another 2 for exit,automatically WG 26,34,37 protocal

 - Support 6 output to control door and alarm output together, and timing alarm output

 - Support multi door inter lock, and only double-way reader's panel suppport anti pass back function

4 Door Panel below photo:

2 door panel below photo:

This Fingerprint+Card machine is TFT-LCD Screent and Quality is much better than previous plastic case reader

It support both fingerprint and rfid card at the same time,

People enroll/register the finger/card by the software of machine,

Weigand 26 output port, can be act as an extra RFID reader for controller panels,

Work as both Standalone Access Control kit and Slave reader,

PC Software:

-   Support Web IP Browser and TCP/IP Network communication at the same time

-   All of connected controller panel can be using the same one software management

-   Support door access control and lift floor access controller and locker access controller management at the same time

-   Support 3 kinds of language, and customer can add their own language as their will

-   Simple operation, finishing operation by single click, double click, or right click

-   Real time monitoring and kinds of alarm, card swiping

-   Support color indicating, using different color to stand for different records

-   Support full screen showing

-   Support Access and SQL server, The default is Access

-   Three operation authorized: set up users for door, set up door for users, and set up permission teams

-   Support automatic shift arrangement(only SQL available)

-   Support daily records, user can check the operation and management history record, easy to manage and system maintenance

Web Interface Show:

Tax Note:

1- VAT Tax/Import Tax/Custom Duty/Local Fees is You Buyer's Job, You Buyer must pay all of that, and All the Prices in our store are Not include it,

2- Any Battery is not included in the package due to the airline security, Buyer prepare it by yourself
