Description
When connected with motor, it is capable of supplying up to 320 Amps (forward) or 160Amps (backward) of continuous motor current. Its integrated Battery Eliminator Circuit (BEC) powers the receiver from the motor battery, with automatic cutoff of the motor power to preserve receiver power as the battery becomes depleted. It is small and powerful, which can be used for different type of ship or car.

Pls note: This Brushed Motor Speed Controller, with 3S (12V), without more than 380 motor. Using 2S (8.4V), without more than 540 motor.

Battery support:
Ni-MH, Ni-Cd 4 - 6 group ( 4.8 V ~ 7.2 V );
Lithium battery 3 groups ( 7.4 V - 11.1 V )
Current parameters: forward 320 A, reverse 160 A, brake 270 A
BEC output: voltage 5.6 V, current 2 A ( supply electricity for receivers, servos )

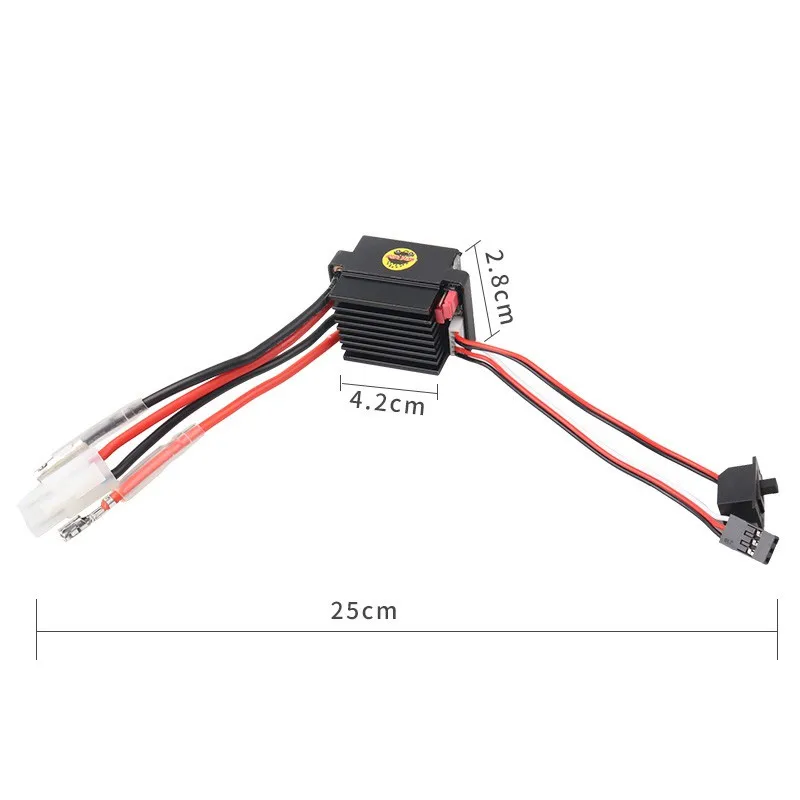

Size: 43 x 29 x 27 mm

Features
Automatically find the center position
High-frequency drive system
Low-resistance field effect tube
Applies to cars, boats models

Instructions

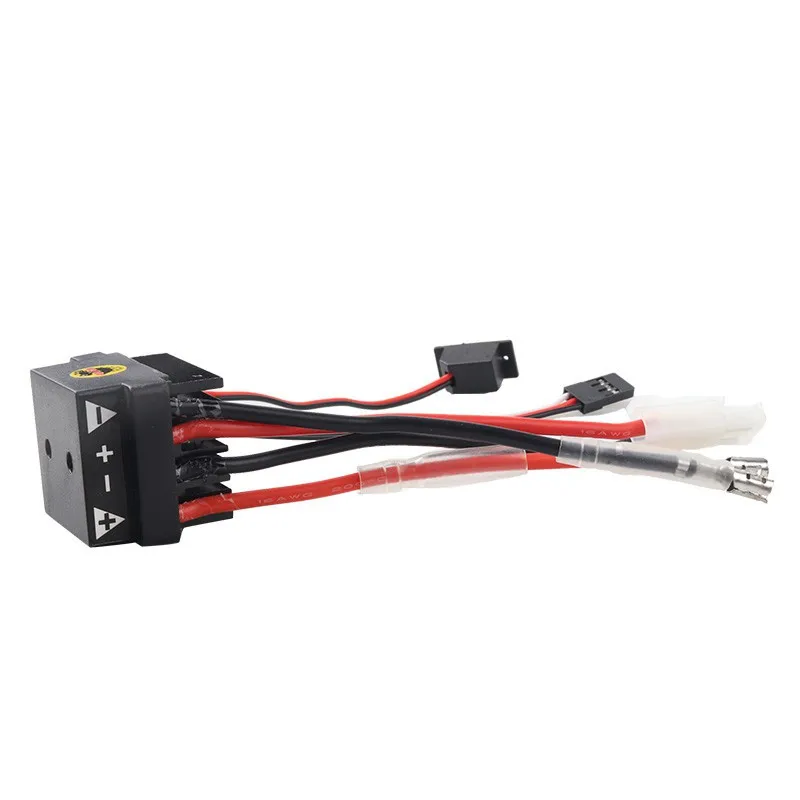

-Connect to the power battery correctly, the red wires at both ends of this wiring boards are positive, black ones are negative. ( or connect to a standard DC battery plug male plug / T plug / banana plug )
-The output red and black lines of ESC need to be connected to the red and black lines of car 540 motor
-Open the ESC power switch, then the motor produces a "beep" sound, and then turn on the transmitter power, the motor will produce a "duo - la - mi" sound which proves that the remote control signal and ESC have been successfully connectede
