Automatically bulk calls modem 16 port Voice advertising machine
Specifications
1. Automatic bulk calls
2. Telemarket, Customer Service, advertise market
3. 16 port inserted 16 sim cards
Installation of Equipment and Software
1. open the package, the mobile phone card into the SIM card slot, should pay attention to the gap (small chip to chip to a total of 16 kcal; slot, 16 kcal, 16 on each card, a card slot can only be inserted at the same time use). As follows:
2. connected to an antenna plug, and then boot device; a total power, each port has a separate switch for SIM card without power off, the direct exchange of card, equipment support hot plug, to replace the new card after a few seconds will automatically get the signal.
3. download my company to provide special software package.
(1) install the corresponding driver: install the corresponding driver according to the system of your computer!
(2) insert the data line into the USB port of the computer: (if it is a desktop computer, you must insert the USB port on the back of the motherboard). When USB is plugged in, turn on the computer device manager, and then consult the COM port, which is COM. After confirmation of COM port, it is recommended that customers do not change the USB interface position at will. Otherwise, the number of COM port will change, and the COM query will be available again. Look for the COM port from the device manager, and then look for USB Serial Port, as shown in the following figure:
Software Usage
1. device management interface:1. device management interface:
As you can see from the diagram, each port has a different connection number "Transit Number". The transfer number can be a mobile phone number or a landline number. Before using this function, you must request the SIM card in the device to open the three party call function. All port parameters can be modified in batches "Batch Set Parameters", You can also double-click a port to modify it individually. The order of ports in the device list can be reordered according to your own needs "Port Sorts", "Re-search Device Ports(Auto Sort)" . Click on the computer to find the available equipment。There are two ways to call-"Direct Answer" and "Phone Displays Missed Calls". The first one is to listen directly to the recording ad after the phone is connected,The second one is to make a missed call to the other party,When the other party calls back, the software automatically answers and broadcasts the voice ads (in this way, no fees will be incurred),When you listen to voice ads, you can press the tone button to transfer the manual number for consultation。
2. Call list interface:
You can see it from the picture above,Call numbers can be entered.
You can also edit call numbers into text formats,One number per line,Batch import into call list,Each port can import different numbers to make calls,As shown in the figure.
If you fill in the SMS content,At the end of the call, the software automatically sends text messages to the number,As shown in the following figure:
3. Call logging interface
4. You can see from the chart, the call records of all ports are here with the show, whether each number press the * key to switch to manual consulting are displayed in the listening process, call time is listening to each other advertising time, able to analyze what is from the call records of the real needs of customers.
5. Caller record interface
As you can see from the picture above, all incoming numbers listen to the length of the ad, and whether to press the * key. Missed calls are also shown here, and received text messages are also displayed here.
6. Advanced settings interface
You can see it from the picture above,All port parameters can be set here,Before use, you must download the recording to the device before you can use it properly "Save The Recording to Device", All ports can choose the same recording ad,You can also choose different recording ads for each port.The storage space of the equipment can be arranged "Space Arrangement", You can also format your storage space,Formatting erases all recorded data,You need to download the recording ad again,This feature is carefully used "Spatial Format".
Product Pictures
![]()

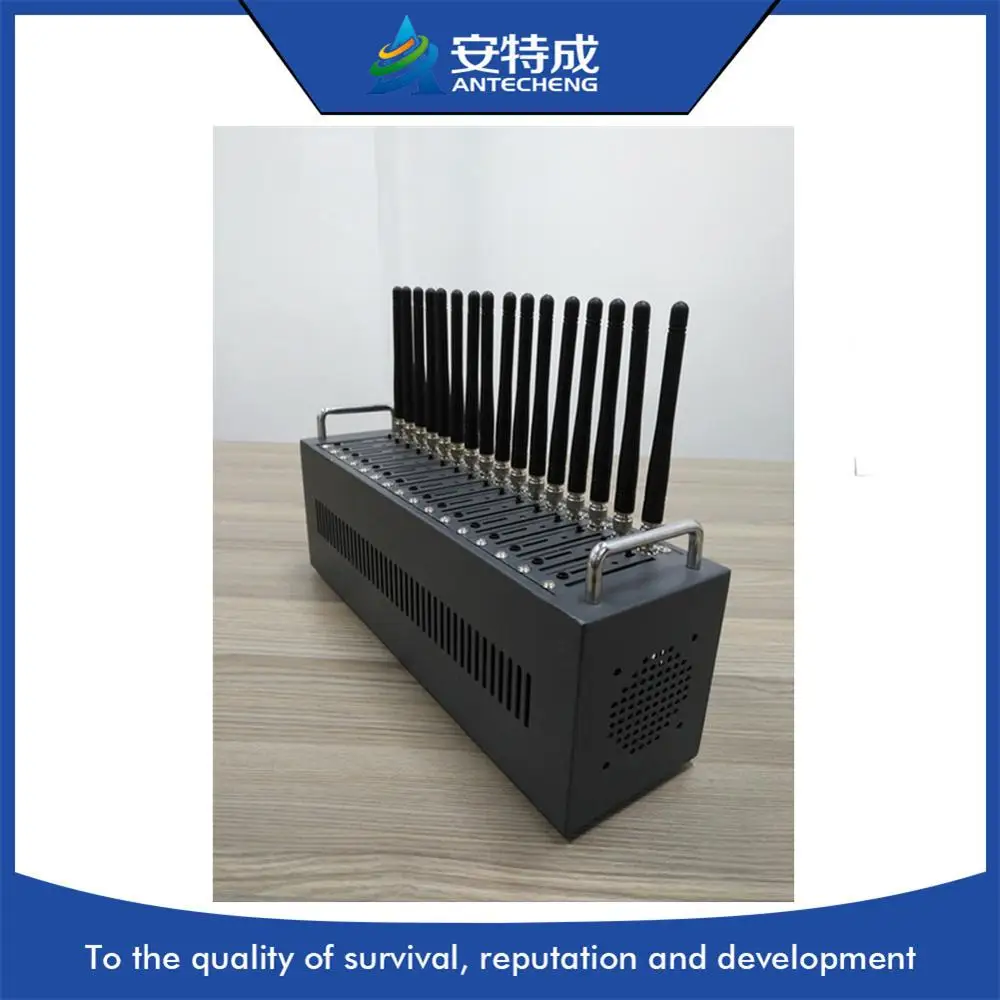

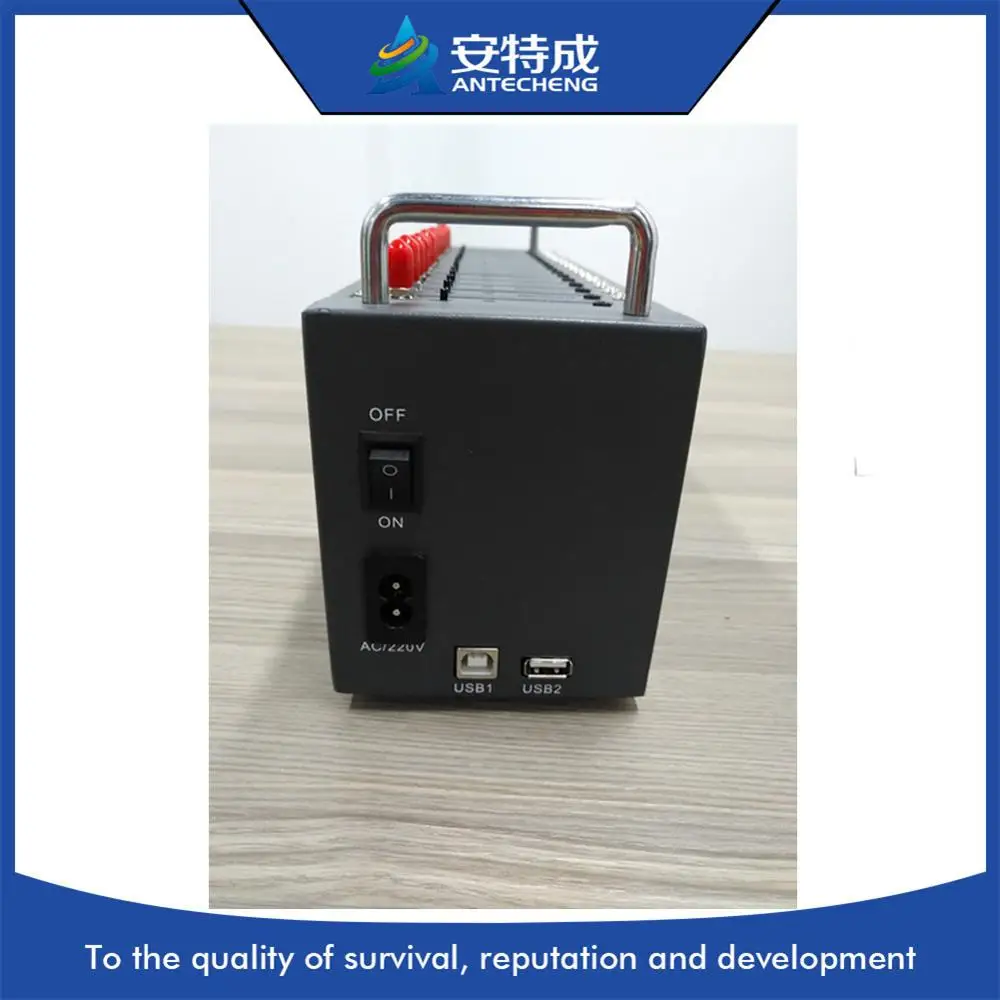

Automatically bulk calls modem 16 port 16 sim gsm modem with calling software
Automatically bulk calls modem 16 port 16 sim gsm modem with calling software
Automatically bulk calls modem 16 port 16 sim gsm modem with calling software
