body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } working principle:1.By cylindrical shade to keep out the LED,and photosensitive receiving tube is for detecting RPI-1031 current state.
2.When RPI-1031 rotates to the state shown as the picure one(p1),LED is shadowed by the shade;and two photosensitive receiving triodes cannot receive the light;they will be in off state,output low level;two GPIO ports both output low level.
3.When RPI-1031 rotates to the state shown as the picture two(p2),one of the photosensitive triode was shadowed,the light emitted by LED only can be received by the other one;that means above photosensitive triode is on,and photosensitive triode under side is off;then two GPIO ports output respectively output high level and low level.
4.When RPI-1031 rotates to the state shown as the picture three(p3),the shade does not shadow;the diode will shine,two photosensitive triodes can receive the light;then all of them will be on,both of two GPIO ports output high level.
5.When RPI-1031 rotates to the state shown as the picture four(p4),this state is adverse to description 4;two GPIO ports output level will be intercahnged.
Description:

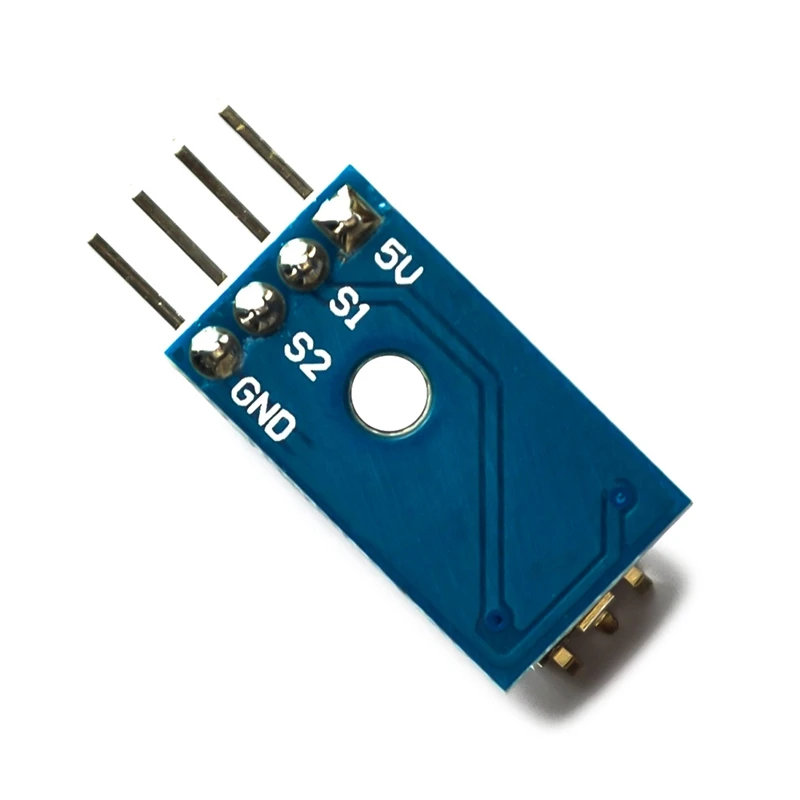

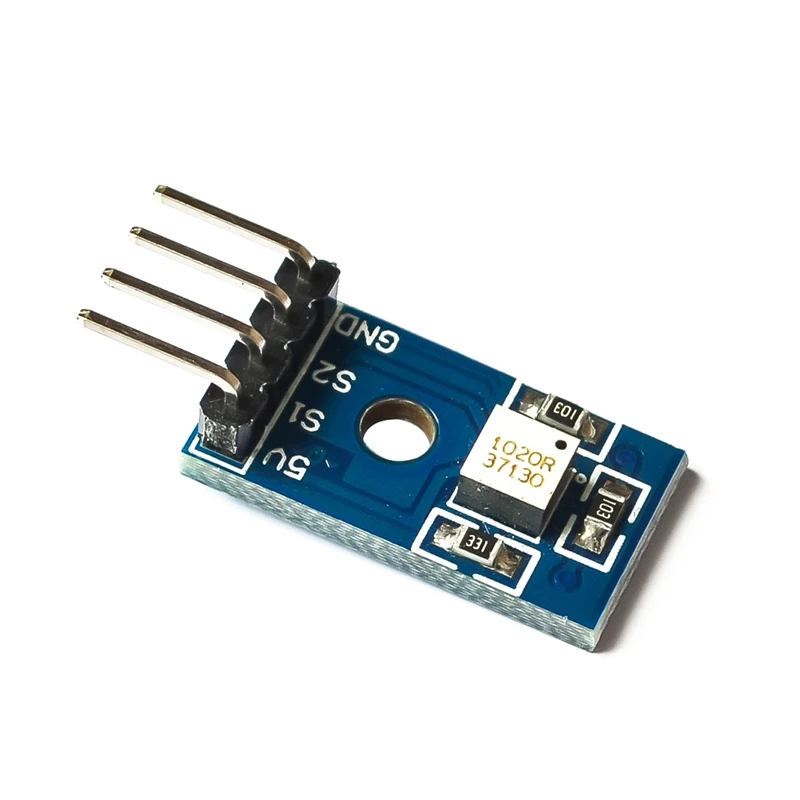

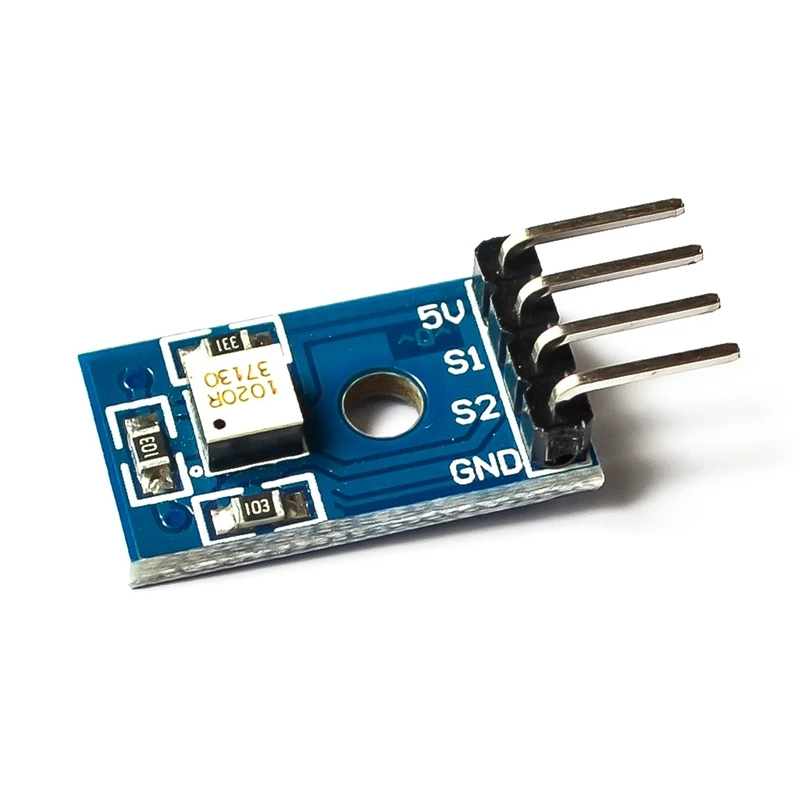

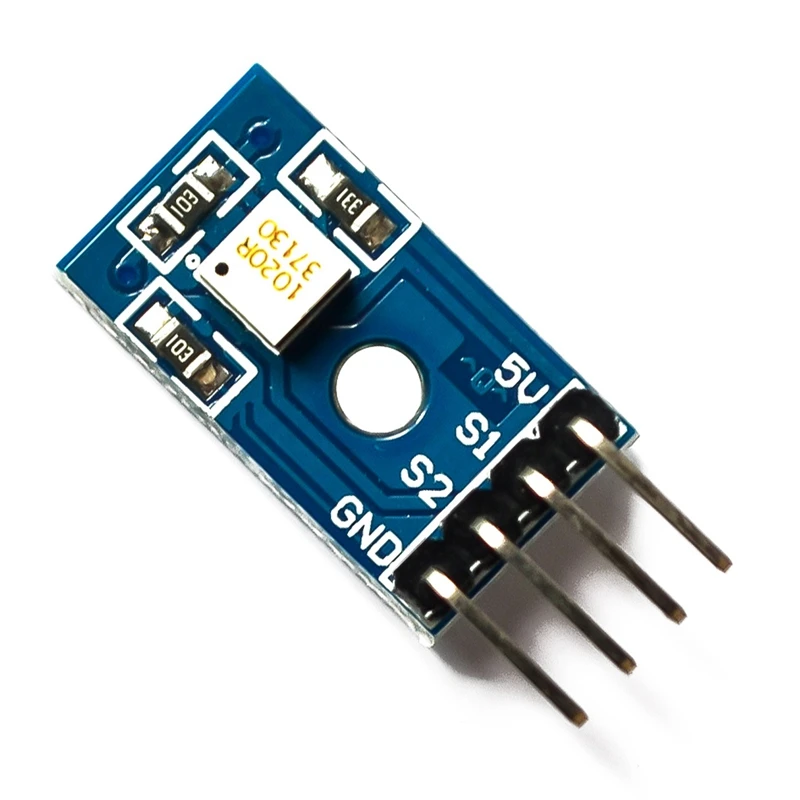

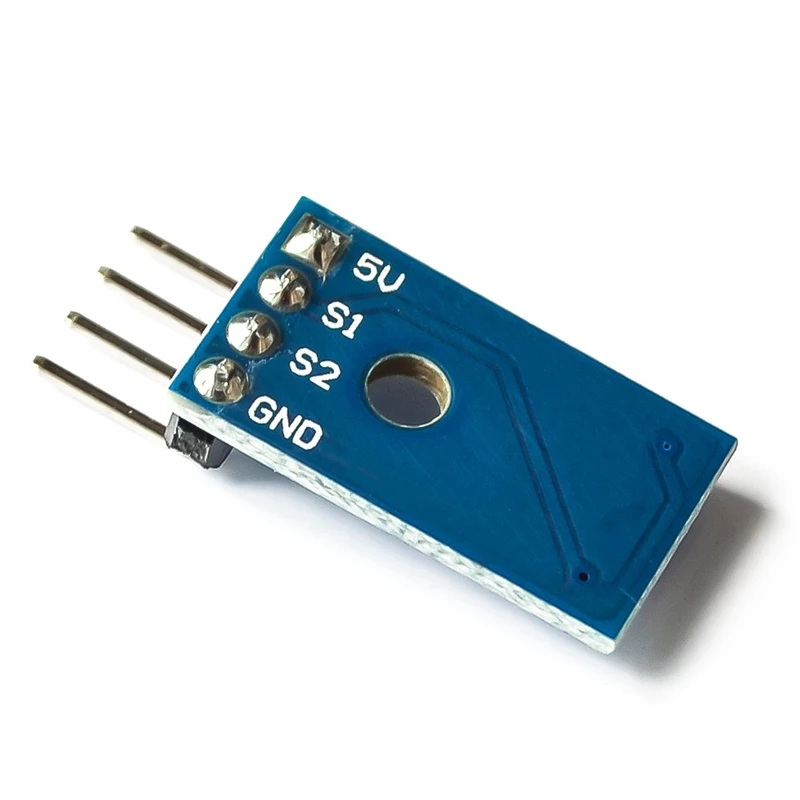

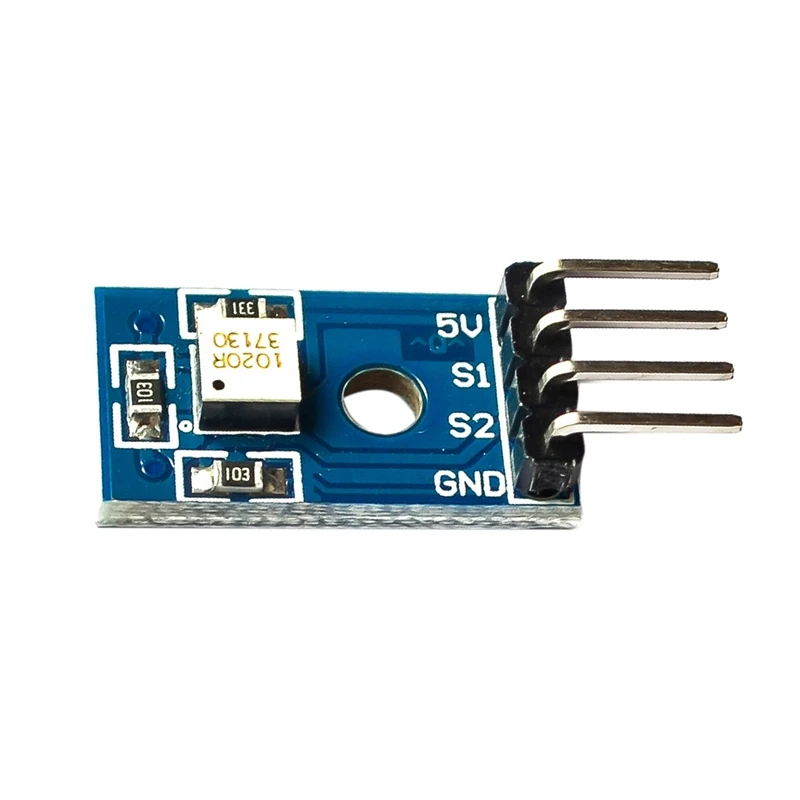

Based on optics principles,its interior has 1 LED ,2 photosensitive receiving triode; and the other side has one cylindrical shade.
colour: Blue
Material: metal +PC
size: 10x15MM
Package Contents:
1 x RPI-1031 Angle Sensor Module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
