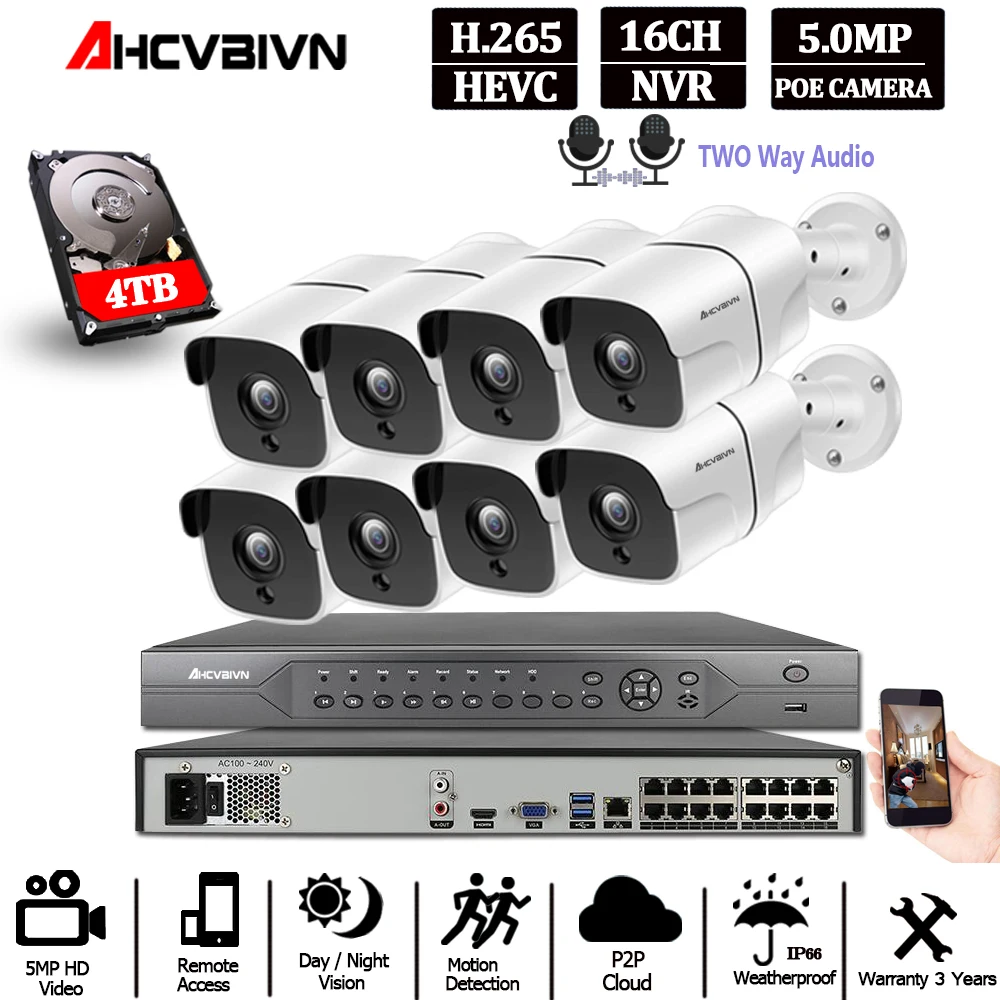

4K NVR 5MP 16CH CCTV Security System Two way audio POE Video Surveillance Kit 36Pcs IR-CUT IP Camera Microphone Speaker | Безопасность и

4K NVR 5MP 16CH CCTV Security System Two way audio POE Video Surveillance Kit 36Pcs IR-CUT IP Camera Microphone Speaker | Безопасность и

AHCVBIVN 8CH 5MP Wireless NVR POE Security Camera System Outdoor IR-CUT CCTV Video Surveillance Video Recorder Kit Face Record

H.265 8CH 4K 16CH 5.0MP CCTV Camera Two way audio System POE NVR Kit 5MP Weather-Proof Security IP Camera Video Surveillance set

AHCVBIVN Security - HD CCTV Camera Security System, A guaranteed and reliable Security Solution for your Home and Business! 720P/960P/1080P/2MP/3MP/4MP/ 5MP High Definition and Video at day and night. Email alerts and Motion detection, IP66! Waterproof and universal for Outdoor/Indoor, free app for P2P Cloud function and storage, support android, iPhone , ipad,PC,CMS etc.



H.265 16CH 5MP POE NVR Specifications

System

Main processor: Embedded processor

Operating system: Embedded Linux

Video compression:H.265

System resource：Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up

Interface

Operation interface：16bit real color GUI interface support

Preview ： 1/4/8/9/16

Video

Video standard :PAL; NTSC

Image encode:H.265

Monitor quality: VGA,HDMI:High definition

Video input ：16*2MP/4MP/5MP IP Camera / 8*4K IP Camera

Motion detection：Support

Email Alert : Support

Audio

Audio compression ：G.711A

Intercom : Yes

Record&Playback

Record mode：manual>alarm>motion detection>timing

Local playback：5MP

Video search：Time, date, event, channel search

Storage&Back up

Video storage : Local HDD ,Network

Back up mode： Network backup, USB portable，HDD,USB imprint,SATA imprint

Interface

Video input：16CH POE Port

Video output : 1ch VGA,1ch HDMI HD output

Loop output : N/A

Audio I/O :1CH/1CH

Alarm I/O:No

Network port:1*RJ45 1000M self-adaptive Ethernet port;16*POE ports support poe power supply

USB port : 2* USB 2.0

HDD port :2 SATA ports,max support 2*8TB(HDD is optional)

Other

Power :48V

ONVIF :Support

USB Mouse：included

Remote Control : included

Temperature : -20℃+50℃

Humidity : -10%-90%

Dimension : 440mm* 290mm* 50mm

Weight :4.5KG

NVR Language

Russian, English, Finnish, French, German, Greek, Italian, Japanese, Poland, Protugal, Spanish, Thai, Turkey, Romanian, Slovakia, Czech, Arabic, Swedish and so on

HD POE 5.0MP IP Camera Specifications

Video

Image sensor:1/3"inch 5MP CCD

Video quality:5.0MP

Lens:3.6mm lens

Day/Night Mode:Color During day/switches to B&W at night

General

Indoor / Outdoor:Suitable for Indoor or Outdoor use

Operating Temperature:-50degF~122degF / -40degC ~50degC

Operating Power:DC 12V POE

Weatherproof:yes

Minimum Illumination: 0.01 Lux

Body Construction:Dome with Dome-in Wall Mount

Noise Reduction: Support 2D/3D

BitRate Control:VBR/CBR

Network Interface:RJ45

Digital WDR: Support

Night Vision

Distance:Up to 40m

IR Cut Filter:yes

TWO WAY Audio POE IP Camera

High-Definition interface output,Suport for online playback,Mobile remote,Multi-window display with 5.0MP Resolution.Max support 4K Resolution.The angle will be more larger,and the image will be more clearer.

H.265 More Clear , HD resolution offer you best image quality in a lower bit rate.Save more storage space,can reduce 40%-50% file size,save your HDD storage space and reduce your purchase cost.

NO extra power cables or adapters are needed and just by connecting a IP camera to NVR with a single cable, you can easily complete the installation without the knowledge about the computer or network and start enjoy the super easy monitoring among your smart-phone, tablet or PC.

POE System max support 120-150m POE cables transmission distance, which greatly increases home installation convenience.

View on HDMI Monitor

Easily display video through the HDMI port of your computer monitor to take full advantage of the security system's

clarity(HDMI Cable not included)

View on TV or PC Monitor

For added convenience, the NVR also comes with VGA and HDMI connections for standard resolution viewing options.

VGA or BNC to RCA cable is not included.

Smart playback

You can easy find the video footage you'd like to playback,
Smart playback available with customizable searching area, playback time is greatly reduced by speeding through unimportant videos.

Easy setting , just 4 steps for mobile phone viewing,View live video of the system from anywhere and anytime via you smarphone, table or PC with advanced P2P technology, you are able to remote access your system in minutes or less, no portforwarding needed, remote access has never been so easy！！！

CMS for Local Review

Default Username of CMS:Super  Password: null(empty)

H.265 16CH POE NVR Main Menu More Details

By using the high performance sensor, image is clear, delicate and high performance sensor, image is clear, delicate;

Support IR-CUT dual filter switch, day and night to achieve monitoring, color is not distortion.

HD IP POE video output;

The transmission distance is 150 meters;

Support automatic electronic shutter function, adapt to different monitoring environment;

Waterproof design IP67, reliability;

Million pixel HD video transmission of low cost, long distance, no delay, high efficiency, anti-jamming and easy to implement;

Easy installation & operation, as same as analog CCTV system

More acceptable, lower price than analog surveilance system

NO Delay, Real time Display.

2.Day and night monitoring

5.IP66 Weatherproof

Our camera adopts heavy-duty metal housing,professional IP66 weatherproof,Providing stable performance both indoor and outdoor.

Just need a netcable

1.Do not need installation engineer,2,Save installation free.3,Control installation time freely,

Application:Home,supermarket,hotel,garden,factory,shop office,,,etc,
