Shipping Methods:

DDU - Fedex / UPS / DHL / other courier (ETA: 7-15 working days)

DDP - Seller's Shipping Method (Tax-Free, ETA: 35-60 working days ) is available for some countries. It is recommended for EU countries

         To Russia / Kazakhstan via DDP - Land Transportation (Tax-Free, ETA: 30-45 working days)

Please note: Delivery delay may be caused by the COVID-19, customs clearance, etc.

Any questions, please leave us message or email: sunnyc@bulkman3d.com

—————————————————————————————————————————————————————————

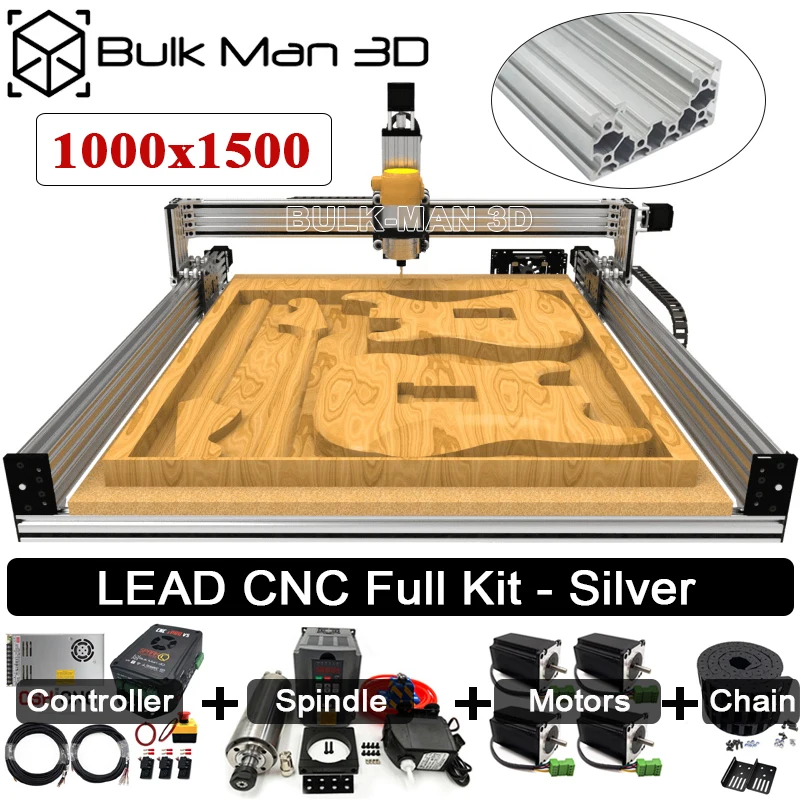

This Full Kit Includes:c

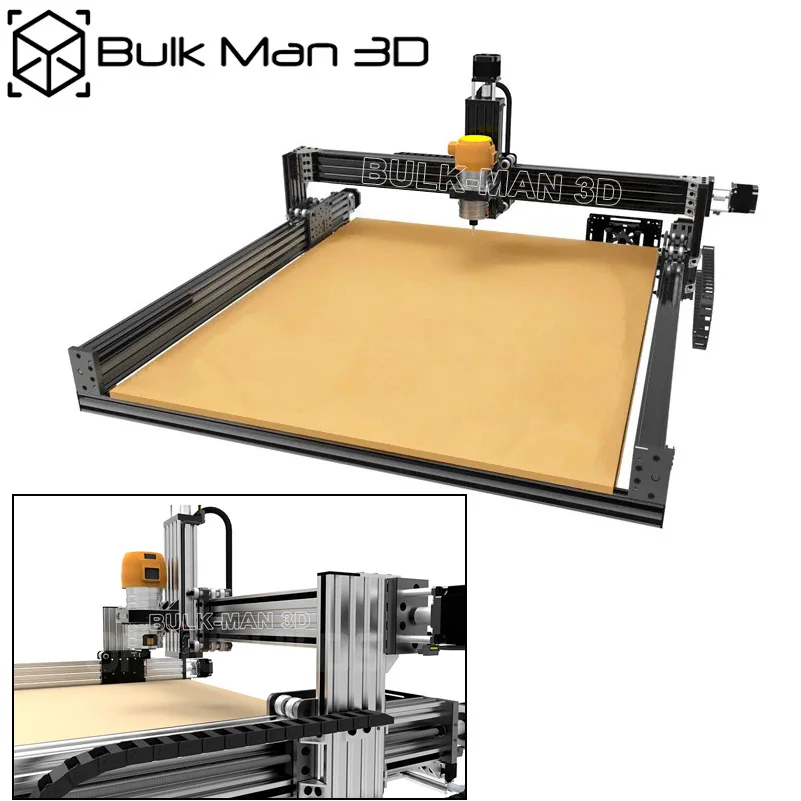

LEAD CNC Mechanical Kit

4 x Nema23 (2.45N.m) Stepper Motors

Cable Drag Chain Bundle

Wiring Cable Kit

Controller Bundle based on GRBL or Mach3 / Drufel CNC Software

CNC xPRO V5 (Highly Recommend)

Maker Shield GRBL

High Torque GRBL

UC300 Mach3

NVUM Mach3

STB5100 Mach3

Cooled Spindle Bundles for Choice

1.5KW Air 110V/220V

1.5KW Water 110V/220V

2.2KW Water 110V/220V

All Extrusions are M5 Tapped as where it is necessary

Specs of High Torque Nema 23 Stepper Motor:

NEMA 23

Shaft Size: 1/4″

Step Angle: 1.8

Holding Torque: 2.45N.m

Rated voltage:  3.6V

Rated current:3A

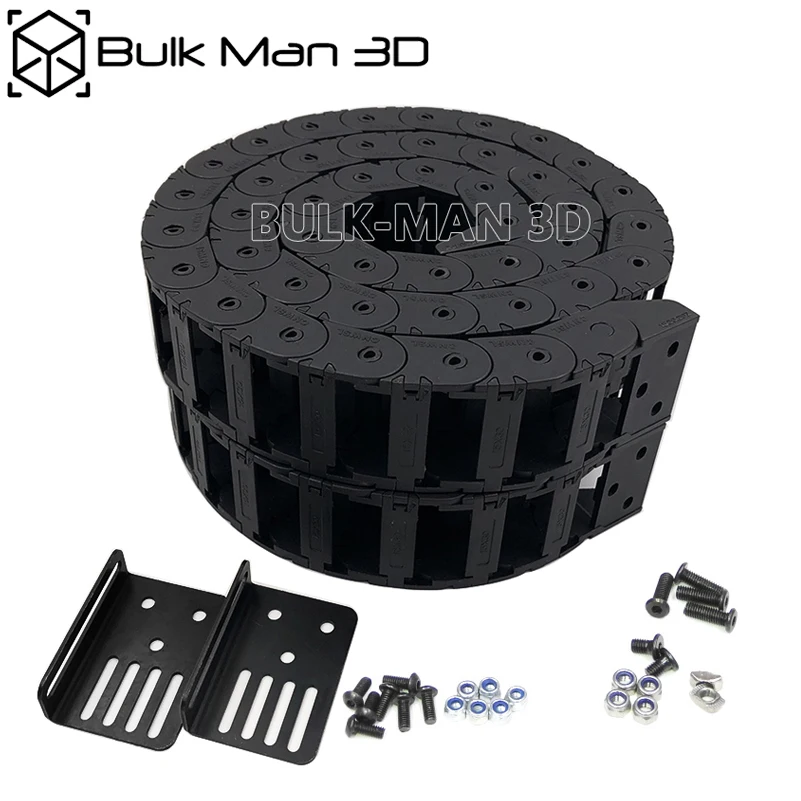

The Cable Drag Chain system is installed to protect the wiring of  the CNC Machine. Due to the moving axis on the machine a      dynamic cable protection system is required.

Our 15x30mm Cable Drag Chains have each individual link able   to be opened up, this is an incredibly useful feature the the          smaller drag chains do not have. Drag chains can be shortened or lengthened by simply removing or joining links of the chain.

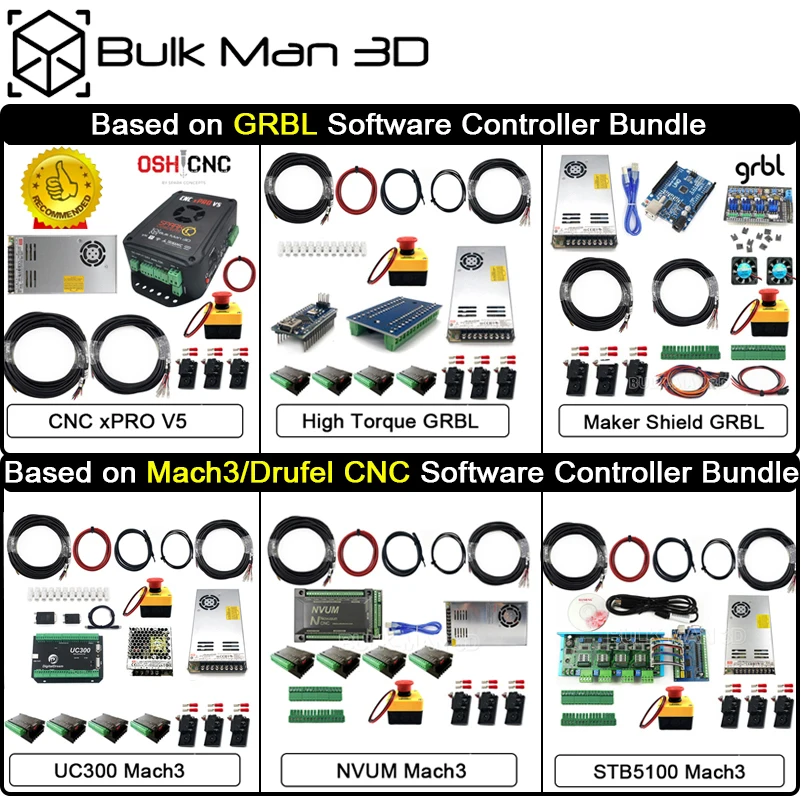

Controller Bundle Options:cccccccccccccccccccccccccccccccccCCCCCCC

CNC xPRO V5 Controller Bundle (We Recommend)

The xPRO V5 is the most advanced GRBL CNC Controller in the world. It runs off a 32bit processor with over 4x the processing power of most other GRBL controllers. The xPRO V5 is pre-assembled and pre-flashed with the latest GRBL version. We recommend the xPRO V5 as the best controller option available. The stepper drivers are easily suitable for our High Torque Stepper Motors and can even power stronger motors such as Nema34.

This option is perfect for a CNC novice.

Maker Shield GRBL Controller Bundle

The GRBL Standard Current system uses an Arduino Uno compatible board with an 8bit processor. The Maker Shield is installed onto the Uno. The Maker Shield is an upgrade to the CNC Shield and has 4 embedded DRV8825 drivers. Unlike a traditional CNC Shield the upgraded Maker Shield is compatible with the latest version of GRBL and has larger tracks on the board to allow for higher current stepper motors.

This option is suitable for if you have technical knowledge

High Torque GRBL Controller Bundle

The GRBL High Current system uses an Arduino Nano with 8bit processor to control the CNC machine. This system uses external genuine TB6600 Stepper Drivers suitable for High Torque Stepper Motors. This system does require you to wire up all the components yourself and flash the Nano with GRBL. Because of this it is a very customisable system.

Software – Mach3 / DrufelCNC

UC300 USB Controller Bundle

The UC300 is the upgrade to the NVUM CNC controller. It is developed by Digital Dream and used for 4-Axis CNC Machines. The controller is compatible with a standard MPG Pendant and has many inputs and outputs. If you want to use Mach3 or DrufelCNC then we recommend this controller. The UC300 system uses external genuine TB6600 Stepper Drivers suitable for High Torque Stepper Motors. This system does require some more work in wiring and setting up.

This option is suitable for if you have technical knowledge.

NVUM Mach3 Controller Bundle

The NVUM system controls 4 axis and is compatible with Mach3 or DrufelCNC. The NVUM system has been used for years and has many online forums about it. The NVUM system uses external genuine TB6600 Stepper Drivers suitable for High Torque Stepper Motors.

This option is suitable for if you have technical knowledge.

STB5100 Mach3 Controller Bundle

The STB5100 controller system can control up to 5 axis and is compatible with Mach3 or DrufelCNC. The STB5100 system uses the TB6600-T4 board which is suitable for our high torque stepper motors. This system does require some more work in wiring and setting up.

This system is complex and we do not recommend this system for a novice.

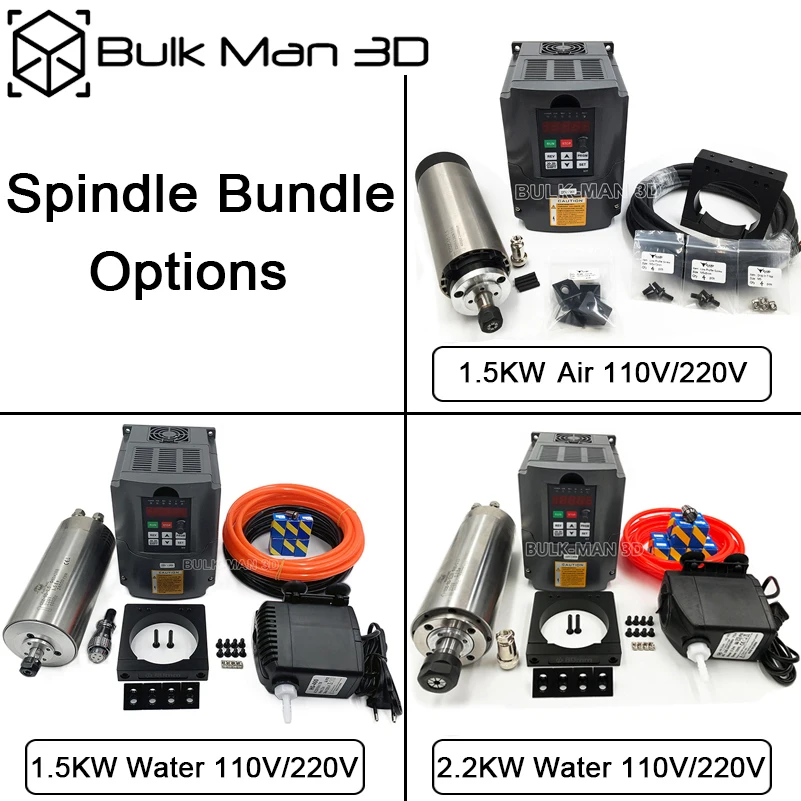

Spindle Bundle Options:ccccccccccccccccccccccccccccccccCCc

Advantages of air-cooled engines are that they are lighter without the use of radiators, water pumps, thermostats, coolant, or hoses.

Disadvantages are that they cannot warm up fast and cannot maintain a constant engine temperature. This will affect engine performance and emissions in climate changes like extreme cold or hot temperatures. A cold engine requires added fuel to run properly.

1.5KW / 2.2KW Water-Cooled

Specs of 1.5 kW Air / Water Cooled Spindle:

● 1.5kW Air Cooled Spindle Net weight: 2.6kg
● 1.5kW Air Cooled Spindle Spec: φ 65 x 205 mm
● 1.5kW Water Cooled Spindle Net weight: 4.2kg
● 1.5kW Water Cooled Spindle Spec: φ 80 x 205 mm
● Power: 1.5 kW
● Voltage: 220 ~250 V or 110 V
● Frequency: 400 Hz
● Speed: 8000-24000 R/min
● Air/Water Cooling
● Run-out off: less than 0.005 mm
● Grease Lubrication
● VFD Inverter 1.5 kW 220 V or 110 V
● Collet: ER11 (15pcs/set, size from 1 mm to 7 mm):
Size: 1mm/1.5mm/2mm/2.5mm/3mm/3.175mm/         3.5mm/4mm/4.5mm/5mm/5.5mm/6mm/6.35mm/      6.5mm/7mm

Specs of 2.2 kW Water Cooled Spindle:

● Net weight: 5.3kg
● Spindle Spec: φ 80 x 215 mm
● Power: 2.2 kW
● Voltage: 220 ~250 V or 110 V
● Frequency: 400 Hz
● Speed: 0-24000 R/min
● Air/Water Cooling
● Run-out off: less than 0.005 mm
● Grease Lubrication
● VFD Inverter 2.2 kW 220 V or 110 V
● Collet: ER20 (28pcs/set, size from 1 mm to 13 mm)                    Sizes:1mm/1.5mm/2mm/2.5mm/3mm/3.175mm/3.5mm/4mm/     4.5mm/5mm/5.5mm/6mm/6.35mm/6.5mm/7mm/7.5mm/8mm/     8.5mm/9mm/9.5mm/10mm/10.5mm/11mm/11.5mm/12mm/           12.5mm/12.7mm/13mm

Please note:

Tingle Tension System, MDF Working Table and Drill Bits are NOT included with this kit.

We do not provide technical support for software debugging.

Mach3 License is not included with this kit. This License can be purchased directly from the official website.

Drufel CNC softwares can be replaced Mach3, this software we supply included 100,000 lines g-code for free use.Please go to our official website download it.

Any Mains power connections must be installed by a Licensed electrician or suitability qualified person

Instruction Manuals are available via Bulk Man 3D Official Website //bulkman3d.com/resources

------------------------------------------Part List------------------------------------

" V-Slot " and " C-Beam " are registered trademarks of OpenBuilds LLC as released under the Creative CommonsLicence "Attribution-ShareAlike"

All our components are designed to work and are fully compatible with the products produced by OpenBuilds.

Top Selling You May Like

---------------------------------Product Show---------------------------

Look! How The Lead CNC Full Kit is Cutting our Bulk Man 3D Logo!

_____________________________________________________________________________________________________________________________________________

Please note:  We have 2 different material of Cable Drag Chain Mounting Bracket, which is sent randomly.
