WiFi Wireless Home Security GSM Alarm System DIY Kit APP Control With Auto Dial Motion Detector Sensor Burglar |

Descriptions:

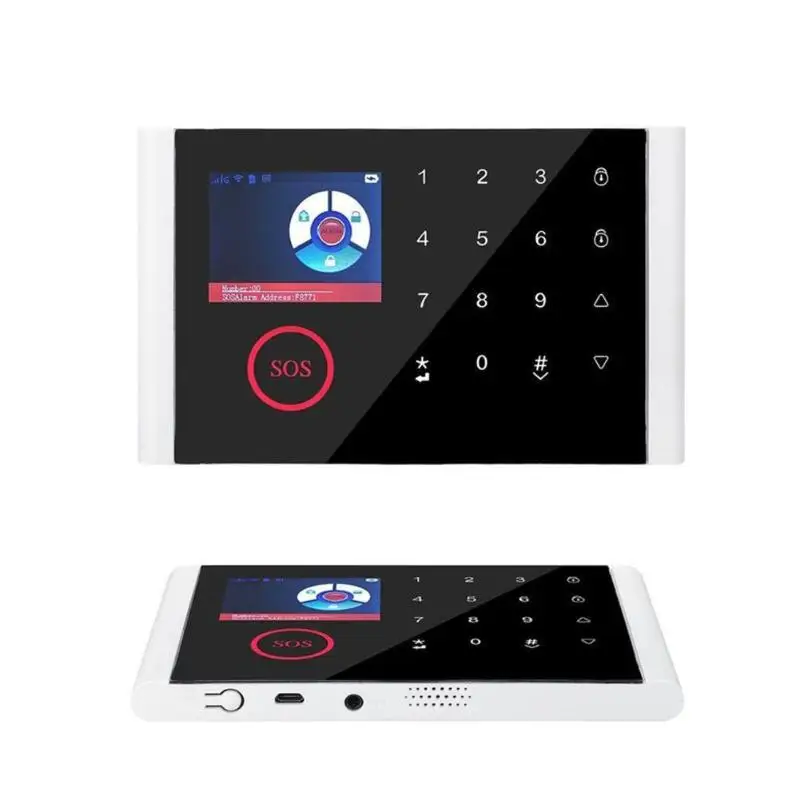

1. Networked alarm system is a classic appearance and ultra-thin appearance style design.
2. Use 2.4 inch TFT color screen and touch operation design.
3. The performance is stable and reliable, the whole process of wireless transmission, a key pairing series of detectors, when the host receives any detector alarm, the host displays alarm defense area, attributes, and sends 110 alarm sounds on the spot. At the same time, the WIFI network pushes mobile phone APP, SMS and calls user alarms.
4. Widely used in families, factories, schools, shops, convenience stores, financial rooms, villas, residential areas and other places in need of protection, to ensure the safety of people and property in an all-round way.

Features:
1.2.4-inch TFT full-color LCD screen display, ultra-thin, ultra-small delicate touch-type design, beautiful.
2. full-range voice color screen display operation, wireless transmission, simple installation.
3. One machine, three networks (WIFI + GSM + GPRS), never-ending network, safer and more assured.
4. Intelligence of one machine and three functions (doorbell + telephone + anti-theft alarm) is perfect.
5. One key SOS secret rescue alarm; support coercion code, can call the alarm secretly in emergency, protect life safety.
6. Supporting multi-lingual arbitrary choice, Chinese, English, German, Korean, Spanish, Portuguese, French, Arabic and Russian.
7. Self-contained pet volume identification can effectively prevent pet interference and false alarm of 25Kg.
8. Supporting remote WIFI network APP alarm push, telephone, short message, multi-channel alarm and management.
9. Supporting 5 groups of preset alarm calls and short messages, and setting their short message switches and dial-up switches respectively. One-button operation automatically adds wireless detector series accessories, without the need for zones, attributes, names, etc.
10. Support the name and number of the multiple defense zones, such as main door, lobby, rescue, bedroom, window, balcony, perimeter, smoke, gas, carbon monoxide, leakage, doorbell, PIR detector, door magnetic detector, are set arbitrarily.
11. Support the setting of entry-exit defense zone, internal defense zone, perimeter defense zone, doorbell defense zone, 24-hour defense zone and other defense zone types.
12. Support extended alarm display and alarm for main power failure, backup battery shortcomings, anti-prying alarm, etc.
13. Design of double horn alarm, built-in horn and external alarm.
14. Supporting arbitrary input of fraud numbers in defense zones.
15. Timely deployment of evacuation and message operation.
16. Supporting telephone function, similar to a common telephone.
17. Supporting electrical switch linkage.
18. User cloth evacuation, host alarm push to APP.
19. Support IOS Apple System, Android Mobile App remote alarm, deployment and evacuation.

Specifications:
Type:A/B
Power Supply: 110~230VAC (input) 5V/1.0A (output)
Backup Battery: 3.7V/500 mAh
Standby Current: ≤80uA
Alarm Current: ≤500mA
GSM Network Communication System: 850/900/1800/1900mHz
FIFI System: IEEE802.11b/g/n wireless standard
Operating Temperature: -10℃~60℃
Working Humidity: ≤95%
Wireless Frequency: 433MHMHz
Alarm Sirens: ≥110dB
Transmission of Outdoor Wireless Power: 10±14dB
Alarm Transmission: FIFI+GSM transport

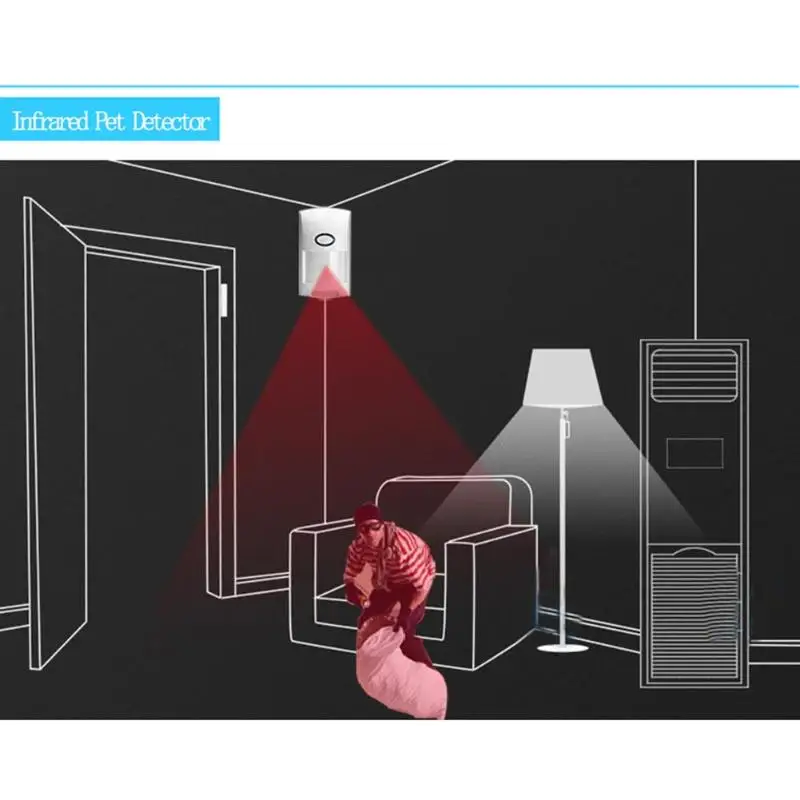

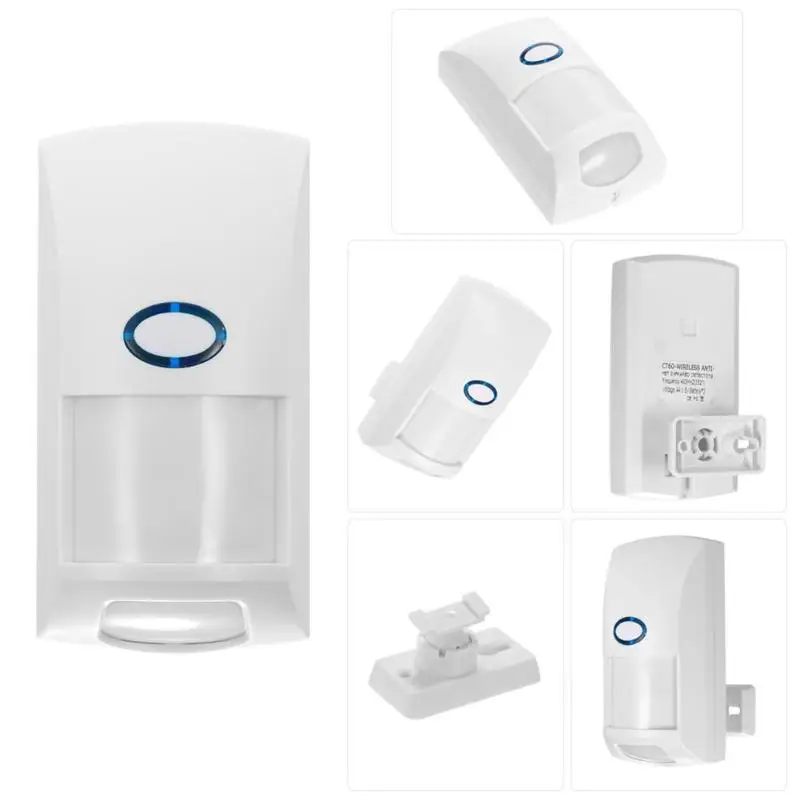

(2) CT60M-Upgraded Wireless Anti-pet Infrared Detector
Descriptions:
This equipment is mainly used indoors, using infrared detection+ intelligent volume identification technology, can effectively prevent pet interference false alarm, mainly matching with wireless 433MHZ signal of alarm host, transmitting wireless 433MHZ signal to alarm host immediately when the equipment detects the intruder, receiving alarm information immediately by host, simple installation, no wiring, mainly installed in the hall, windows, garage, shops, shopping malls, banks, companies, finance, schools and other defense areas.

Features:
1. Dual infrared+intelligent volume recognition+reflective mirror+artificial intelligence quadruple technology.
2. Intelligent identification technology, standby 9UA, battery for 2 years without battery replacement.
3. Double lens and double temperature compensation technology.
4. Using reflective mirror detection technology.
5. Effectively overcome the shortcomings of traditional detectors that do not alarm when they crawl.
6. Fresnel optical lens can effectively prevent false alarm and missed alarm.
7. Detection Range: 12m 25℃.
8. Detection Angle: 110 Degrees.
9. White Light Resistance: 10000Lux.
10. Anti-pet: 25Kg.

Specifications:
Launch Distance: 200m (open space)
Working Voltage: 3V (2AA alkaline batteries, versatility, no distribution)
Standby Current: ＜9μA
Alarm Current: ＜10mA
Wireless Frequency: 433.92 MHZ (1527)
Alarm Light: 3 seconds long
Working Environment: indoor
Disassembly-proof Switch: normally closed
Transmission Mode: wireless transmission
Alarm Output: alarm information report, anti-demolition report
Installation Mode: hanging type (adjustable direction)

(3) CD100S-Wireless Gate Magnetic Detector
Descriptions:
Wireless door magnetic detector detects whether doors, windows, drawers and others are illegally opened and mainly used in pairs with the "alarm host", when the host is out of defense, when the door, window and unlawfully opened, the wireless door magnetic detector sends an alarm signal to "alarm" host, alarm, wireless door magnetic detector wireless signal transmission between the open space and the host 200-300 meters.
Features:
1. Ultra-low power gate magnetic microprocessor.
2. The battery length is up to half.
3. Wireless transmission frequency is 433.92.
4. The design of built-in antenna is beautiful and exquisite.
5. The static current ≤1μA.

Specifications:
Working Voltage: 12V (23A battery)
Wireless Transmitting Distance: ≥300m(open space)
Transmitting Frequency: 433.92MHZ
Launch Protocol: 1527
Static Current: ≤1μA
Emission Current: ≤10mA
Single Weight: 50g

(4) M6-Wireless Door Bell Button
Descriptions:
Wireless doorbell button, mainly used in pairs with the host, when triggering the doorbell button, the host sends out "Dingdong, Dingdong" wireless transmission throughout the whole process, the wireless transmission distance is 50-80meters, the shape design is compact and beautiful, the battery life is up to 3 years, there is no need to replace.

Specifications:
The Effective Control Range: 50~80m
The Transmitting Frequency: 433.9
Working Voltage: 3V (CR2032)
Static Current: 0
Transmitting Code Protocol: 1527 protocol
Single Weight: 10g
Packing Size:241*141*75mm/9.49*5.55*2.95"

(5) RC22-Wireless 433 Remote Controller
Descriptions:
Mainly used to control the host, let the host enter the defensive state when going out, press the host to remove the defensive state when arriving at home, let the host enter the defensive state at home, press the SOS button when facing rescue, then the host can dial the phone.

Features:
1. Characteristics of Automatic Control Equipment for Waterproof, Pressure-proof and Collision-proof, safer and more reliable.
2. The shape design is compact and easy to carry.
3. It has the functions of anti-cloth key, anti-withdrawal key, fast bypass key and emergency button.
4. Battery life up to 3 years,no need to replace.

Notes:
1. Please allow 1-3cm measuring deviation due to manual measurement.
2. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

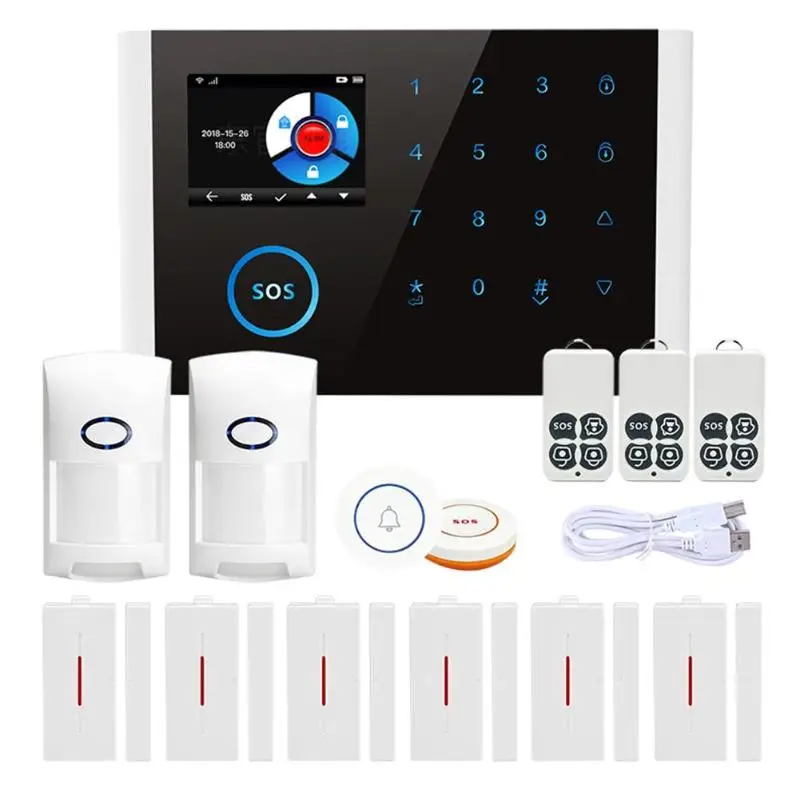

1 Set X Home Security GSM Alarm System
