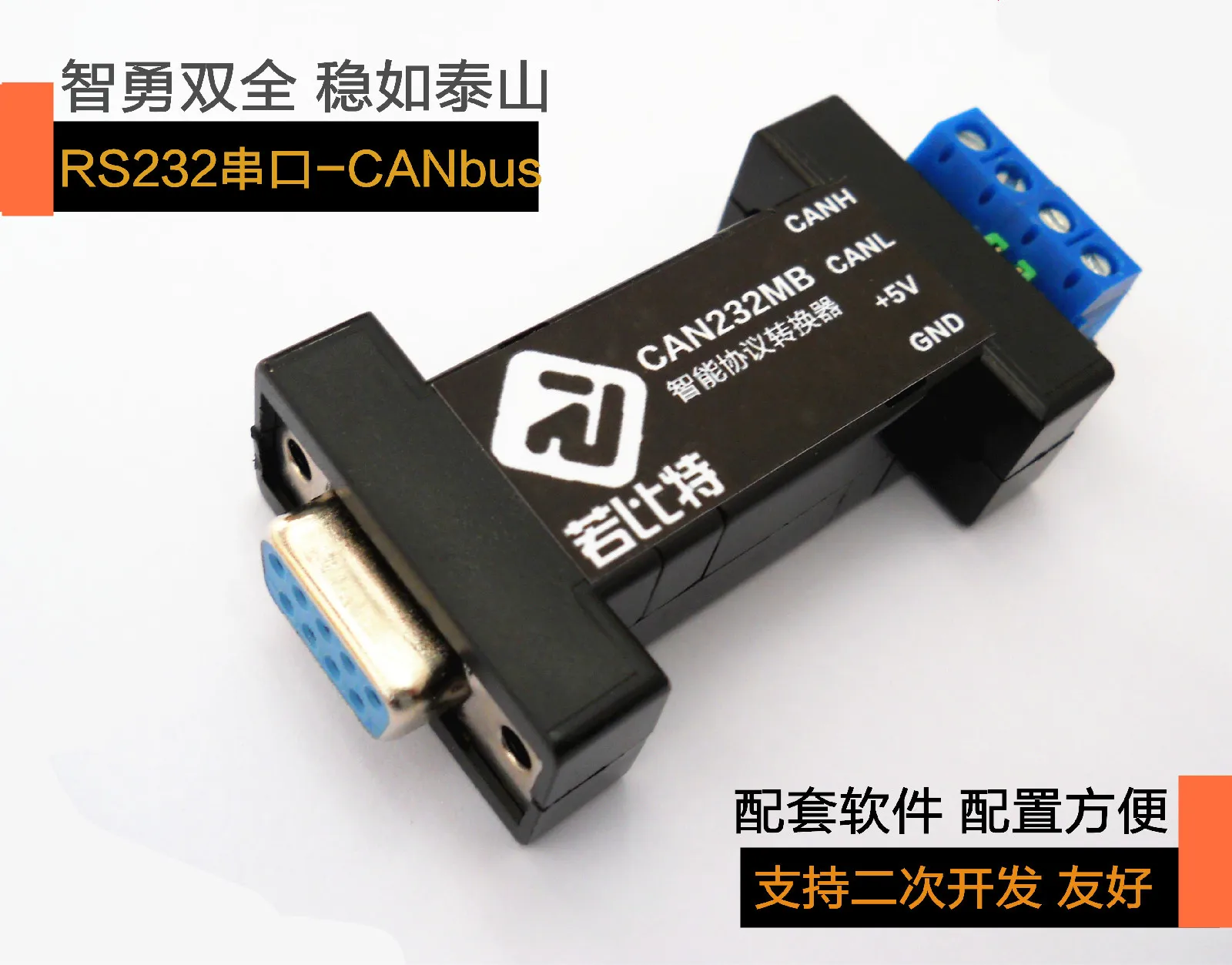

Can Turn 232 Module / Serial USB to CAN Transparent Transmission Bus Analyzer | Инструменты

Can Turn 232 Module / Serial USB to CAN Transparent Transmission Bus Analyzer | Инструменты

We focus on CAN bus protocol analysis! ! This CAN protocol analyzer takes into account the performance, but also takes into account the cost performance, provides drivers, software and instruction manuals, secondary development and other complete materials, and organizes the production of fieldbus CANbus classic video tutorial + Dangdang hot CAN textbook e-book Let you develop a set of hands-free development! Shop around, smart SMART, a wide range of CAN analyzers for automotive, industrial field and motor control applications!

Send: Harbin Institute of Technology Industrial Control Network CAN Fieldbus 30 lectures Video + courseware
Quality assurance, stability, reliability, research institutes, industrial applications preferred!
Simplified software language, rich interface features to meet a variety of needs!
Support single, multiple, cyclic message transmission, clear display information, identifier, filter, data segment, frame type, time, etc.
Analysis and analysis of high-level protocols and custom protocols!
Support offline use function, can be used as CAN232!
Support baud rate automatic setting, 232 and transparent transmission function!
Can be configured with any baud rate, full range baud rate!
Provide secondary development library function source code!

\

Filter table intuitive configuration, intelligent filtering (unlimited ID or ID segment)!
Using the 360 ​​drive master stable drive - CP210X,
360 digital signature authentication, the first to support win10 32/64bit!

\

Win7 or above, the system will automatically install the driver (as if it is a drive-free device)
Support bus load rate / utilization / flow, curve real-time drawing display!

\

\

Piano paint shell, shielded cable interface, true industrial grade!
\

Classic type: lightning protection, static electricity, short circuit, reverse connection protection!
\

USB, CAN1, CAN2 are completely isolated between the three ends, true full isolation!
\

Military-grade process:
\

The PCB circuit board adopts the high standard KB Jianye Group's military grade A grade material;
\

2.0mm ultra-thick, large PCB, immersion gold process;
\

Imported electronic components, fully automatic placement machine processing (SMT), lead-free process;
\

Optical inspection, 72-hour continuous transmission and verification test, high and low temperature aging test, vibration shock test.
\

Each channel has a built-in 120 ohm terminating resistor for point-to-point debugging.
\

The terminal resistance dial switch control is convenient and quick.
\

At the same time reach 8500 frames per second, dual channel independent configuration, work independently, do not interfere with each other!

1Using 32-bit 80M high-frequency, high-performance processor, with 512K flash, 128K SRAM storage space, can cache 6000 frames of CAN information.
2 Using advanced online programming technology (online write FLASH) can save CAN configuration information and status in real time, without having to perform complicated configuration every time power is turned on.
310K~1M baud rate can be configured arbitrarily, with baud rate calculation, configuration tool, one-button configuration.
The 410K~1M baud rate is measured in any frame, and the second frame automatic frame measures the baud rate of the target device.
5 perfect support win10/win8/win7/xp (64bit/32bit) USB1.1/USB2.0/USB3.0 and tablet OTG specifications.
Win10 64bit+USB3.0 will achieve the best performance. Perfect support for windows tablets.
6 All use military-grade technology, mass production testing, quality assurance.
7 unique encryption technology: the user's secondary development software can realize the unique binding of software and hardware, or a set of keys can be built in the software to implement a software binding to a specific multiple devices.
We guarantee that the product has a unique and different key, and the bulk customer can customize the unique same key for software programming.

Description:

\

1. CANalyst analyzer provides configuration and debugging analysis software, friendly interface and easy operation.

\

2. Extreme Edition with CAN isolation function, transparent transmission function (to fully reflect the advantages of industrial applications)

In addition, there are massive data gifts, value-added, and accumulated data for ten years to help your project development! !

\

\

\

\

Our converter supports XP system and perfectly supports win7 system.

CAN communication experts around you, make the CAN bus easier, a notebook + a USB-CAN converter, get CAN development! !

\

Features:

\

First, the USB2CAN adapter is a CAN bus adapter with a USB2.0 interface and a CAN interface for bidirectional transmission.

\

Second, the USB2CAN adapter can be used as a standard CAN node, which is a powerful tool for CAN bus product development, CAN bus device testing, and data analysis. Using this interface adapter, the PC can be connected to a standard CAN network through a USB interface, and is used in the field of building field bus test labs, industrial control, intelligent buildings, automotive electronics, etc. for data processing, data acquisition, data communication, and the like.

\

Third, USB2CAN adapter is a powerful tool for CAN product development and CAN data analysis. At the same time, it has the characteristics of small size, plug and play, etc. It is also the best choice for portable system users.

\

Fourth, using the EmbededConfigForUSB2CAN.exe tool software provided by our company, the user can directly configure, send and receive the CAN bus. After the configuration is complete, the user can select RMCS or EmbededDebug as the upper computer control software (for the usage method, please refer to the second chapter of the “Zhi Dingyi” Operation Manual” and the related content described in “EmbededDebug Software Tool User's Guide”.

\

5. At the same time, the user can also refer to the related programs and library functions provided by our company, so that the CAN system application software products can be conveniently developed without completely understanding the complicated USB protocol, which greatly simplifies the difficulty of USB development.

\

Application areas:

\

1. CAN network teaching, development and testing;

\

3. The CAN network replaces the RS485 network;

\

4. High-flow, high-speed CAN communication network;

\

5. Industrial site CAN network data monitoring.

\

2. Fast CAN network data acquisition and data analysis;

\

The interface is more user-friendly and conforms to the CAN standard protocol! !

\

1. The USB2CAN adapter has two sets of external interfaces. A standard USB interface; a 2-pin terminal block 120 ohm terminating resistor selection terminal for CAN bus interface.

\

2. There is an LED indicator on the USB2CAN adapter. It is off when the adapter is powered off. It is always on when the power is off and not communicating, and is flashing when there is data communication.

\

Our advantage, strong performance! !

\

1, USB interface supports USB2.0, compatible with USB1.1;

\

2. Protocol conversion between USB and CAN bus;

\

3. Support CAN protocol 2.0A and 2.0B active mode;

\

4, support two-way transmission, CAN transmission, CAN reception;

\

5, support data frames, remote frame format;

\

6, support extended frames, support standard frame format;

\

7, CAN controller baud rate up to 1 megabit / sec, can be software configured;

\

8, support automatic retransmission mode, can be configured through software;

\

9, support automatic offline management mode, can be configured through software;

\

10, support 14 filters, can be configured through software;

\

11, USB bus direct power supply, no external power supply;

\

12, working temperature: -20 ~ 85 ° C;

\

13, the working current is 80 mA, and the power consumption is less than 400 mW;

\

14. Shell size: 72 mm long, 33 mm wide and 17 mm high.
