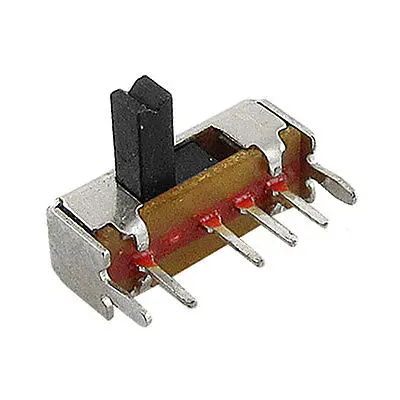

  10x Panel PCB 4 Pin 3 Position 1P3T SP3T Mini Slide Switch Side Knob 0.5A 50V DC

Specification:

Product Name Horizontal Slide Switch Model No. SK13D01-VG4 Position 3 Pins Design 4 Pins ( Single Row ) Contact Type 1P3T Pin Width 0.5mm/ 1/50" Pins Pitch 2mm/ 5/64" & 4mm/ 5/32" Rating DC 50V, 0.5A Contacts Resistance 30MΩ Insulation Resistance 100MΩ Minimum Load DC 500V Dielectric Strengths

AC 500V / 1 minute

Life Test 10000 cycles/ minute Knob Size 2 x 2 x 4mm / 0.08" x 0.08" x 0.16"(L*W*H) Main Body Size(not include pins & knob) 12.7 x 4.5 x 4mm/ 0.5" x 0.18" x 0.16" (L*W*H) Overall Size 12.7 x 9.5 x 7.8mm/ 0.5" x 0.37" x 0.31" (L*W*H) Material Plastic & Metal Color As picture shown Weight 7g Package 10 x Horizontal Slide Switch

Description:

Slide Switch is for changing circuit by sliding the mini handle of the switch to control the circuit to be ON or OFF. The Slide Switch is widely used in the electric toy, sound equipments, fax, test instrument equiopments, or other low voltage circuit electronic equipments. This Slide Switch is with pins terminals design for easily welding onto the circuit. The Knob Handle is 4mm in height.
