Sailwin 2.4G Ism DMX Wireless Male Xlr Transmitter Stage Light Par Party Light Antenna

Transmitter Wireless Dmx Receiver

PACKING LIST:

1PC Wireless DMX Transmitter/Receiver With Adapter

Advantages

No time delay during data transmission

7 groups ID code settable

Portable and easy to handle

Economical

small size: 13.5cm x 2cm x 2cm only

one transmitter can control many receiver

Technical Parameters:

Tricolor LED displaying

126 channels automatically jumping frequency, high anti-jamming ability to ensure working reliability.

7 groups ID code settable, user can use 7 groups individual wireless system without any interference with each other in the same place.

Input voltage:5VDC 500mA MIN

Communication distance: 700M

Work frequency section: 2.4GHz ISM band, 126 channels frequency section.

Max transmitting power rate: 20dBm

Receiver sensitive: -94dBm

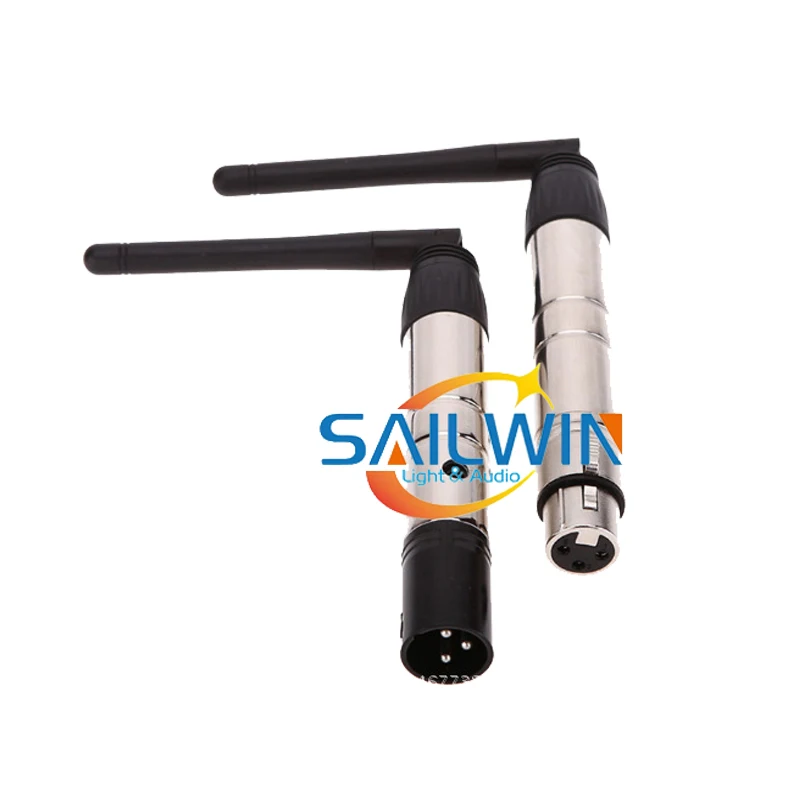

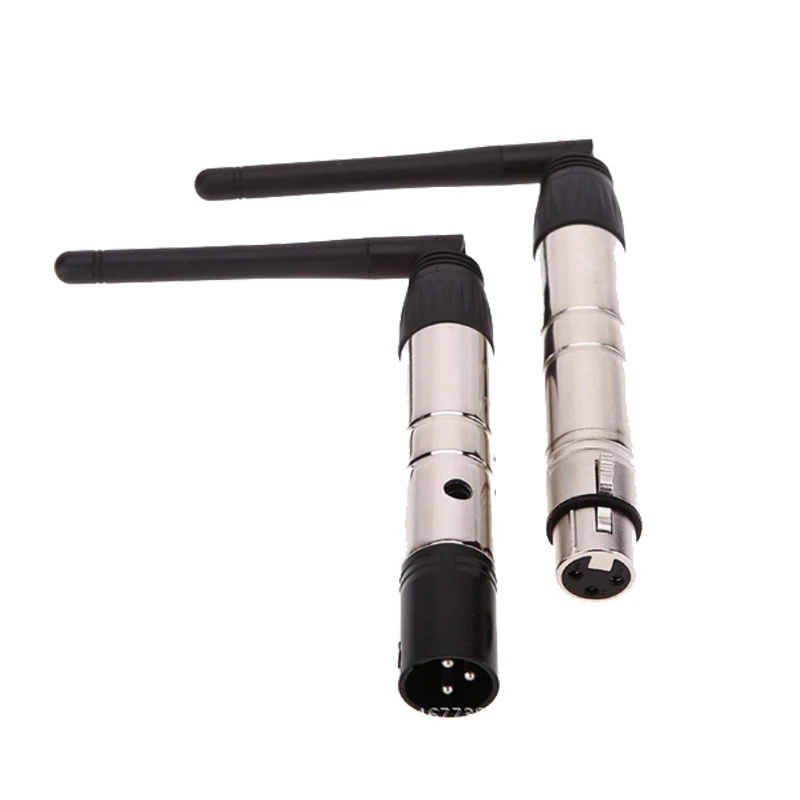

Signal port:  3 pin male plug (for transmitter) & female plug (for receiver

Product Outline:

Operating manual:

ID code and LED color corresponding correlation:

1: RED

2: GREEN

3: RED+GREED = YELLOW

4: BLUE

5: RED+BLUE = PURPLE

6: GREEN+BLUE  = CYAN

7: RED+GREED+BLUE = WHITE

Press key 1 time to indicate ID setting, press again to set ID, then ID value adding 1 each time by press.

Working condition:

LED constant lit up: no DMX or wireless signal

Red LED flash: transmitting

Green LED flash: Receiving

RF frequency------2. 400-2. 525G, total 126 channels, it is searching automatically.

ID Code------1-7 groups ID code, press "Key" for setting, it only can works under same ID code of transmitter and receiver.

Establishing Communication:

1. Power on DMX512 wireless received board and transmitted board.

2. Press "Key" button to set same ID value of transmitted board and received board,  please use different ID value if you need to use more than 1 group wireless system at the same time in the same place.

3. The red LED flashes when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section.  Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast.

4. Communication was established correctly then.

DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data(generated by console ) by wireless way, which solve lighting control issues of wireless transmitting completely between lighting controller and lighting, lighting and lighting and so on. It gets rid of relying on connecting cables completely.

And also can ensure without any time delay when signal data is transmitting, signal data is real time and reliable. This product adopts global free 2.4GHz ISM frequency band. High effective GFSK modulation,communication design is 126 channels jumping frequency, high anti-jamming ability.

Application:

Stage lighting,

Disco hall,

Large literature performance,

Gymnasium lighting,

Temporary stage performance,

City lighting system,

TV station,

Conference center,

Professional showplace,

Theme parks,

Bar lighting and so on.

Caution:

Indoor use only.

Two (2) year warranty, repair, free replacement except damaged artificially.

The manufacturer will not offer free service in warranty period if any repaired or uncapped had happened

It is better to return to manufacturer if repair is a must, do not do any repairing job unless qualified electrician.

The working condition should be under temperature -20~+45 degree, 10%~90%RH, no congelation, so as to ensure its lifetime.

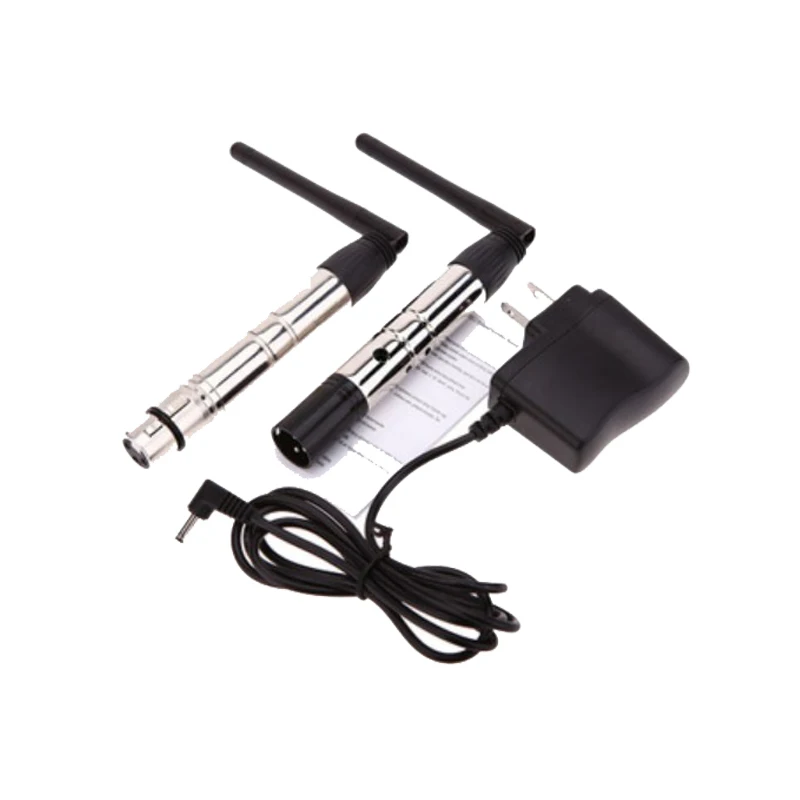

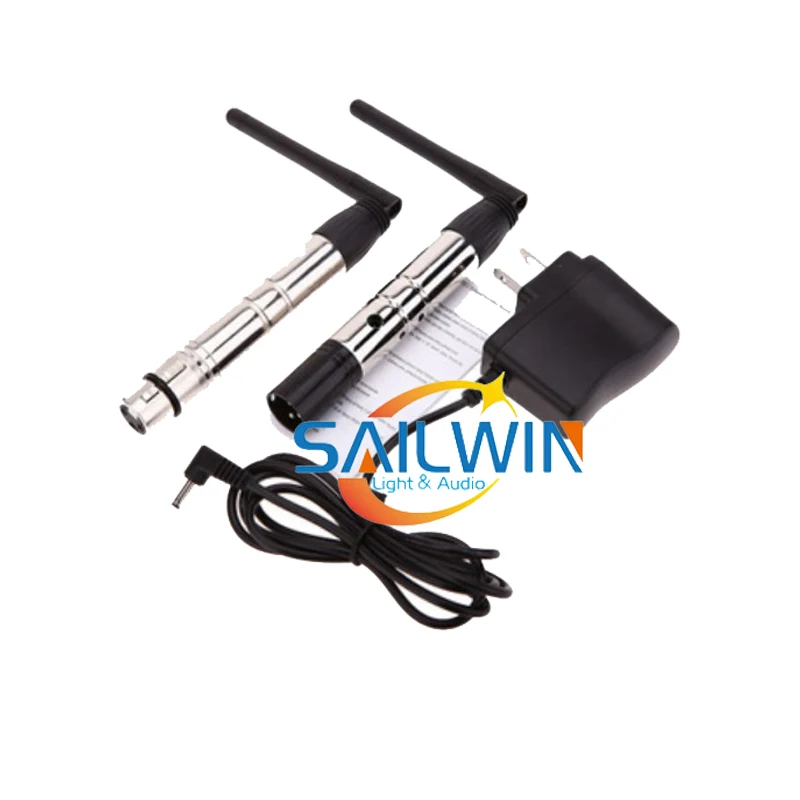

Package included:

1 x DMX Transmitter( male plug)

1 x Power Supply(please kindly inform us the power supply you need, or we will choose it all according to your country satndard
