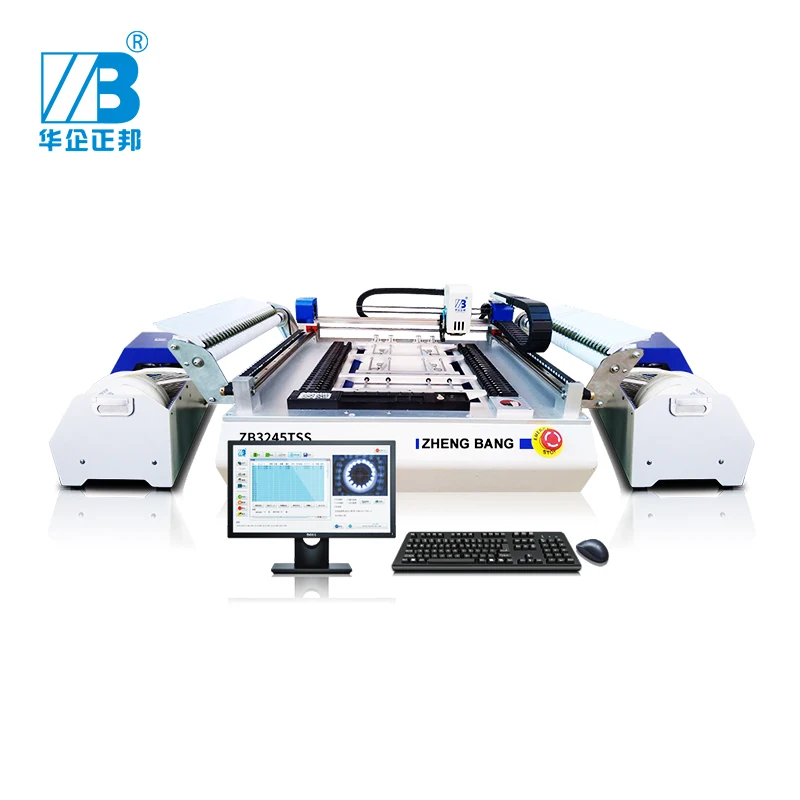

High Speed automatic pick and place machine smt | Инструменты



Application：Prototyping Machine, Small Production, LAB work, D&R, Education.

Brief Introduction: Machine is customized for small production and prototyping business, with self-designed operating system for developers.

Service:

             24-hours consultant for operating and marketing.

             Professional after sell service.

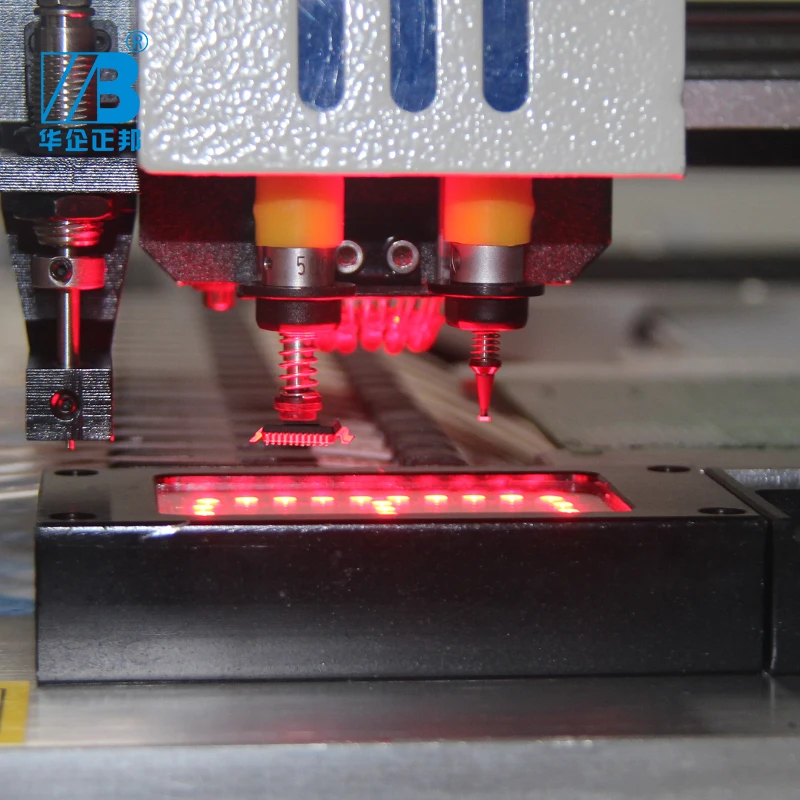

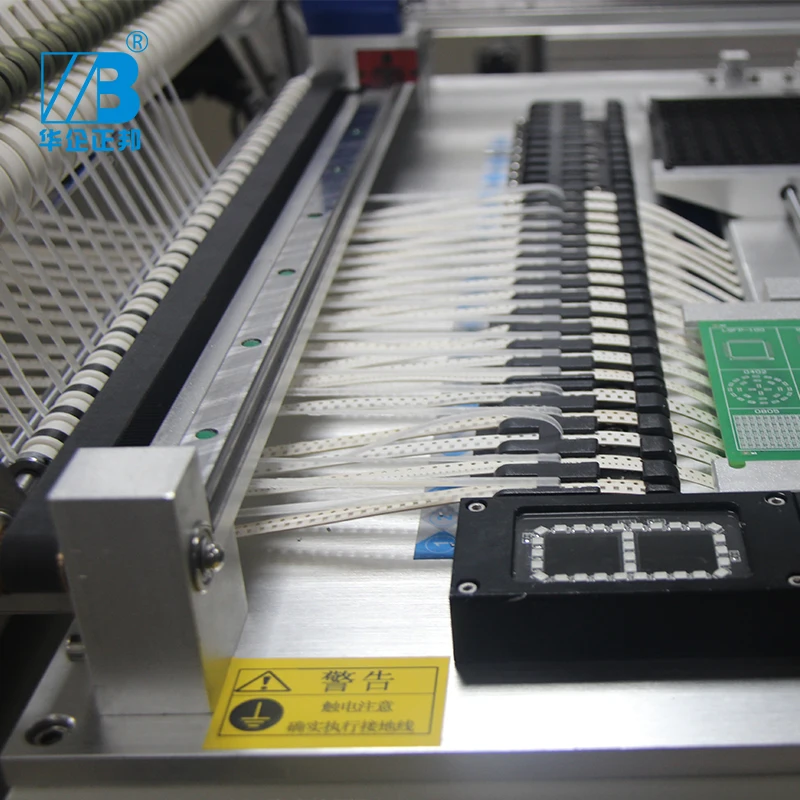

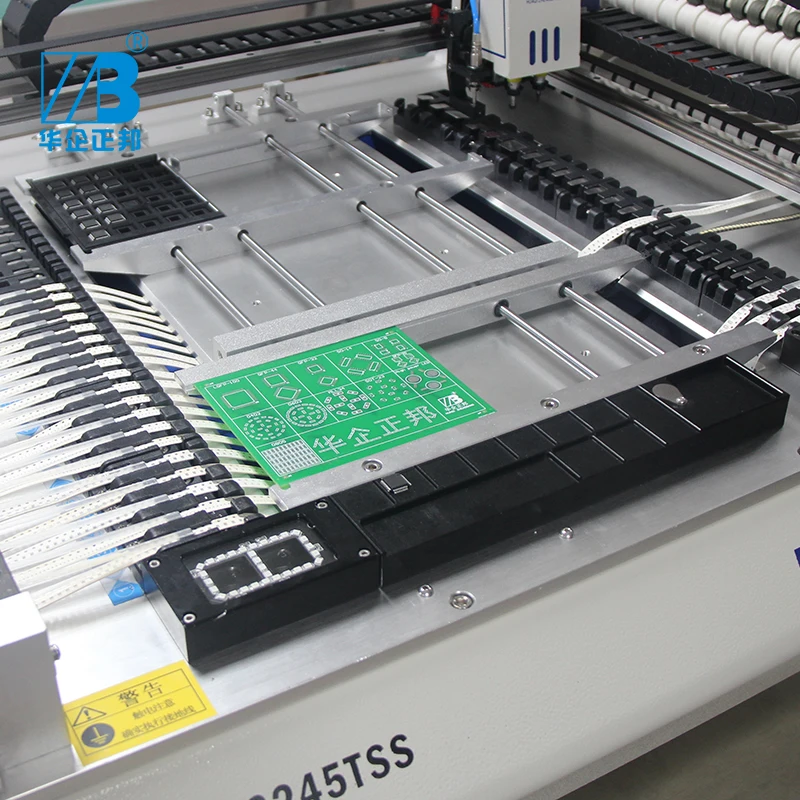

System Items Content Mounting System Mounting head number 2 pieces Mounting accuracy 0.025mm Mounting angle 0~360° Theoretical Velocity 8000pcs/hour Normal mounting 6000pcs/hour Visual mounting 4000pcs/hour Nozzle type Juki series nozzle Elements for mounting RC (0402, 0603, 0805, 1206, etc) LED lamp (0603, 0805, 3014, 5050, etc) Chip (SOT, SOP, QFN, BGA, etc) Substrate Substrate minimum size 10×10mm Substrate maximum size (no tray) 320×450mm Substrate maximum size (with tray) 320×220mm Substrate thickness ≤2mm Substrate warp allowed value <1mm Feeder 8mm 40pcs 12mm 8pcs 16mm 4pcs 24mm 2pc Preposition IC material level 10pcs Postposition IC tray 1pc Tubular materials feeder Zhengbang dedicated Five tubular materials feeder one (optional) X, Y, Z axis X, Y axis moving range 450*530mm Z axis moving range 10mm Z axis rotation angle 0~360° Visual system independent research and development Visual System Visual camera CCD high-definition camera Visual quantity 4 (3 Parts camera, 1 PCB camera) Identification ability MAX.20*20mm Control System PC system Microsoft  WIN7 Operational software independent research and development Compatible file format CSV, TXT. format file Programming mode Support online and offline Pressure 0.4 MPa (The built-in pump) Basic Parameter Vacuity degree MINUS 92KPA Power 230W Power  supply AC220V  50HZ Main engine outline size L 990*W 730* H375mm Materials feeder outline size L 235*W 700*H 245 mm Net weight 60kg Gross weight 90kg Outline package size 1190*850*560mm













FAQ

1. In case the machine breaks down, where can I find the spare parts?

Once your machine have the problem, please contact me or leave a message to my email. I will forward your message to our engineers and within 24 hours we will arrange inspection for your machine remotely.

If it needs replacing any spare parts, we will send it to you directly by TNT、DHL or others.

We have the technical teams in some area. If you need local service, you have to cover the travel expenses, labor cost. They will provide service for you directly.

The machine will be packed with some spare parts according to our experience.



2. Payment term?

We accept:T/T, VISA, PAYPAL, WEST UNION, BANK TRANSFER, ONLINE BANK PAYMENT



3. What about the lead time?

1~2 weeks after we received the payment, we will start the delivery. For customized order, it depends on practical situation.

4. How about the Training ?

We provide the online remote training service, and we will offer you the operating video and manual for users’ repeatedly learning.



5. What’s the applicative component size for this machine?

Minimum component size: 0402.

maximum size: lead pitch no more than 0.5mm, such as QFP100.

Components height:<5mm.



6.Which nozzle suit for the component?

Machine used YAHAMA series nozzle.

size 500 nozzle:1005,1608,2012.component minimum width:0.45mm to 1.45mm.

Size 501 nozzle:0603,0402.component minimum width :below 0.45mm

Size 502 nozzle:0805,1005,1608,2012.component minimum width:0.45mm to 0.75mm.

Size 503 nozzle:0805,1206,1608,2012.component minimum width:0.75mm to 1.45mm.

Size 504 nozzle:2012,3216,SOT23.component minimum width:1.1mm to 2.5mm.

Size 505 nozzle:component minimum width:2.5mm to 4mm.

Size 506 nozzle:component minimum width:4mm to 7mm.
