GAMWTER 7 inch Wifi Wireless RFID Video Door Phone Doorbell Intercom System with Wired AHD 1080P camera | Безопасность и защита

GAMWTER 7 inch Wifi Wireless RFID Video Door Phone Doorbell Intercom System with Wired AHD 1080P camera | Безопасность и защита

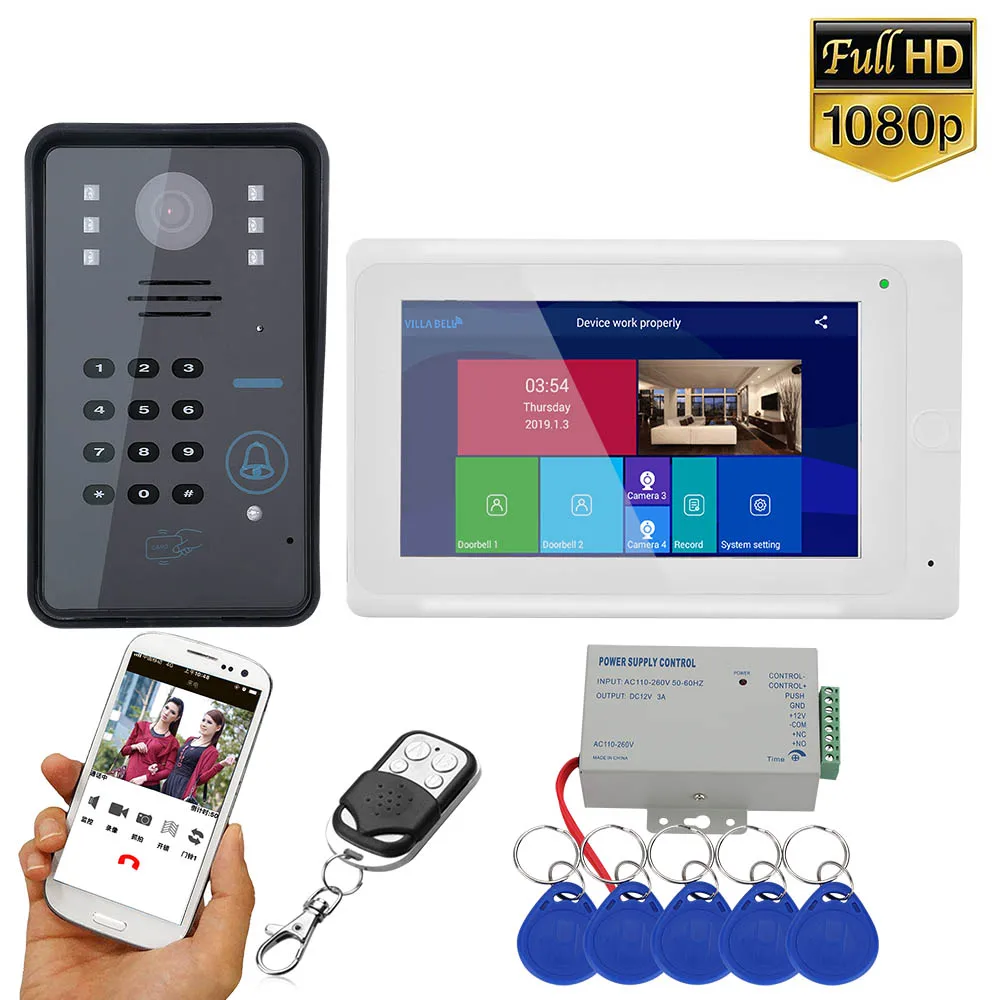

7inch 2 Monitors Wireless Wifi RFID Password Video Door Phone Doorbell Intercom Entry System with Wired IR-CUT 1080P Wired Camera Night Vision,Support Remote APP unlocking,Recording,Snapshot

Products Introduction:

Easy installation by yourself with the adapter and cable we provided in this kit,outdoor unit  can connect to indoor monitor by wired 4P cable.When indoor monitor connected to your  wireless wifi router,you can connect mobile phone to indoor monitor,then mobile phone also can  record video or open the door etc.Widely used in villas, apartments, houses, hotels, offices,  public buildings and so on.

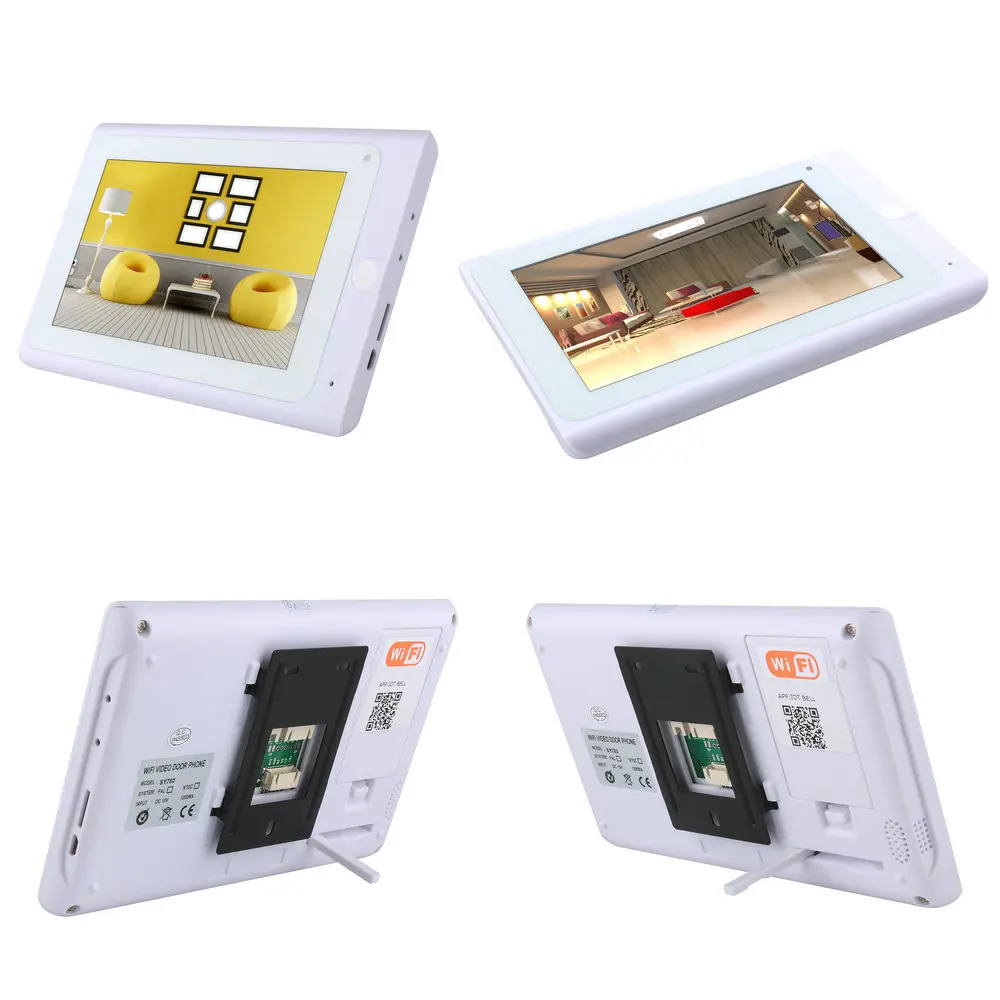

1.Indoor monitor use the multi-point capacitance touch screen,adopt to Android System,steady and easy to operate.

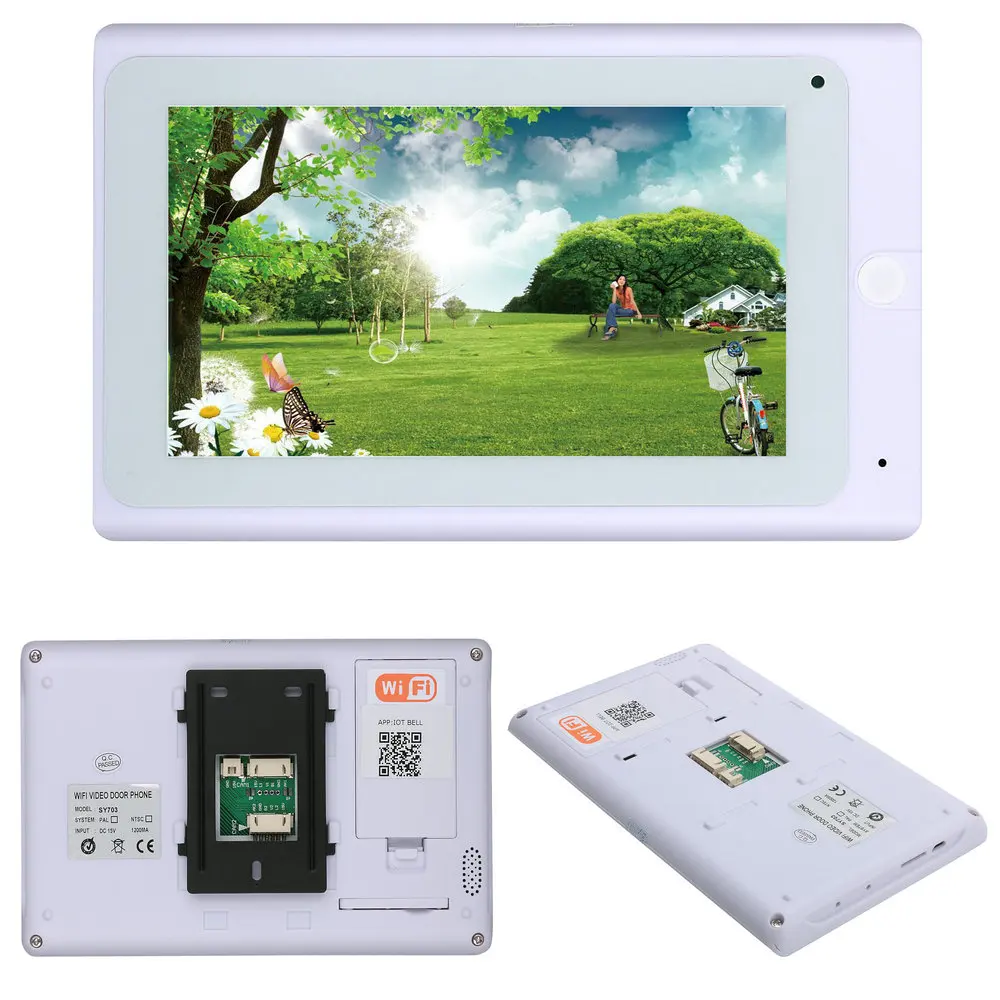

2.7inch High definition digital LCD monitor,with take picture,visitor records and calendar function.

3.Indoor monitor can take picture by manually or automatically,max to support 32G TF card.

4.Indoor monitor with monitor,intercom,unlock,hands-free and Don’t disturb function.

5. The indoor monitor can support to connect 8 mobile phone APP user,Support IOS/Android system mobile phone , then the mobile phone can view and unlock.

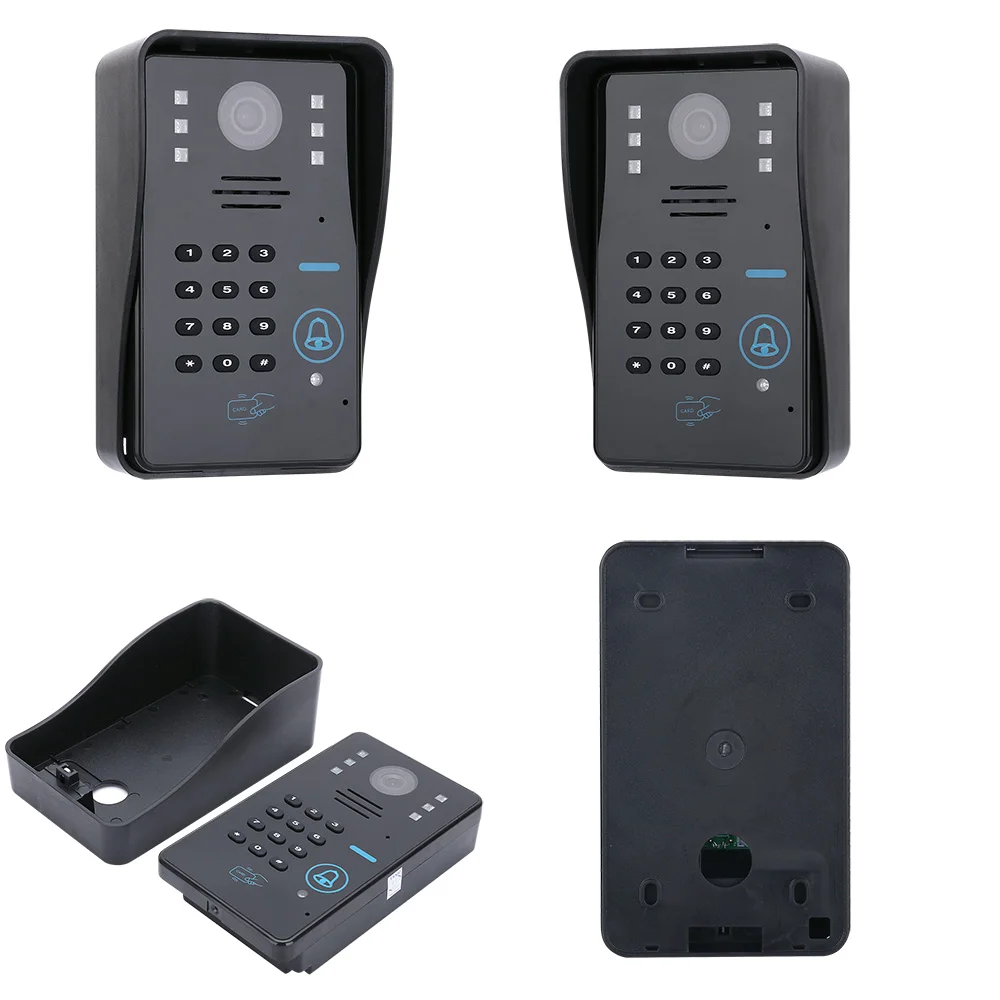

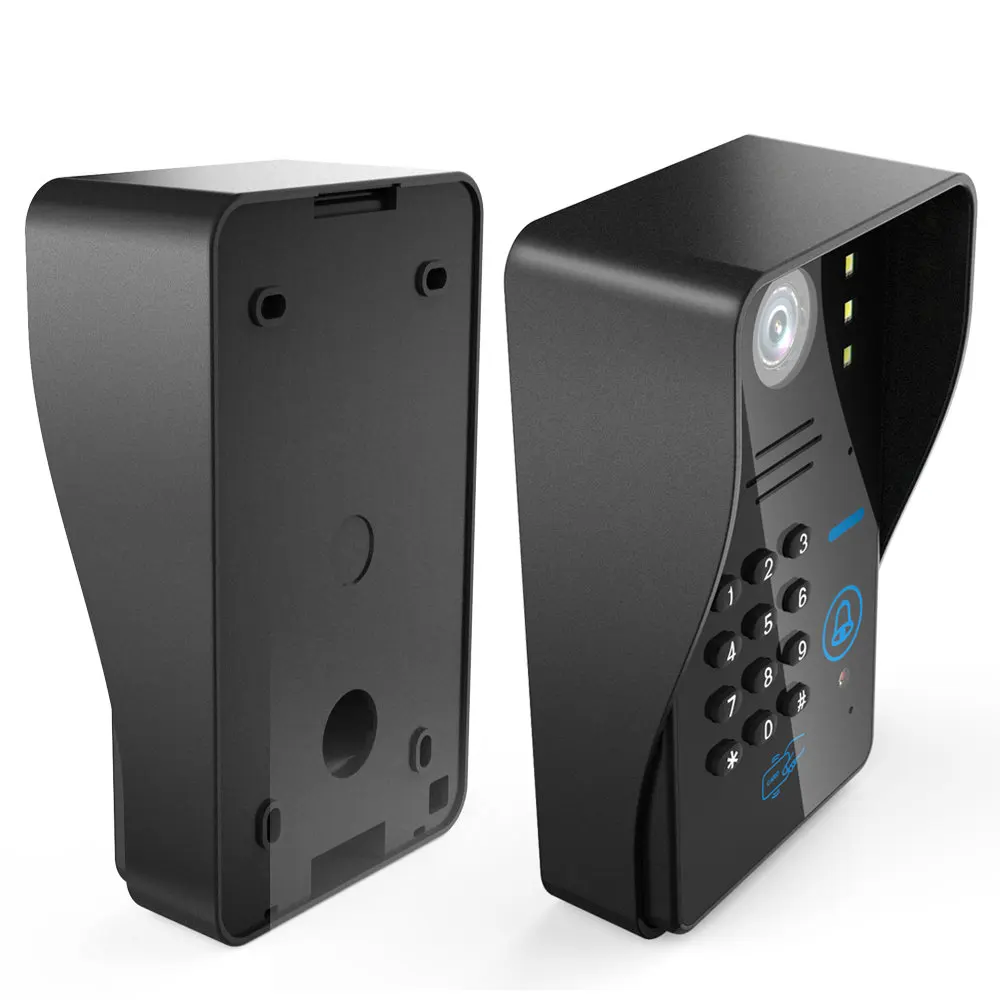

6.Outdoor unit use 1080P HD  camera,with IR-CUT.

7.Fingerprint type：Support 2000 ID cards unlock,password unlock.remote controls unlock

Features:

Wireless Wifi Monitor:

 Display:7" TFT LCD(16:9)

 Resolution: 1024(H)X600(V)

 Touch : Yes

 Wifi: Yes

 Power supply: DC15V1.2A

 Installation: Surface mount

 Size:209*133*18mm

Wired wifi Monitor:

 Display:7" TFT LCD(16:9)

 Resolution: 1024(H)X600(V)

 Additional memory: Support additional TF card (32GB max.)

 Touch : Yes

 Wifi: Yes

 Power supply: DC15V1.2A

 Installation: Surface mount

 Size:209*133*18mm

 Camera:

 Camera sensor: 1/3 inch

 View angle: 92°

 Definition: 1080P

 LEDs for night: IR LEDs (180°)

 Fingerprint type：Support 2000 ID cards unlock,password unlock.remote controls unlock

 Installation: Surface

 Size:190*95*55mm

SY703WGLD11 Accessory:

1*Indoor Monitor (Wired Wifi)

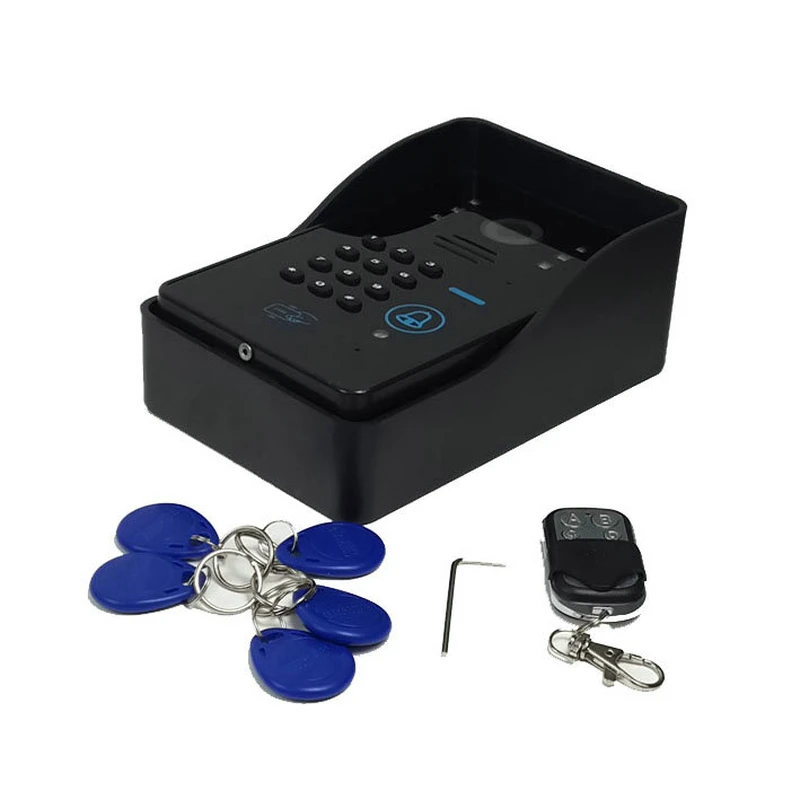

1*Outdoor Unit  ( RFID Password remote )

1*15V/1.2A Power Supply

1*12V 3A Access Control Power Supply

1*4-core terminal wire (5m)

5 *125KHz RFID Cards

1 * Remote Control

3*unlock terminal wire

1*Manual

1*Mounting plate

1*Screws

1*Color package

SY703W706WGLD12 Accessory:

1*Indoor Monitor (Wireless Wifi )

1*Indoor Monitor (Wired Wifi)

1*Outdoor Unit  ( RFID Password remote )

2*15V/1.2A Power Supply

1*12V 3A Access Control Power Supply

1*4-core terminal wire (5m)

5 *125KHz RFID Cards

1 * Remote Control

3*unlock terminal wire

1*Manual

2*Mounting plate

1*Screws

1*Color package

SY703W706WGLD13 Accessory:

2*Indoor Monitor (Wireless Wifi )

1*Indoor Monitor (Wired Wifi)

1*Outdoor Unit  ( RFID Password remote )

3*15V/1.2A Power Supply

1*12V 3A Access Control Power Supply

1*4-core terminal wire (5m)

5 *125KHz RFID Cards

1 * Remote Control

3*unlock terminal wire

1*Manual

3*Mounting plate

1*Screws

1*Color package

280KG 600LB Single Door 12V Electric Lock For Door Magnetic Electromagnetic Lock Holding Force For Access Control with LED Light

Features:

Use magnetic power to lock the door, 280kgs (600lbs) holding force.

Built-in reverse current protection device (MOV).

Alluminum shell adopts high strength material, with hard anodised processing.

Corrosion resistant.

Good quality and durable to use.

With LED light.

Can be opened by push button, remote controller, etc.

Fit for wooden door, metal door, glass door, fireproof door, etc.

Specifications:

Holding force: 280kgs

Voltage: DC 12V

Current: 380-430mA

Working temperature: -10 to 55 Celsius degree (14 to 131 Fahrenheit degree)

Humidity: 0 to 95%

Working mode: power-on to lock

Lock size: 25 * 4.7 * 2.5cm

Plate size: 18 * 3.9 * 1.1cm

Package size: 27 * 6.3 * 6.3cm

Packing list:

1 * Electronic magnetic lock

1 * Armature plate

1 * Bag of installation kit

1 * Pad

NO Electric Strike Door Lock For Access Control System Use Fail Safe Brand NEW

Electric Strike lock:

This electric strike is perfect choice to entry a building with card, biometric, code, or any other remote controlled open/close. Ideal for security doors, building entrance/exits.

NO Mode - (Locked while supplied with power) Unlock Safe Mode

Made of Stainless Steel

Performance Testing: 1000000 times aging test

Opening Mode: 90 degree swinging door

Application: wood doors

Working Voltage: 12VDC

Working Current: 0.2-0.45A

Dimension (Face Plate): 15x3.95x2.8cm

Pack includes: One electric strike lock.

Home Stainless Steel Electronic Door Lock For Video Doorphone Intercom

Description:

This stainless steel and iron electronic lock fits doors which are 35mm - 50mm thick. And it can be mounted on left or right swinging doors. It has two wires running from it for electronic access. Besides, it is very easy to install and nearly suitabe for all sorts of access control systems and video door systems.

Features:

Stainless steel or iron construction

Connect via 2-wire to our Apartment Video intercom system

Fit for electrical control, key or hand operation

Can be opened from inside and outside (with keys) even if no power

Automatically lock when the door is closed

Fit doors 35mm (1-3/8'') to 50mm(2'') thick

Specification

Working voltage: 12VDC

Opening Voltage: 9 to 18V

Working current: 150mA

Material: stainless steel

Dimension: 130mm(L) x 105mm(W) x 37mm(H)

Life time: 500,000 times

What's In

1 X 1 x Metal Electronic Door Lock

1 x Door Rim

1 x Lock core

1 x Installation Package

3 x Keys

Note！！！

This stainless steel electronic door lock can be used with nearly all the door phone video intercom and access control kits in our store. Part of video intercoms in our store are shown as follow. Please feel free to contact us if you need any video door phone intercoms.

Wiring Diagram :

Real picture :
