72V 3000W Brushless Motor Kit With 24 Mosfet 50A Controller For Electric Scooter E bike E-Car Engine Motorcycle Part

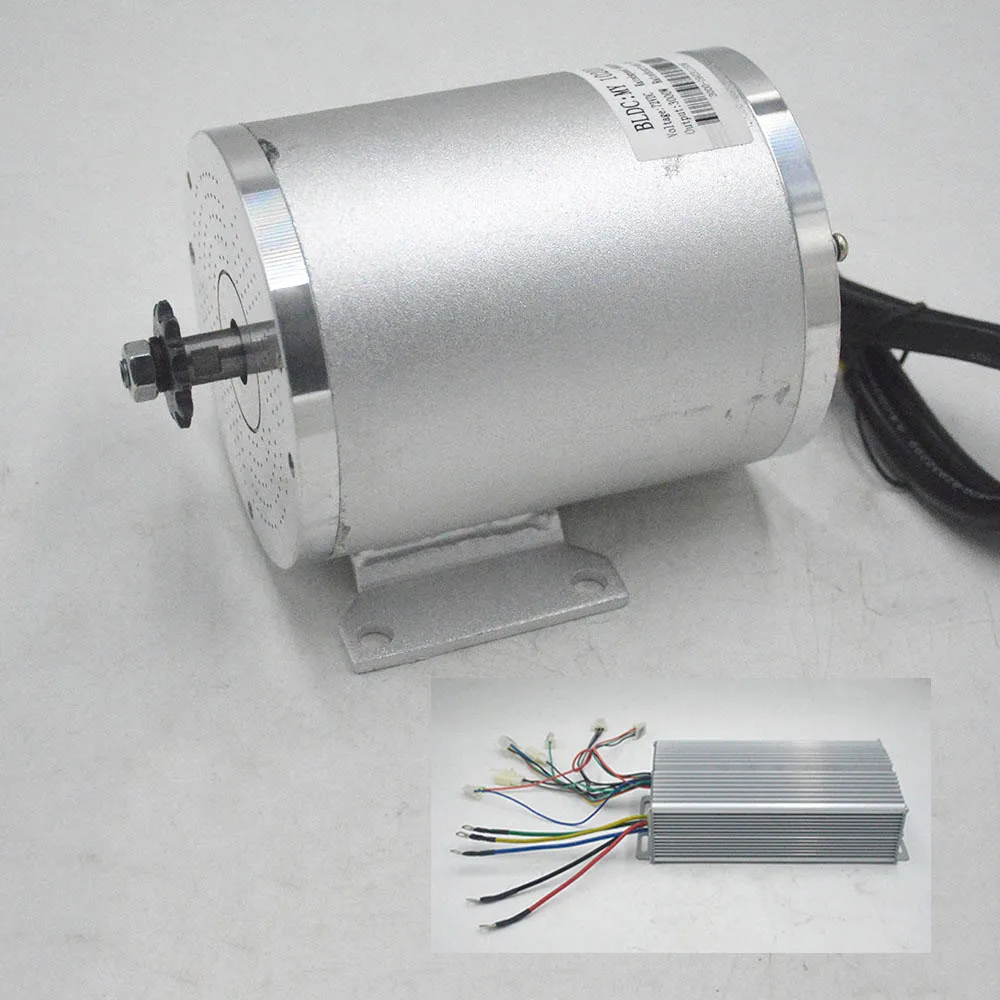

Packing List

1. 1pcs 72v3000w brushless motor

2. 1pcs 42-72v3000w 50A 24MOS Brushless Controller

Products Details

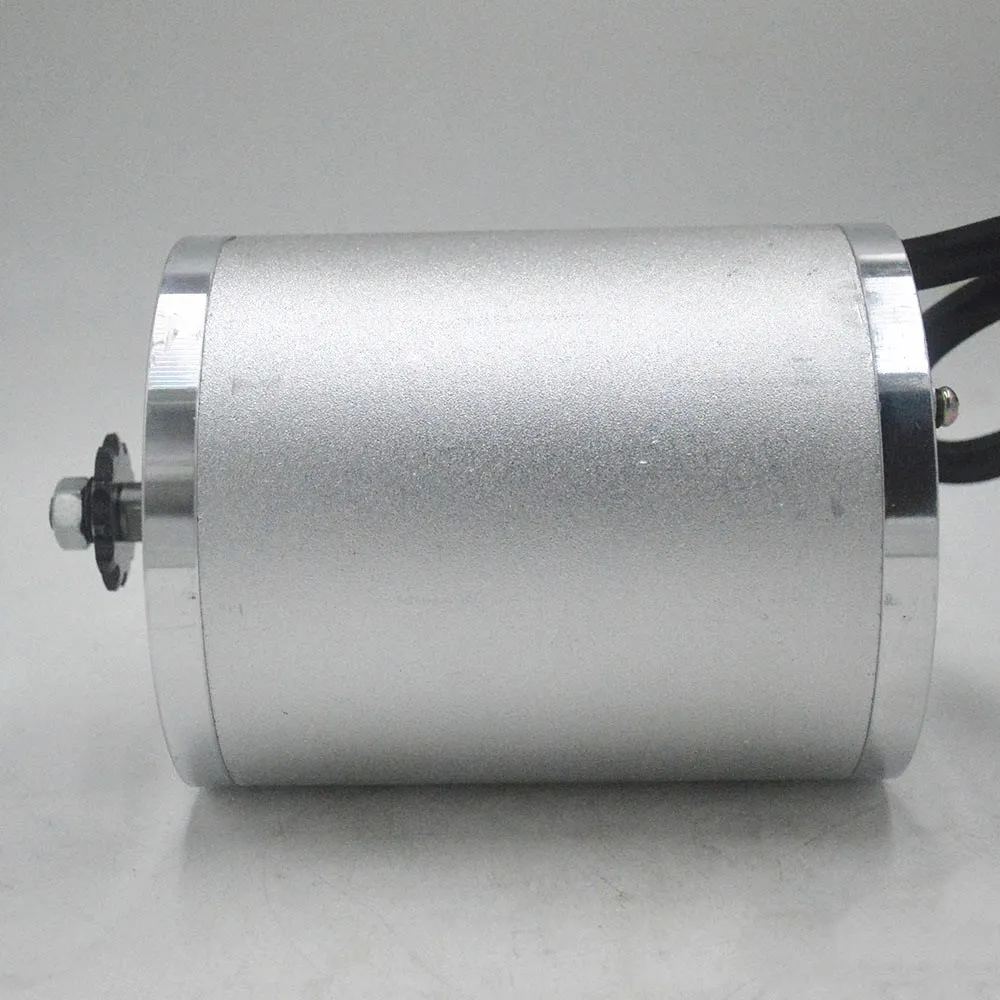

About Motor:

1.Model:MOTOR MY1020

2.Motor Type:High-Speed BLDC brushless Motor

4.Out put /W:3000W

5.Rated Speed:4900r/min   5800RPM(MAX)

6.Weight:4.8KGS

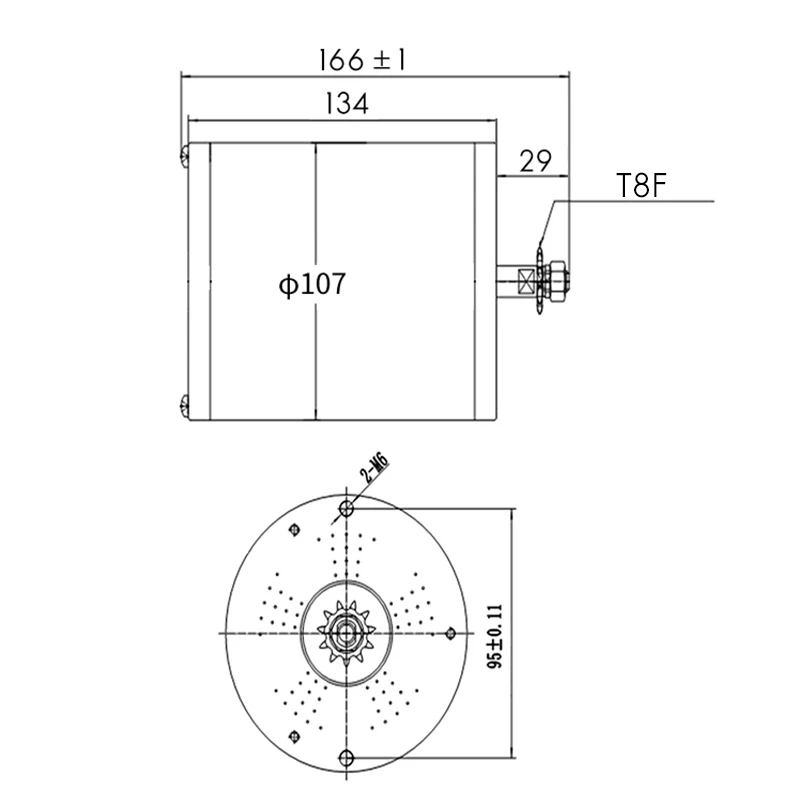

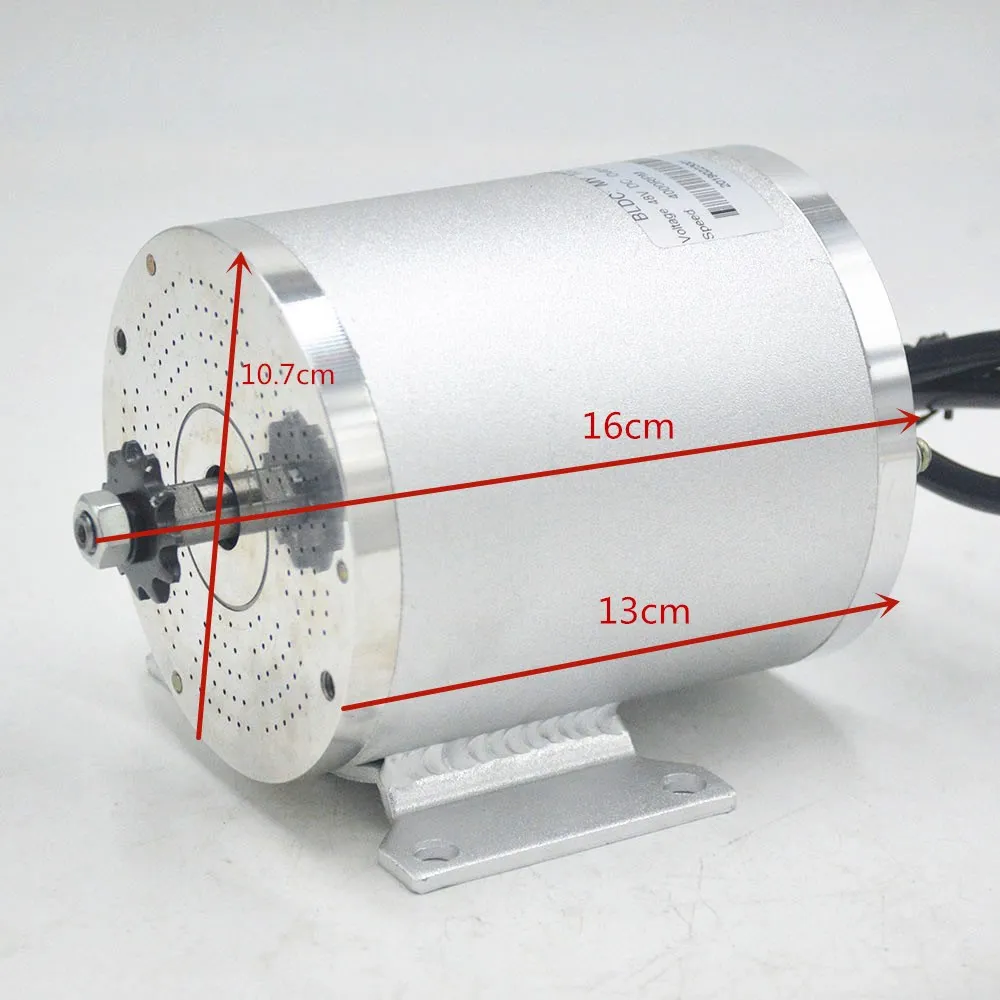

7.Diameter:95mm

8.Rated Torque/N.m:5.4N.m

9.Applicable:Electric Scooter,Ebike,Folding Bike,Small E-Moto,machine,MIni Electric Car ,DIY

11.Installation: Center,MID DRIVE

12.Application Chain:T8F Sprockt /Chain

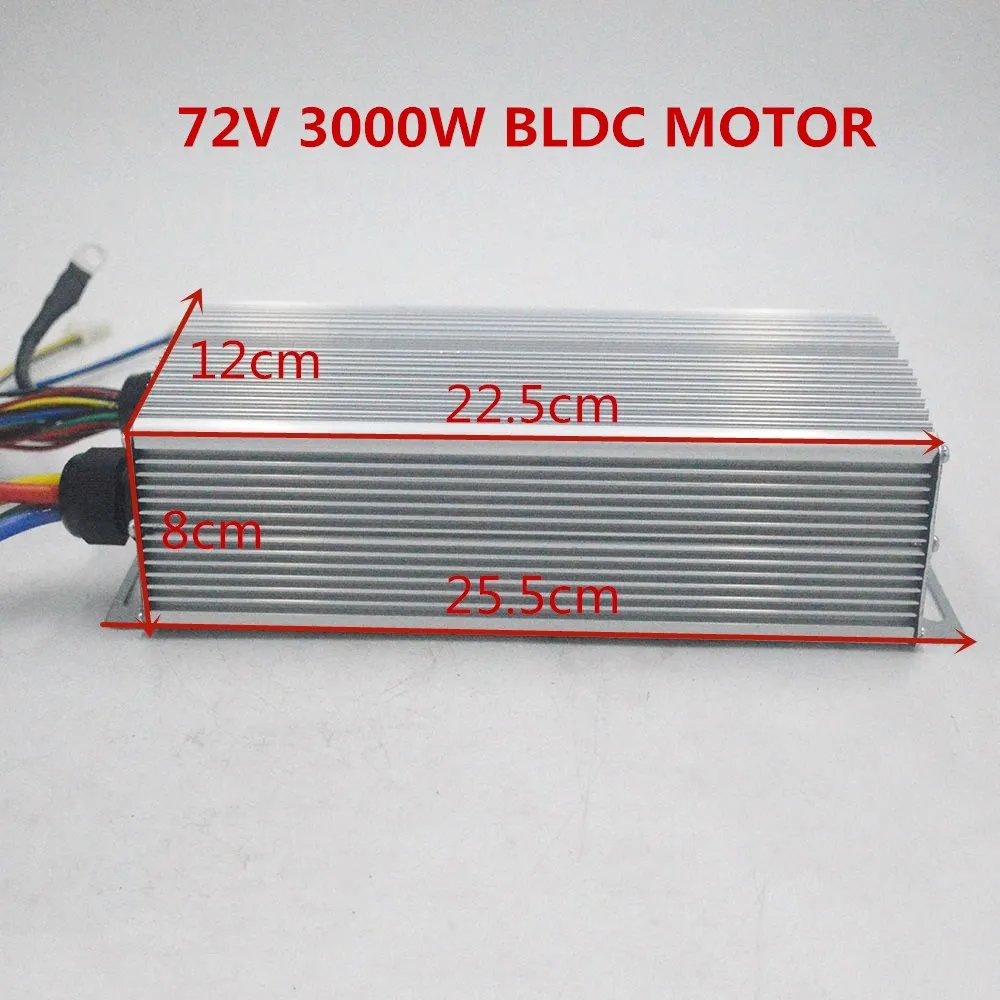

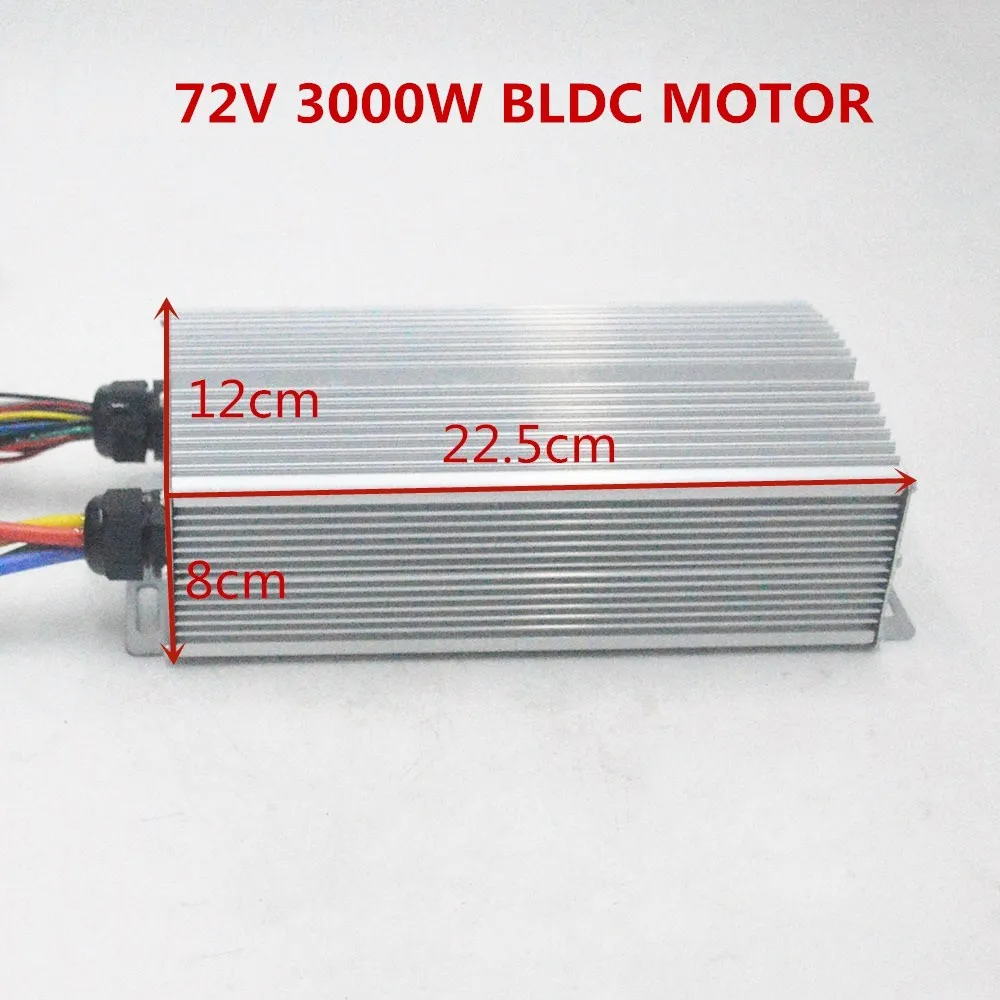

About Controller:

1.Power:3000w

2.Voltage:42-72V DC

3.Current:60A

4.Mosfet:24WF

5.Under Voltage turn the 1.1-3.7V

6.Brake Low Level

Note:  We can not provide Installation guide, we can provide motor and controller wire diagram ONLY!  ( below have wire diagram ,for reference only)

THIS MODEL MOTOR HAVE WITH FOOT MOEL,also HAVE OTHER POWE LIKE:36V350W 500W 1000W / 48V 1000W 2000W / 60V 2000W 2500W / 72V 2000W 3000W IF NEED CAN CONTACT WITH US!!!HAVE IN STOCK !!!

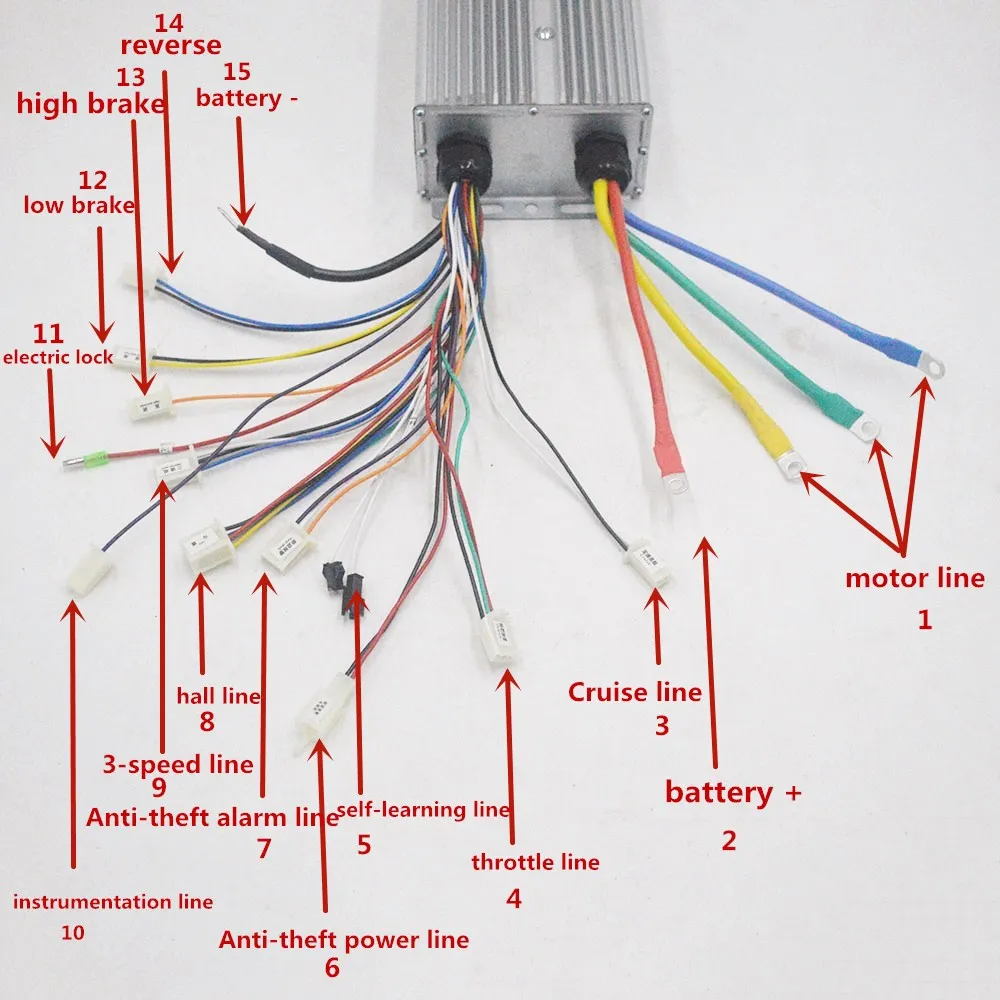

Wire Diagram:

72V 3000W brushless controller function:

1. motor line

2. battery +

3. Cruise line

4. throttle line

5. self-learning line

6. Anti-theft power line

7. Anti-theft alarm line

8. hall line

9. 3-speed line(low/Medium/high)

10. instrumentation line

11. electric lock line

12. low brake

13. high brake

14. reverse line

15. battery -

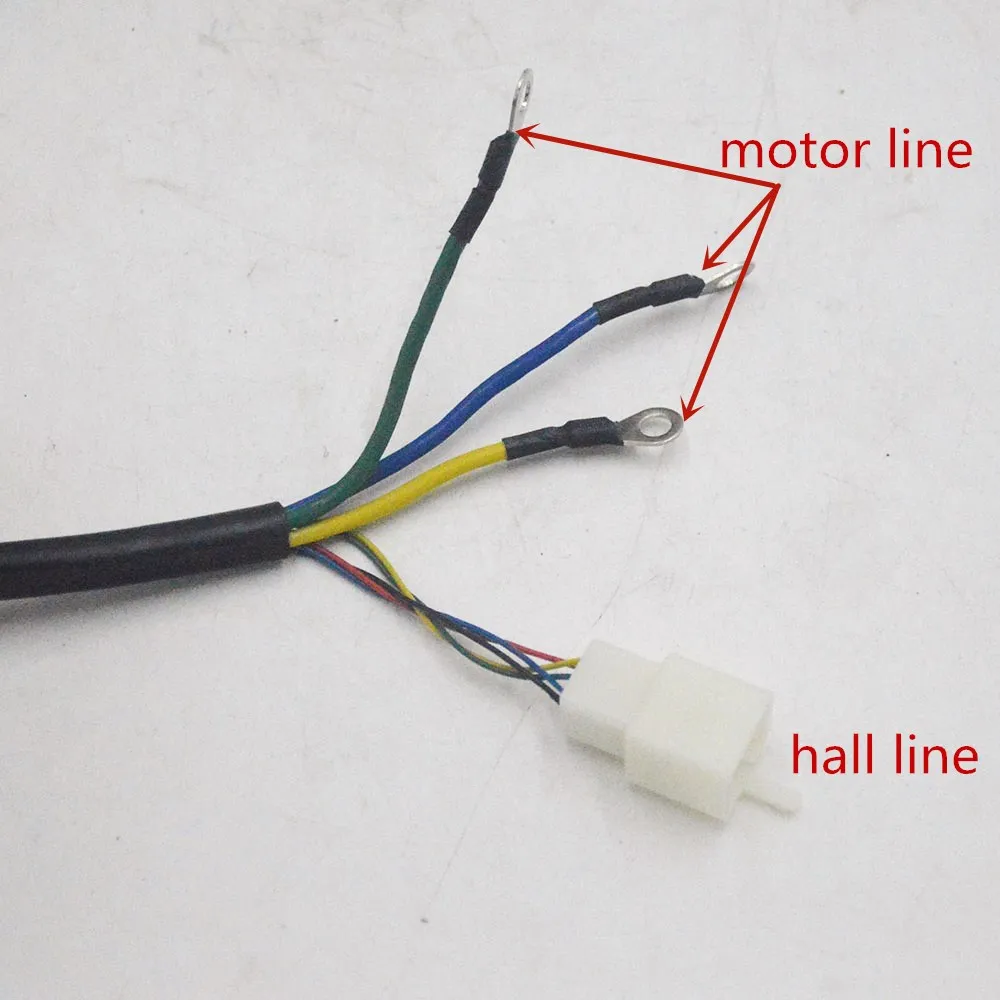

(1.Contact the motor line

2. Contact the hall line

3.contact the throttle line

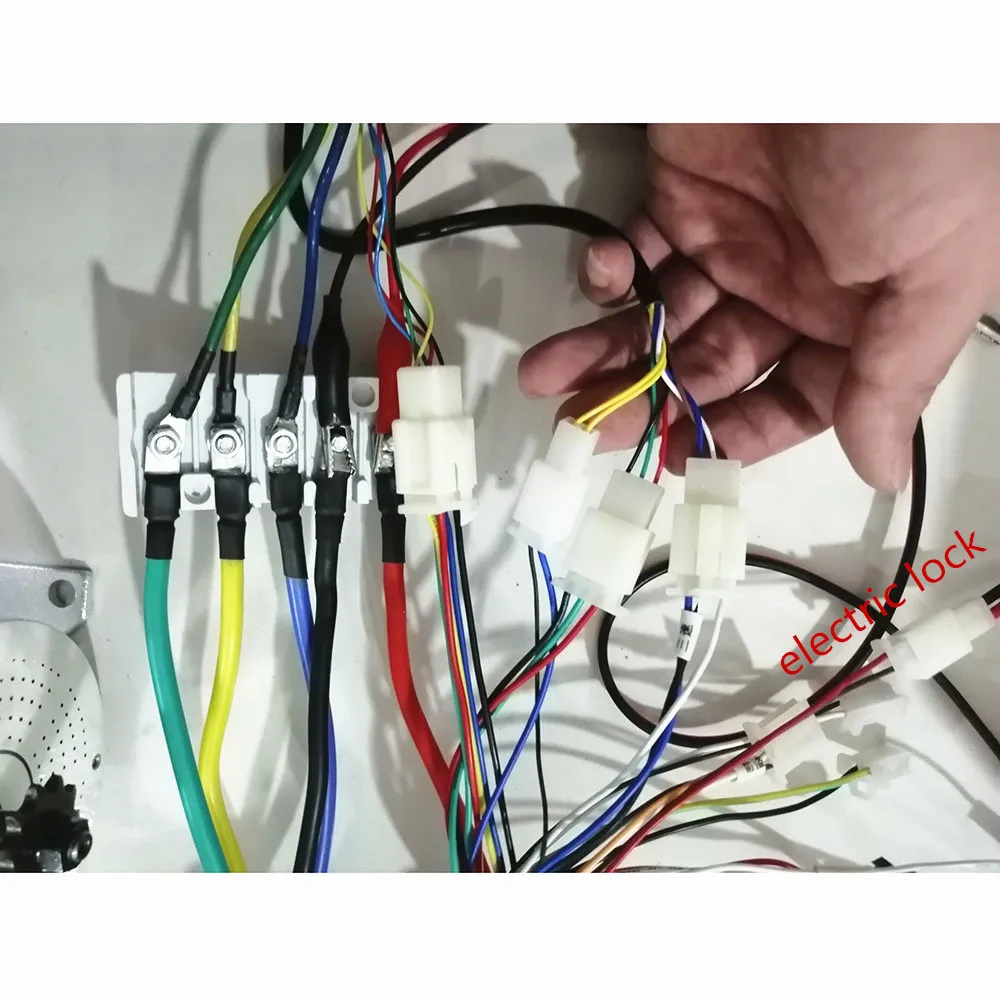

4.contact the electric lock line

5.Contact the battery line(red:+ , black:-)

6.Docking the two self-learning lines, twist throttle, the wheel will forward or reverse.

(1.if wheel forward ,Separate the self-learning line.

2.if wheel reverse, Separate the self-learning line. then Docking the self-learning line again. if wheel forward ,Separate the self-learning line.)

7.other functions can be connected as needed.)
