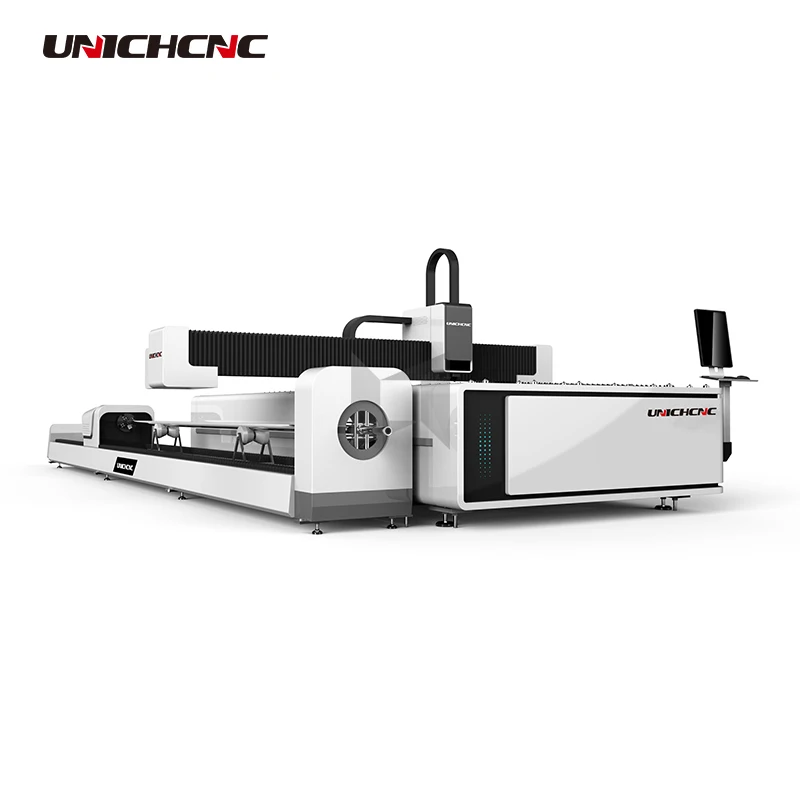

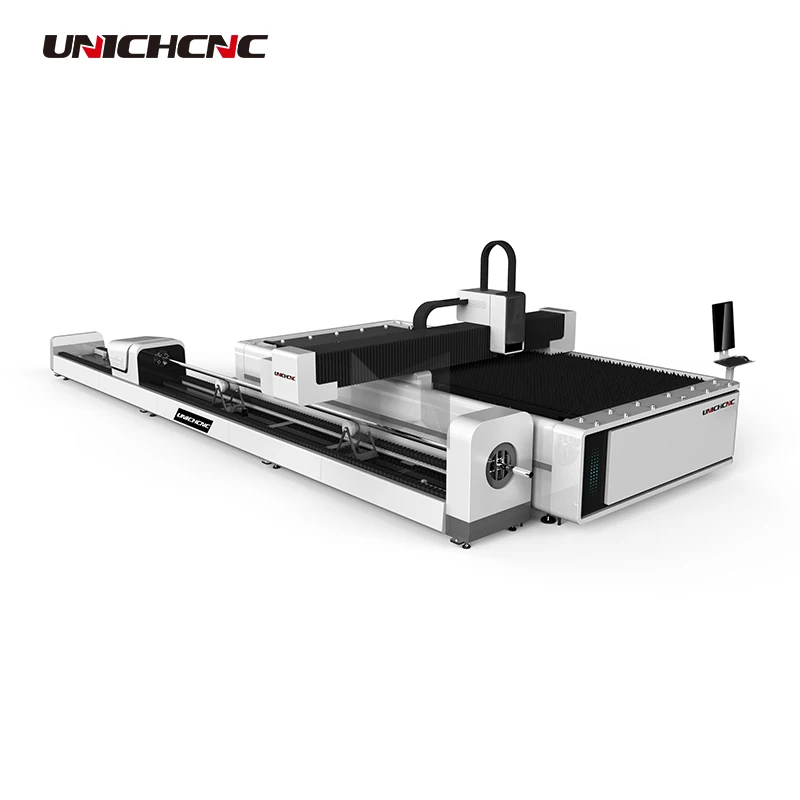

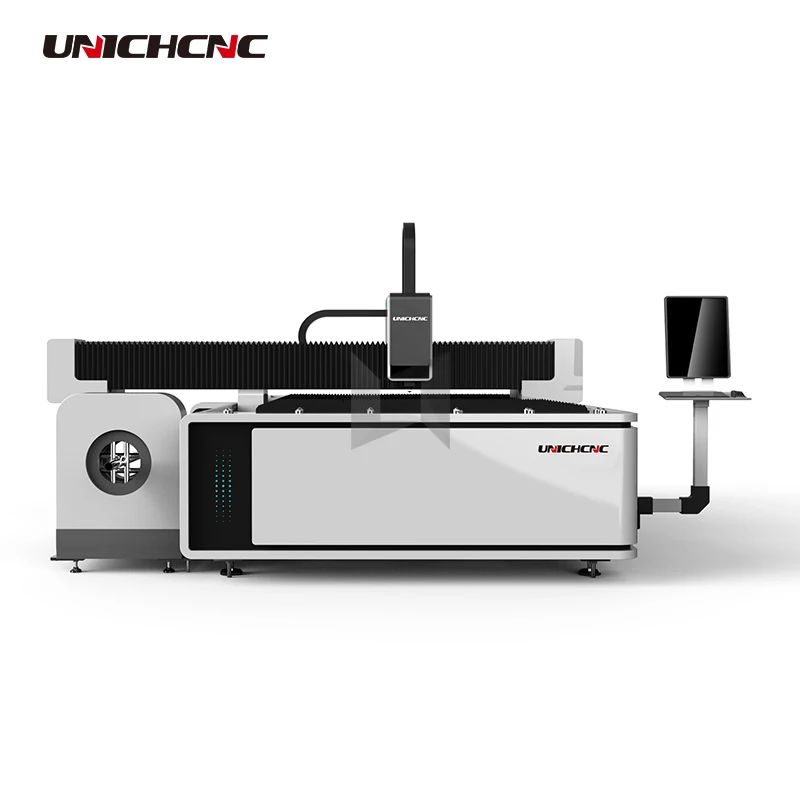

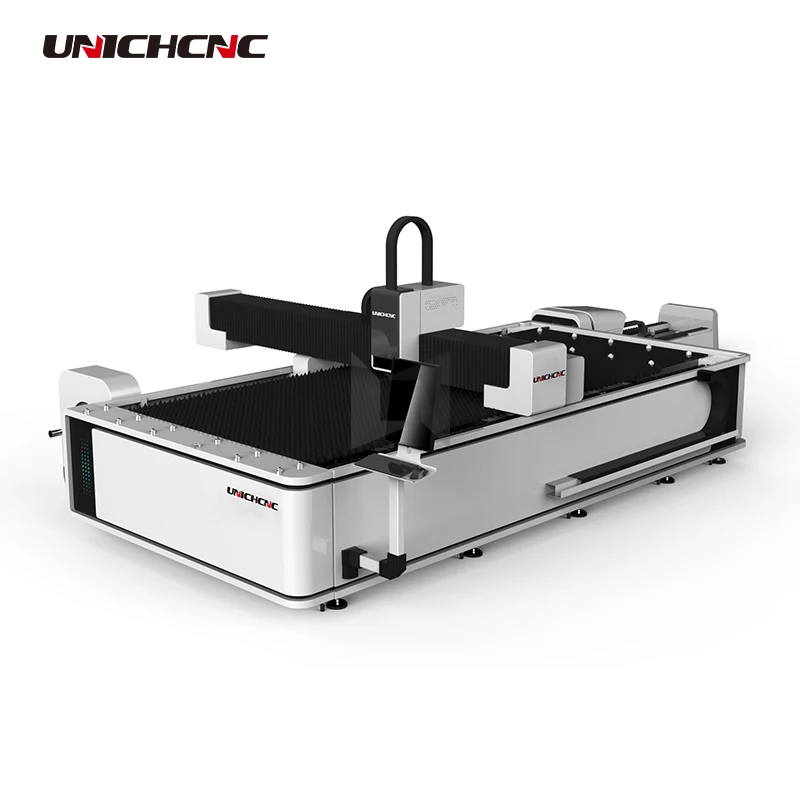

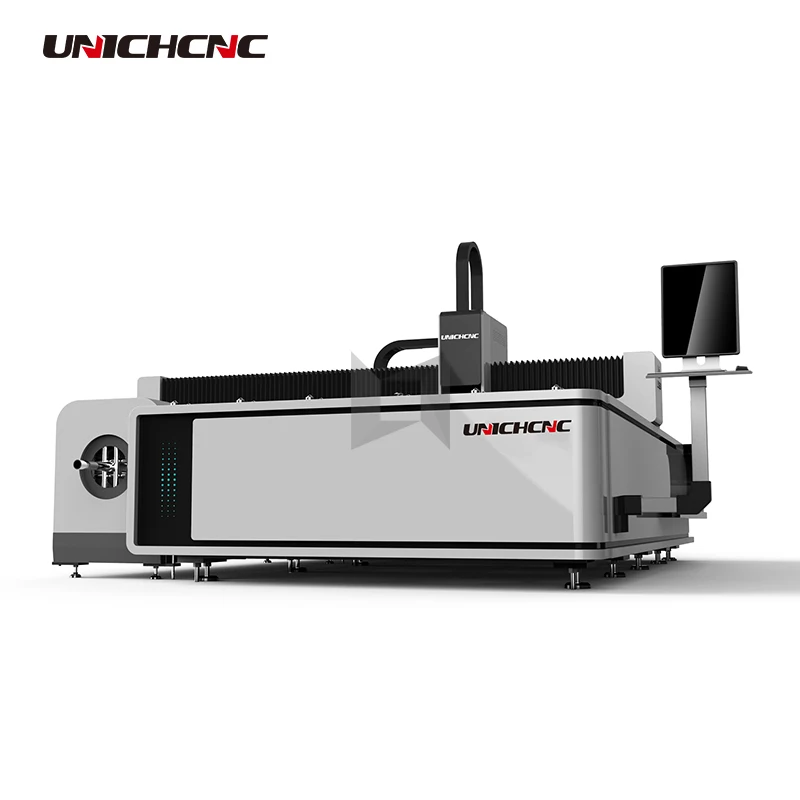

CNC Raycus 500w 1000w 2000w Fiber Laser Cutting Machine For Steel plate Pipe

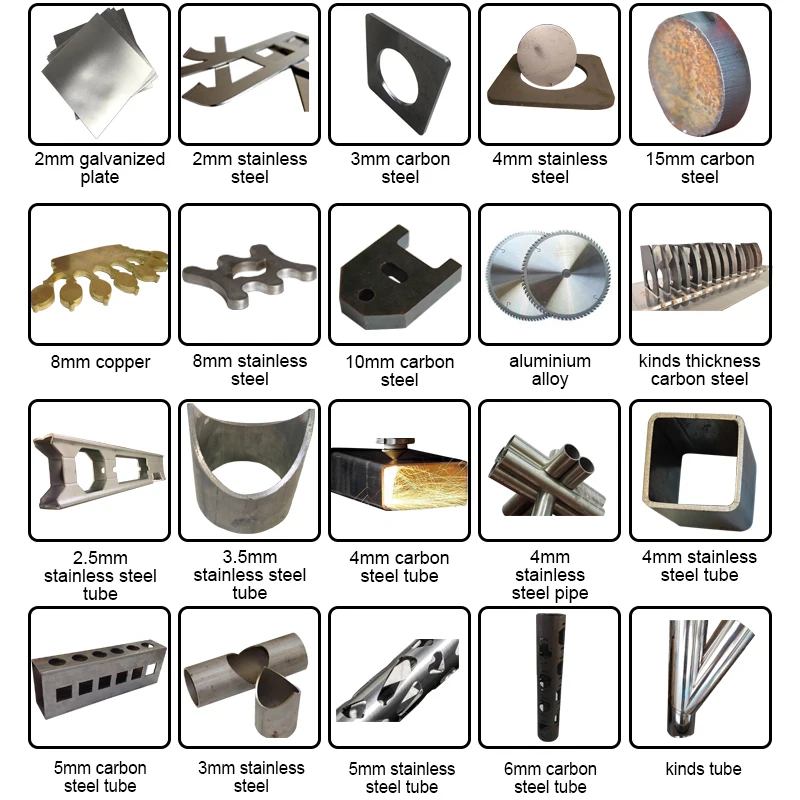

Application Materials:

Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc

Application Industries:

Soullon Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

1.High rigidity heavy chassis, reducing the vibration generated during the high-speed cutting process.

2.Gantry double-drive structure,with imported Germany rack & gear transmission system, which improves the production efficiency.

3 High-performance cast aluminium guide rail, after infinite aalysis ,which accelerates the cicular arc cutting speed.

4.Open worktable, easy operation and small space occupation.

5. High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.

6. The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.

7. The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.

8.It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.

9. Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys.

1

Machine Name

1500W 2200W 3300W 4000W 6000W 8000W 1200W 25000W

High Power Metal Plate + Metal tube/pipe Fiber Laser cutting machine LXF3015JR

2

Model

LXF3015JR

3

Laser machine cutting area

3000x1500mm

(Other size can be customized,such as 4500x1500/6000x1500/6000x2000mm)

4

Tube Cutting Range

Tube diameter range:20-200mm

Tube length:6000mm

(Other size can be customized,detailed confirmed with sales)

5

Fiber Laser Power

CO2 Laser Power

500w/750w/1000/1500/2200/3300/4000/

6000/8000/12000/25000W

6

Laser wave length

1064nm

7

Transmission system

Gear + rails

(we have standard brand,we can also produce as your requirements)

8

X.Y axis location accuracy

±0.01mm

9

X.Y axis repeat location accuracy

±0.01mm

10

X.Y axis max moving speed

30m/min

11

Max cutting speed

1--30m/min(it will according to metal material and laser power and machine configuration)

12

Cutting thickness

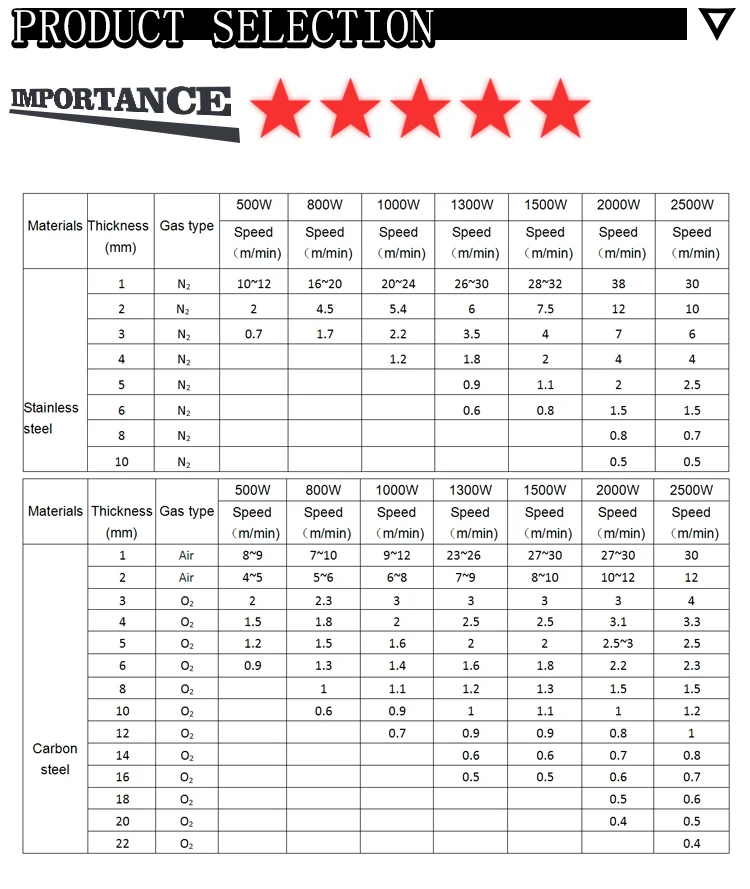

Detailed in the following cutting thickness

13

Application Material

Metal sheet

Iron/CS/SS/Aluminum/Copper and all kinds metal

14

Advantages

>Excellent beam quality
>Simple , compact, electrically and optically efficient
>Compatibly powerful and reliable
>Maintenance free
>multilingual, more than 11 foreign languages
>3 years warranty .

15

Gross weight

7000KG(About)

16

Net weight

6750KG(About)

17

Machine size

Rotary size:8000*1600*1150mm

Machine size(without rotary):

5200*3000*2600mm

Detailed machine size will be according to detailed configuration.this size for your reference.

18

Transport

40 container + 20 shell frame

Q1 :How about warranty?

A1:3 years quality guaranty, the machine with main parts(excluding the consumables) shall be   changed free of charge(some parts will be maintained) when if any problem during the warranty period.

Q2:2 I don’t know which one is suitable for me ?

A2:Please tell me your

1) Your materials

2) Max size of your material

3) Max cut thickness

4) Popular cut thickness

Q3:Payment terms?

A3:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.

Q4:Do you have CE document and other documents for customs clearance?

A4:Yes,we have Original. At first we will show you and And after shipment we will give you      CE/Packing list/Commercial Invoice/Sales contract for customs clearance.

Q5:I don’t know how to use after i receive Or i have problem during use,how to do?

A5:

1) We have detailed user manual with pictures and CD,you can learn step by step.And our user   manual update every month for your easy learning if there is any update on machine.

2) If have any problem during use,you need our technician to judge

The problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
