Push-pull electromagnet long stroke 60mm large thrust suction 15kg kg micro AC DC 12V24V220V | Инструменты

Model: Remark voltage DC12V or DC24V or AC220V

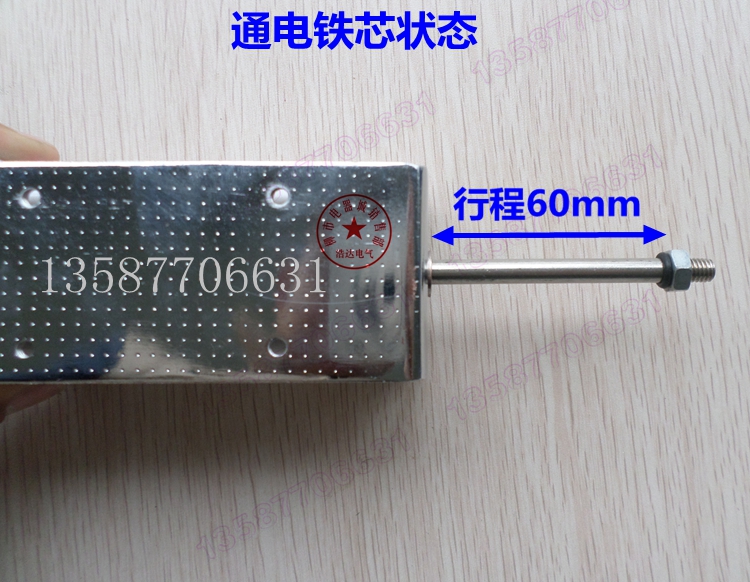

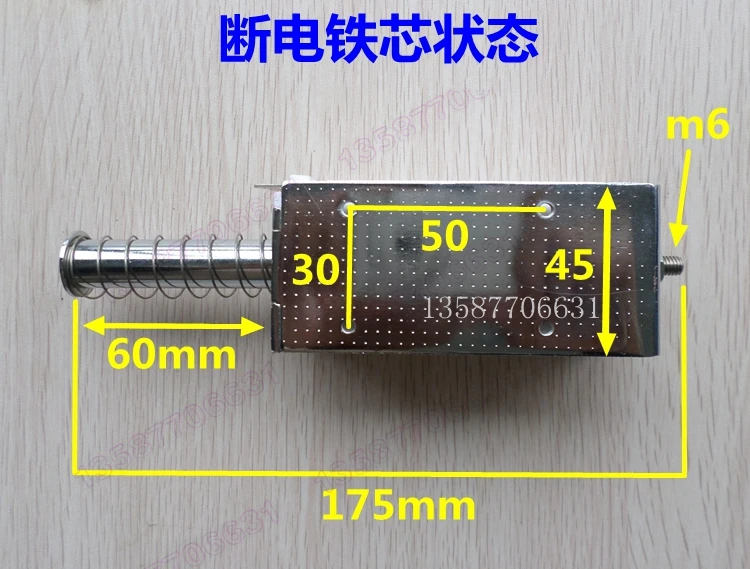

[product name]: push-pull electromagnet long stroke   [Specification model]: Thrust 15KG self-reset   [Installation size]: 30x50 (mm)       [Push-pull stroke]: Customized 60mm (mm)   [Working voltage]: DC12V / DC24V / DC110V / DC220V / AC220V   [conventional voltage]: AC220V other voltage shot, please leave a message   [Working principle]: The energized iron core pushes the load, and the power is turned off by the spring (please note that the spring is soft and can only reset the iron core). Such electromagnets work by impact force. The inertial impact force is huge.   12v 24v requires a large current, 12V requires 10A, 24V requires 8A. Customers who are not suitable for power supply must pay attention.   Please pay attention to the customer because the travel is too long and the current is too small. May not be able to drive. Basically, a current of about 5A is required.   [Note]: Actuator as an automation device. Because the current is large, the single cycle cannot be energized for a long time, which is suitable for point-type work. A single power-on working time is within 2 seconds! Ultra-long power-on is similar to a manual short-circuit coil, which causes the temperature of the electromagnet to rise sharply. If the temperature is too high, it will affect the life of the electromagnet.
