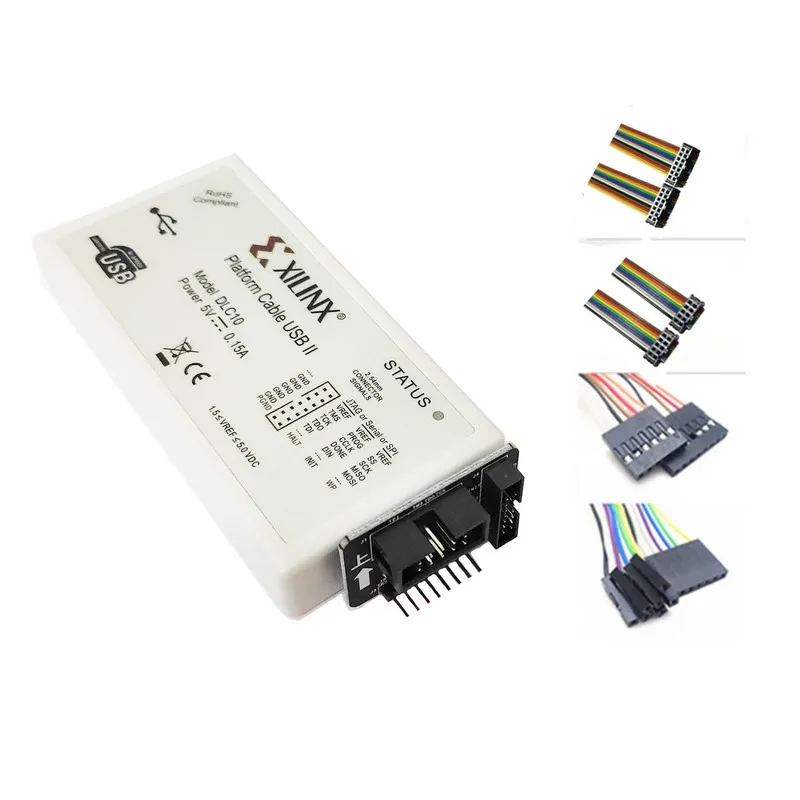

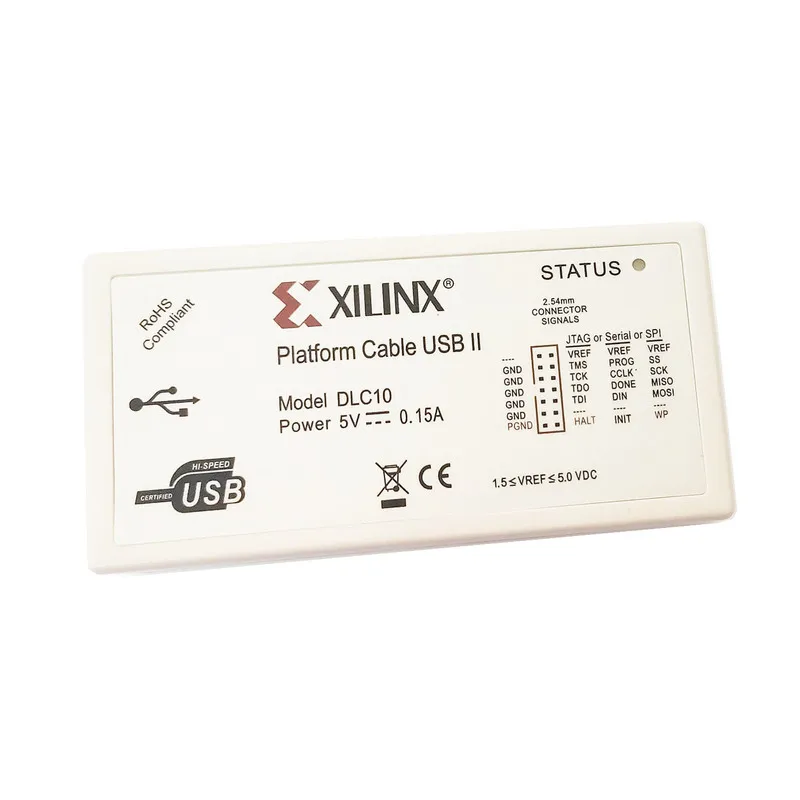

set 1: Xilinx Platform Cable USB Download Cable Jtag Programmer for FPGA CPLD XC2C256 XL003

Description:

Chip:CY7C68013A+XC2C256

Only this compatible solution supports firmware upgrades perfectly.

Fully supports all CPLD/FPGA devices on the Xilinx.

Support JTAG, Slave, Serial, SPI download mode.

The target device voltage is compatible with the 1.2V-5V, automatically discriminating and adapting to the target board I/O voltage.

Support for IMPACT and ChipScope.

Target device Downloader, clock selectable, up to 24Mhz.

Support multiple operating systems: XP, Vista, 2000, WIN7, WIN8, RedHat, Enterprise, Linux, Linux Enterprise.

JTAG has a signal isolation processing, perfect protection of your equipment, safe use

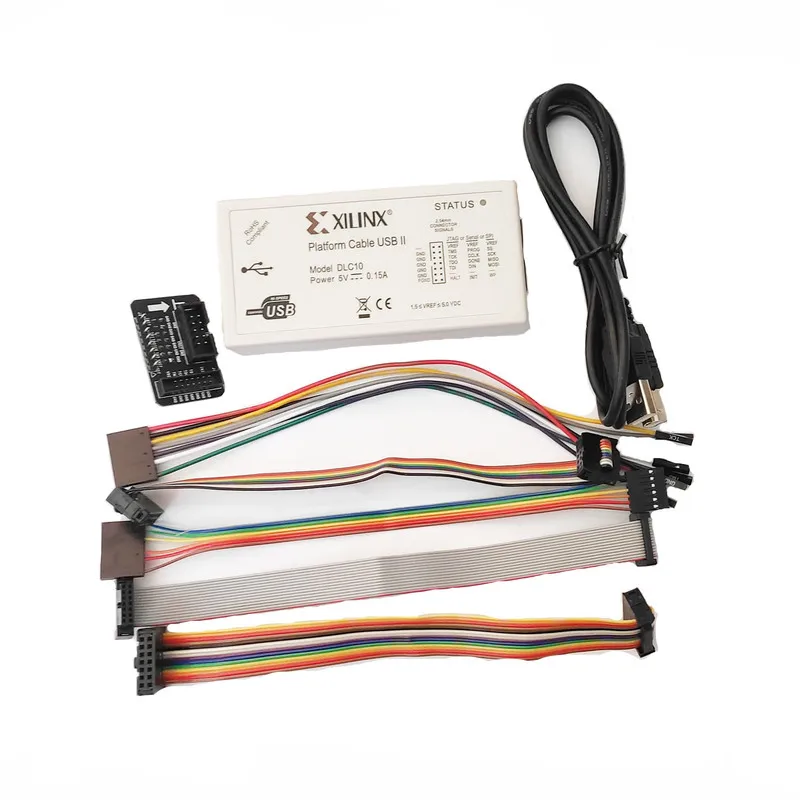

Package Include:

1*  Xilinx FPGA/CPLDplatform cable USB d ownload

1*  Adapter plate

1*  2*7pin 2.54 spacing JTGA line

1*  2*5pin 2.54 spacing JTGA line

1*  2*7pin 2 spacing JTGA line

1*  8pin turn 6pin fly line (Dupont Line)

1*  8pin (Dupont Line)

1*  USB data line

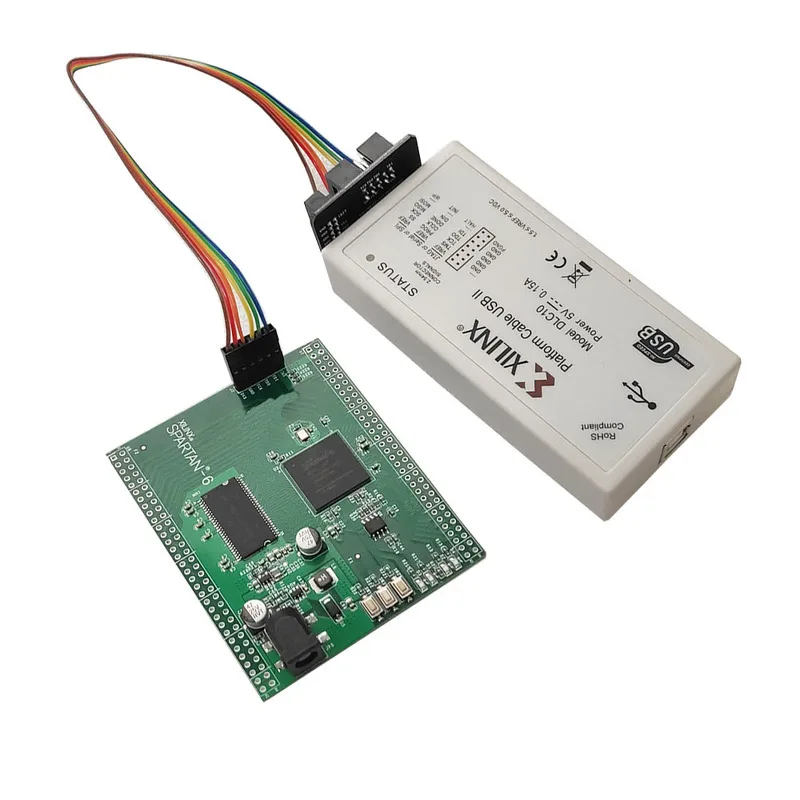

Set 2: Xilinx Platform Cable USB Download Cable Jtag Programmer for FPGA CPLD XC2C256 XL003 +  XILINX FPGA SDRAM Spartan-6 Core Board XC6SLX16 32MB Micron MT48LC16M16A2
