About color difference:

Due to different computer display differences, as well as in different light conditions shooting color differences, may make you feel slightly different color, this is normal, does not belong to the quality problem, specific and real subject to.

Notes:

1. This component is sensitive to static electricity. Do not directly touch the laser tube body by hand without taking anti-static measures.

2. The product must have a qualified drive circuit to work normally. The voltage and working current of different powers are different.Or directly burn out the laser tube.

3. This product is a special product, please make sure it is a good product before delivery.

Specifications:

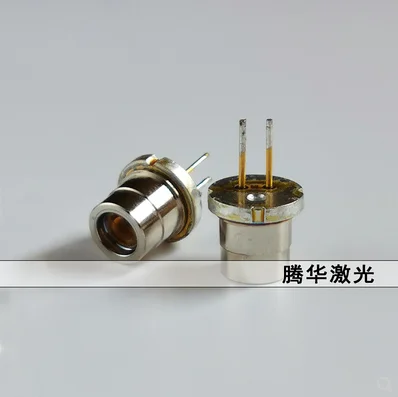

Product name: blue light laser diode

Place of origin: Japan

Output power: CW= 4.75w

Pulse power: single >9W

Typical wavelength: 455nm

Operating current: 3.0a durable (4.5a pulse)

Operating voltage: 3.7-5.0v

Operating temperature: 0 ~ +70℃

Storage temperature: -40 ~ +85℃

Packaging forms: T05 (Φ 9 mm)

Working life: over 10000 hours

Product application:

Products are widely used in industry, medical, military and other industries.Such as: laser ranging, laser pointing instrument, laser sweeping instrument, laser marking instrument (projector), laser bar code scanner, laser level, power tools, experimental teaching, stage lighting engineering.

If you need more, please call or consult customer service.

【 warm tips 】

1. Devices should be stored or operated in a clean environment.

2. If the output power is higher than the specified parameter, the aging of components will be accelerated.

3, laser two laser electrostatic sensitive devices, in the human body has a good case of anti-static can be taken out, anti-static can use anti-static bracelet method.

4, laser 2 laser may cause damage to the eyes, diode work, do not directly look at the end of the face, can not through the lens directly look at the laser, can not through the mirror to observe the laser.

5, the output wavelength of the laser is affected by the working current and heat dissipation, to maintain a good heat dissipation condition, reduce the temperature of the core when working.Add radiator to prevent the laser diode in the work temperature rise too high, so as to achieve a longer service life.

6. Working at a higher temperature will increase the threshold current, lower conversion frequency and accelerate the aging of devices.When adjusting the amount of light input, it is necessary to detect with a power meter to avoid exceeding the large rated output.

We strictly observe:

1. All products are shipped after strict testing before delivery.

2. Laser products adopt anti-static or vacuum packaging.

3. All products are shipped with labels.
