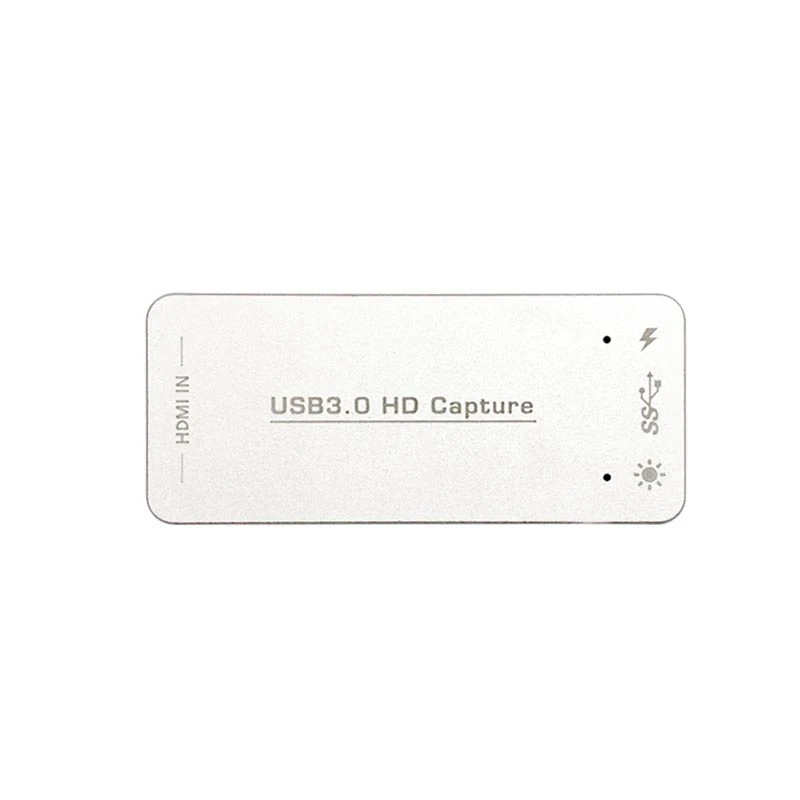

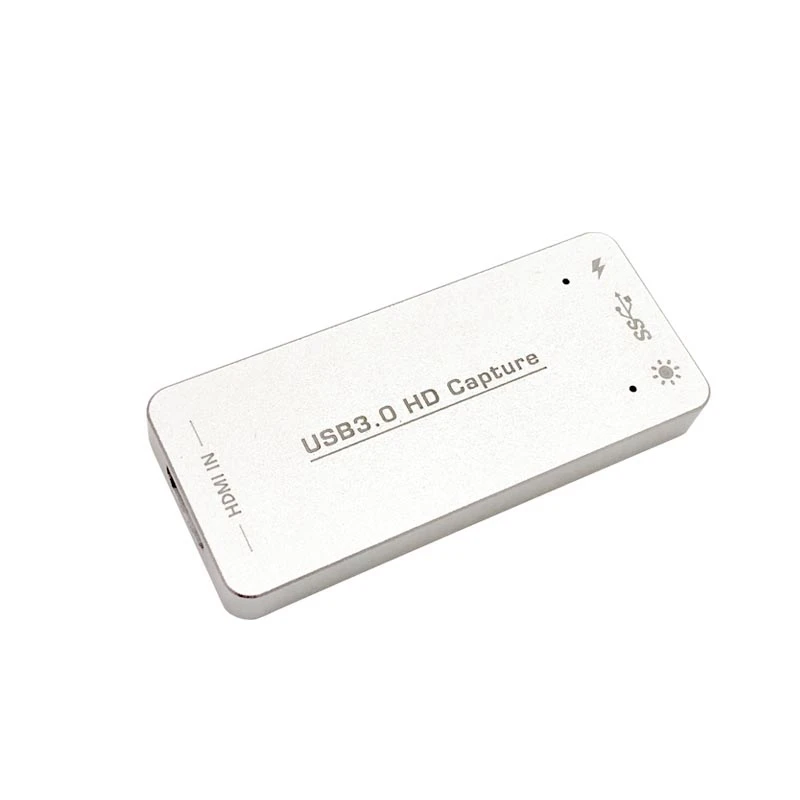

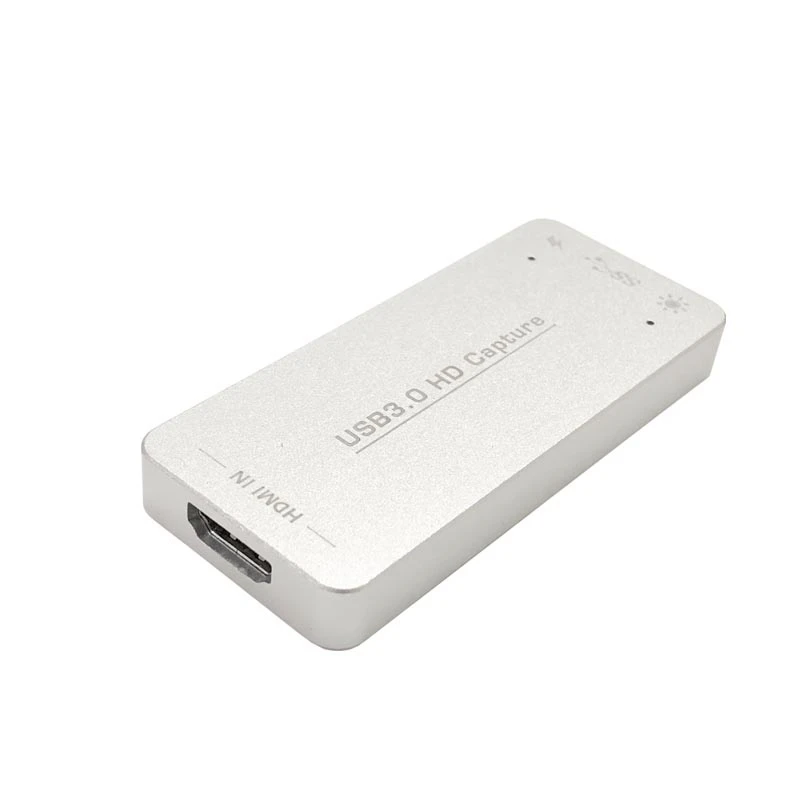

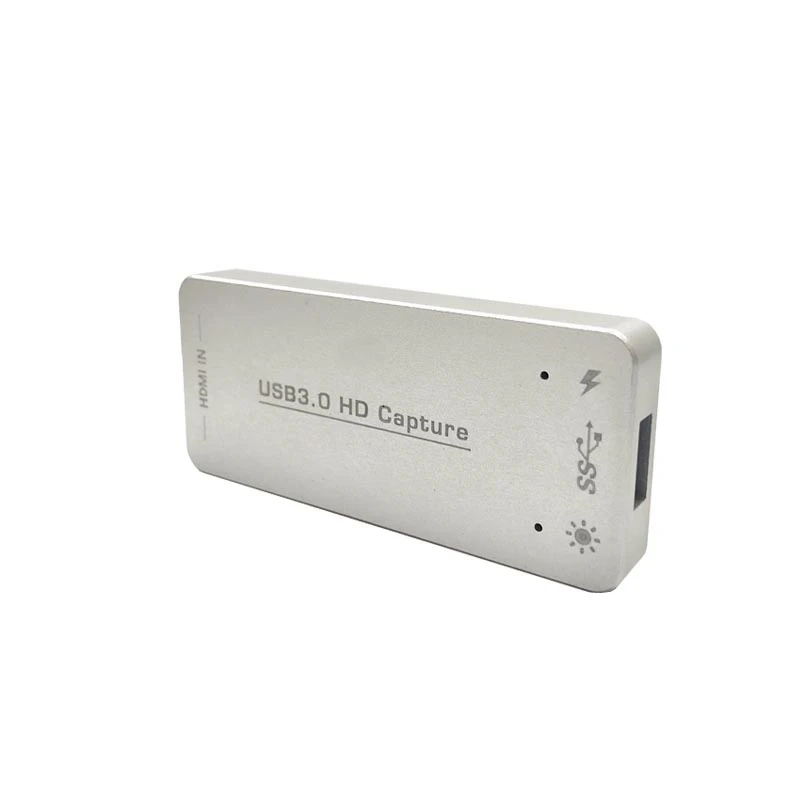

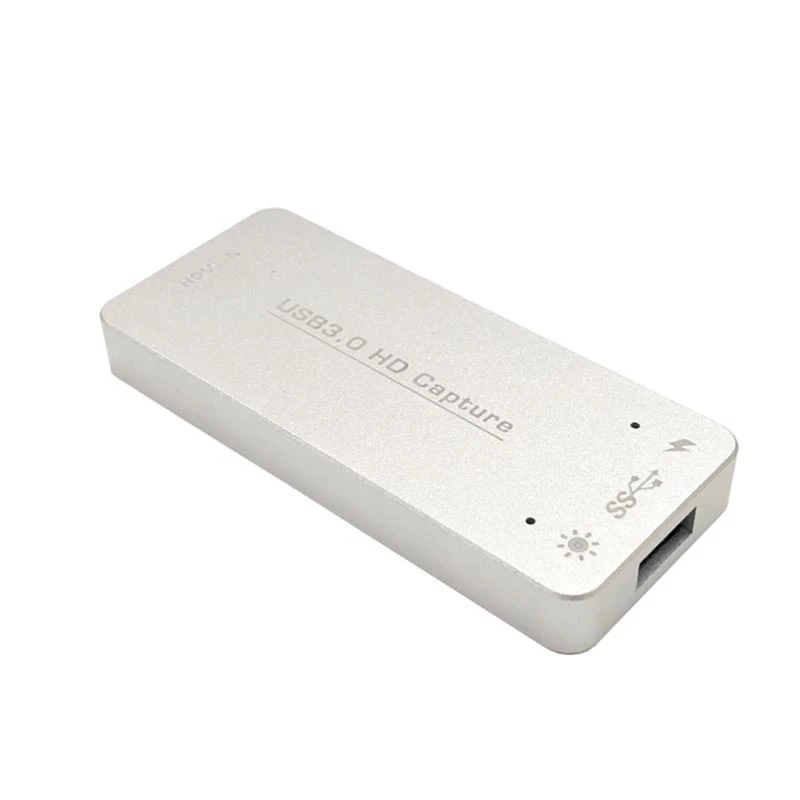

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } HDMI USB 3.0 Video Capture Card Adapter 1080HD Recorder Box for Windows HD Video Capture Card Adapter Features: This is a HD to USB 3.0 video capture card adapter, which offers acquisition of single channel HDMI HD audio and video signals, no drive needed, plug and play.
The input and output video signal is up to 1080P/60Hz.
Meets UVC standard, compatible with video capture and YUV422 video output.
Meets UAC standard, compatible with HDMI audio capture and 48KHz PCM audio output.
Suitable for Windows, for Linux, for OS X operation systems.
Model Number: HD Video Capture Card
Interface Type: USB
Package: No
Type: Video & TV Tuner Cards
hdmi capture: placa de captura hdmi
hdmi recorder: hdmi to usb 3.0 video capture
hdmi capture card: card video capture
Specification:
HDMI: HDMI 1.4/HDCP 1.4, compatible with DVI 1.0
USB: USB 3.0 * 300-350Mbps, USB 2.0 * 40Mbps
HDMI Input Resolution: 480i,480p,576i,576p,720p50,720p60,1080i50,1080i60,1080p24/25/30/50/60
HDMI Output Resolution: 640x480/720x480/720x576/768x576/800x600/1024x768/1280x720/1280x800/1280x960/1280x1024/1368x768/1440x900/1600x1200/1680x1050/1920x1080/1920x1200/640x360/856x480/960x540/1024x576
Chromaticity space: RGB/YCBCR 4:2:2/YCBCR 4:4:4
Audio Input: LPCM 32-192KHz
Audio Output: LPCM 48KHz
Bandwidth: 165MHz (4.95Gbps)
ESD protection: Human-body Model:± 8kV (Air-gap discharge), ± 4kV (Contact discharge)
Material: metal
Color: silver
Working temperature: 0℃ to 40℃
Storage temperature: - 20℃ to 60℃
Relative humidity: 20% to 90% RH (non-condensing)
Size: approx. 9.9 * 5.5 * 1.5cm/3.9 * 2.2 * 0.6in
Weight: approx. 227g

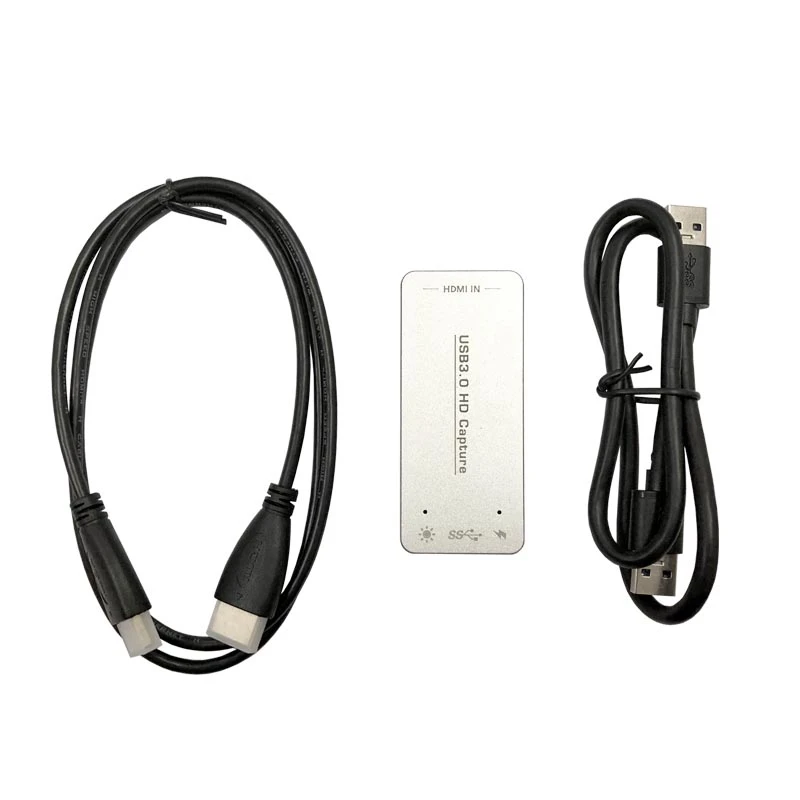

Package Contents:
1 * HD Video Capture Card Adapter
1 * UBS Cable
1 * HD line
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
