Power an IP camera, desktop phone, WiFi access point, or other low voltage devices through a network data cable using this Power over Ethernet (PoE) injector. The PoE Injector takes power from a DC power source (power supply sold separately) and adds it to your Ethernet data cable (Cat5, Cat5e, Cat6) to your device.

Save big on network upgrades and device installations Power over Ethernet delivers power 328 feet from the PoE Injector, eliminating the expense and hassle of installing AC power near your powered device. With this PoE Injector, you can add power to your data cable for a fraction of the cost of upgrading to a PoE capable network switch.

Passive PoE means versatility . A Passive PoE injector always delivers the same voltage as its power source. Pair this injector with a 48 volt DC power supply to power devices labeled “802.3af”, or you can use a 24 volt power supply with 24-volt passive PoE devices like Access Points from Mikrotik, Ubiquiti, and many more.

Specification

· 4 Port Gigabit Ethernet Injector

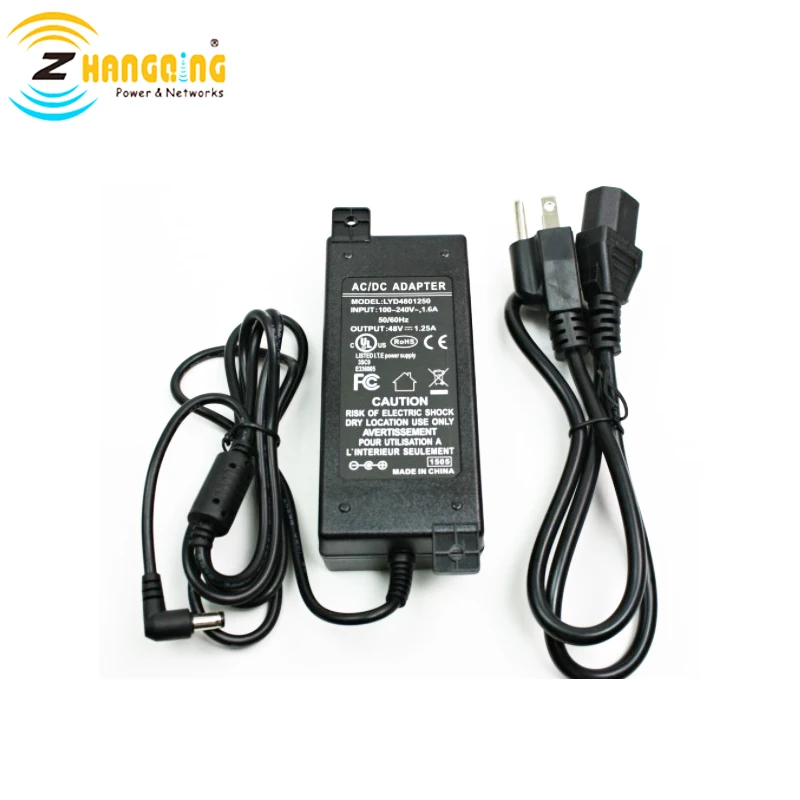

   The ZQPOEGI004 passive Poe Injector is used 10/100/1000M Ethernet, The LAN Rj45 sockets is form “Switch/PC/HUB ” 1/2&3/6&4/5&7/8 are transmitting data. The POE Rj45(power+data) socket is to deliver data and power . Pin 1/2 & 3/6 & 4/5 & 7/8 transmitting data, Pin 1/2(-)&3/6(+)for power. Passive PoE is composed of 4 set of Rj45 sockets and one 60V DC power jack.Input power requests 90W or more Ac To Dc Power converter.The input dc hole diameter is 2.1mm and the other end OD id is 5.5mm.

     The sum total output power must be lower than the Max input power of AC-DC power converter. If not, it is necessary to consider taking higher AC-DC power converter. There commended formula for AC-DC power converter is: 10W per RJ45 set (1 set = 2 x Rj45 sockets). For example, 4 x 10W = 40W for 4 port Passive PoE panel .

Applications of poe injector
(1)Remote routers, access points and bridges
(2)Remote networking equipment
(3)SOHO equipment
(4)IP phone systems etc.

for hotel, school, restaurant, hospital, mall etc

Input

100~240V/AC 50/60Hz

Output

12V-57V

Power + Data out

1/2 & 3/6 for Data and power (48V)

Data In

Connects PC/HUB/Switch

Data Rate

10/100/1000 Mbps

Ethernet Cable

TIA/EIA 568 Cat.5

Connector

RJ-45

Operating Temperature

0°C~40°C

Storage Temperature

-40°C~70°C

Operating Humidity

10%~80%RH

Storage Humidity

5%~90%RH

This Power over Ethernet module/panel allows you to power up to 4 devices remotely over

ethernet wiring up to 328 ft (100 meters) away..

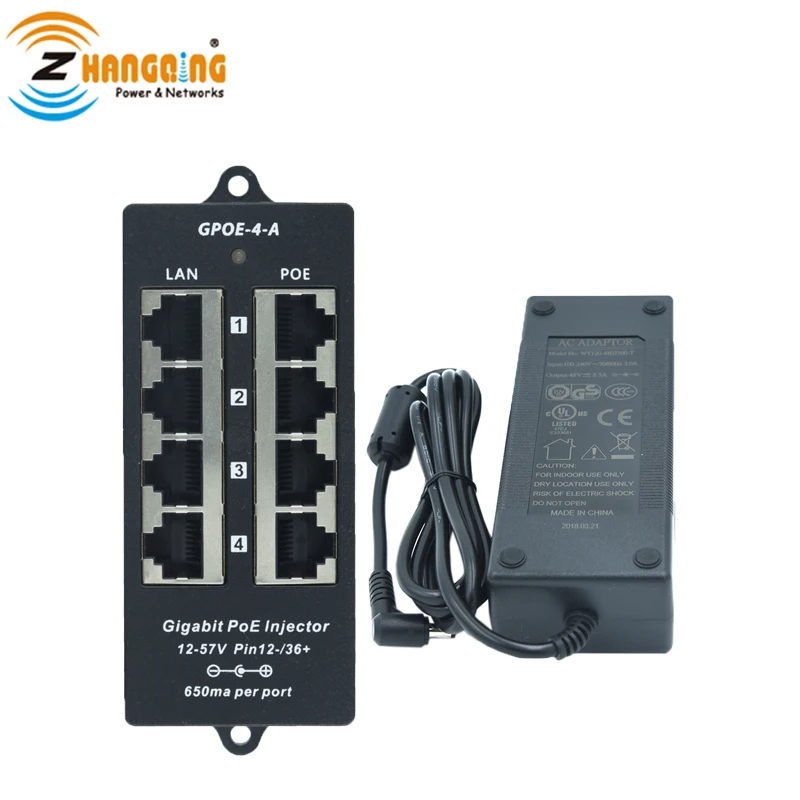

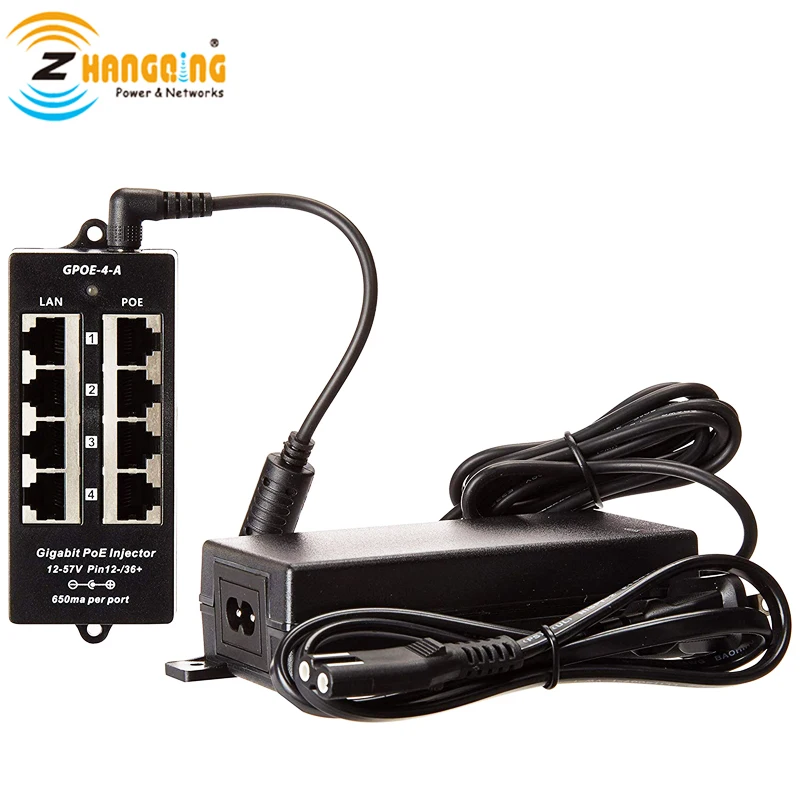

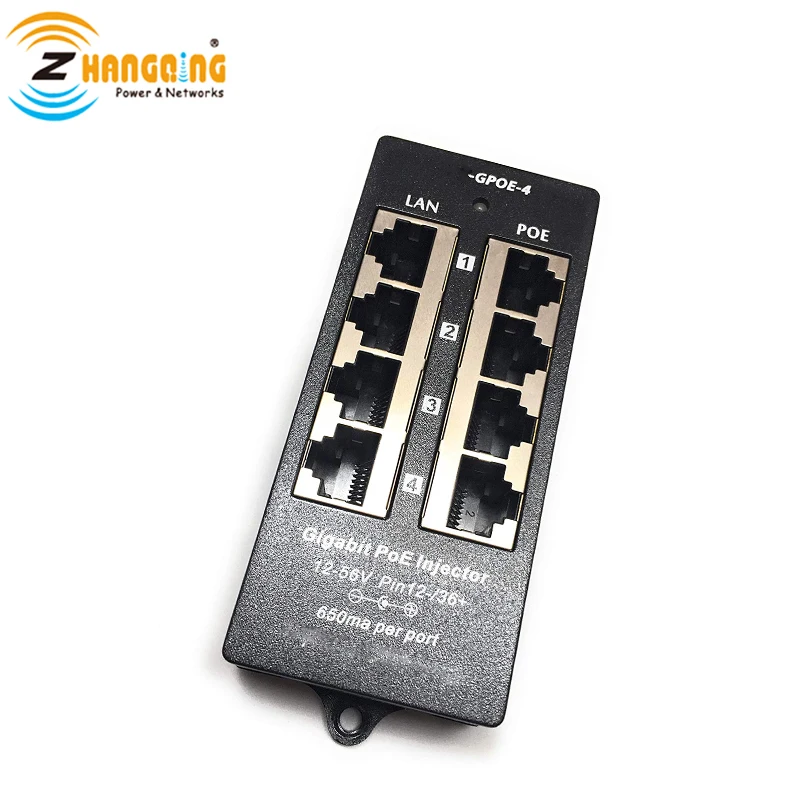

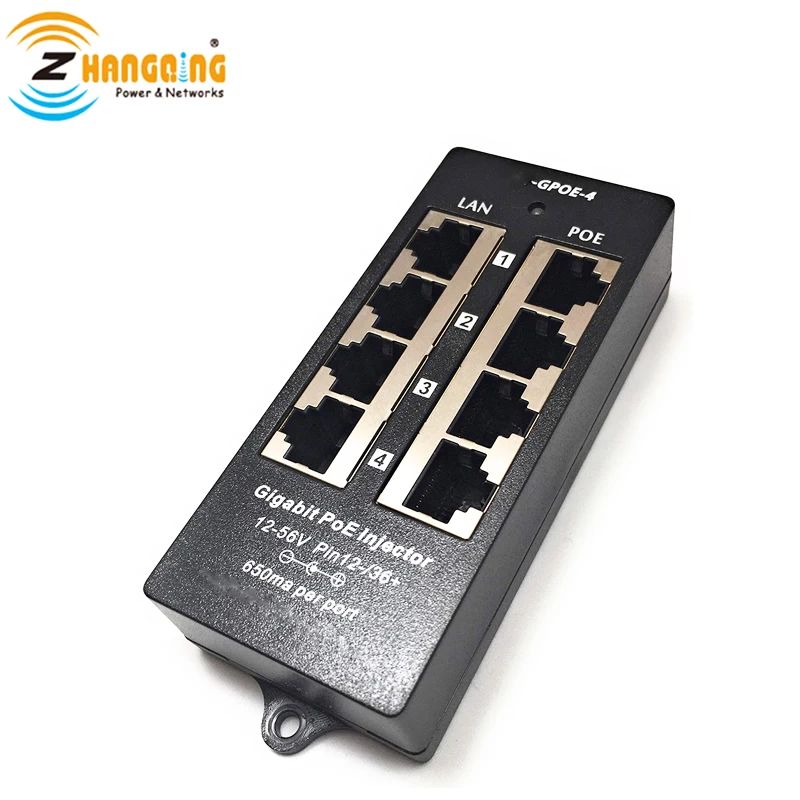

Product Show
