Alarm signal to optical fiber 2-channel switch transceiver with 1 channel RS485 infrared radiation dedicated | Инструменты

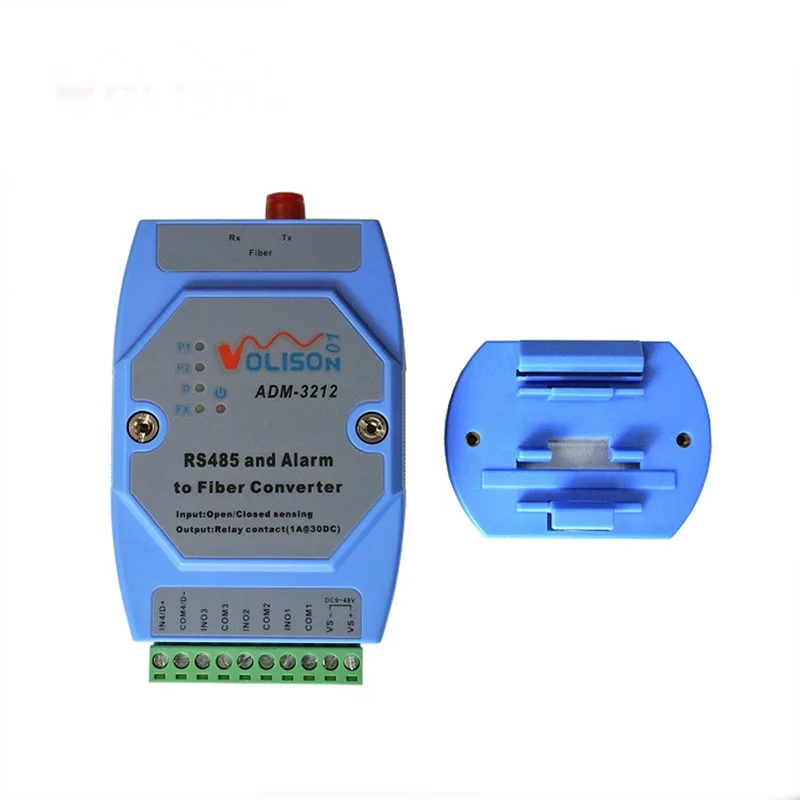

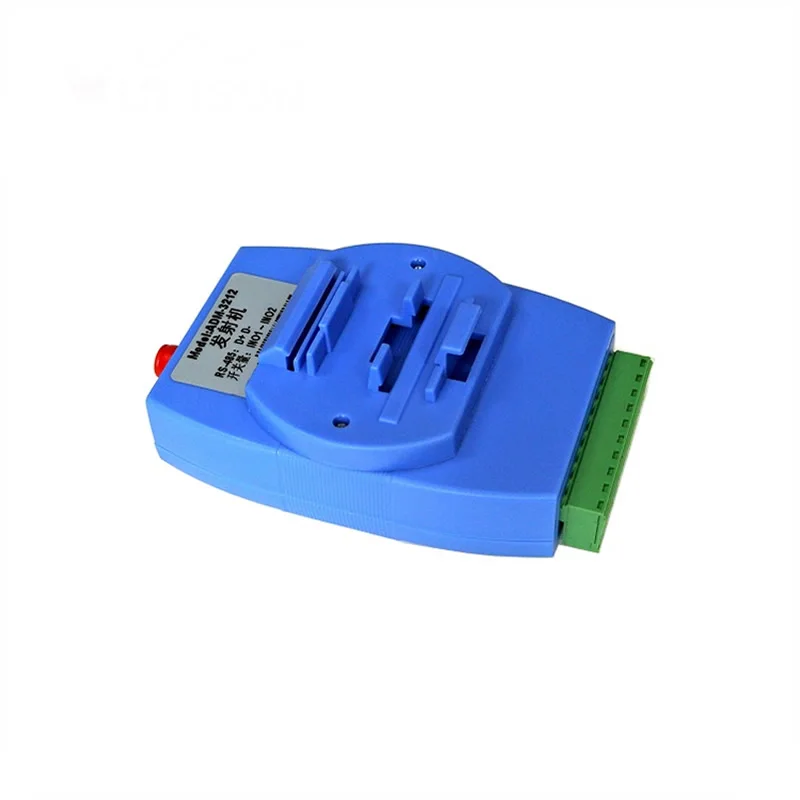

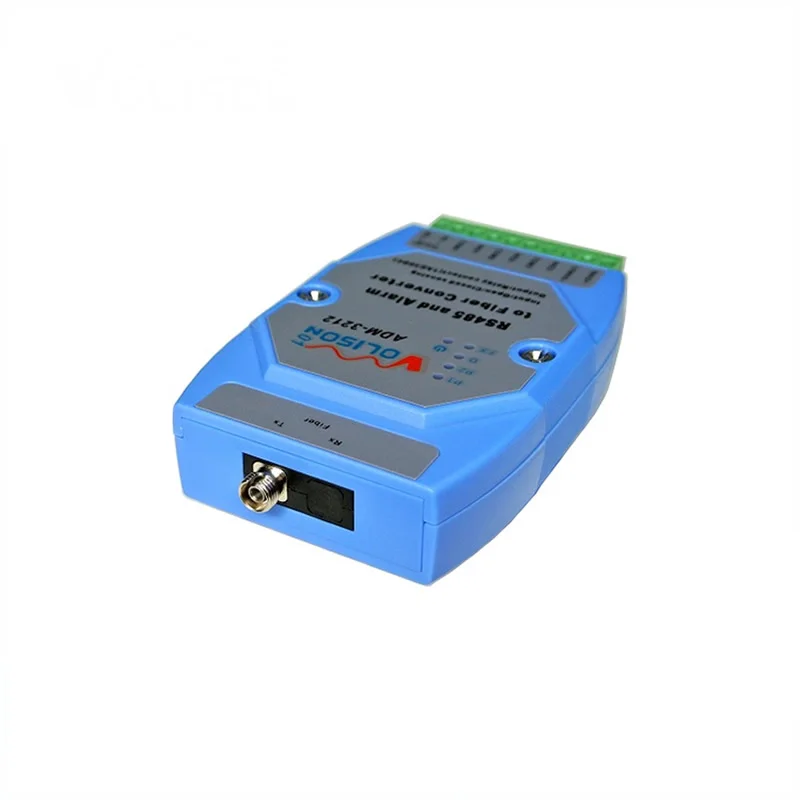

2 way unidirectional switch quantity +1 way RS485 alarm optical transceiver ADM-3212 This product is used in pairs. Please buy 2 sets when purchasing. With 1 bidirectional RS485 and 2 unidirectional switching functions Switching input: dry contact or TTL level Switching output: relay normally open contact up to 1A at current DC30V DIN rail mounting, DC9~48V power supply Suitable for industrial digital quantity, switching signal fiber transmission Can be connected to the alarm switch signal fiber transmission  Model: ADM3202Function: 2-way switch optical transceiverAlarm interface: 2 way unidirectional switchInterface characteristics: Input: dry contact / 5VTTL level, output: relay contact normally open (1A @ 24V DC)Serial interface: None 1-way bidirectional RS-485Rate: Switching frequency: 6Hz (Max), RS485 baud rate: 0~250KFiber wavelength: dual fiber 1310nm (single mode multimode universal), single fiber 1310/1550nm (single mode)Transmission distance: multi-mode 2KM, single mode 20KM, 40KM can be customizedSerial port features: RS485: 15KV anti-static ESD protection, polling 32 terminals (MAX)Working environment: Power supply: DC9~48V/200mA, installation: 35mm DIN rail, temperature -20°C~+75°CStorage environment: Temperature: -40~85°C, humidity: 0-95%, no condensationDimensions: L103xW72xH27 (mm)Power supply installation: VS+: Power supply is positive, VS-: Power supply is negative (with reverse power protection function)Data interface: Switch input: INOn, CoMn switch output: NOn, COMn RS485: D+, D-,, n represents the channel number, COM is the signal common Model: IDM3204Function: 4-way switch optical transceiverAlarm interface: 4-way unidirectional switchInterface characteristics: Input: dry contact / 5VTTL level, output: relay contact normally open (1A @ 24V DC)Rate: Switching frequency: 6Hz (Max), RS485 baud rate: 0~250KFiber wavelength: dual fiber 1310nm (single mode multimode universal), single fiber 1310/1550nm (single mode)Transmission distance: multi-mode 2KM, single mode 20KM, 40KM can be customizedSerial port features: RS485: 15KV anti-static ESD protection, polling 32 terminals (MAX)Working environment: Power supply: DC9~48V/200mA, installation: 35mm DIN rail, temperature -20°C~+75°CStorage environment: Temperature: -40~85°C, humidity: 0-95%, no condensationDimensions: L103xW72xH27 (mm)Power supply installation: VS+: Power supply is positive, VS-: Power supply is negative (with reverse power protection function)Data interface: Switch input: INOn, CoMn switch output: NOn, COMn RS485: D+, D-,, n represents the channel number, COM is the signal common Model: IDM3212Function: 2-way switch + RS485 optical transceiverAlarm interface: 2 way unidirectional switchInterface characteristics: Input: dry contact / 5VTTL level, output: relay contact normally open (1A @ 24V DC)Serial interface: 1 way bidirectional RS-485Rate: Switching frequency: 6Hz (Max), RS485 baud rate: 0~250KFiber wavelength: dual fiber 1310nm (single mode multimode universal), single fiber 1310/1550nm (single mode)Transmission distance: multi-mode 2KM, single mode 20KM, 40KM can be customizedSerial port features: RS485: 15KV anti-static ESD protection, polling 32 terminals (MAX)Working environment: Power supply: DC9~48V/200mA, installation: 35mm DIN rail, temperature -20°C~+75°CStorage environment: Temperature: -40~85°C, humidity: 0-95%, no condensationDimensions: L103xW72xH27 (mm)Power supply installation: VS+: Power supply is positive, VS-: Power supply is negative (with reverse power protection function)Data interface: Switch input: INOn, CoMn switch output: NOn, COMn RS485: D+, D-,, n represents the channel number, COM is the signal common
