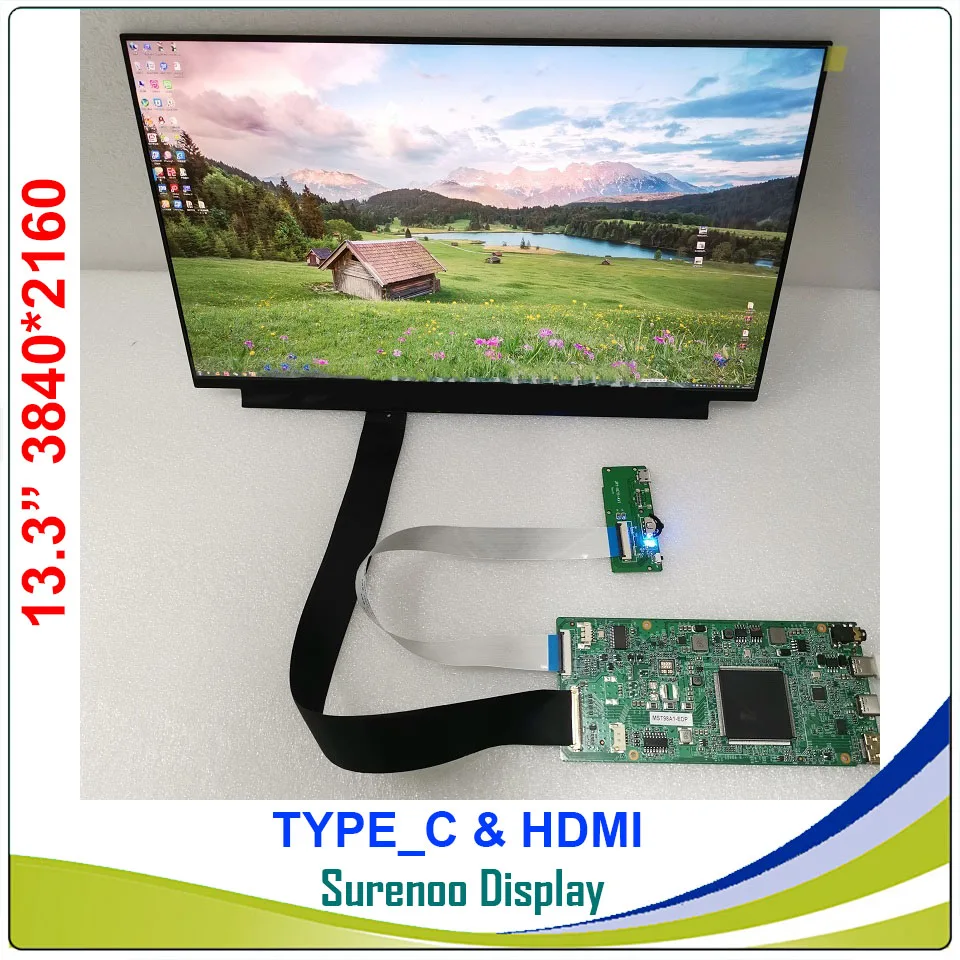

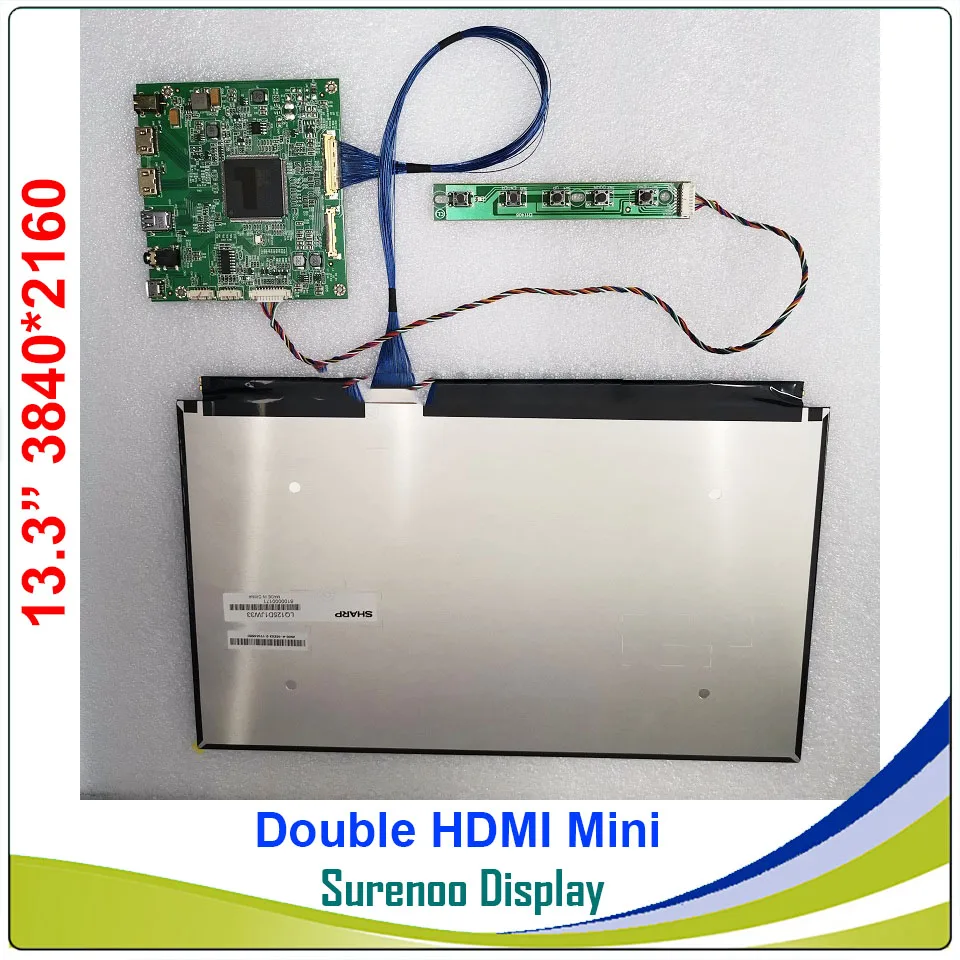

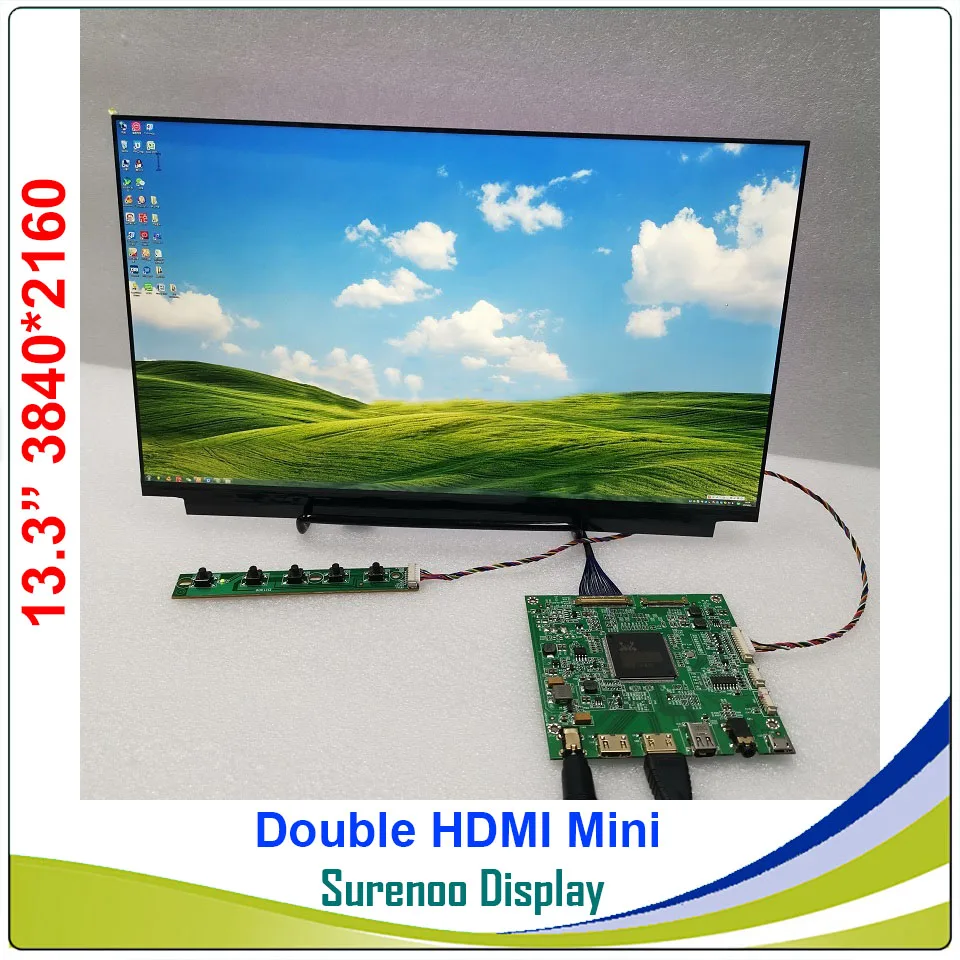

13.3" Inch 3840X2160 4K HDMI-Compatible LCD Module Monitor Screen Display Panel Type_C for Windows & Android Cable Projection |

Model No.: SUR38402160H133A

Common Parameters for Display

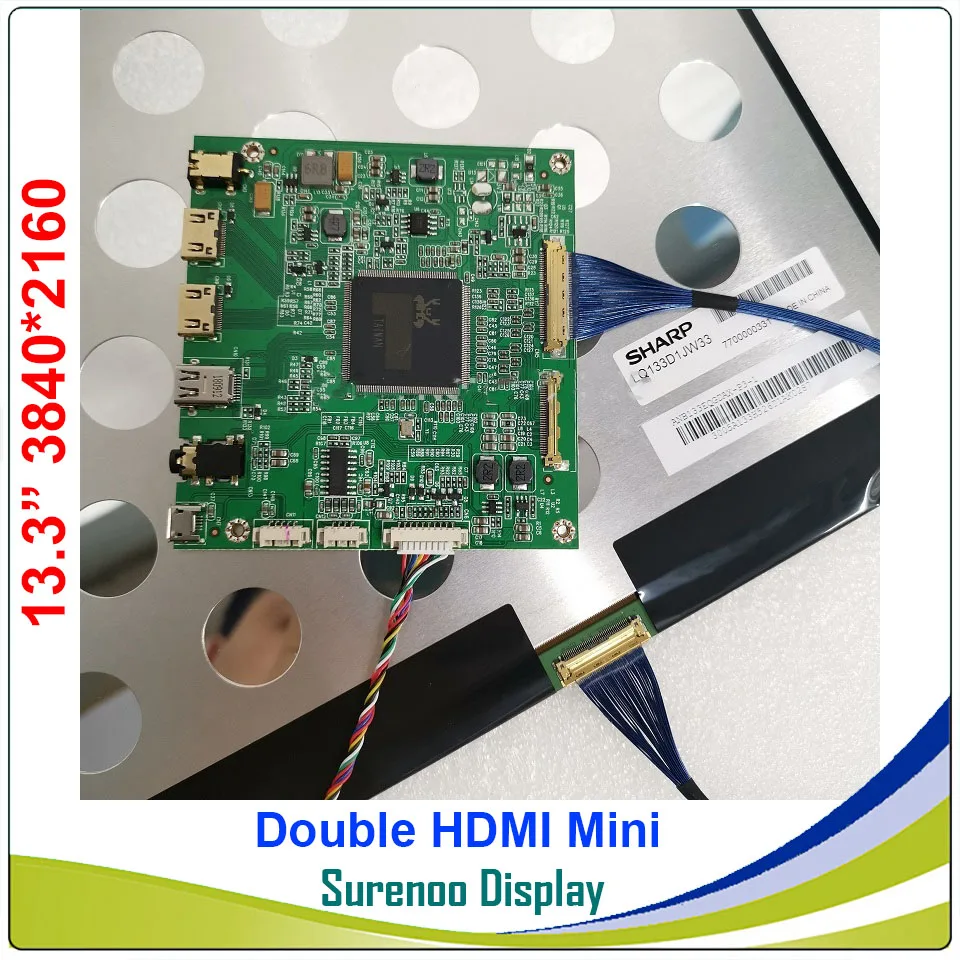

Screen size 13.3" screen type LCD module, a-Si TFT-LCD Resolution 3840 (RGB) × 2160 Display size 293.76 × 165.24 mm (H×V) Appearance size 299.46 × 186.67 × 2 mm (H × V × D) Visible size - surface treatment mirror (Haze 0%), Hard coating (3H) Brightness (cd/m2) 340 (Typ.) Contrast 1500 : 1 (Typ.) [Transmission] Viewing angle 89/89/89/89 (Typ.) (CR ≥ 10) Left / Right / Up / Down Response speed 15/14 (Typ.) (Tr/Td) ms Number of colors 16.7M, 72% [CIE1931] Backlight type WLED, 15K hours, with LED driver Refresh frequency 60Hz; built-in MEMC circuit touch function without touch Signal system eDP (4 Lanes) , terminal , 40 pins Supply voltage 3.3V (Typ.) Maximum rated storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C   Display Drive Motherboard A1   1: typeC interface and mobile phone directly transmit exchange data 2: hdmi signal channel plug and play (automatic identification function) 3: typeC 5V power solution (easy power supply, low energy consumption and more environmental protection) 4: 3.5 headphone audio output function 5: Flat cable is easy to install; line length is 300mm (bendable) 6: New keypad settings One-button multi-function (press down to enter the main menu; up and down as selection)   Display Drive Motherboard A2   1: Mini DP supports DP1.2 standard specification 2: Mini HDMI supports HDMI1.4/2.0 standard specification 3: Micro USB supports USB signal transfer 4: Output eDP interface Supports 8LANE HBR/4LANE HBR2 5: Ear Phone output Supports aperture φ3.5mm headphones 6: USB transfer USB signal transfer 7: Power input power supply 5V/12V 8: Power operation Normal operation mode, low power mode; motherboard standby power consumption <0.5W 9: Amplifier power <2W (8 ohms 2W) 10: ADJ dimming voltage 0~5 (V) 11: OSD menu Brightness, contrast, auto correction, phase, clock, line position, function settings, reset, etc. 12: OSD language Chinese, English, etc. 13: Press the key POWER, RIGHT, AUTO, MENU, DOWN 5
