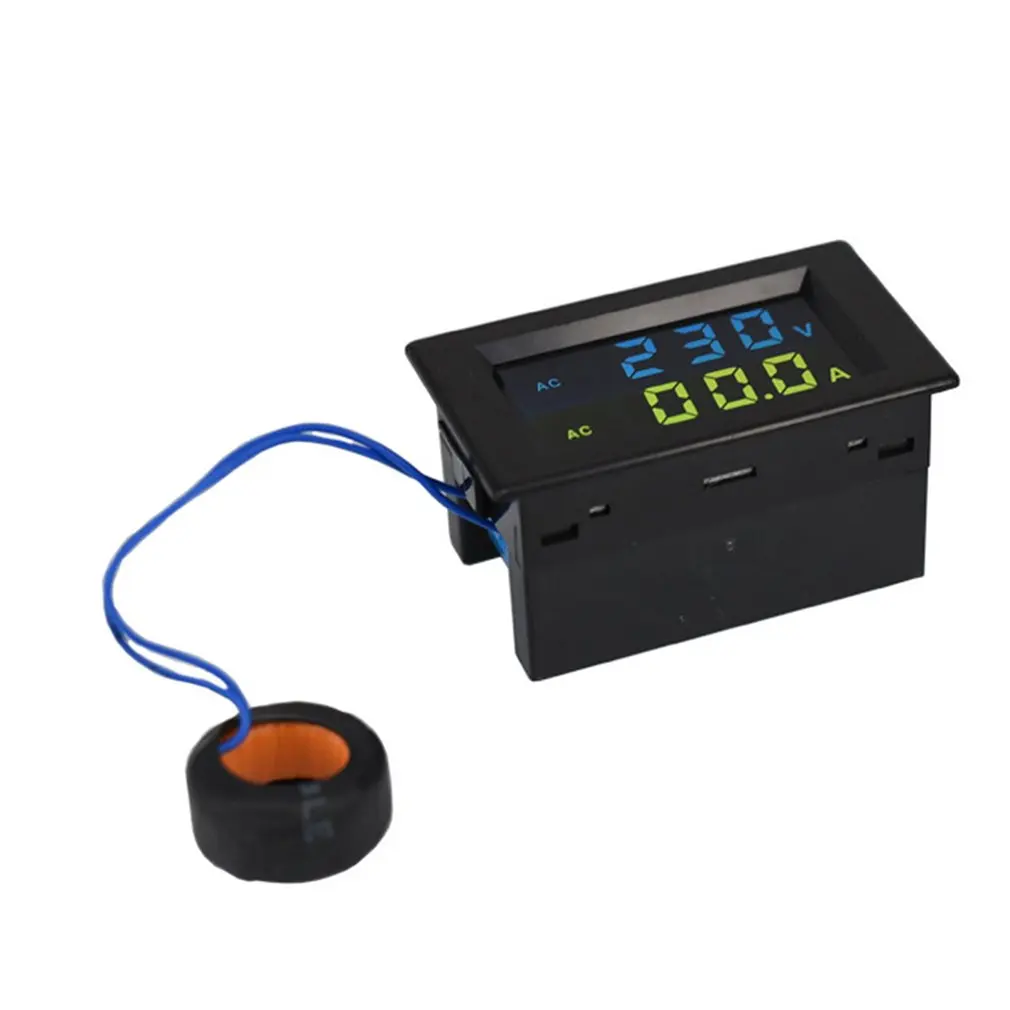

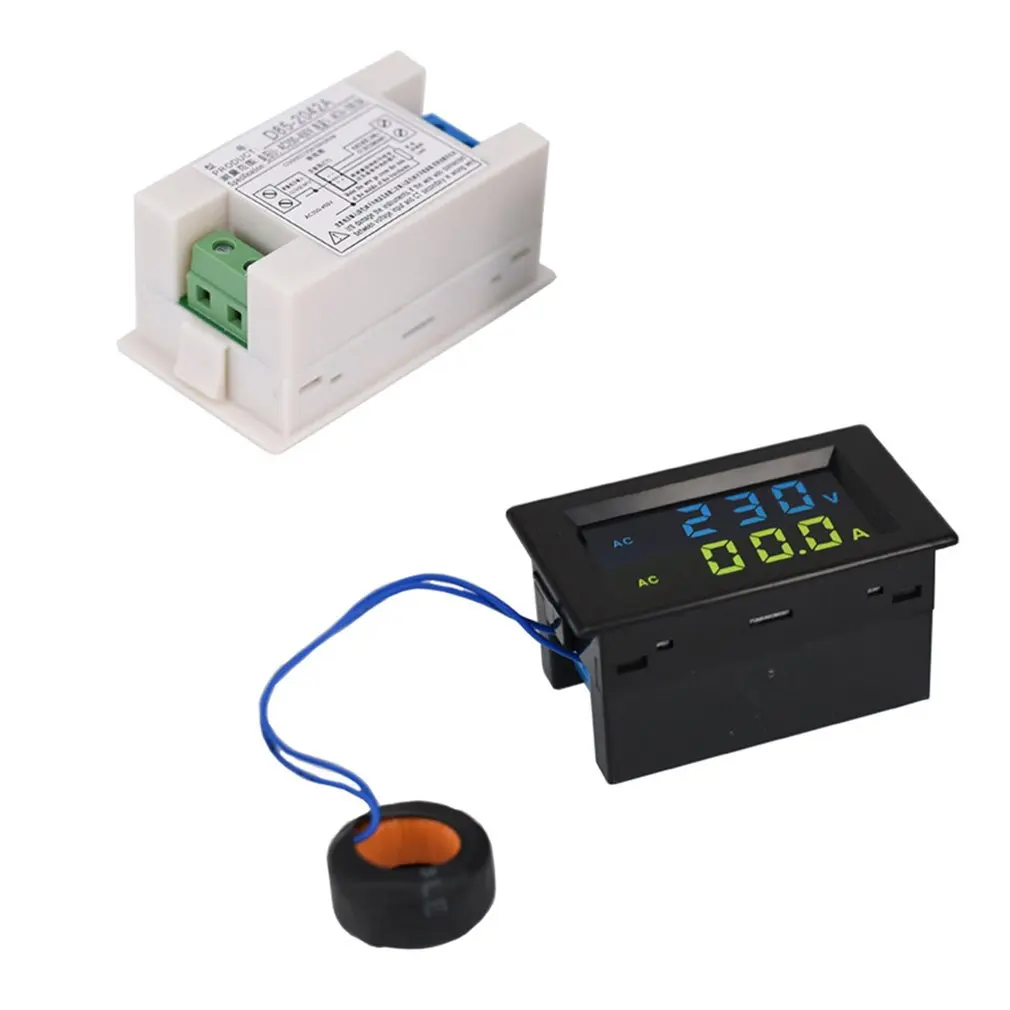

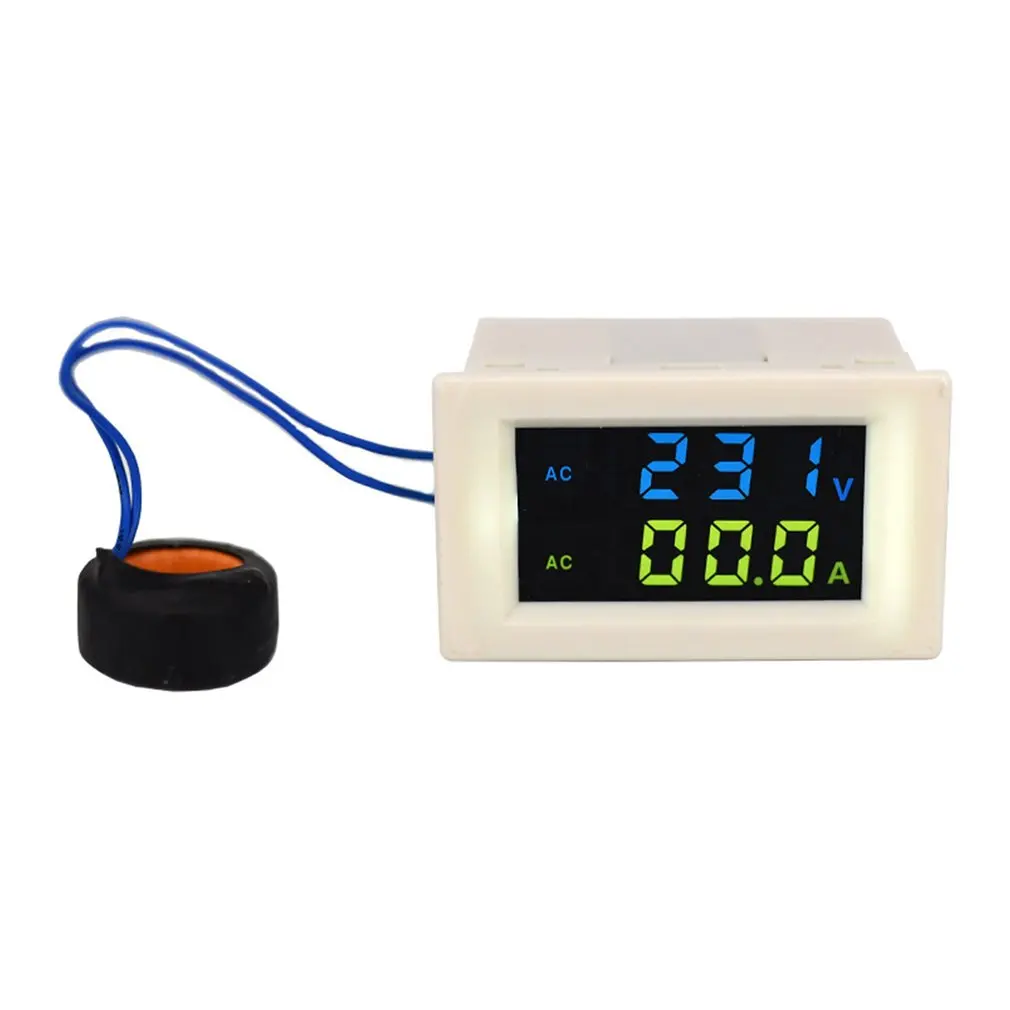

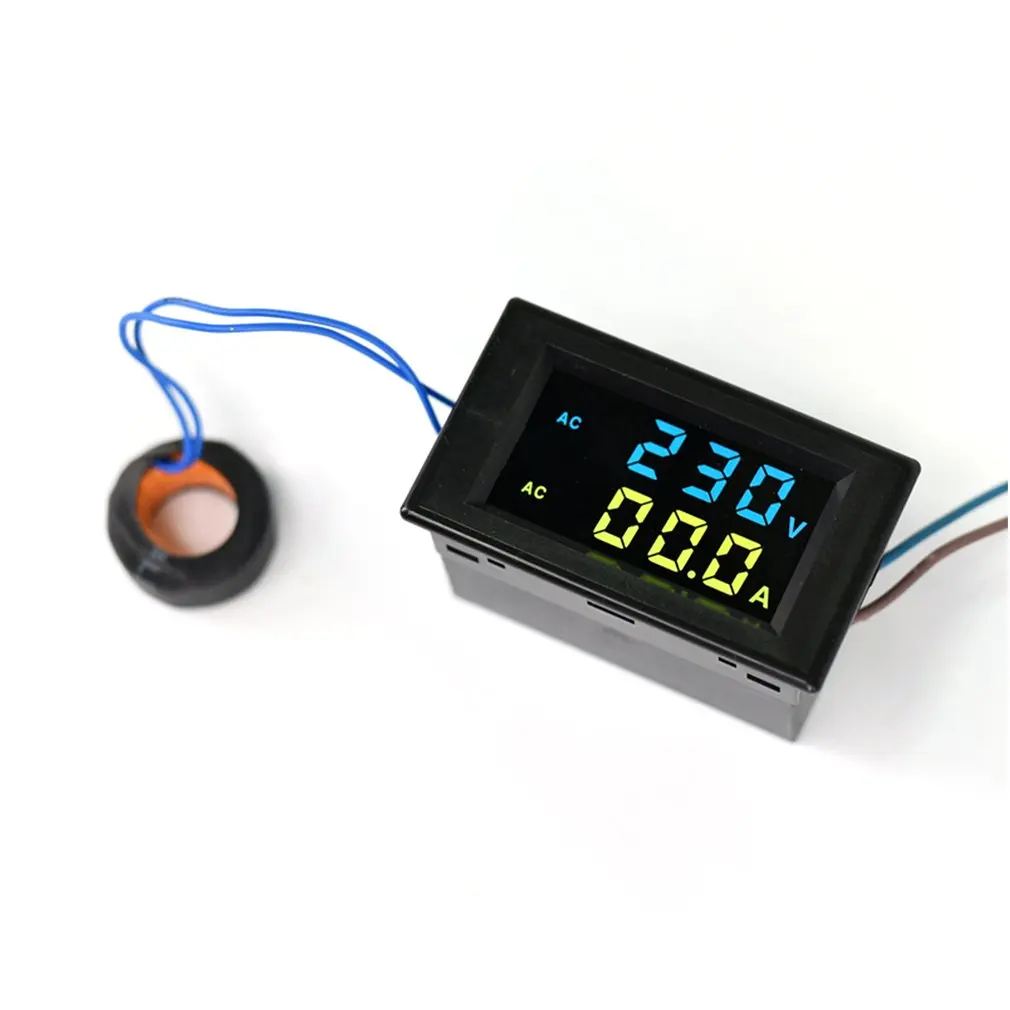

D85-2042A Digital AC Voltage Meters 100A 80~500V Voltmeter Ammeter Current Amps Volt Meter LCD Panel Monitor 110V 250V 380V

Features:

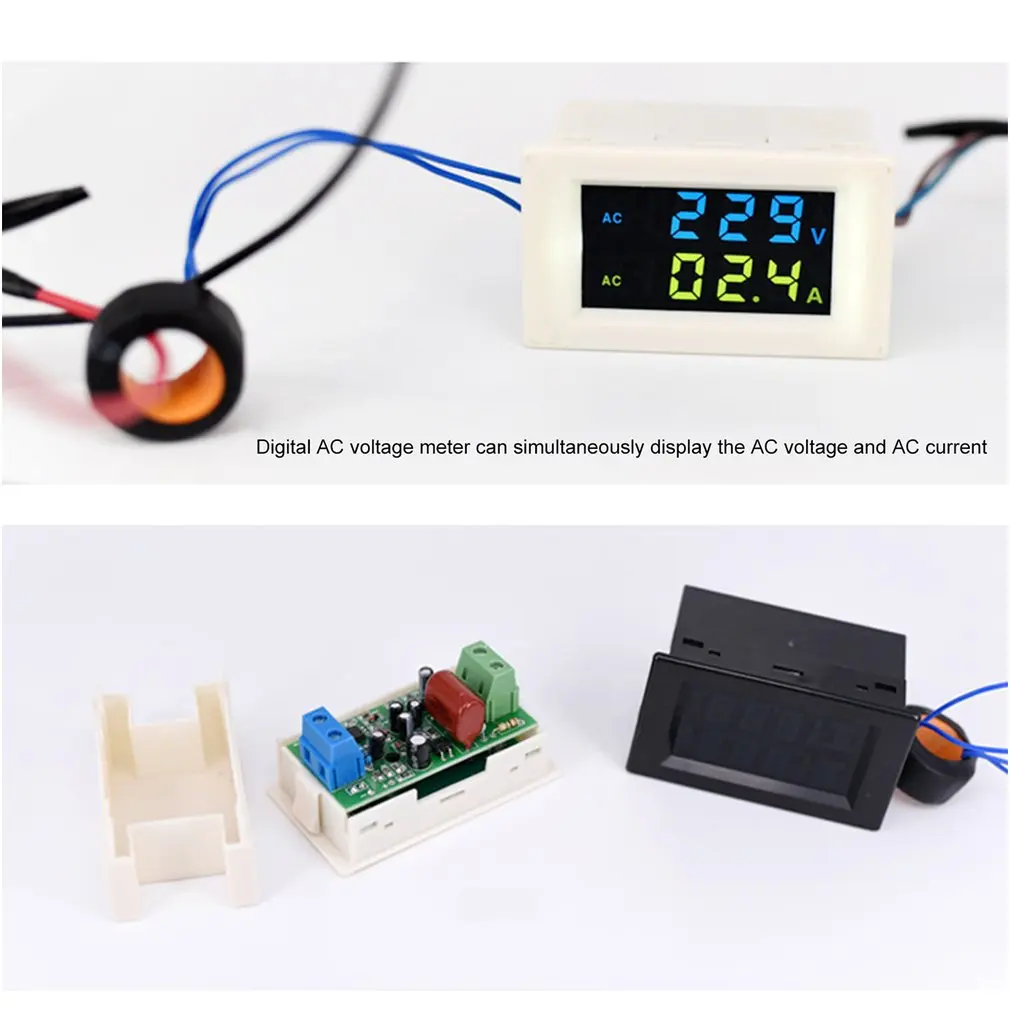

1.Digital AC voltage meter can simultaneously display the AC voltage and AC current.
2.The meter adopts colorful LCD display to show the measurement result: the yellow display measuring voltage and the blue display measuring current.
3.The meter needs noincreasing working power and AC transformer.
4.The meter is equipped with the precise miniature transformer, so it does not need to purchase separately.

Descriptions:
1.Fine workmanship and good performance.
2.Easy to read, easy to use, durable in use.

Specifications:
Model: D85-2042A
Material: Plastic+Metal
Color: Black, White(Optional)
Measurement Accuracy: 0.5% ± 2 digits
Display Screen:
Voltage Display: blue  LCD
Current Display: Green LCD
Measuring range:
AC Voltage: AC 80.0-300 V, AC 200-450 V
AC current: AC 0-100.0 A
( You can select the appropriate voltage and current range as your needs )
Measurement Speed: about 2 times per second

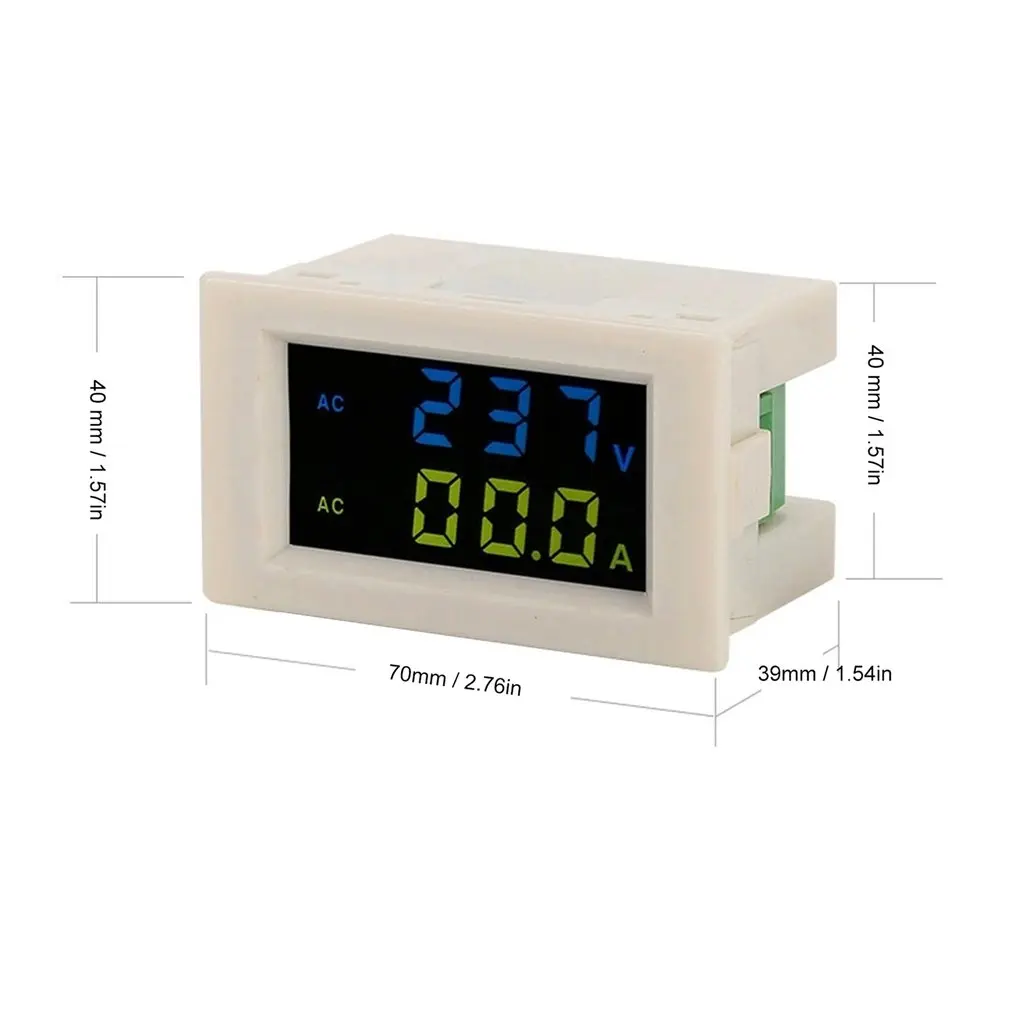

External Dimensions: about 70x39x40 mm/2.76x1.54x1.57in
Installation Size: about 68x38mm/2.68x1.50in

Package Informations:
Package Size: 60x54x40mm/2.34x2.11x1.56in
Package Weight: 85g/2.98oz
General Box Package

Package Included:
1 x D85-2042A Digital Voltmeter

Note:
1.Need to use sine wave occasion, 50/60HZ circuit,Can not be switched on and off frequently, otherwise it is easy to damage.
