Features:
1.High Performace:Frequency accuracy up to 10^(-6) magnitude, total range frequency resolution is 0.01uHz, the minimum amplitude resolution can reach 1mV, amplitude range is 2mVpp~20Vpp, duty-cycle of each channel can be adjusted independently, the adjusting resolution is 0.1%.
2.Pulse Output:With pulse trains burst output function, allow the unit output 1~1048575 arbitrary pulse trains.
3.Sweep Function:Linear sweep and logarithmic sweep functions; 0.1s-999.9s sweep time; forward, backward and roundtrip sweep directions.
4.Measurement Function:Can measure signal frequency, cycle, positive/negative pulse width and duty cycle; 1Hz~100MHz frequency range.
5.Storage Function:Can store 100 groups of parameters set by the user and extract at any time.

Descriptions:
1.60 groups of arbitrary wave storage function, memory depth of each group is 2048*14bits, with DC and AC coupling modes, counter function.
2.Arbitrary wave editing function, user can edit arbitrary wave on PC and then download to output from the instrument.
3.With output short-circuit protection, all signal output can work 60s under load short-circuit condition.

Specifications:
Model:JDS2900-60M
Sine Frequency Range:0~60MHz
Square Frequency Range:0~25MHz
Triangle Frequency Range:0~25MHz
Pulse Frequency Range:0~6MHz
TTL Digital Frequency Range:0~6MHz
Arbitrary Wave fFrequency Range:0~6MHz
Pulse Width Adjustment Range:25nS-4000S
Square Rise Time:≤10nS
Mininum Frequency Resolution:0.01µHz(0.00000001Hz)
Frequency Accuracy:±20ppm
Frequency Stability:±1ppm/3h

Waveform Characteristic:
Waveform:Sine wave, square wave, pulse wave (adjustable duty cycle, pulse width and cycle time), triangle wave, partial sine wave, CMOS wave, DC level (adjust bias to set DC magnitude), half wave, full wave, positive step wave, negative step wave, noise wave, index up, index down, sonic wave, sinc pulse, Lorentz pulse, and 60 kinds of user-defined waveforms
Waveform Length:2048 points
Waveform Sampling Rate:266MSa/s
Waveform Vertical Resolution:14 bits
Sine:
Harmonic Suppression:≥45dBc(<1MHz); ≥40dBc(1MHz~20MHz)
Total Harmonic Distortion:<0.8%(20Hz~20kHz,0dBm)
Square Wave/Pulse Wave:
Overshoot:≤5%
Pulse Wave:
Duty Ratio Adjustment Range:0.1%~99.9%
Partial Sine Wave:
Duty Ratio Adjustment Range:0.1%~99.9%
Sawtooth Wave:
Linearity:≥98%(0.01Hz~10kHz)

Output:
Sine Wave Amplitude Range:
Frequency ≤10MHz:2mVpp~20Vpp
10MHz≤Frequency≤30MHz :2mVpp~10Vpp
30MHz≤Frequency:2mVpp~5Vpp
Square/Triangle Wave Amplitude Range:
Frequency ≤10MHz:2mVpp~20Vpp
10MHz≤Frequency≤25MHz:2mVpp~5Vpp
Amplitude Resolution:1mV
Amplitude Stability:±0.5%/5hours
Amplitude Flatness:±5%(<10MHz); ±10%(>10MHz)

Waveform Output:
Output Impedance:50Ω±10% (typical)
Protecting:All signal output can be work under load short circuit conditions within 60

DC Bias:
Bias Adjusting Range:
Output Amplitude > 2V:-9.99V~9.99V
0.2V0Bias Resolution:0.01V

Phase:
Phase Adjusting Range:0~359.9°
Phase Resolution:0.1°

TTL/CMOS Output:
Low Level:<0.3V
High Level:1V~10V
Level Up/Down Time:≤20ns

External Measurement Function:
Frequency Meter Function:
Frequency Measurement Range:1Hz~100MHz
Measurement Accuracy:Gate time 0.01S~10S continuous adjustment
Counter Function:
Count Range:0-4294967295
Coupling Mode:DC and AC coupling modes
Counting Mode:Manual
Input Signal Voltage Range:2Vpp~20Vpp
Pulse Width Measurement:0.01us resolution, maximum measure 20s
Cycle Measurement:0.01us resolution, maximum measure 20s

Frequency Sweep Function:
Sweep Frequency Channel:CH1 or CH2
Frequency Sweep Type:Linear sweep, logarithm sweep
Frequency Sweep Time:0.1s~999.9s
Set Range:Starting point (0.01 Hz) and end point are set arbitrary between maximum output frequency of corresponding models
Frequency Sweep Direction:Forward, Reverse, Back and Forth

Burst Function:
Pulse Number:1-1048575
Burst Mode:Manual burst, CH2 burst, external burst (AC), external burst (DC)

General Technical Specifications:
Display Type:2.4 inch TFT color LCD display
Storage and Loading:
Quantity:100 groups
Location:00 to 99 (power on default 00 storage location parameters)
Arbitrary Wave Quantity:1 to 60, a total of 60 groups (power on default 15 groups)

Interface:
Interface Mode:USB to serial interface
Extended Interface:Serial Port with TTL Level Mode for User's Secondary Development
Communication Rate:Standard 115 200 BPS
Communication Protocol:Using command line mode, protocol disclosure
Voltage Range:DC 5V + 0.5V
Manufacturing Process:Surface mounting process, large scale integrated circuit, high reliability, long service life
Tip:Users can turn on or off through program settings
Operating Characteristics:All key operation, knob continuous adjustment
Environmental Conditions:Temperature (0-40 C), Humidity (< 80%).

Type:US, EU, UK, AU(Optional)

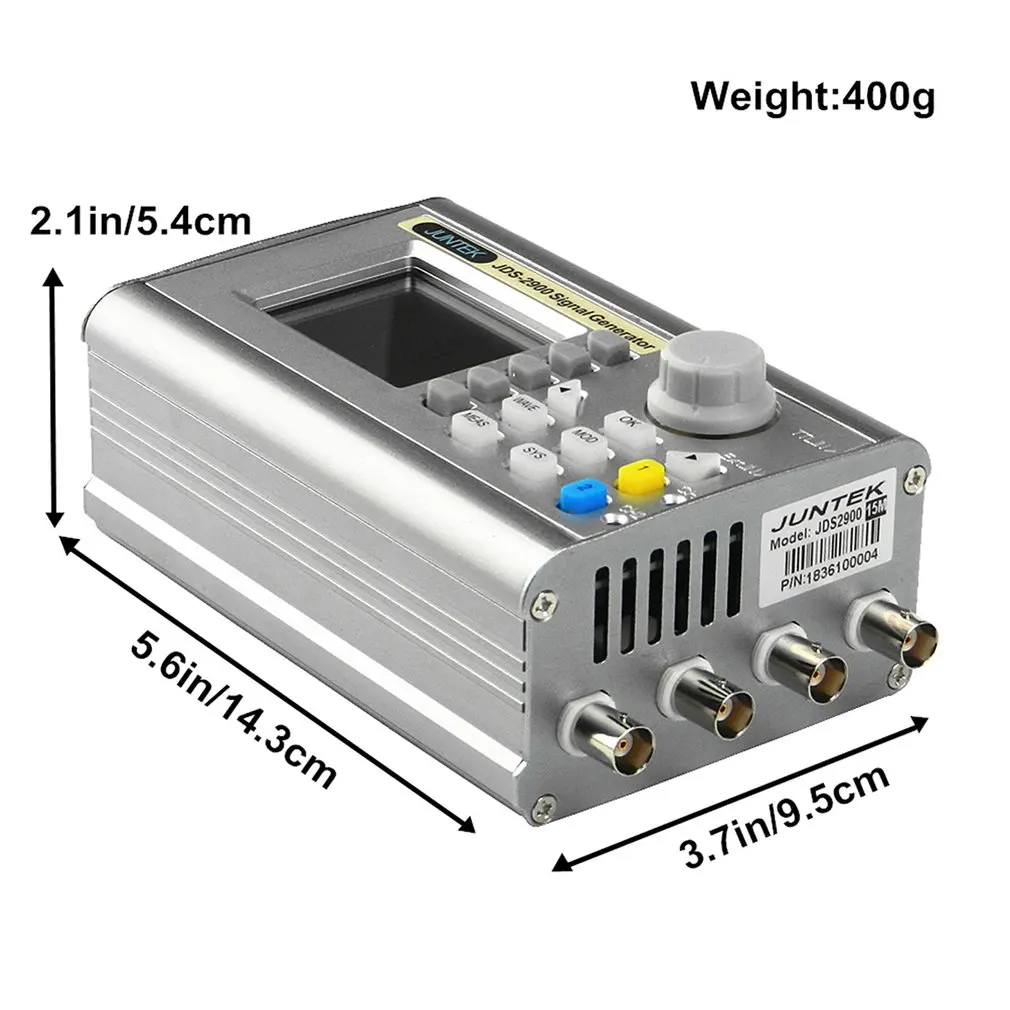

Size:143x95x54mm/5.63x3.74x2.13in
Weight:408g/14.28oz
Color:Silver

Package Information:
Package Size:210x150x75mm/8.27x5.91x2.95in
Package Weight:800g/28oz
General Package

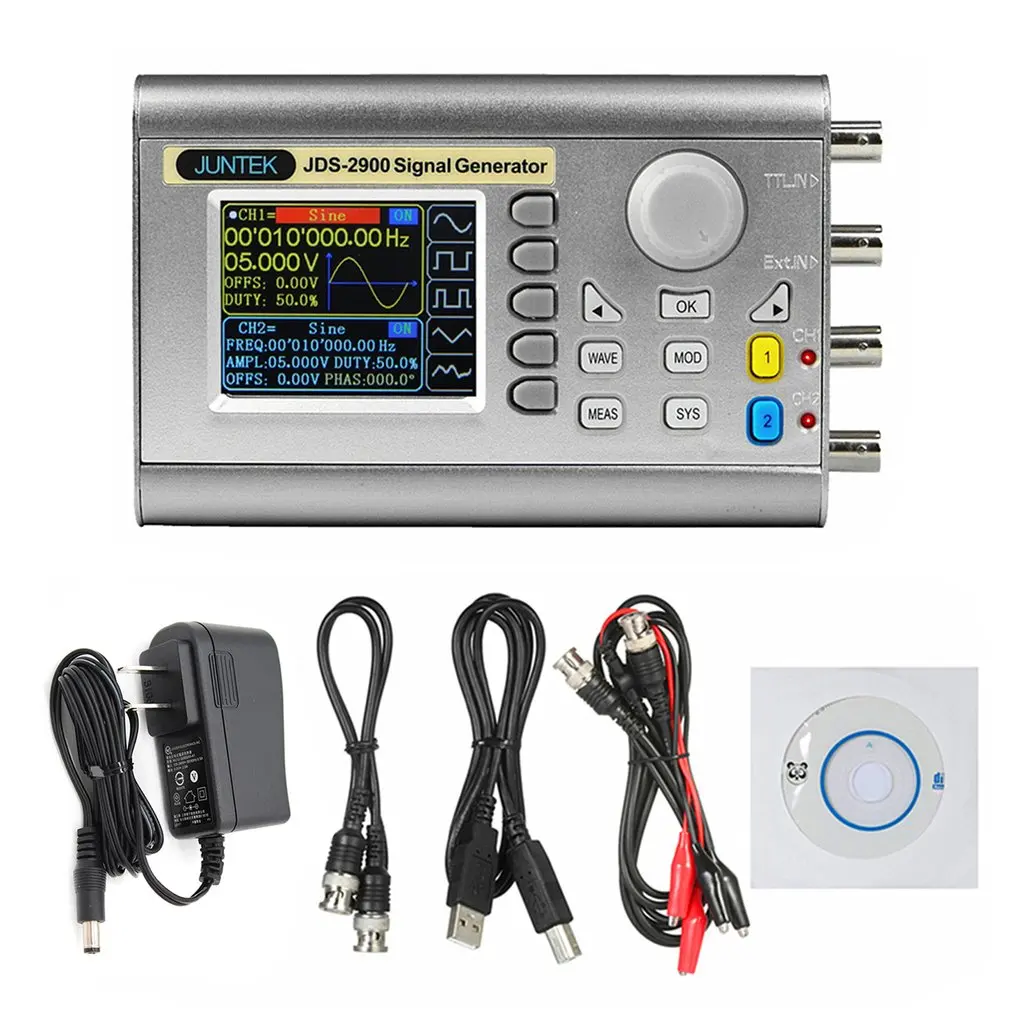

Package Included:
1 x JDS2900 Signal Generator
1 x Power Adapter
1 x USB Cable
1 x Q9-Q9 Cable
1 x Q9 Cable Clip
1 x CD
