    MOOL 12V 4CH Remote Control Switch Bluetooth Relay Module for Android Mobile Motor LED Light DIY Electronic Kit | Электроника

    Описание товара

    body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } Usage: Telecommunication
    Voltage: 5V
    Power Source: DC
    Theory: bluetooth relay

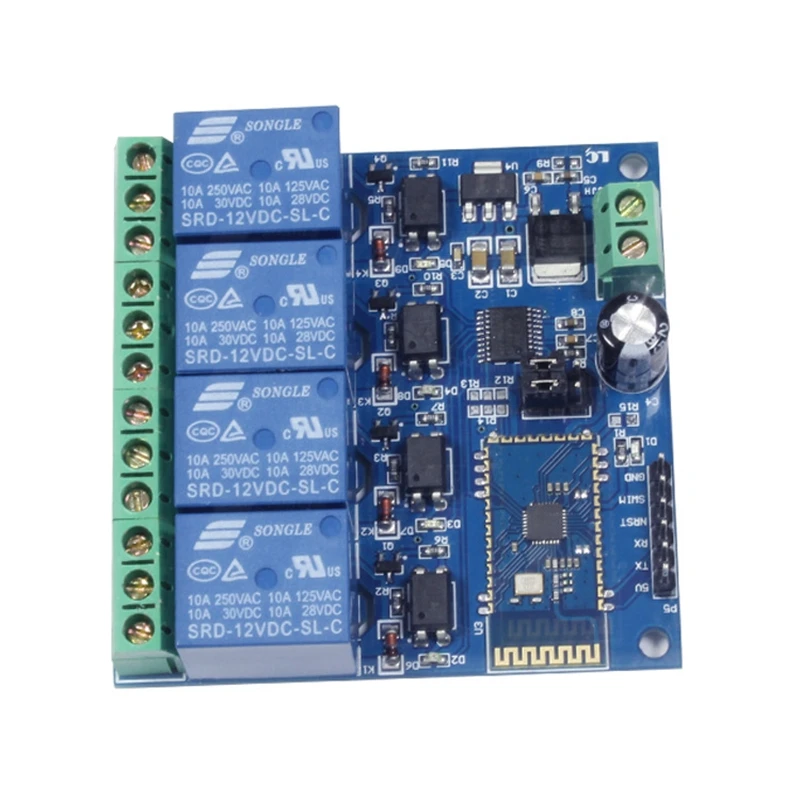

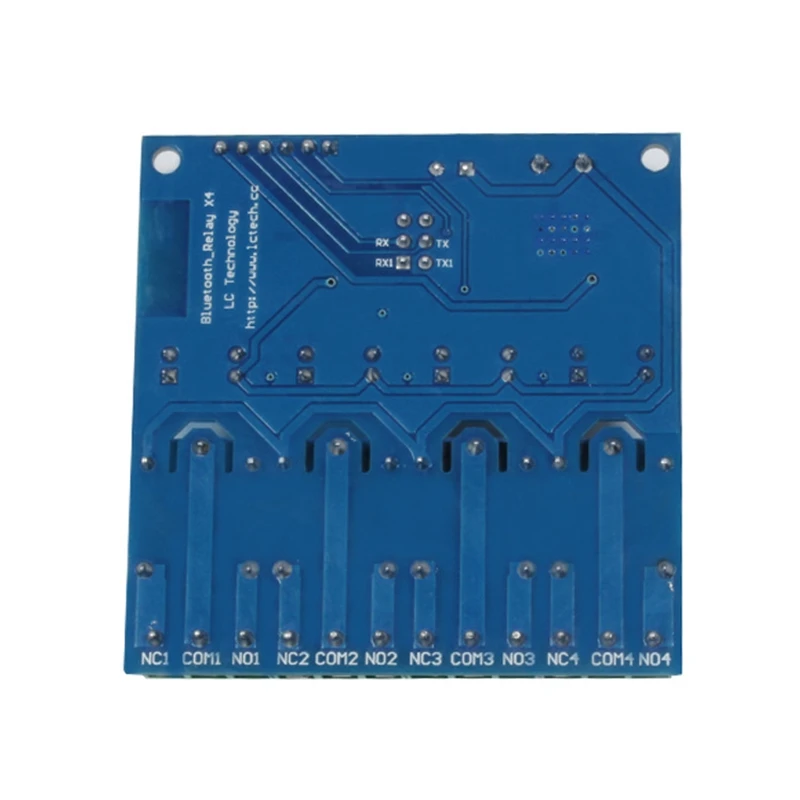

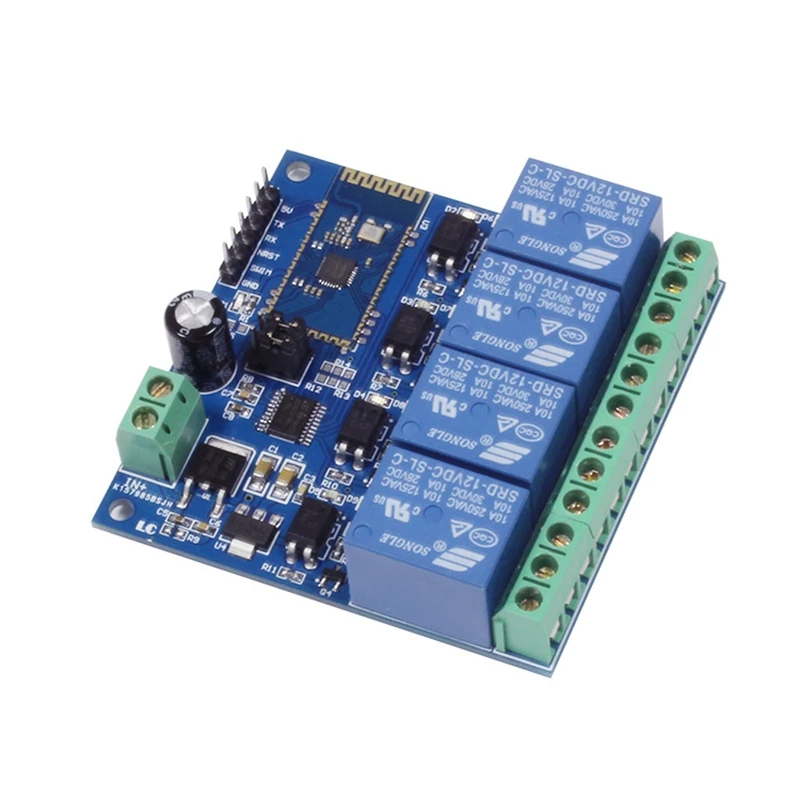

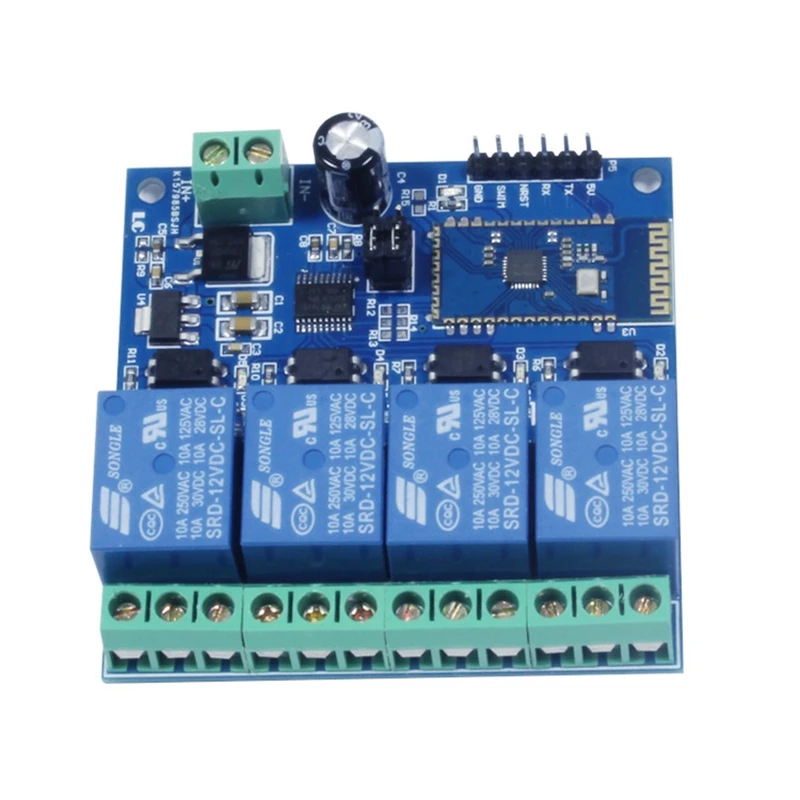

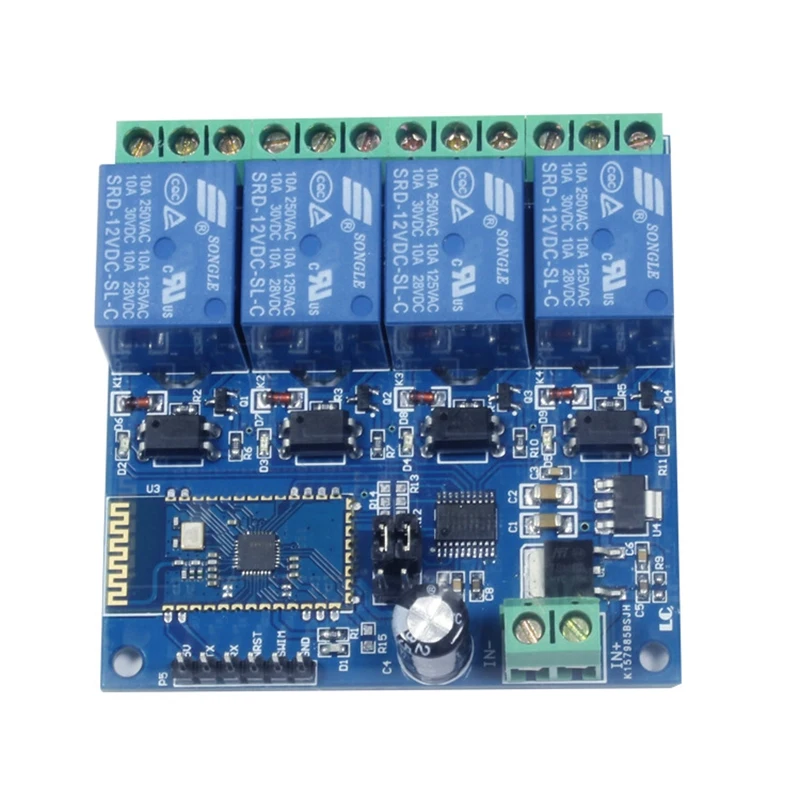

    LC 12V Bluetooth 4-channel relay module equip with SPP-C Bluetooth 2.1 slave module and 8 bit high performance MCU, you can control the relay with cellphone APP directly.
    Protect Feature: Epoxy
    Contact Load: Low Power
    Model Number: bluetooth relay module
    The function and characteristics:
    1, On-board N76E003/STM8S003 and SPP-C Bluetooth 2.1 module
    2, The relay can be controlled with APP
    3, Effective control distance(on open area): 10m
    4, Power supply: 12V
    5, On-board 12V, 10 A / 250 v AC 10 A / 30 v DC relay, absorb 100000 times
    continuously, Module with diode effusion protection, short response time
    6, On-board optocoupler isolation components, anti-interference ability is strongly
    7, On-board Bluetooth indicator and relay indicator LED
    8, On-board preserved UART debug interface(Baud rate is 9600) and MCU program interface
    Interface:
    IN+, IN-: 12V power input
    TX, RX: UART communication
    SWIM, NRST: MCU program interface
    LED D2/D3/D4/D5(red): Relay indicator
    LED D1(blue): Bluetooth state indicator, the description of D1 as below:
    (1)It's means wait for establishing connection with the APP when D1 blink slowly
    (2)It's means the Bluetooth connect with the APP successfully when D1 on all the time
    colour:blue
    Material:PCB

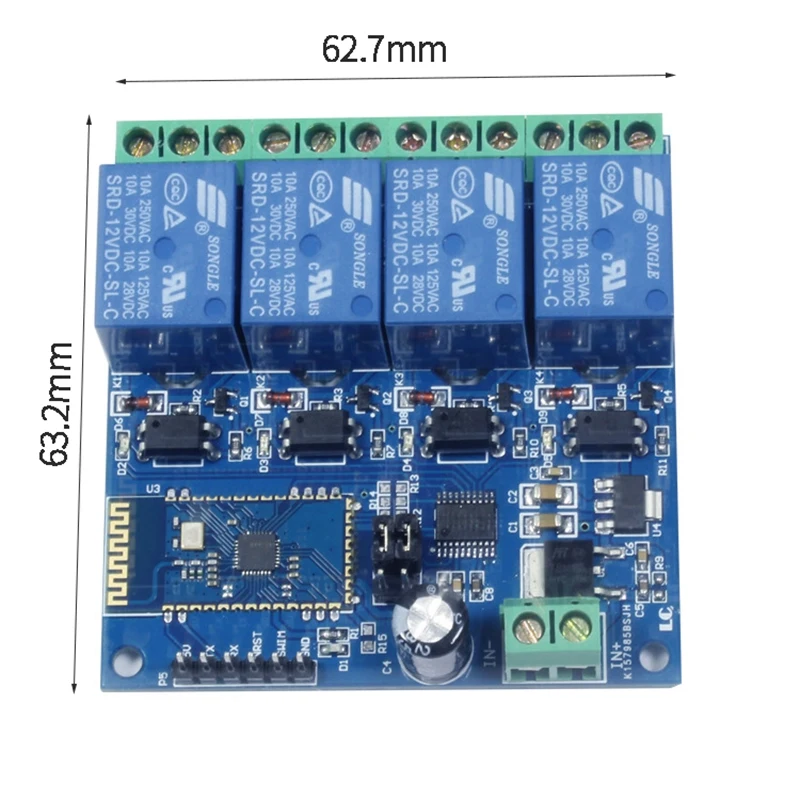

    size:62.7*63.2mm
    Package Contents:
    1 * 12V 4CH Remote Control Switch Module
    Only the above package content, other products are not included.
    Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
