Lexia 3 PP2000 полный чип Diagbox V9.68 921815C Lexia3 V48/V25 OBD2 сканер для Citroen Peugeot OBDII Авто

Note！！！

1.PP2000 and Lexia3 softare only be installed in Windows XP，Diagboxsoftware ：suggest to installed in Windows7 32bits and XP，not support 64 bits

2.PP2000 and LEXIA 3 can’t be installed in Same PC with Diagbox，because Diagbox include PP2000 and LEXIA3

3.Pleaseclose the netbefore installation

4.Better toclose the Anti-virus softwareon your computer. Because the Anti-virus may recognize it as a type of virus, it will clear off all the software on the CD

5.Please setup the software according to the requirements to hardware and software. Otherwise it will fail to setup and bring you much trouble.

6.if you need software V9.68 download link,please contact us

Password:

Diagbox V7.XX to V7.76: scary01

Diagbox V7.76 to V7.82: Maitresox01

Diagbox V7.82 to V7.83: Very Simple!

Lexia-3 Interface works with both for Citroen and for Peugeot.

1.Lexia-3 PP2000 can work for most of Citroen and Peugeot cars from 1995，not all

2. It supports read identification, read fault codes, clear fault codes, auto-scan etc. New version supports for Peugeot 307

For Ci-troen :

C-Zero/ C1/ C2/ C3/ C3 PICASSO/ DS3/ C-ELYSEE/ C4/ C4 CACTUS/ C4 PICASSO/ DS4/ DS 5LS/

C5/ DS5 /C6 / C8/ C-CROSSER/ C4 AIRCROSS/ NEMO/ BERLINGO/ JUMPY/ JUMPER/ AX/ SAXO/

BX/ ZX/ XSARA/ XANTIA/ XM/ EVASION/ C15/ FUKANGFUKANG 988/ ELYSEE/ C-ELYSEE(R3)/ C-

TRIOMPHE/ C-QUATRE

iON/ 107/ 108 /206 207/ 207+/ 280/ 301/ HOGGAR/ 307/ 308/ RCZ/ 407/ 408/ 508/ 607/ 807/

1007/ 2008/ 3008/ 4007/ 4008/ 5008/ BIPPER/ PARTNER/ EXPERT/ 106/ 205/ 306/ 309/ 405/

406/ 605/ 806

Top 7 Reasons to Get Lexia3 XS Evolution with Original Chip:

1. Update: By CD

2. Support Multi-Language: English, German, French, Japanese, Russian, Spanish, Portuguese, Swedish, Turkish, Dutch, Polish, Italian, Hungary, Greek, Czech

3. It works for both for Citroen and for Peugeot. Now support for Peugeot 307!

4. Version: Lexia3 V48, PP2000 V25, Diagbox V9.68/V7.83

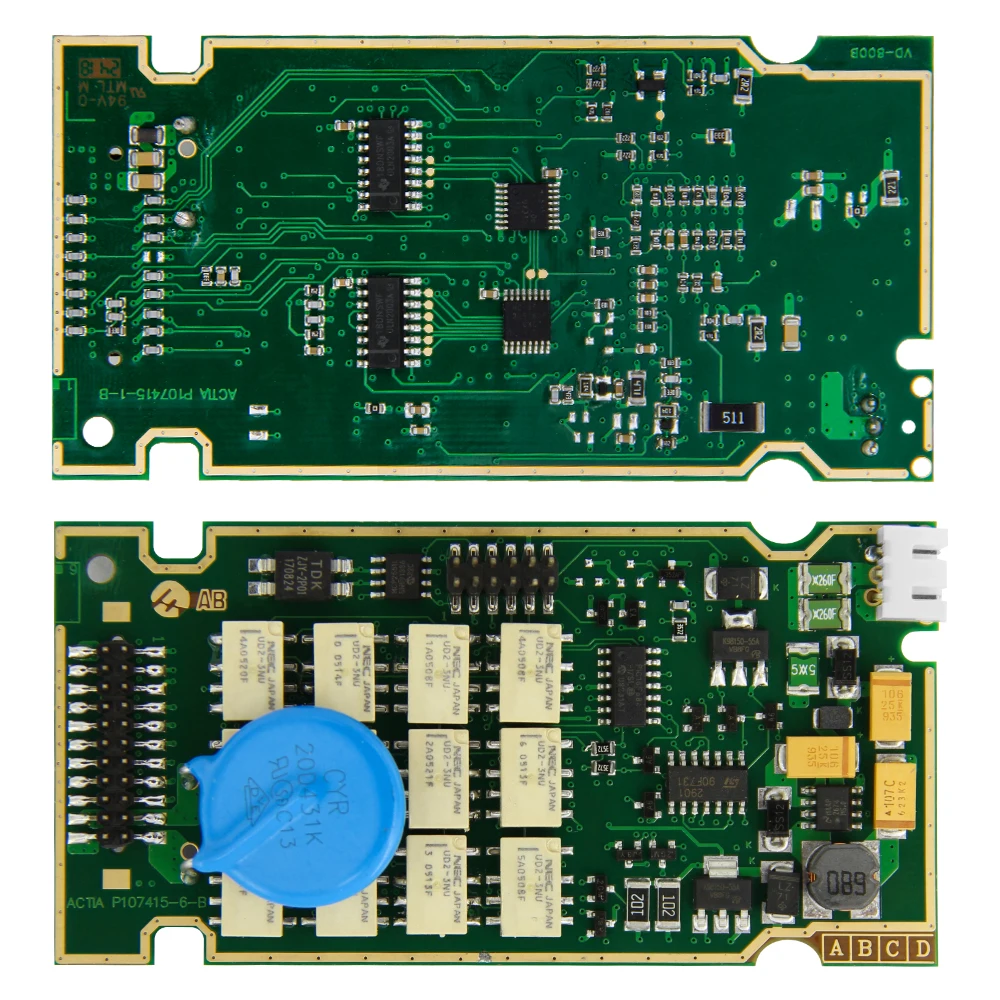

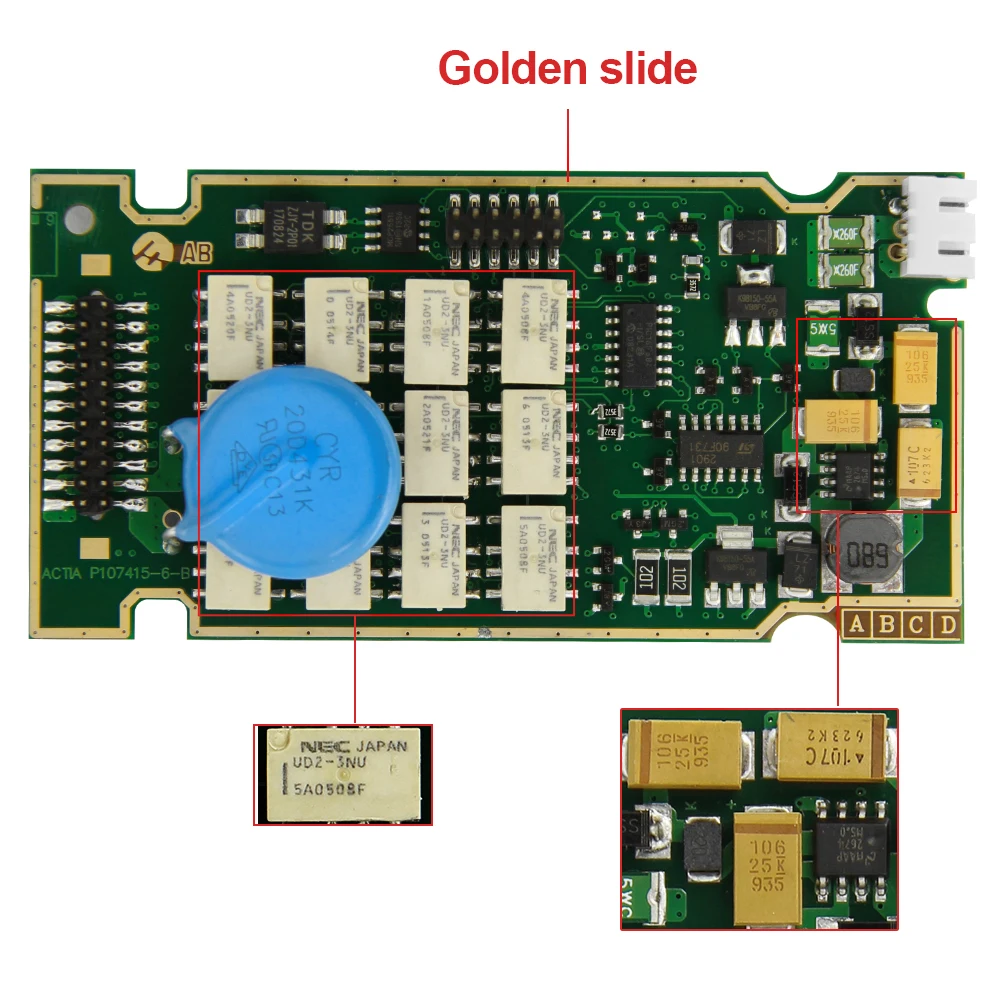

5. Lexia-3 PCB edge is golden with full chips.Double PCB has 7pcs optocouplers, which are new.

6. lexia-3 relays are 12pcs, which are 4.5V, it is more stable.

7. PP2000 have 2pcs Optocouplers

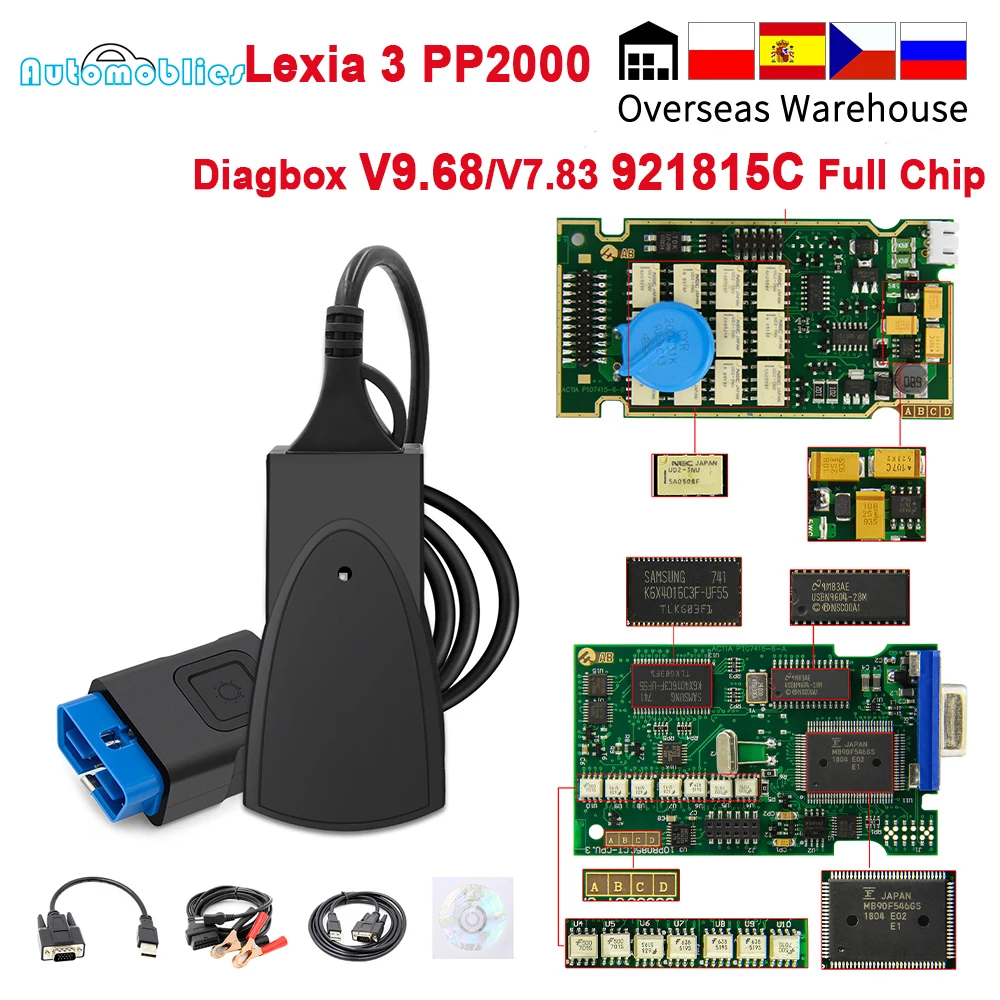

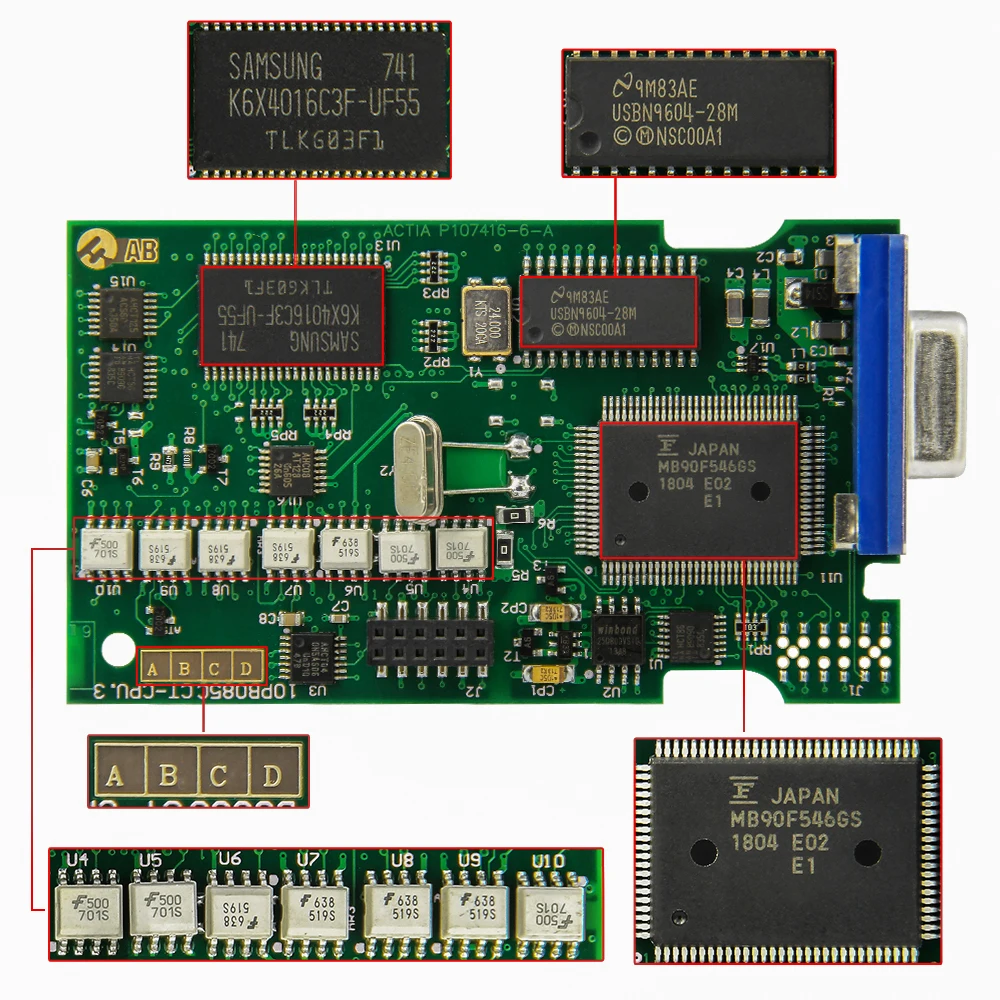

PP2000 Full Chip Display：

Part of Software Display:

LEXIA-3 PP2000 Function:

Unlike other universal car scanner tools which only read fault codes; this software performs nearly ALL the functions like the original dealer diagnostic tool. Our diagnostic interface contains K-Line multiplexor, CAN-BUS interfaces and SAE J1850 bus (both PWM and VPW).

1.Read Identification

Displays complete identification of control unit, e.g. part number, software/hardware version, manufacturer, etc...

2. Read Fault Codes

Displays all stored and pending fault codes with complete description (e.g. "Rail pressure - too low pressure").

Program supports report printing or copy to clipboard.

3. Clear Fault Codes

this function clears all stored fault codes and other diagnostic information.

4. Auto-Scan (Complete Car Scan/Test)

Detects all ECUs (electronic control units) installed in car and reads all diagnostic fault codes.

5. Measured Values

Program displays live Data like Engine Speed, Battery voltage, Oxygen Sensor, Coolant Temperature, etc. Values can be displayed in graph, 9 values at once, or full listing (all measured values). Logging to file is also supported, which allows offline analysis.

6. Actuator Test

Actuator test activates particular actuator (e.g. turn on fuel pump, lock/unlock wheel, lock/unlock doors, cut off fuel, etc..)

FAQ:

Q1.Is there any new car models which new lexia-3 software can do?

A1: Yes, the Lexia-3 For Citroen/Peugeot Diagnostic PP2000 adds some new cars as follows:

For Peugeout Bipper

For Peugeout Boxer III

For Peugeout Boxer III minibus

For Citroen Nemo

For Citroen Jumper III

For Citroen Jumper III minibus

Q2: Does Lexia test the tire pressure?

A2: If your car has Tire pressure control unit, lexia-3 can test the tire pressure.

Q3: Does Lexia-3 work for Peugeot 308?

A3: Yes, it does, but which year of your for Peugeot 308? Lexia-3 PP2000 works for Peugeot 308 from 1996 to 2008.

Q4: I have installed it on windows 7 system, but it cannot work, what is the problem?

A4: It can only be installed on XP system; you need to change another computer with XP system.

Q5: Is PP2000 compatible for Peugeot 307 HDI?

A5: PP2000 work for Peugeot 307, but it is not compatible with Hybrid Diesel,For Peugeot only with the gasoline car.

Q6: Can Lexia-3 PP2000 (item NO. SP08-C) work for Peugeot 407 2005, after installthe NEW DPF, can I reset DPF counter? After Eolys is full,can I reset Eolys counter?

A6: PP2000 supports for Peugeot 407 2005, but the DPF and Eolys are truck or dieselcar systems, we haven’t tested it.

Q7: Would you please store the software lexia3 pp2000 and diagbox V7.83 in one CD?

A7: No, they are not allowed to store in one CD, they have to be stored them in twodifferent CD, otherwise the software installation will get errors.

LEXIA-3/PP2000 Package List:

1pc x Main unit with extension OBD2 cable

1pc x Long 9pin to USB cable

1pc x Short 9pin to USB cable

1pc x OBD2 cable

1pc x Instruction for Installation and Activation DVD for PP2000
