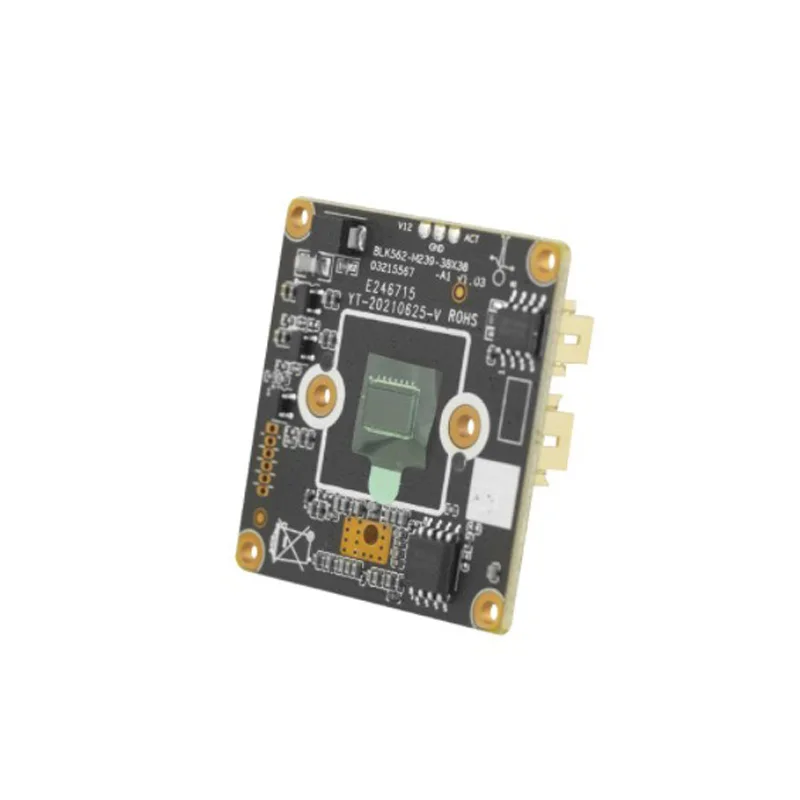

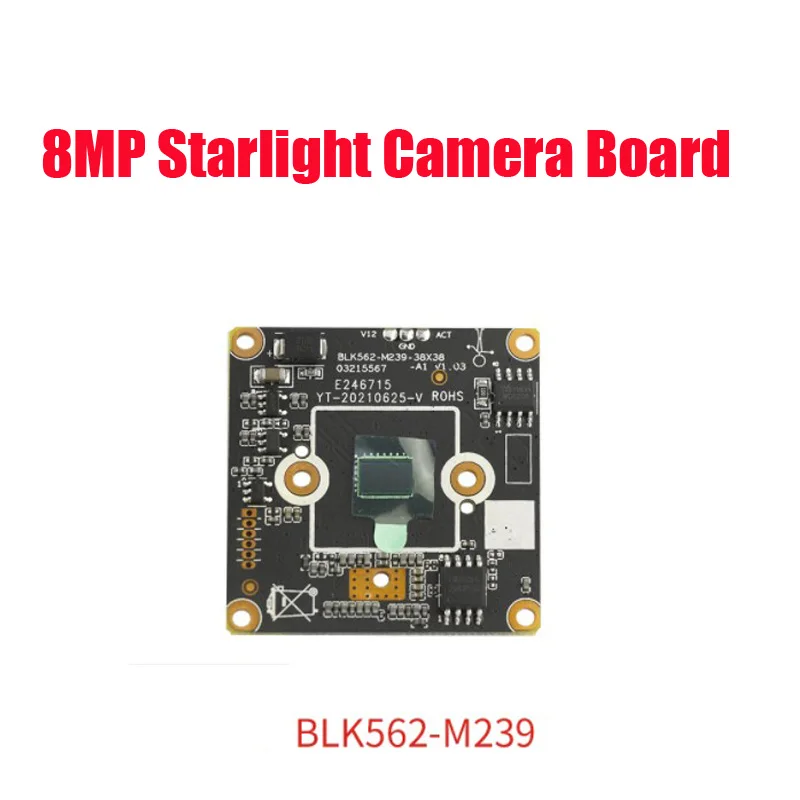

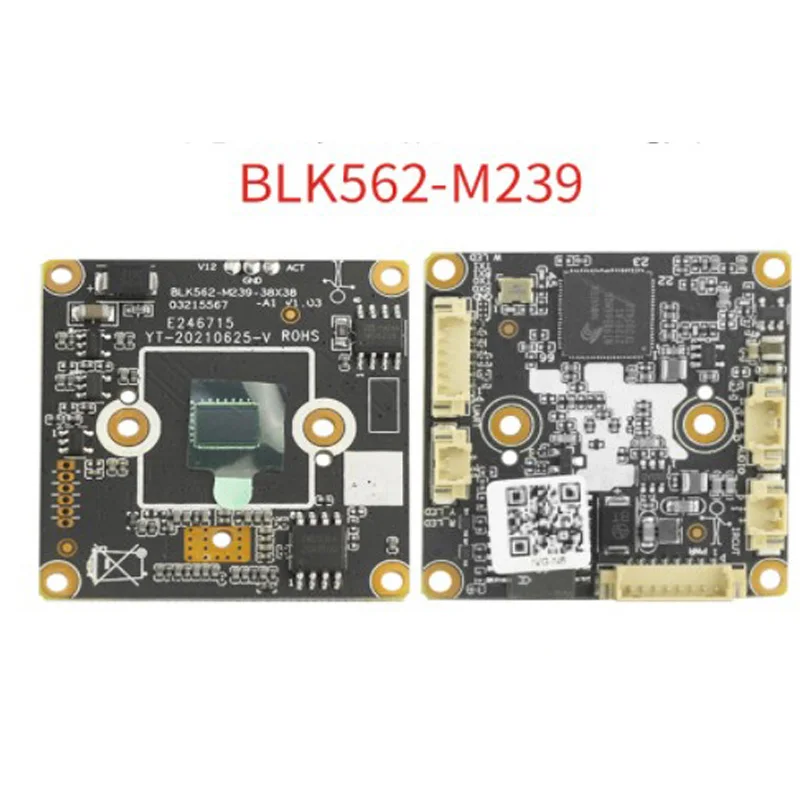

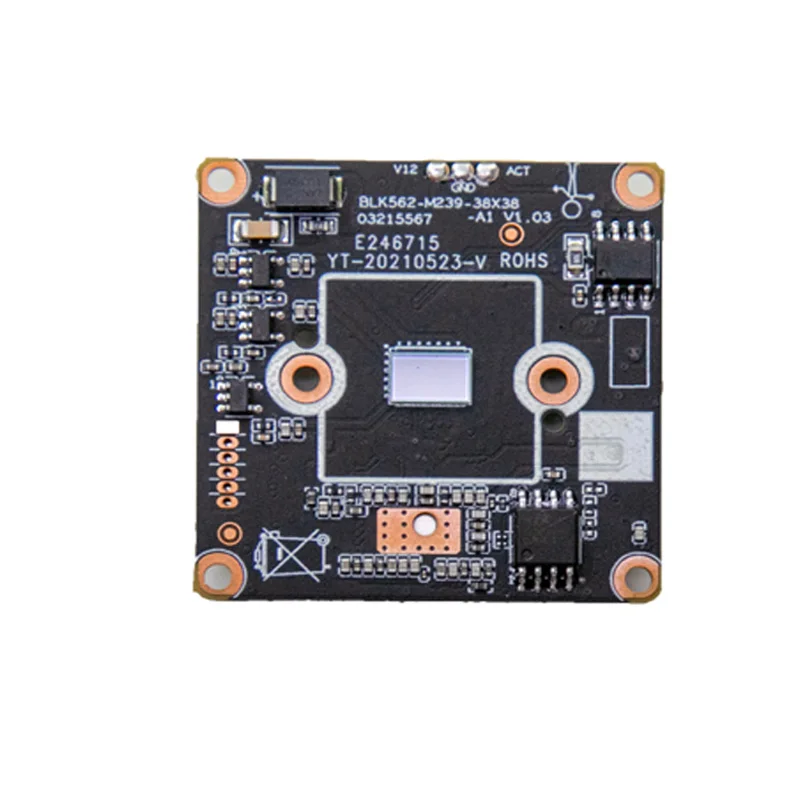

8MP IP Camera Board HD H.265 Starlight Intelligent Analysis 3840*2160Pixel 1/2.7" Network Module | Безопасность и защита

8MP IP Camera Board HD H.265 Starlight Intelligent Analysis 3840*2160Pixel 1/2.7" Network Module | Безопасность и защита

Feature:

Support face detection, human shape detection, support customization of other intelligent functions;

8.0MP resolution, low illumination, clear and delicate images;

Support 2D/3D noise reduction, digital wide dynamic function;

Advanced H.265AI/H.265+ (compatible with H.265/H.264) video compression technology, ultra-low bit rate, high-definition picture quality;

Lightning protection, in line with national standard GB/T17626.5, international standard IEC61000-4-5;

Support ONVIF protocol, can access third-party back-end/platform, support mobile phone monitoring (iOS, android);

Support Web terminal, CMS, central management platform software MYEYE, provide SDK development;

Support multiple cloud technologies, realize network penetration, front and back end docking, push alarm information to mobile phones and other functions;

Model

IVG-83H80NV-BE

System structure

Embedded RTOS,dual-core 32bit DSP(NT98566),pure hard compression ,watch dog

Sensor

8.0M 1/2.7" SC8239 low illumination CMOS sensor ,color 0.01Lux@F1.2,black/white 0.001Lux@F1.2

Video compression

H.265++/H.265+/H.265/H.264 support dual stream,AVI;0.1M~10Mpbs variable

Image output

Main stream: 8M 3840*2160@15fps；5M 2880*1616@25fps；4M 2560*1440@25fps；3MP 2304*1296@25fps；2MP 1920*1080@25fps

Shutter

1/50(1/60)s to 1/10,000s

Lens

N/A

Day and night

Support IR-CUT

Noise reduction

Support 2D/3D

Wide dynamic

Support digital

Auto iris

N/A

Audio compression

G.711,support bidrectional talk,audio&video synchronization

Audio interface

1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone

Network interface

1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc

Extension interface

none

Singal interface

One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR

PTZ

N/A

Motor interface

N/A

Alarm I/O

N/A

WIFI interface

N/A

Reset interface

N/A

SD Card

N/A

Reliability

Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing

Intelligence analysis

Alarm line,alarm region,goods stranded,video block,fuzzy detection,scene change

Other function

Support OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK;

ONVIF

Support

Mobile monitoring

Support multiple mobile monitoring（iOS，Android）

Power

DC12V/2A input, power consumption:≤3W

Dimension

38mm*38mm

Packing list:

1xpcs camera board 1xpcs CD disk

1.View image via CMS

Step1.Install CMS on your PC and login in after select language:

 Step 2:  Add Device

2.View image via IE

LAN: direct input camera IP address in IE brower

We main explain how to view image via WAN

Step1: Get the camera serial ID number from CMS

Step 2:

Open Cloudy website: www.xmeye.net  and login via serial ID number

3. View image via Phone

3.View image via phone
